| ₹ 315.0 includes GST and import duties. | |
| B2B customers can avail ₹ 48.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

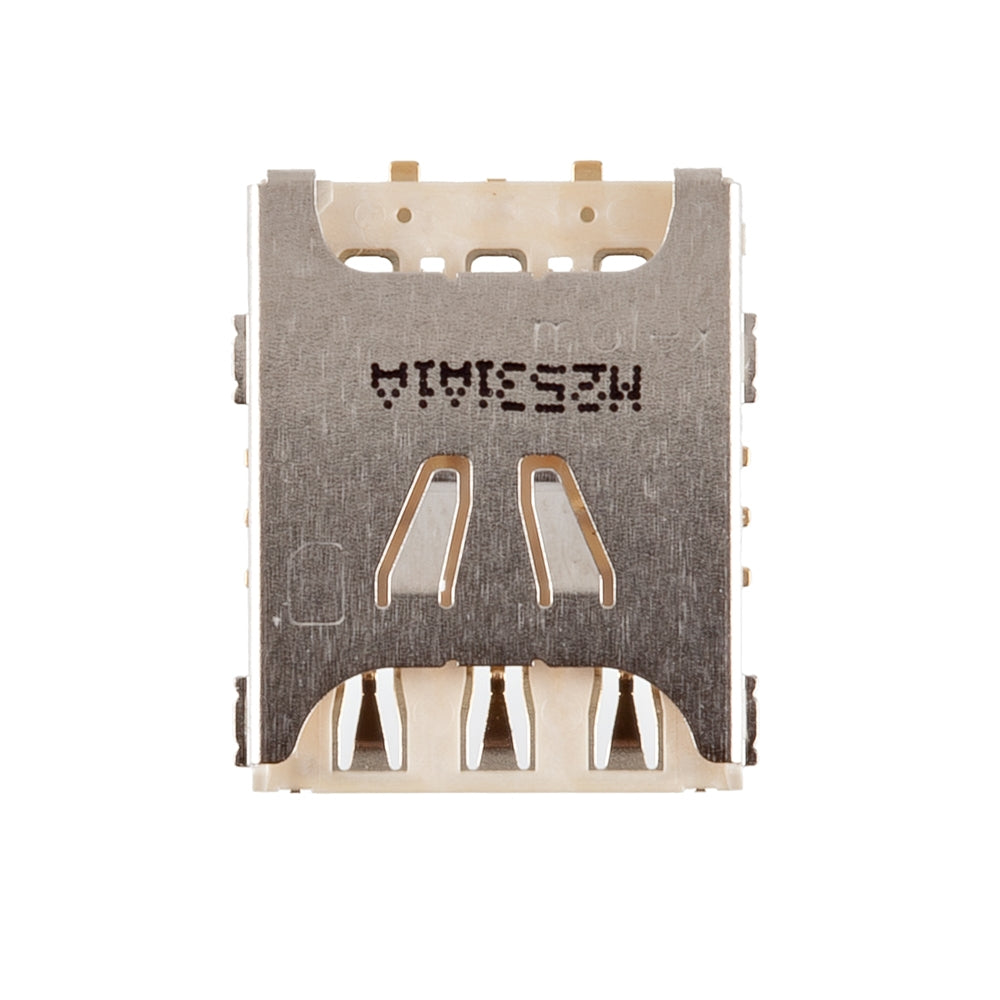

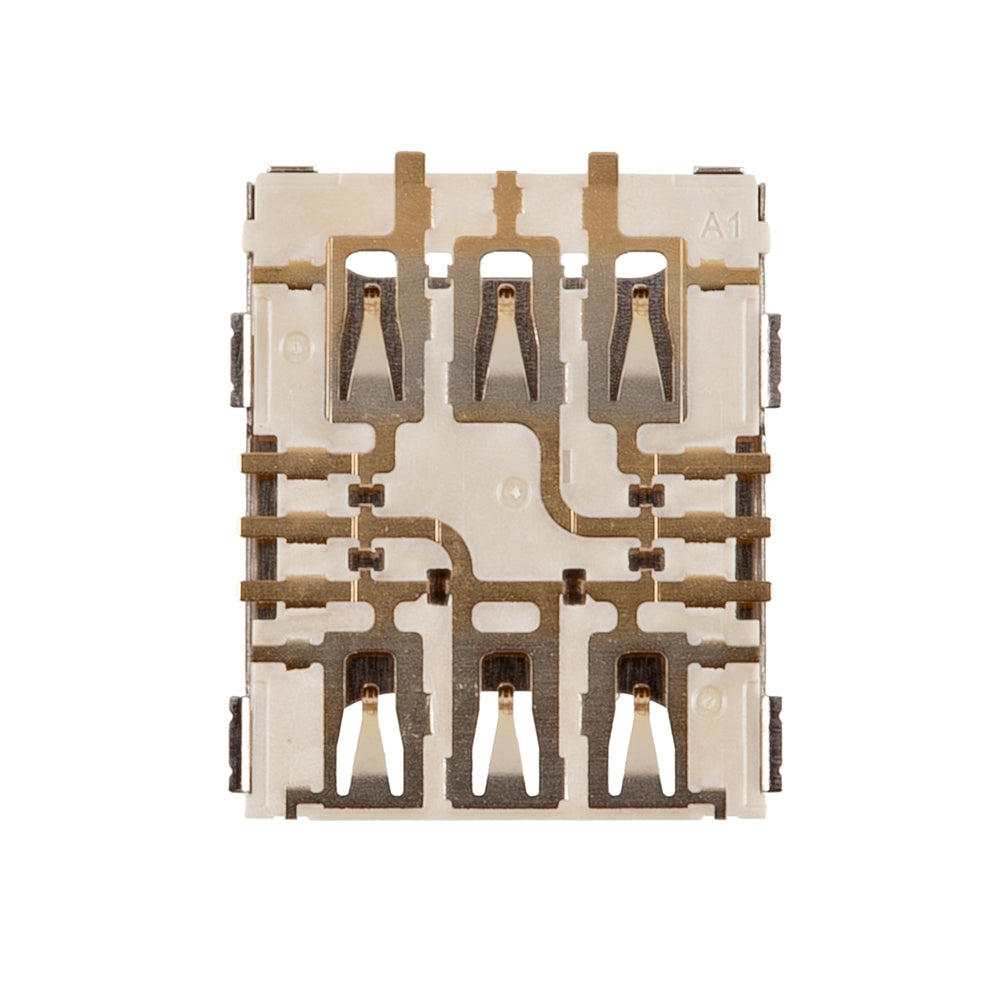

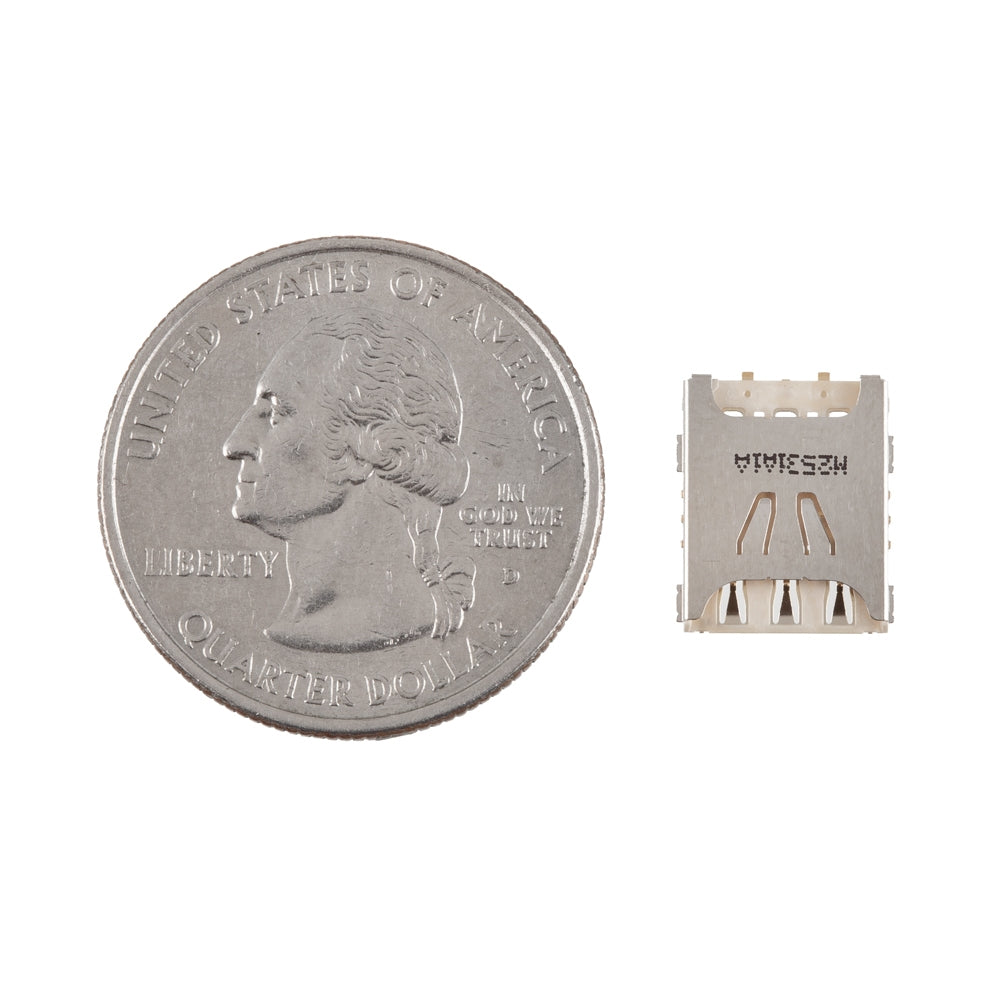

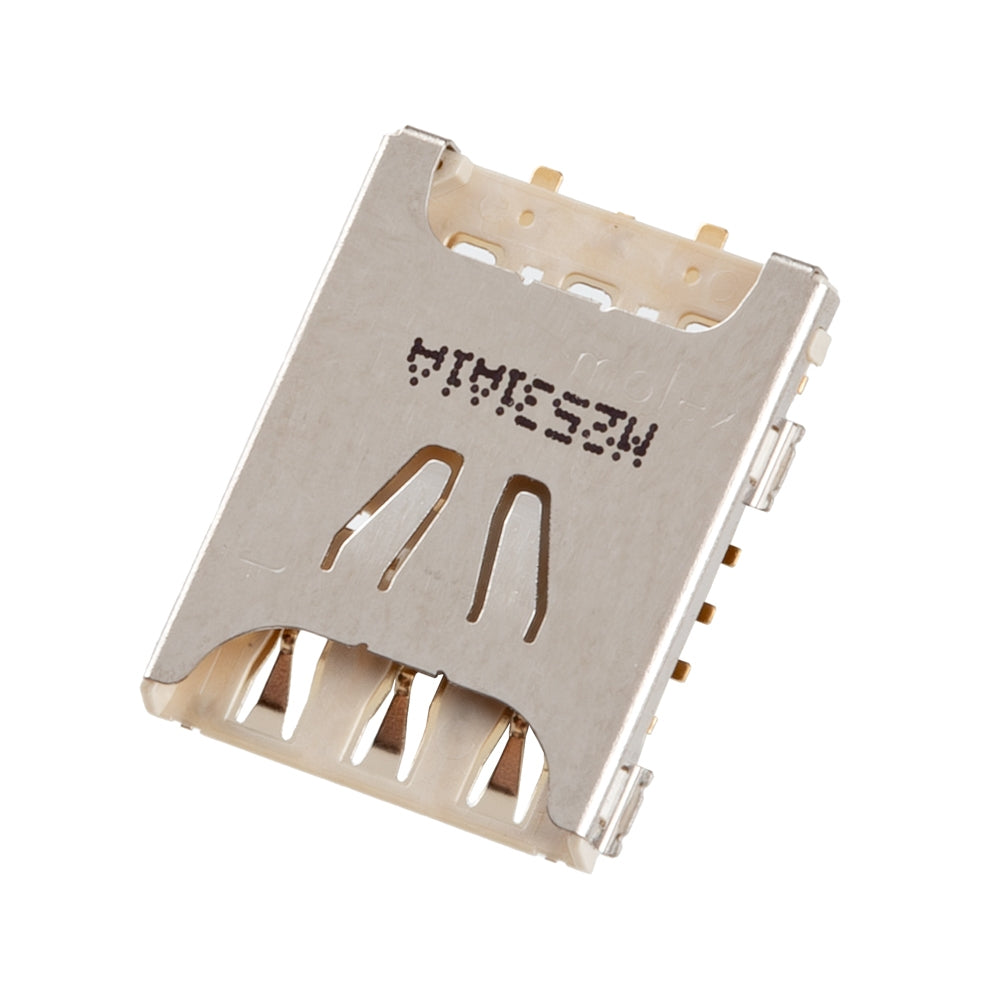

This nano-SIM connector offers a reliable push/pull mechanism, making it ideal for integrating SIM card functionality into your electronic devices.
Features & Specs
- Circuits: 6
- Insertion, Removal Method: Push In, Pull Out
- Durability (mating cycles max): 5000
- Mounting Type: Surface Mount
- Current - Max per Contact: 0.5A
- Voltage - Max: 10V AC (RMS)/DC
- Height Above Board: 0.044" (1.12mm)
- Pitch - Mating Interface: 2.54mm
- Operating Temperature Range: -25° to +85°C
Features & Specs
- Circuits: 6
- Insertion, Removal Method: Push In, Pull Out
- Durability (mating cycles max): 5000
- Mounting Type: Surface Mount
- Current - Max per Contact: 0.5A
- Voltage - Max: 10V AC (RMS)/DC
- Height Above Board: 0.044" (1.12mm)
- Pitch - Mating Interface: 2.54mm
- Operating Temperature Range: -25° to +85°C
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 308.7 |
| 3-5 | ₹ 305.55 |
| 5-10 | ₹ 299.25 |
| 10+ | ₹ 292.95 |
Bulk discount will be automatically applied during checkout based on quantity.
