Description

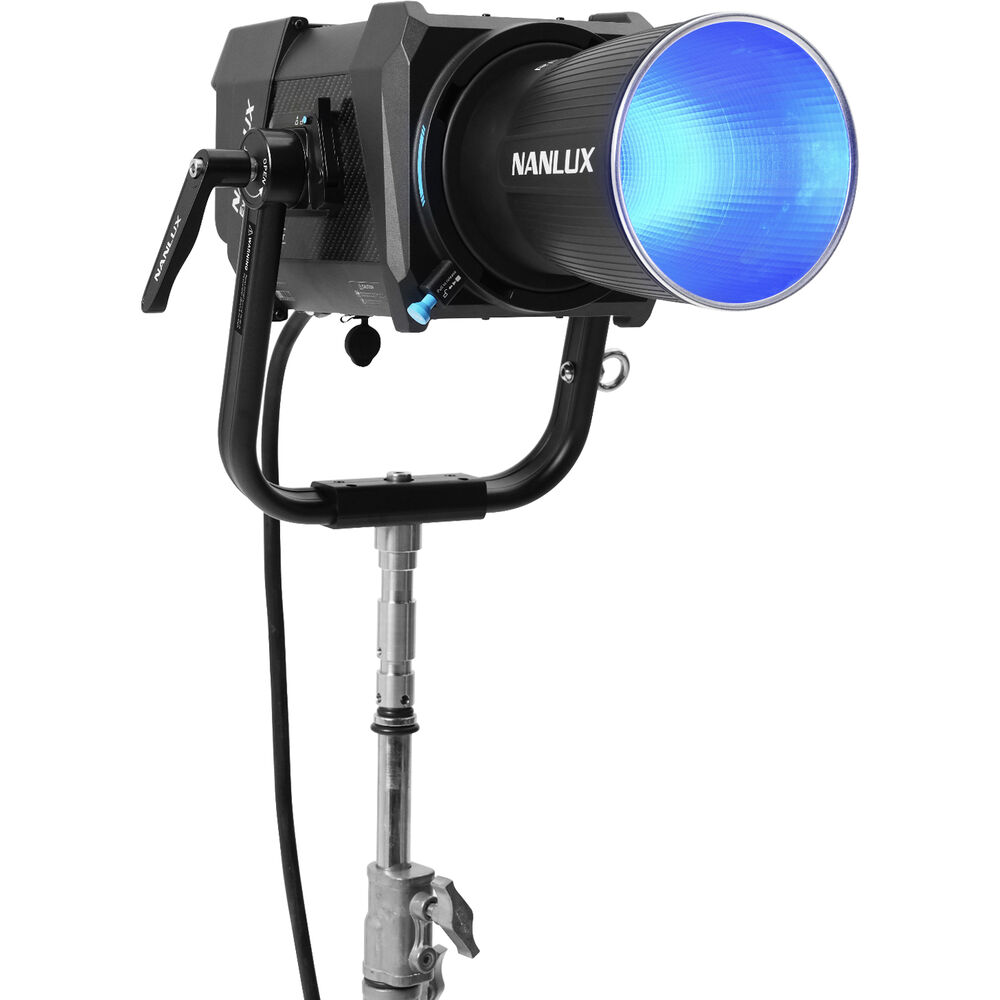

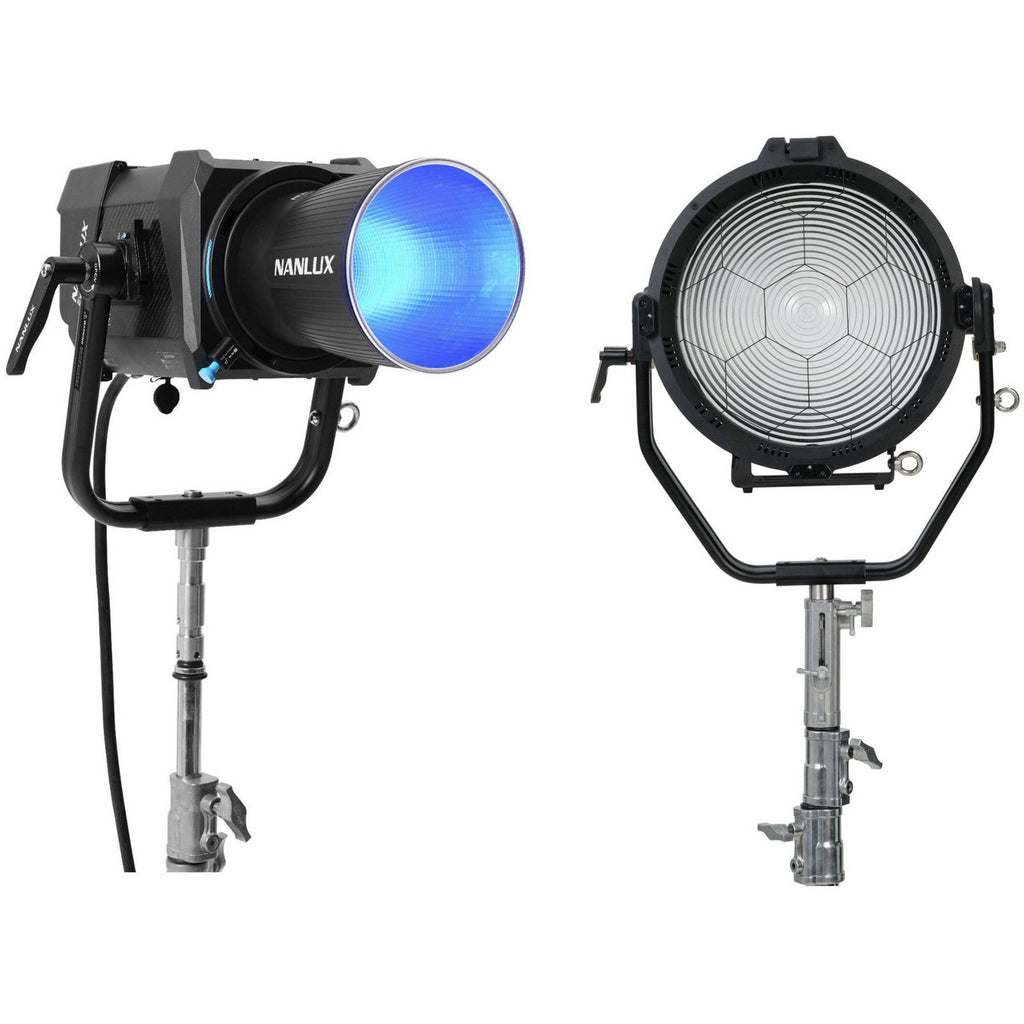

Put together by , the Nanlux Evoke 900C RGB LED Spot Light with Fresnel Lens Offset Yoke Kit offers absolute lighting control. The kit combines the robust RGBLAC 900C fixture and a Fresnel lens with attached barndoors and an offset yoke.
Combining advanced control with RGBLAC capability, the Evoke 900C RGB LED Spot Light from Nanlux is a powerful yet compact fixture with an impressive color temperature range and beam spread of 60?. Its variable 1800 to 20,000K CCT allows you to use it on interiors, exteriors, and mixed lighting environments. The Evoke 900C is dimmable from 0 to 100% in ultra-precise increments of just 0.1%. Besides incorporating lime, amber, and cyan LEDs, the light offers high CRI/TLCI ratings of 96 as your assurance of accuracy in color rendering.
The Evoke 900C is a 940W unit ready to work in the studio plugged into a standard AC outlet. The included power supply ballast operates on a voltage range from 100 to 240 VAC, so it can be used on location anywhere in the world. It can also run on an optional DC battery source when mains current is unavailable. This kit comes with a yoke, a 45? reflector, and a super clamp. A trolley carry case is supplied as well for easy portability, making it a complete lighting solution.
- Onboard, the Nanlink app via Bluetooth, or 2.4 GHz wireless control
- DMX control allows you to adjust your light using an optional DMX console
- You can also use wireless DMX via LumenRadio
- Supports Art-Net/sACN protocols
- Includes remote controller
- Smart, Full-Speed, Low-Speed, and Off modes
- Full power output under Smart and Full-Speed modes
- Maximum power output is 70% under Low-Speed mode
- Maximum power output is 20% under Off mode

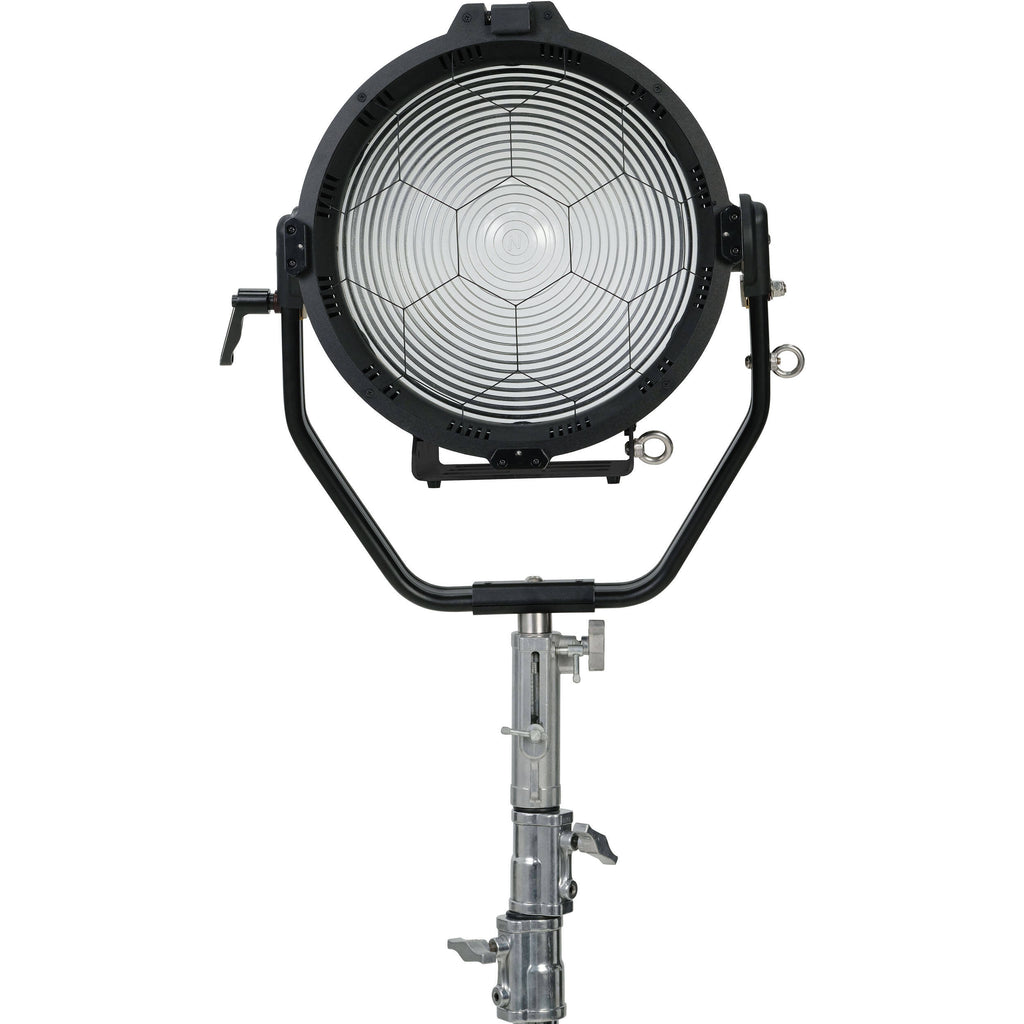

The glass Fresnel Lens with Offset Yoke from Nanlux is designed to sharply focus the beam spread of the Evoke 1200B. The lens comes with 4-way barndoors, while the offset yoke allows easy tilting without obstruction by them.
Items Included
- Nanlux Evoke 900C RGB LED Spot Light (Trolley Case Kit)
- Yoke
- Power Supply
- Nanlux Reflector for Evoke 1200 (45?)
- DC Connection Cable (24.6')
- AC Power Cable (19.6')
- Nanlux Evoke Quick Release Bracket with Super Clamp
- USB Flash Drive
- Remote Controller
- Trolley Case
- Limited 3-Year Manufacturer Warranty
- Nanlux Fresnel Lens with Offset Yoke
- Yoke
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Nanlux Evoke 900C RGB LED Spot Light (Trolley Case Kit)
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K: 3553 fc / 38,250 Lux
5600K: 3629 fc / 39,069 Lux |
| Color Temperature |
1800 to 20,000K +/- 200K
|
| Color Modes |
RGB
|
| Color Accuracy Standard |
CRI 96
TLCI 96 TM-30 Rf 94 TM-30 Rg 100 SSI 73 at 5600K SSI 81 at 3200K |
| Dimming |
Built-In Dimmer
? 0 to 100% |
| Wireless Remote Control Type |
Bluetooth
Wireless DMX Radio/RF *Remote Included |
| Power Source |
AC Power (Cable Included)
|
| Input Power |
48 VDC at 18.75 A
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
940 W
|
| Fixture Mounting |
1x 1-1/8" Stud (Via Yoke Mount)
|
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K:
3553 fc / 38,250 Lux at 3.3' / 1 m* 394 fc / 4250 Lux at 9.8' / 3 m 153 fc / 1656 Lux at 16.4' / 5 m 5600K: 3629 fc / 39,069 Lux at 3.3' / 1 m* 403 fc / 4341 Lux at 9.8' / 3 m 156 fc / 1688 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
1800 to 20,000K +/- 200K
|
| Color Modes |
RGB
|
| Color Accuracy Standard |
CRI 96
TLCI 96 TM-30 Rf 94 TM-30 Rg 100 SSI 73 at 5600K SSI 81 at 3200K |
| Dimming |
Built-In Dimmer
? 0 to 100% |
| Cooling System |
Fan/Passive Combo
|
| Beam Angle |
60?
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Wireless Remote Control Type |
Bluetooth
Wireless DMX Radio/RF *Remote Included |
| Mobile App Compatible |
Yes: Android & iOS
App Name: NANLINK Functionality: Remote Control |
| Power Source |
AC Power (Cable Included)
|
| Inputs/Outputs |
Light Fixture
2x RJ45 Network Input/Output 1x Unspecified Power Input 1x XLR 5-Pin Male DMX Input 1x XLR 5-Pin Female DMX Output Power Supply/Controller 1x powerCON AC Power Input 1x Unspecified Power Output |
| Input Power |
48 VDC at 18.75 A
100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
Yes
|
| Power Consumption |
940 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud (Via Yoke Mount)
|
| Display |
Yes
|
| Environmental Resistance |
Dust/Water-Resistant (IP55)
|
| Certifications |
BIS, CE, ETL, FCC-ID, Kcc, NCC, PSE, RoHS, UKCA, cETL
|
| Dimensions |
13.5 x 9.5 x 8.3" / 34.3 x 24.1 x 21.1 cm (Fixture)
13.5 x 5.7 x 4.9" / 34.3 x 14.5 x 12.4 cm (Power Supply/Controller) |
| Weight |
17 lb / 7.7 kg (Fixture)
9.9 lb / 4.5 kg (Power Supply/Controller) |
| Package Weight |
63 lb
|
| Box Dimensions (LxWxH) |
32 x 19 x 13.75"
|
