The 22 x 14 x 4" Compac 68B Bi-Color Slim Soft Light Studio LED Panel from NanLite is an ideal choice for the studio or location work where color accuracy, control, and flicker-free output are of major importance. The Compac 68B's color temperature is variable from 3200 to 5600K to meet ambient light challenges, match other fixtures or their presets, or just for creative expression, while its high CRI of 95 is an indicator of faithful, precise color rendering.
Dimming from 100 to 0% is conveniently done on the back-panel LCD display with negligible color shift. The low electrical draw of just 68W means a timely return on your investment. The Compac 68B can be used worldwide thanks to its included 100-240 VAC power adapter. Supplied with a standard 5/8" receiver, the Compac 68B can be mounted directly on any industry-standard light stand.
Studio Quality Lighting
Compac Series Studio LED Panels create diffuse, color accurate, studio lighting with minimal set up and zero complications. Well-suited to lighting interviews, headshots, still life photography, vlogging, and more.
LCD Panel
An LCD panel shows you exactly what settings you're using, making it easy to fine tune and then recreate them in the future so your results will always be easily repeatable.
The Light You Need for the Space that You Have
Combining a space-saving design with impressive brightness, Compac series studio LEDs achieve lighting similar to large softboxes but at a fraction of the size and none of the set-up time.
Full Creative Control

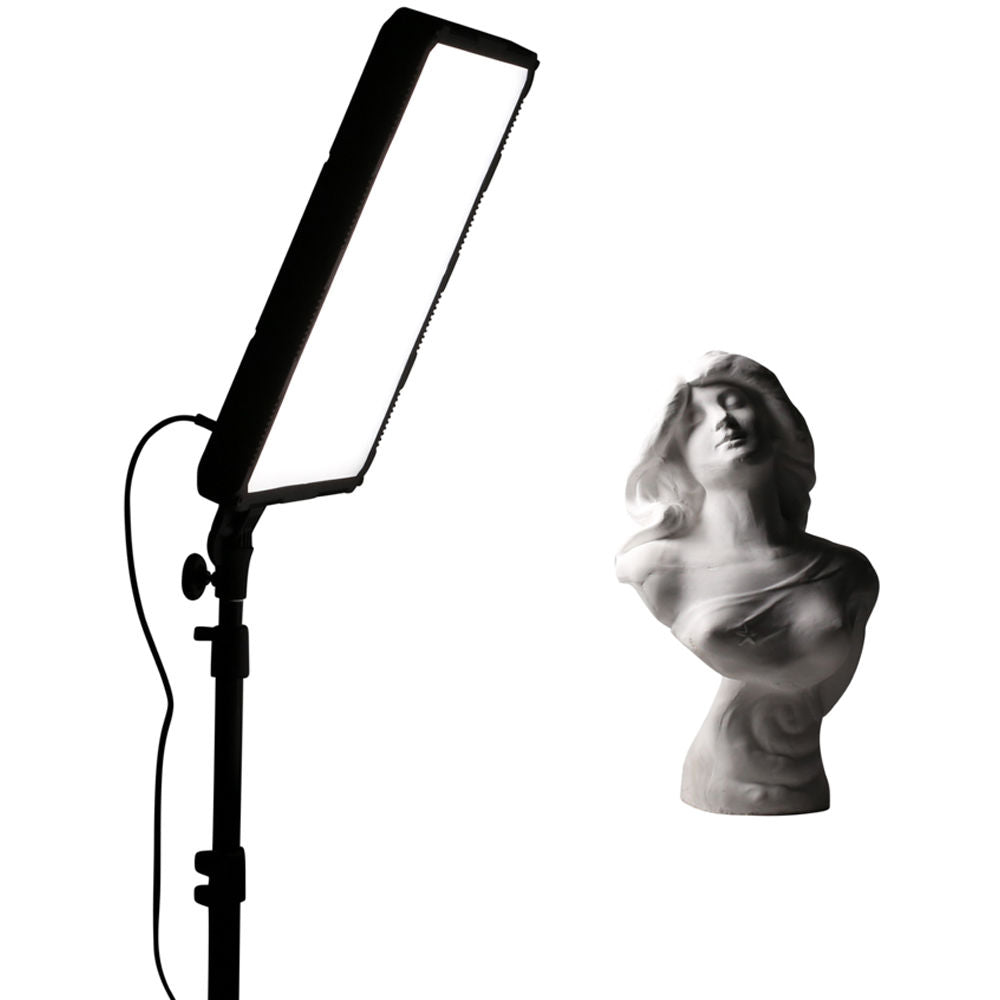

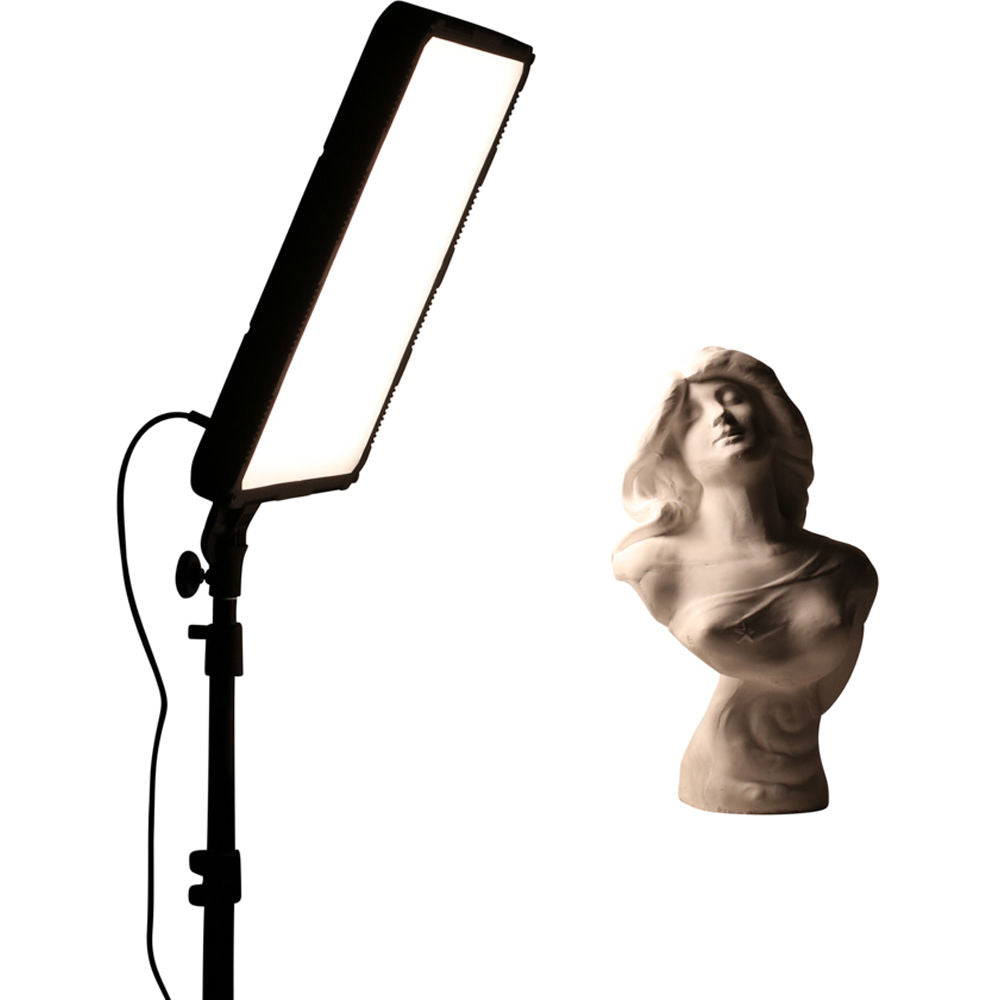

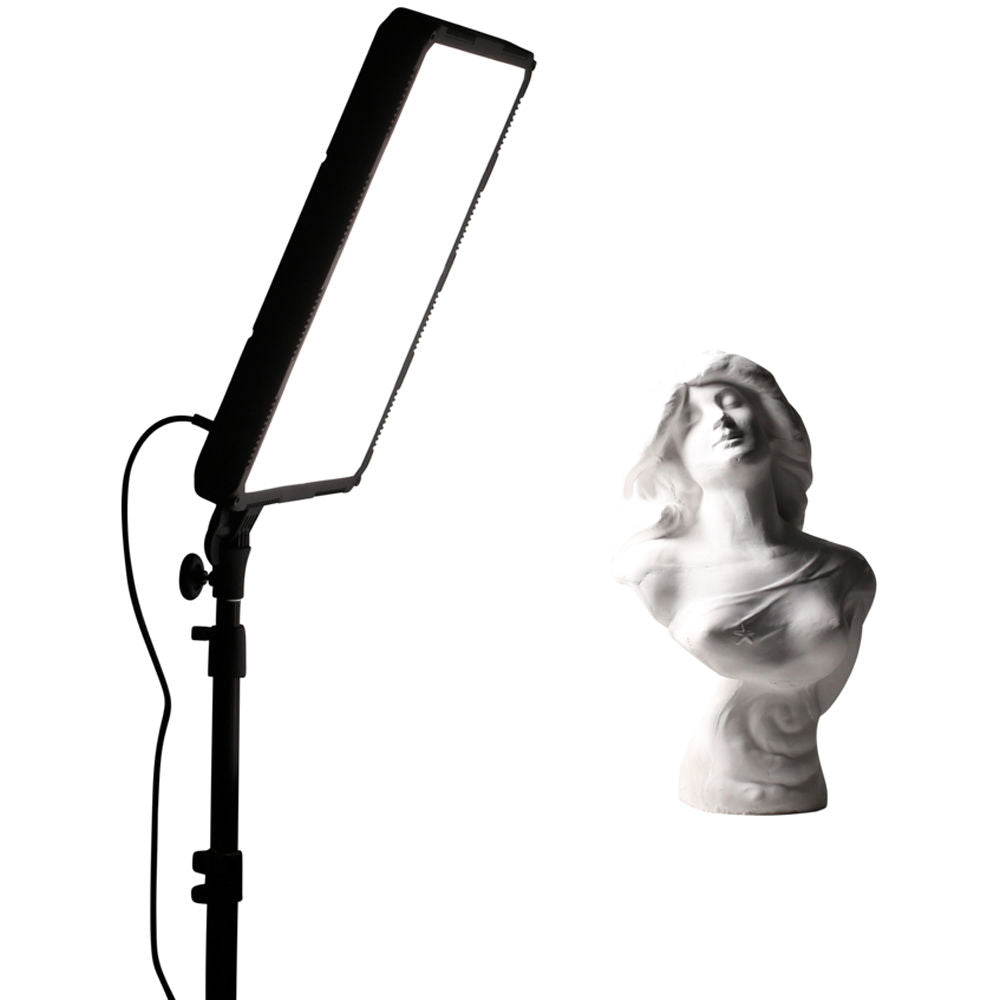

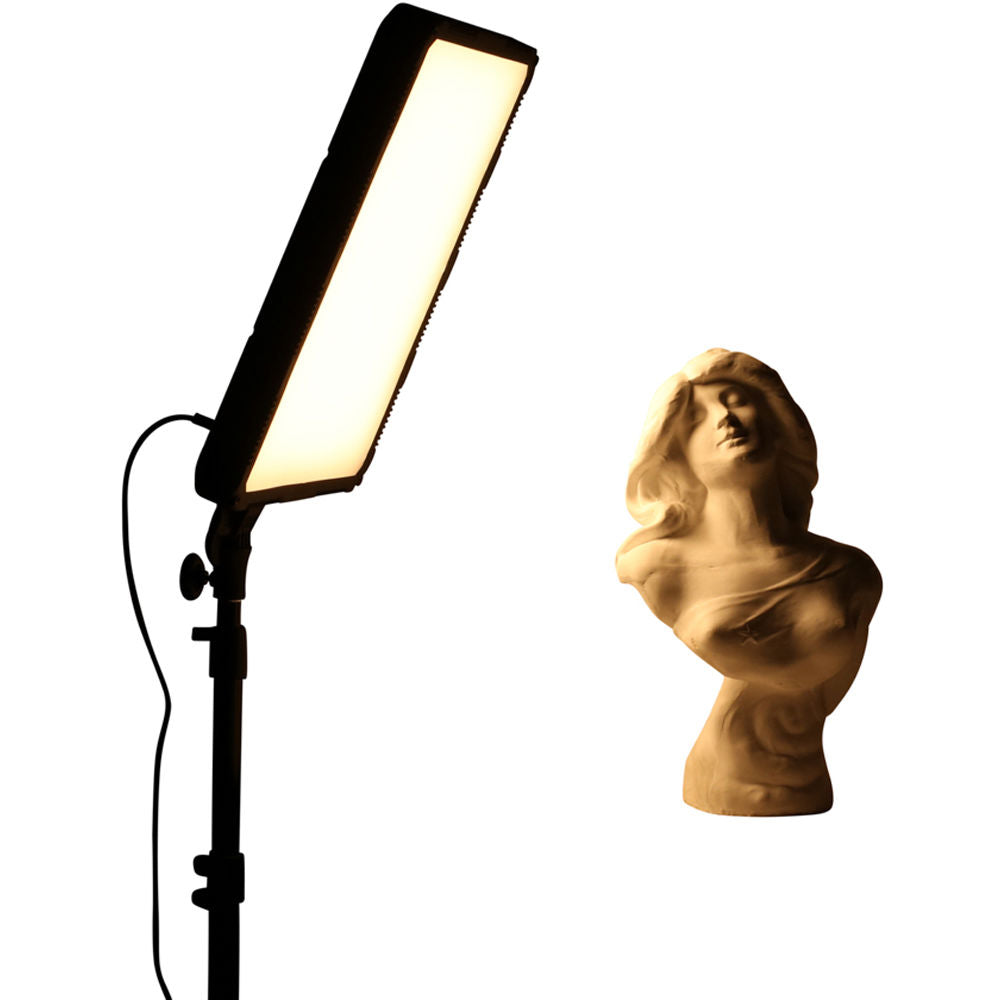

Quickly achieve attractive, studio-quality results without adding plastic filters or cloth diffusion. Rear controls enable you to dial in brightness from 0 to 100% and temperature from warm tungsten balance to daylight (3200 to 5600K).
Table of Contents
- Description
- Studio Quality Lighting
- LCD Panel
- The Light You Need for the Space that You Have
- Full Creative Control
Nanlite Compac 68B Specs
Light Fixture
| Color Temperature | 3200 to 5600K |
| Color Accuracy Standard | CRI 95
TLCI 93 |
| Cooling System | Passive |
| Dimming | Yes, 0 to 100% |
| Display | LCD |
| Lumens | 5684 (at 5600K) |
| Photometrics | 5600K:
208.6 fc / 2245 lux at 3.28' / 1 m |
| Fixture Dimensions | 22.0 x 14.0 x 4.0" / 55.9 x 35.6 x 10.2 cm |
| Fixture Weight | 5.5 lb / 2.49 kg |
Mounting
| Fixture Mount | 5/8" Receiver |
| Accessory Mount | None |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Max Power Consumption | 68 W |
Packaging Info
| Package Weight | 7.965 lb |
| Box Dimensions (LxWxH) | 23.5 x 16 x 4.6" |
