Nakamichi DRAGON Dolby Atmos Home Surround Sound System with 12" Subwoofer

Roll over image to zoom in

Nakamichi DRAGON Dolby Atmos Home Surround Sound System with 12" Subwoofer


	₹ 583530.0 includes GST and import duties.
	B2B customers can avail ₹ 88988.33 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Nakamichi
SKU:	7012076683349
MPN:	DRAGON-SUB12-KIT

Share this product

Key Features

DTS:X Pro and Dolby Atmos
58" Wide Stainless Steel Soundbar
29 Drivers with 15 Digital Amplifiers
7 x Hi-Fi Grade AMT Tweeters
Four 3" Dual-Angled Up-Firing Speakers
Wireless 12" Subwoofer
12" Down-Firing Passive Radiator
Two Omni-Motion Reference Surrounds
3" Rotatable Up-Firing Drivers

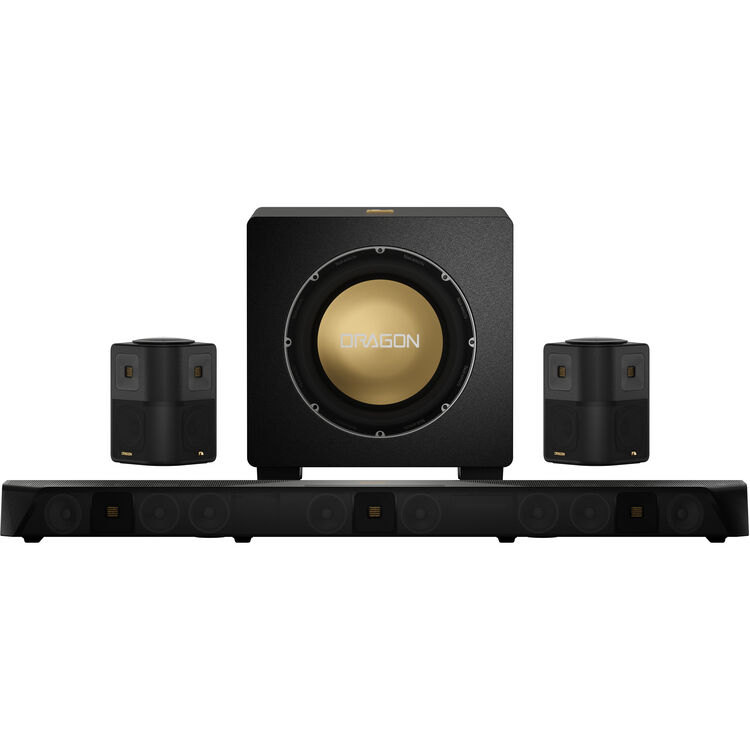

Nakamichi DRAGON with 12" Subwoofers Overview

The Nakamichi DRAGON Dolby Atmos Home Surround Sound System with 12" Subwoofer is a 21-channel wireless surround sound system with a 12" subwoofer, 2 Omni-Motion Reference surrounds, 7 AMT tweeters, and 15 digital amplifiers. The DRAGON system can render Dolby Surround formats, such as Dolby TrueHD and Dolby Atmos, that are identical to high-end AVRs, delivering the same granular detail and positional precision of a movie theater. It's also equipped with DTS:X Pro support, the commercial version of DTS:X, which unlocks extra surround and height details. The entire system is easily controlled via an on-screen display, mobile remote app, or an included 43-key backlit Bluetooth/IR remote control.

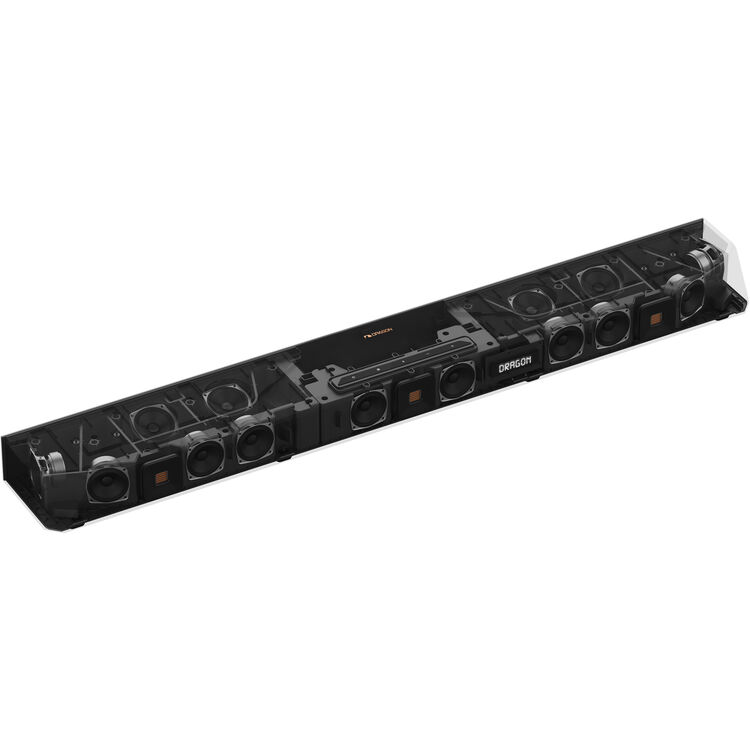

58" Main Unit

The main unit in the DRAGON system is a 58" wide soundbar that enables optimal air volume for all of its 17 drivers, achieving their maximum acoustic performance and replicating a true-to-life cinema or concert hall soundstage. Each speaker channel has its own dedicated enclosure, optimizing air movement for immaculate sound separation. The main unit consists of ten 3" drivers and four 3" dual-angled up-firing drivers. Each pair of up-firing drivers are inclined at 10 and 20°, and work with rear up-firing drivers to precisely render overhead sound effects for a true-to-life X.X.6 multi-altitude soundscape. The main unit also features three exposed Hi-Fi grade Air Motion Tweeters (AMT) that work to elevate the experience by delivering treble effects and fast transients with extreme clarity.

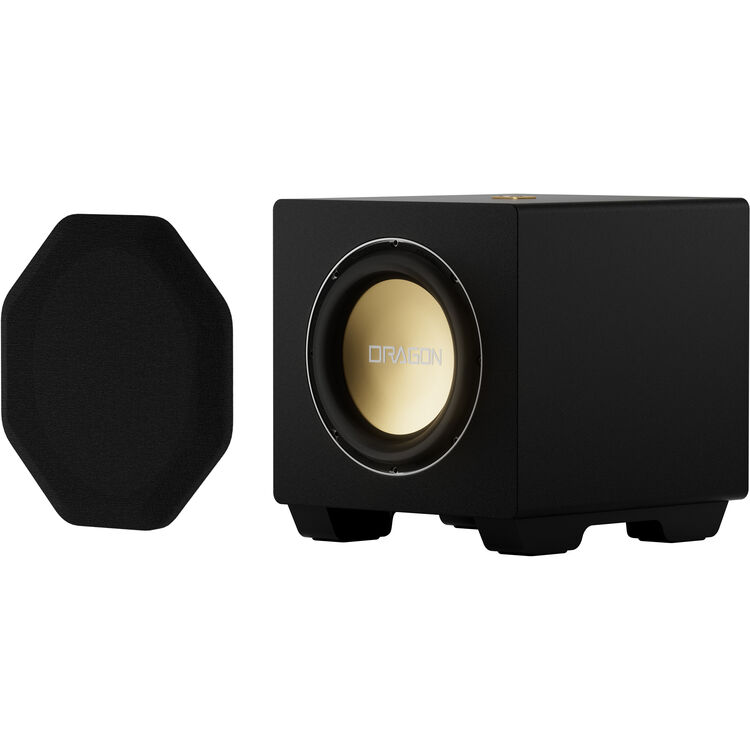

Wireless 12" Subwoofer

This 80 lb. beast of a subwoofer packs a 12" long-throw carbon fiber-reinforced aerospace-grade aluminum driver, in addition to a 12" down-firing carbon passive radiator. It emits up to 750W of peak thundering bass at frequencies as low as a rumbling 19 Hz with clarity. To help create a similar effect to what you may find in an actual Dolby Atmos theater, the sub uses a wafer-thin layer of carbon fiber that's laminated to the rear of the cone, using its high stiffness-to-weight ratio to help eliminate unwanted resonance. What you're left with is pure room-filling and room-rocking bass.

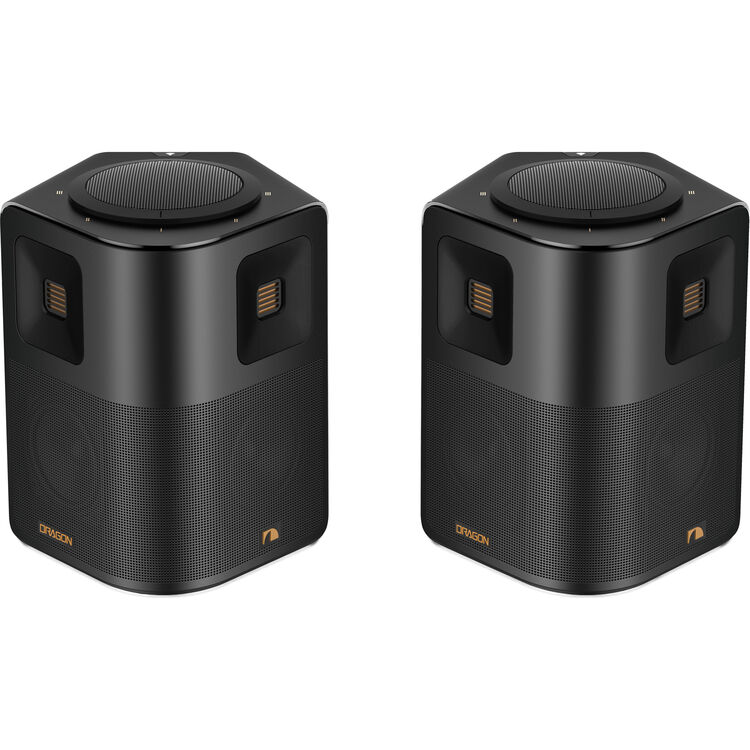

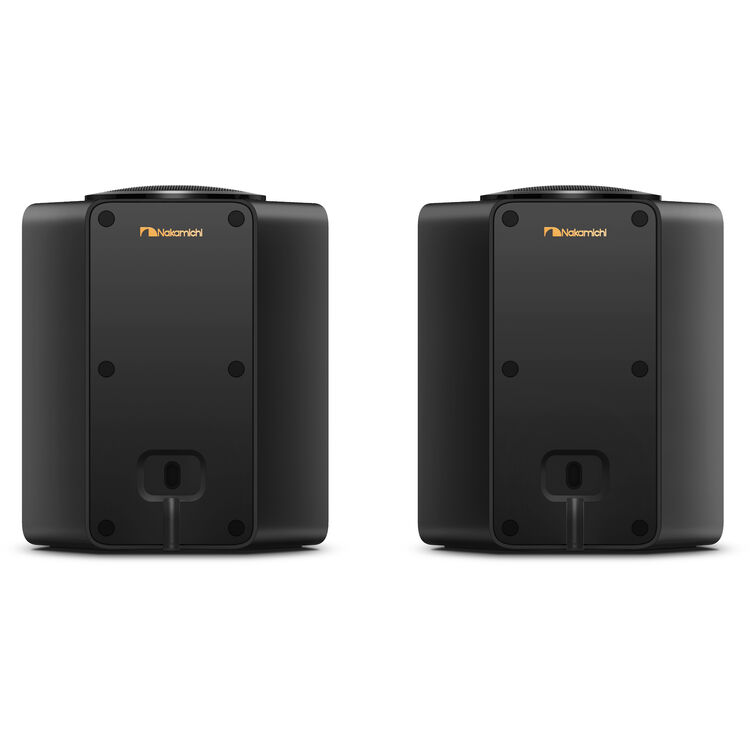

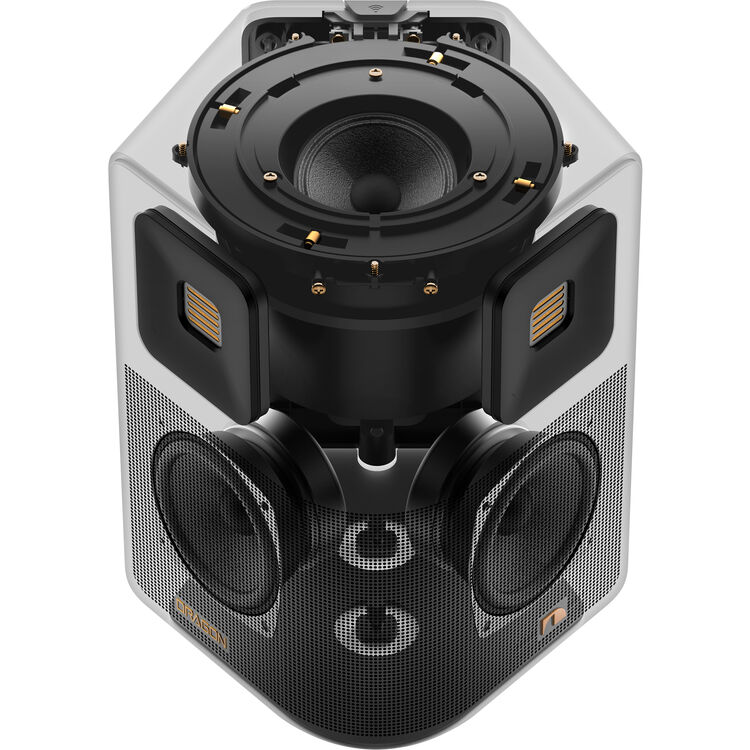

Omni-Motion Reference Surrounds

This pair of wireless speakers each integrate side, rear, and height channels that come together to deliver a 360° soundscape. Weighing 9 lb. each, they are designed in a bipolar configuration with three 3" drivers and two 1.5" Air Motion Tweeters (AMT), which are designed to produce breathtaking surround effects with pinpoint accuracy that envelop you and your guests in stunning clarity and realism. The singular 3" up-firing driver in each work with the four in the main unit to precisely produce overhead sound effects for a true-to-life X.X.6 multi-altitude soundscape. In addition, each of these up-firing drivers features a PerfectHeight mechanism with up to 180° of rotation to accommodate speaker placement, room shape, and seating position.

Adaptive Height Dispersion (AHD) Technology

You can use AHD technology to focus, expand, and intensify the height soundscape to complete the surround sound picture and tailor height effects to your specific listening environment. Choose from the following modes:

Off: When off, the drivers' height effects are as the director intended
Focal: Optimizes height effects for a center-focused 3D soundstage
Wide: Optimizes height effects for a soundstage with a wide field of view
Max: This maximizes the height effects regardless of content type

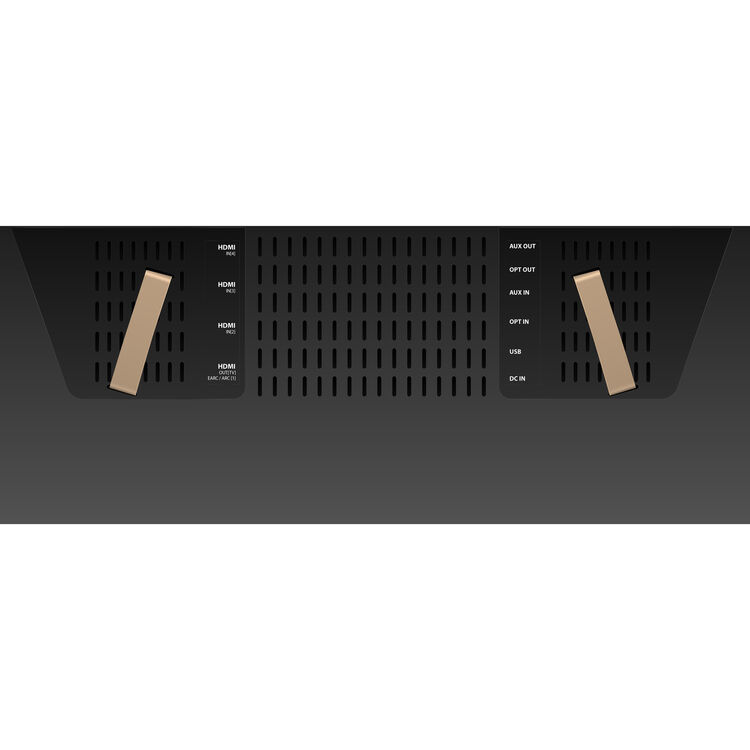

4K120/8K HDMI Inputs with eARC

Experience some of the best audio and video resolution possible with the main unit's support for HDMI eARC and its three HDMI inputs with Dolby Vision and 4K120/8K HDR pass-through. This also includes support for VRR, ALLM, and FRL technologies, which work to ensure low-latency performance for gaming and other content.

Bluetooth and IR Remote

Included in the system is a full-featured, aluminum 43-key backlit Bluetooth remote that enables seamless control from any corner of the room without requiring line-of-sight. It also offers large, color-coded, and thumb-sized buttons, making it easy to control. This remote is in addition to an on-screen display and mobile remote app, delivering seamless navigation and nearly effortless usability.

Connect up to four 12" subwoofers wirelessly (one included)
Built-in DSP in each subwoofer
Get four times more wireless audio streaming range with Bluetooth 5.0
Enjoy 24-bit high-resolution wireless audio streaming with Qualcomm aptX HD
4K video upscaling
2750W of peak power output
Integrated 2-line dot matrix display
For international customers who require product servicing, Nakamichi will honor its warranty as long as the product can be shipped to them in California and an eligible USA shipping address is given for them to ship the product back to after servicing is complete. Contact dragonvip@nakamichi-usa.com for more details

Items Included

Nakamichi DRAGON Dolby Atmos Home Surround Sound System with 12" Subwoofer
Bluetooth/IR Remote Control with Batteries
HDMI 2.1 Cable (6.5')
2 x Surround Speaker Power Cable (10')
2 x Removable Subwoofer Grille
Subwoofer Power Cable (10')
Main Unit Power Cable (5')
Main Unit Power Adapter (5')
Limited 1-Year Manufacturer Warranty (International Customers are Covered if Shipped to California for Repair with a Contiguous United Sta)

Nakamichi DRAGON with 12" Subwoofers Specs

Key Specs

Channel Configuration	11.1.4-Channel
High-Frequency Drivers	3x 1.5" / 3.8 cm Front-Firing Tweeter
Full-Range Drivers	6x 3" / 7.6 cm Front-Firing 4x 3" / 7.6 cm Side-Firing 4x 3" / 7.6 cm Up-Firing
Amplifier Output	3500 W Peak
Satellite Speaker Configuration	2-Way
Subwoofer Driver	1x 12" / 30.5 cm (Front-Firing)
Subwoofer Amplifier Output	750 W Peak
Subwoofer Inputs/Outputs	Wireless
Inputs	3x HDMI 2.1 - Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Outputs	1x HDMI 2.1 - eARC/Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Wireless	Bluetooth 5.0
Audio Decoding	DTS Digital Surround, DTS Neural:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM
HDMI Compliance	CEC, eARC
Wall Mountable	Yes (with Optional Hardware)

Soundbar

Channel Configuration	11.1.4-Channel
Enclosure Type	Sealed
High-Frequency Drivers	3x 1.5" / 3.8 cm Front-Firing Tweeter
Full-Range Drivers	6x 3" / 7.6 cm Front-Firing 4x 3" / 7.6 cm Side-Firing 4x 3" / 7.6 cm Up-Firing
Amplification	7x
Amplifier Output	3500 W Peak
Maximum SPL	127 dB

Satellite Speakers

Speaker Positioning	Rear
Speaker Configuration	2-Way
Enclosure Type	Sealed
High-Frequency Drivers	2x 1.5" / 3.8 cm Tweeter per Speaker
Full-Range Drivers	2x 3.5" / 8.9 cm Side-Firing per Speaker 1x 3" / 7.6 cm Up-Firing per Speaker
Power Rating	250 W per Speaker
Placement & Mounting Options	Tabletop/Bookshelf, Wall-Mount

Subwoofer

Enclosure Type	Bass-Reflex
Drivers	1x 12" / 30.5 cm (Front-Firing)
Passive Radiators	1x 12" / 30.5 cm
Amplifier Output	750 W Peak
Subwoofer Inputs/Outputs	Wireless

Connectivity

Inputs	3x HDMI 2.1 - Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
Outputs	1x HDMI 2.1 - eARC/Audio/Video 1x Optical TOSLINK - Audio 1x 1/8" / 3.5 mm - Audio
USB I/O	1x USB-A (Unspecified Interface) (Service)
Ethernet I/O	No
Wireless Audio Protocols	Bluetooth
Wireless	Bluetooth 5.0
Bluetooth	Bluetooth 5.0
NFC	No
Bluetooth Codec Support	aptX HD
Mobile App Compatible	Yes: Android & iOS Functionality: Remote Control

Compatibility

Audio Decoding	DTS Digital Surround, DTS Neural:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM
HDMI Compliance	CEC, eARC
HDR Support	Yes: HDR10/HDR10+/Dolby Vision

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Environmental Resistance	No
Wall Mountable	Yes (with Optional Hardware)
Dimensions	58.1 x 7.7 x 4.4" / 147.6 x 19.6 x 11.2 cm (Soundbar) 9 x 8.3 x 10.7" / 22.9 x 21.1 x 27.2 cm (Satellites) 16.9 x 18.1 x 20.1" / 42.9 x 46 x 51.1 cm (Subwoofer)
Weight	32.2 lb / 14.6 kg (Soundbar) 8.8 lb / 4 kg (Each Satellite) 80 lb / 36.3 kg (Subwoofer)

Packaging Info

Package Weight	167.5 lb
Box Dimensions (LxWxH)	67.5 x 30.25 x 21"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 571859.4
3-5	₹ 566024.1
5-10	₹ 554353.5
10+	₹ 542682.9

Bulk discount will be automatically applied during checkout based on quantity.
