Description
Nady DW-22-LT-HM Overview
- 1Description
- 2Key Features
- 3DW-22 Receiver Features
- 4LT/HM Transmitter Features
By Photo's
Trevor Collins

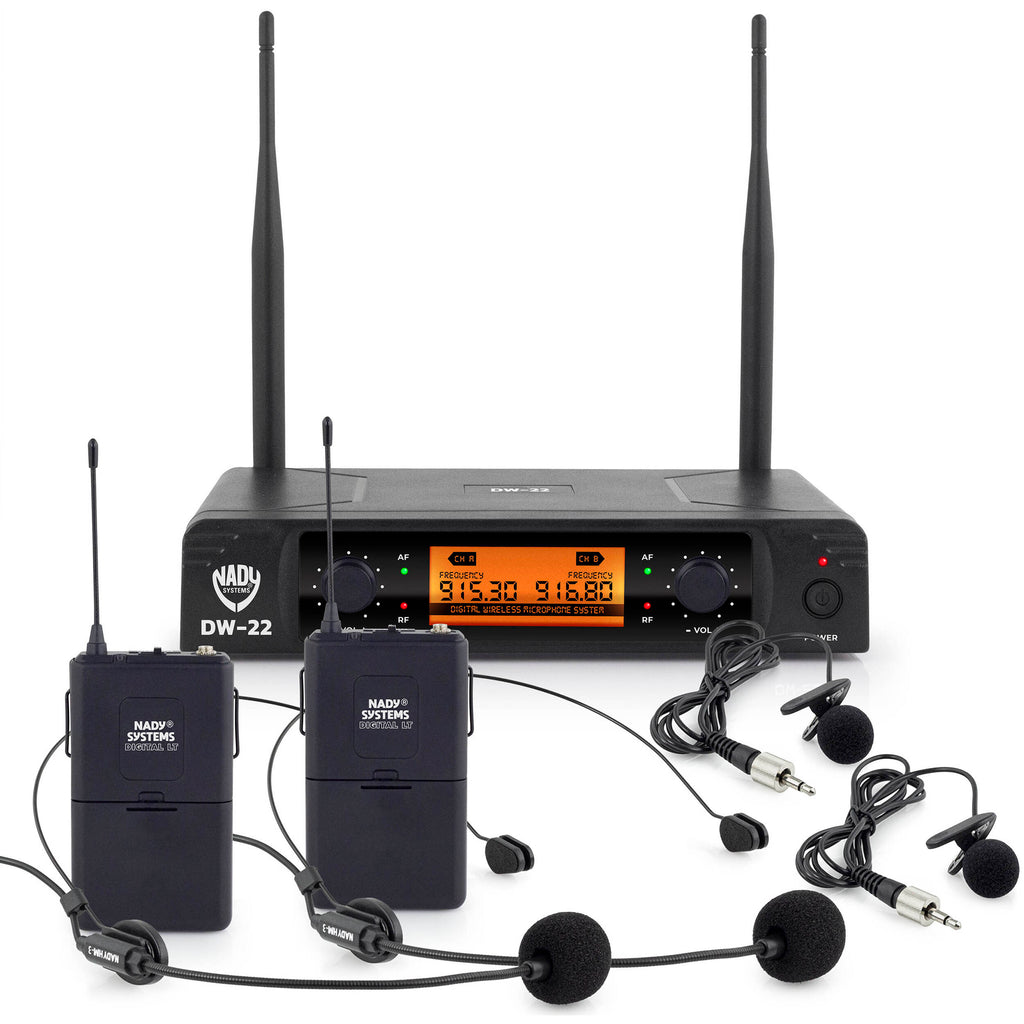

The lapel and headset-equipped DW-22 LTHM Digital Wireless Microphone System from Nady Systems is a streamlined two-person wireless system with 24-bit conversion suitable for performances, karaoke, and other public address applications. It provides a 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz).
The included dual bodypack transmitters, dual lavalier mics, and dual headsets provide a line-of-sight operation range of up to 300' and operate in the UHF 900 MHz band. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver.
Key Features
- Dual-channel transmitter system
- UHF 900 MHz band protects against TV interference
- Selected frequencies between 902 and 951 MHz
- Up to 300' range (line-of-sight)
- Quality 48 kHz / 24-bit digital audio
- User-friendly design with fixed channel and frequency
- RF filtering for optimal simultaneous operation of multiple systems in the same location

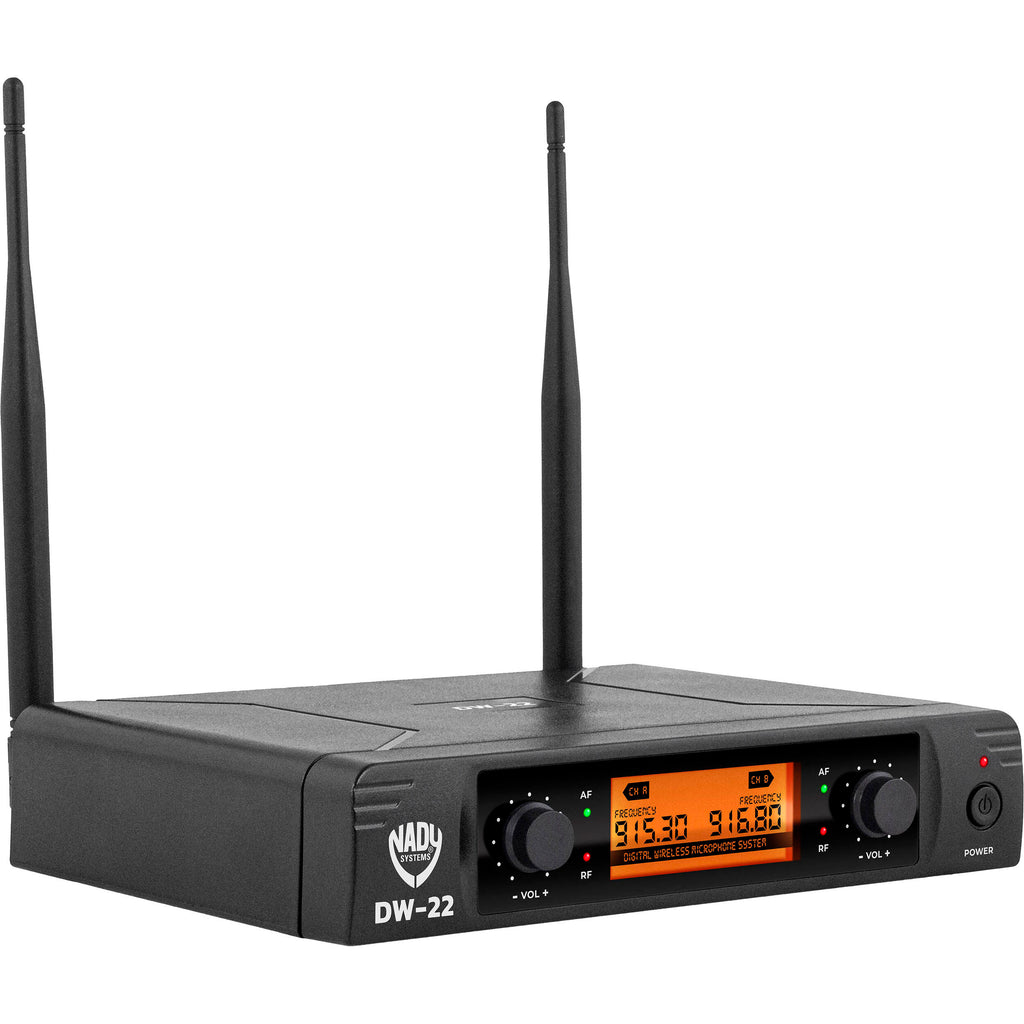

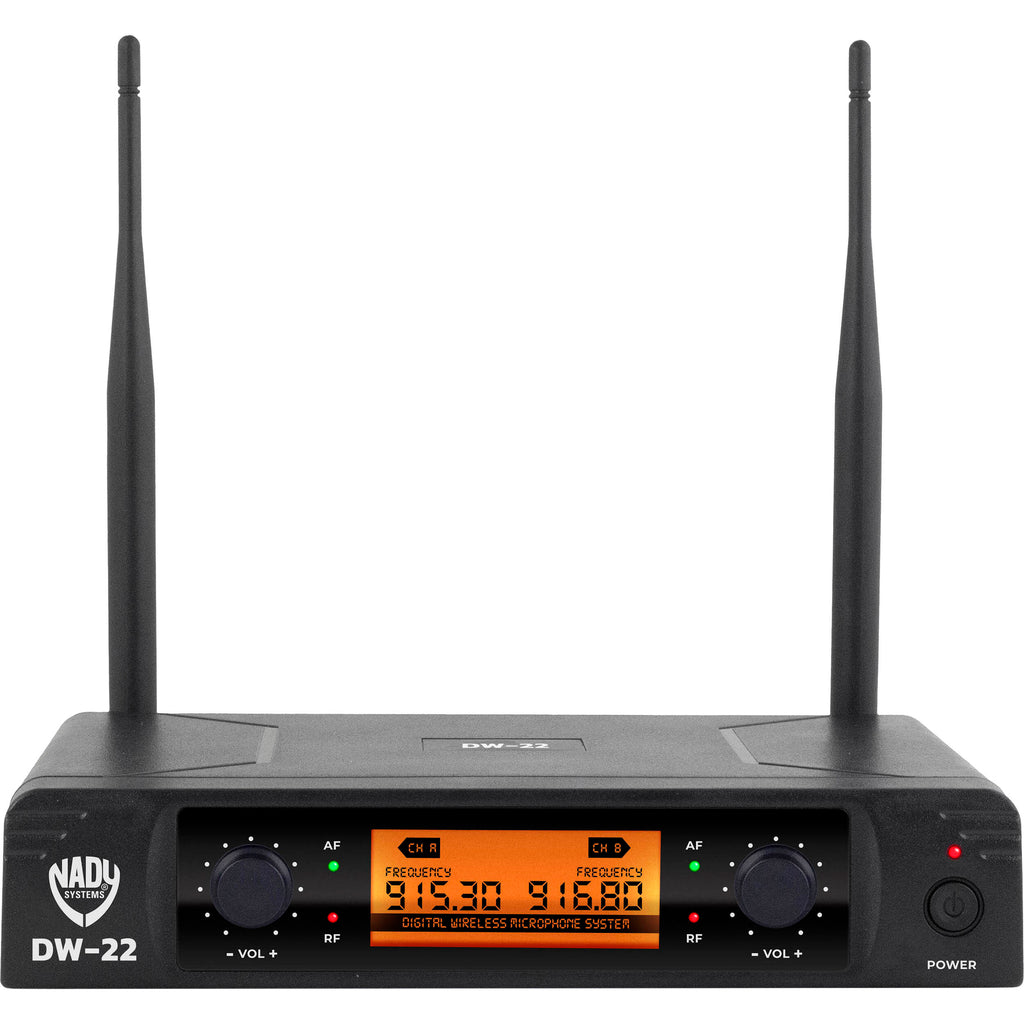

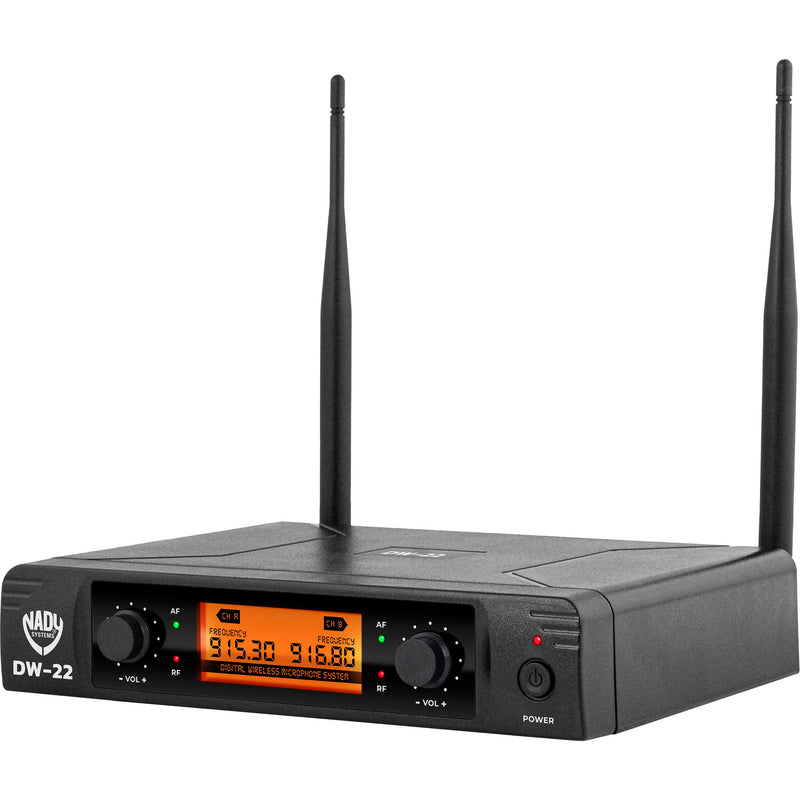

DW-22 Receiver Features
- Dual fixed external antenna
- Digital QPSK modulation
- Features LCD display for frequencies, power on/off switch, volume control, and RF/AF LEDs
- Sleek, durable ABS housing
- Tabletop design (rack-mountable with optional RMT-1KUD rack tray)
LT/HM Transmitter Features
- Includes one clip on lavalier mic and one headset with attached mic
- One bodypack transmitter for each mic (lavalier, headset)
- Power on/off switch and audio mute
- Takes two AA Alkaline batteries with up to 11 hours of battery life
- LED indicator for power levels
UPC: 634343117882
In the Box
- Nady DW-22 LTHM Digital Wireless Microphone System with 2 Headset Mics & 2 Lav Mics (902 to 951 MHz)
- Receiver
- 2 x Bodypack Transmitter
- 2 x Lavalier Microphone
- 2 x Headset Microphone
- Power Supply
- 1/4" Audio Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Key Features
- DW-22 Receiver Features
- LT/HM Transmitter Features
Nady DW-22-LT-HM Specs
System
| Wireless Technology | Digital UHF (900 MHz) |
| Number of RF Channel Frequencies | 50 |
| Included Transmitters | 2 x Bodypack with Microphone |
| Diversity | Frequency |
| RF Frequency Band | 902 to 951 MHz |
| Max Operating Range | 300' / 91.4 m (Typical) |
| Max Transmitters per Band | 1 |
| Built-In Recorder | No |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | 3 ms |
| Dynamic Range | 120 dB |
| Encryption | None |
| Modulation | QPSK |
| THD | <0.1 % |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount, Tabletop (with Optional Hardware) |
| Rackmount Size | 1RU |
| Antenna | 2 x Rod, Fixed (Rear-Mount) |
| Number of Audio Channels | 2 |

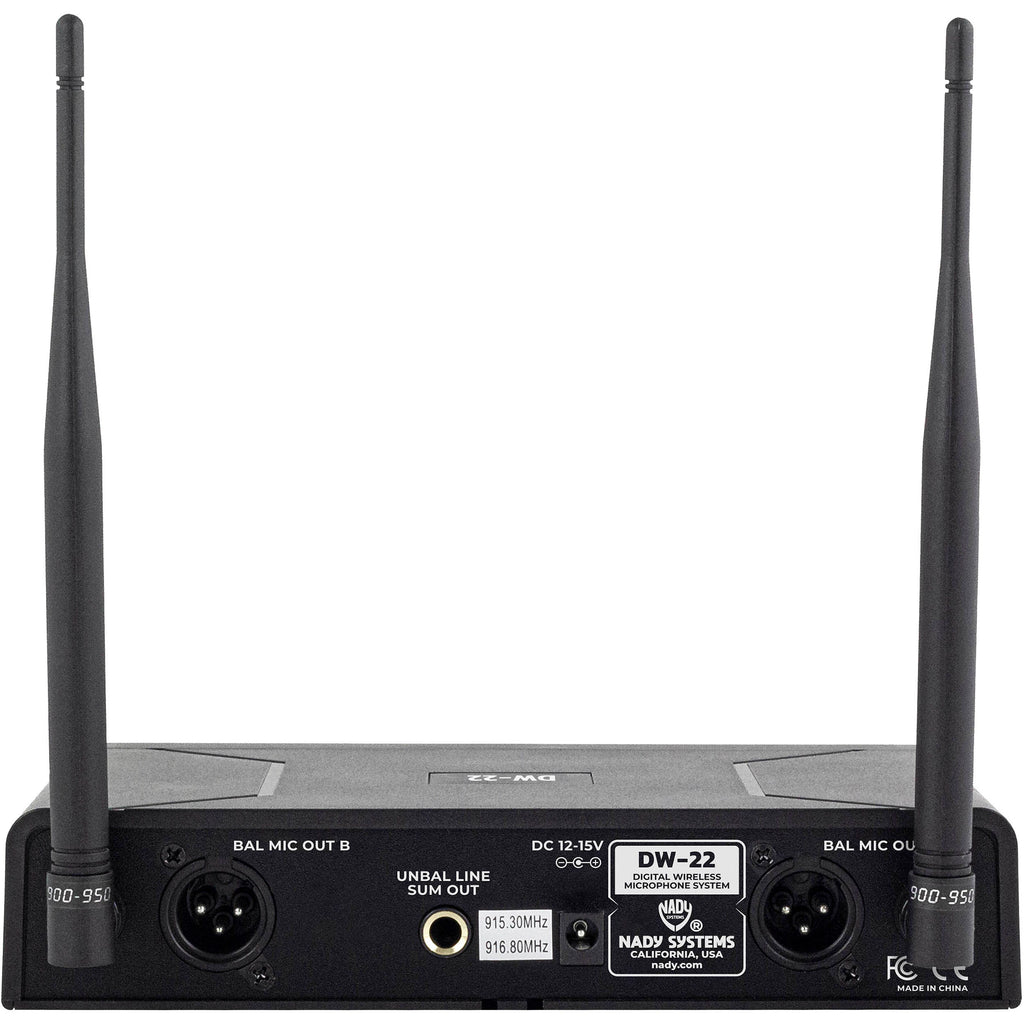

| Audio I/O | 1 x 1/4" TS Female Unbalanced Line Output 2 x XLR 3-Pin Male Balanced Mic Output |
| Phantom Power Protection | None |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Network I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Impedance | XLR Output: 600 Ohms (Balanced) |
| Approximate RF Sensitivity | -94 dBm |
| Spurious | Rejection: 60 dB |
| Power Requirements | DC Input |
| DC Input Power | 13.5 VDC at 400mA |
| Display & Indicators | 2 x Backlit LED (AF Level) 2 x Backlit LED (RF Level) 1 x Backlit LED (Power) 1 x Backlit LCD (Frequency) |
| Housing | ABS |
| Dimensions | 8 x 1.7 x 6" / 20.3 x 4.3 x 15.2 cm |
| Weight | 0.8 lb / 0.4 kg |
Transmitter
| Transmitter Type | Bodypack with Microphone / Headworn with Microphone |
| RF Output Power | Up to 50 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TS Female Input (Lockable) |
| Included Cable Connector | 1/8" / 3.5 mm TS |
| Pad | None |
| Muting | Mute Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 11 Hours (Alkaline) |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x Backlit LED (Battery Status, Power) |
| Dimensions | 2.5 x 4.2 x 0.5" / 6.3 x 10.7 x 1.3 cm |
| Weight | 0.1 lb / 68 g |
Microphone
| Microphone Type | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Output Connector | 1 x 1/8" / 3.5 mm TS Male (Lockable, on Mic) |
Microphone 2
| Microphone Type | Headset |
| Color | Black |
| Sound Field | Mono |
| Outputs | 1 x 1/8" / 3.5 mm TS Male (Lockable) |
Packaging Info
| Package Weight | 2.255 lb |
| Box Dimensions (LxWxH) | 14.5 x 12 x 3.1" |
