Description
Nady DW-22 Overview
- 1Description
- 2Key Features
- 3DW-22 Receiver Features
- 4HT/LT/HM Transmitter/Microphone Features

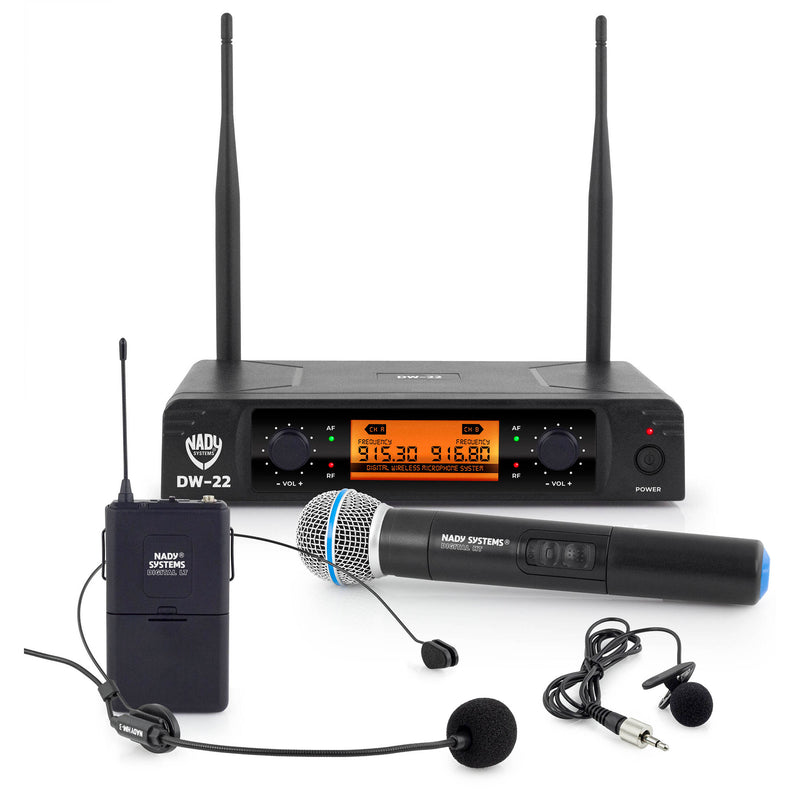

The DW-22 HTLTHM Digital Wireless Microphone System from Nady Systems is a streamlined two-person wireless system with one handheld microphone and one bodypack transmitter with both a lavalier and a headset microphone included, so you can choose the most appropriate mic for the application. The system provides 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz) suitable for performances, karaoke, and other public address applications.
Operating in the 900 MHz UHF band, the DW-22 offers a line-of-sight operation range of up to 300' and a very-low latency of only 3ms. The transmitters and receiver are preset to fixed frequencies, making the system easy for anyone to use. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver. Connect to a mixer, PA system, or similar audio equipment via the unbalanced 1/4" output or balanced XLR outputs.
Key Features
- Dual-channel wireless system
- UHF 900 MHz band protects against TV interference
- Selected frequencies between 902 and 951 MHz
- Up to 300' range (line-of-sight)
- Quality 48 kHz / 24-bit digital audio
- User-friendly design with fixed channel and frequency
- RF filtering for optimal simultaneous operation of multiple systems in the same location
DW-22 Receiver Features
- Dual fixed external antennas
- Digital QPSK modulation
- Features LCD display for frequencies, power on/off switch, volume control, and RF/AF LEDs
- Sleek, durable ABS housing
- Tabletop design (rack-mountable with optional RMT-1KUD rack tray)
HT/LT/HM Transmitter/Microphone Features
- Includes one clip-on lavalier microphone and one headset with attached microphone
- Includes one bodypack transmitter for use with headset or lav
- Includes one handheld mic
- Power on/off switch and audio mute
- Transmitters run on two AA alkaline batteries for up to 11 hours
- LED indicator for power levels
UPC: 634343117875
In the Box
- Nady DW-22 HTLTHM 2-Person Digital Wireless Microphone System with Lavalier, Headset, and Handheld Mics (902 to 951 MHz)
- 2-Channel Receiver
- Handheld Microphone Transmitter
- Bodypack Transmitter
- Lavalier Microphone
- Headset Microphone
- Power Supply
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Key Features
- DW-22 Receiver Features
- HT/LT/HM Transmitter/Microphone Features
Nady DW-22 Specs
System
| Wireless Technology | Digital UHF (900 MHz) |
| Included Transmitters | 1 x Bodypack 1 x Handheld |
| Diversity | Non-Diversity |
| RF Frequency Band | 902 to 951 MHz |
| RF Channel Scanning | Manual |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 2 |
| Built-In Recorder | No |
| Timecode Support | No |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | 3 ms |
| Dynamic Range | 120 dB |
| Encryption | None |
| Modulation | QPSK |
| THD | <0.1 % |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Optional Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, Fixed (Rear-Mount) |
| Number of Audio Channels | 2 |
| Audio I/O | 2 x XLR 3-Pin Male Balanced Mic Output 1 x 1/4" TRS Female Unbalanced Line Output |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Approximate RF Sensitivity | -94 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 13.5 VDC at 400 mA (Included) |
| Display & Indicators | 1 x Backlit LCD (Channel, Group) LED (RF Level) |
| Housing | ABS |
| Dimensions | 8 x 6 x 1.7" / 203 x 152 x 44 mm |
| Weight | 0.8 lb / 363 g |
Transmitter
| Transmitter Type | Handheld |
| RF Output Power | Not Specified by Manufacturer |
| Audio I/O | None |
| Included Cable Connector | None |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Memory Card Support | None |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz ±3 dB |
| Sync Method | Proprietary |
| Antenna | 1 x Internal (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 11 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LED (Battery Status, Power) |
| Dimensions | 2 x 9.3" / 5.1 x 23.6 cm |
| Weight | 9.6 oz / 272 g |
Microphone
| Microphone Type | Handheld |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Unidirectional |
| Length | 9.25" / 234.95 mm |
| Diameter | 2" / 50.8 mm |
| Weight | 9.6 oz / 272 g |
Transmitter 2
| Transmitter Type | Bodypack with Microphone |
| RF Output Power | 50 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | Proprietary |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Approximate RF Sensitivity | -94 dBm |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 11 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LED (Battery Status, Power) |
| Dimensions | 2.5 x 4.3 x 0.5" / 64 x 108 x 13 mm |
| Weight | 0.1 lb / 68 g |
Microphone 2
| Microphone Type | Headset |
| Color | Black |
| Sound Field | Mono |
| Outputs | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Packaging Info
| Package Weight | 2.605 lb |
| Box Dimensions (LxWxH) | 14.6 x 12 x 3" |
