Description
The MyoWare® 2.0 Muscle Sensor is an all-in-one, Arduino-compatible electromyography (EMG) sensor that uses a solderless snap-connector system to translate muscle activity into control inputs.
Features & Specs

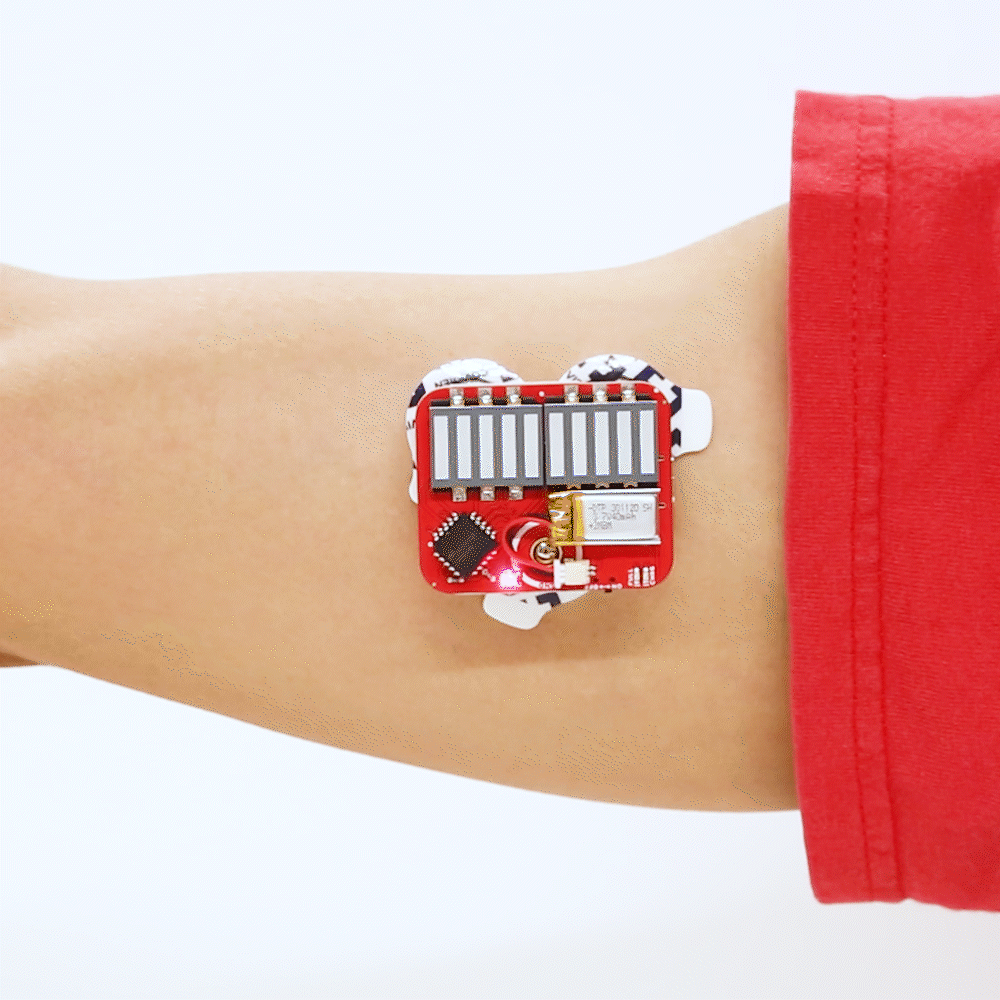

- Wearable Design
- Supply Voltage
- Minimum: +2.27V
- Typically: +3.3V to +5V
- Maximum: +5.47V
- Input Bias Current
- 250pA, max 1nA
- Reverse Polarity Protection
- Three Output Modes
- Raw EMG
- Rectified
- Envelope

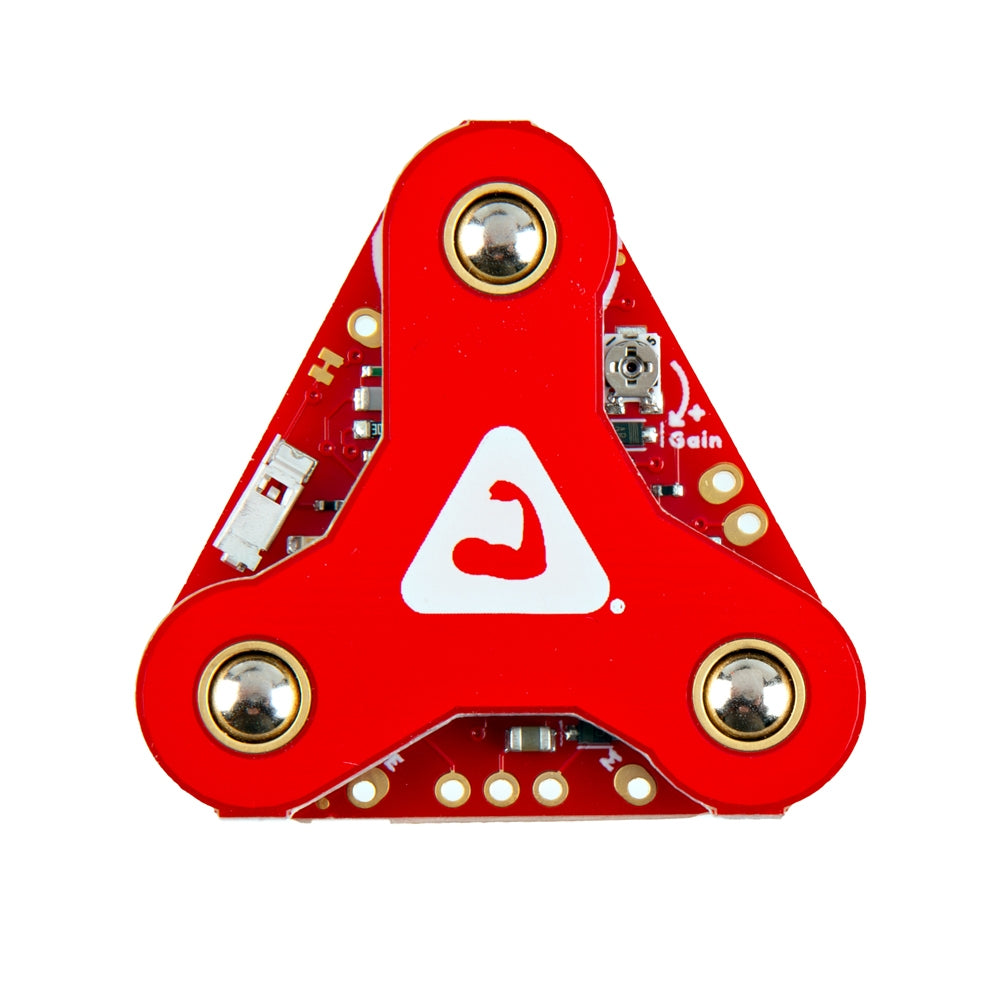

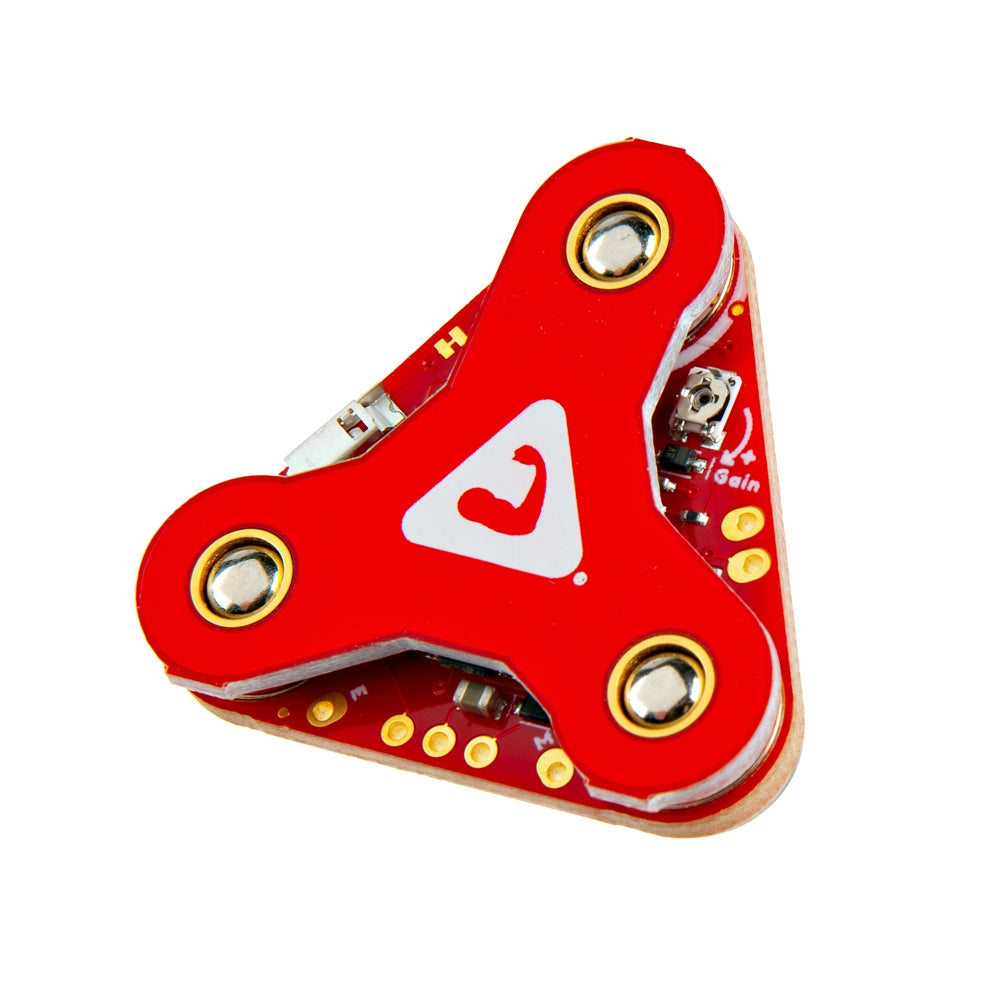

- Expandable via Shields
- MyoWare® 2 Muscle Sensor Form Factor
- 3x Female Snap Pins (Input Electrodes)
- 3x Male Snap Pins (Power and EMG Envelope Output)
- LED Indicators
- VIN
- ENV
- Reference Electrode Jumper
- Specially Designed For Microcontrollers
- Adjustable Gain

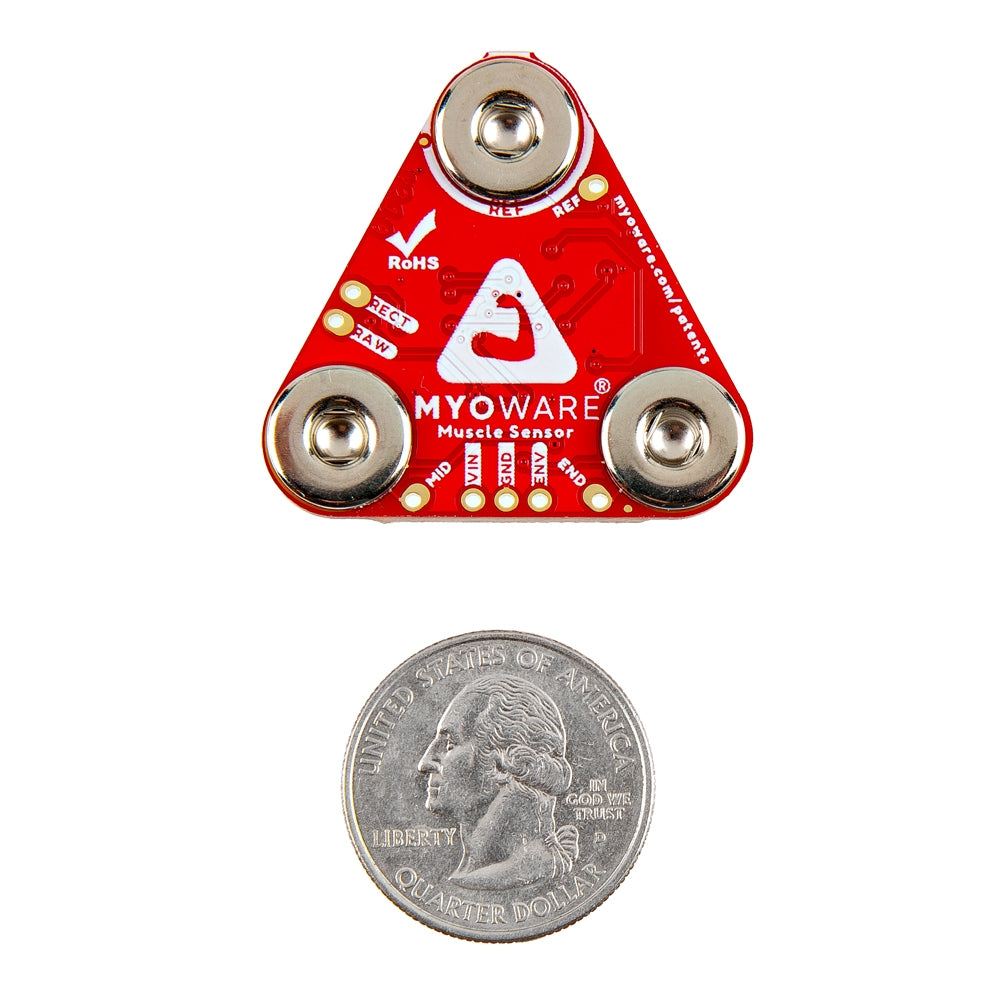

- Board Dimensions
- 37.57mm x 35.90mm (1.48” x 1.41”)
Features & Specs
- Wearable Design
- Supply Voltage
- Minimum: +2.27V
- Typically: +3.3V to +5V
- Maximum: +5.47V
- Input Bias Current
- 250pA, max 1nA
- Reverse Polarity Protection
- Three Output Modes
- Raw EMG
- Rectified
- Envelope
- Expandable via Shields
- MyoWare® 2 Muscle Sensor Form Factor
- 3x Female Snap Pins (Input Electrodes)
- 3x Male Snap Pins (Power and EMG Envelope Output)
- LED Indicators
- VIN
- ENV
- Reference Electrode Jumper
- Specially Designed For Microcontrollers
- Adjustable Gain
- Board Dimensions
- 37.57mm x 35.90mm (1.48” x 1.41”)
Documentation
- Board Dimensions
- Hookup Guide
- Advancer Technologies: MyoWare® 2
- Arduino Reference Language: ArduinoBLE Library
- GitHub Example Repo
- MyoWare 2 Ecosystem Page
