Description

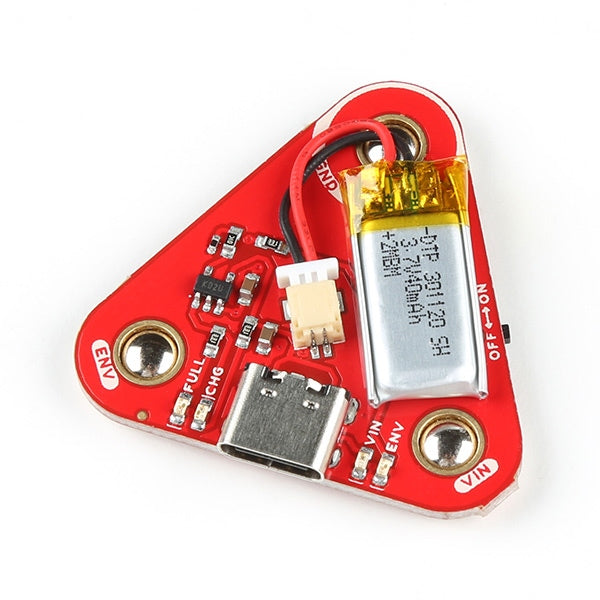

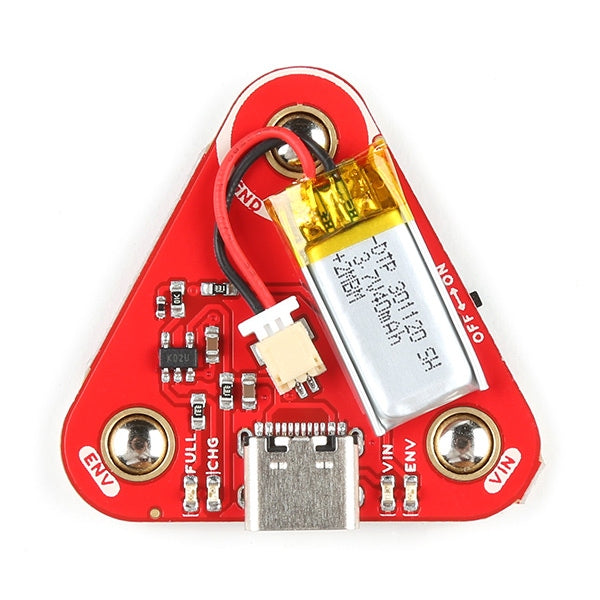

The MyoWare® 2.0 Power Shield is designed to easily power the MyoWare 2.0 Muscle Sensor remotely.
Features & Specs
- Input Voltage
- 5V via USB Type C Connector
- Output Voltage (e.g. "VIN")
- Nominal Voltage: 3.7V
- Fully Charged: 4.2V
- Power Switch
- Built-in LiPo Battery
- Rated Capacity: 40mAh
- Nominal Voltage: 3.7V
- Max Charge Current: 1C (40mA)
- MCP73831 Single Cell LiPo Charge IC
- Charge Rate Set to 40mA
- MyoWare® 2.0 Muscle Sensor Form Factor

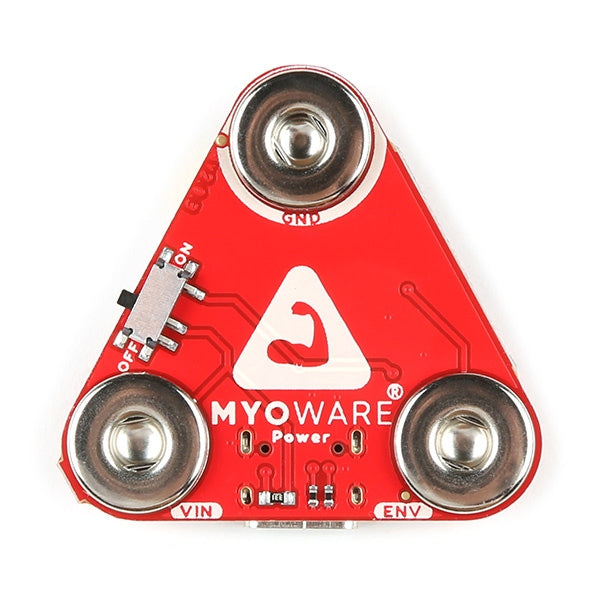

- 3x Female Snap Pins (Power and EMG Envelope Output)
- LEDs
- VIN
- ENV
- FULL
- CHG

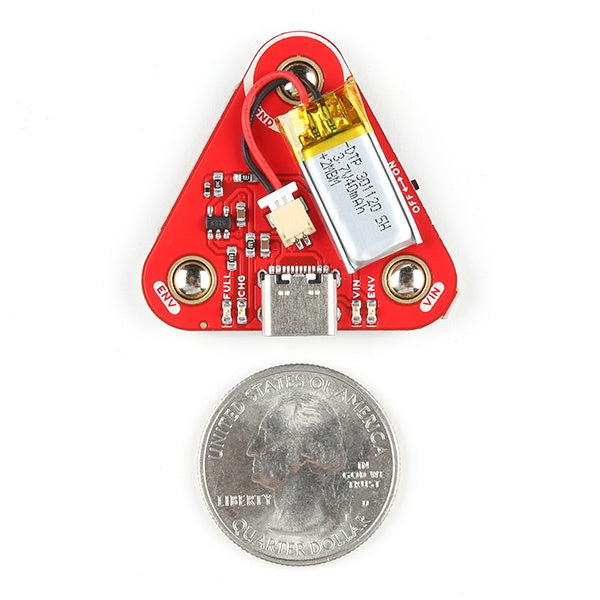

- Board Dimensions
- 53.34mm x 59.69mm (2.10” x 2.35”)
Revision Changes: This revision of the MyoWare 2.0 LED Shield includes a 2-pin, 1.00mm pitch JST-SH connector.
Features & Specs
- Input Voltage
- 5V via USB Type C Connector
- Output Voltage (e.g. "VIN")
- Nominal Voltage: 3.7V
- Fully Charged: 4.2V
- Power Switch
- Built-in LiPo Battery
- Rated Capacity: 40mAh
- Nominal Voltage: 3.7V
- Max Charge Current: 1C (40mA)
- MCP73831 Single Cell LiPo Charge IC
- Charge Rate Set to 40mA
- MyoWare® 2.0 Muscle Sensor Form Factor
- 3x Female Snap Pins (Power and EMG Envelope Output)
- LEDs
- VIN
- ENV
- FULL
- CHG
- Board Dimensions
- 53.34mm x 59.69mm (2.10” x 2.35”)
Revision Changes: This revision of the MyoWare 2.0 LED Shield includes a 2-pin, 1.00mm pitch JST-SH connector.
Documentation
- Board Dimensions
- Hookup Guide
- Advancer Technologies: MyoWare® 2.0
- Quickstart Guide (4.37MB)
- Advanced Guide (9.00MB)
- Patents [1]
- MCP73831 Datasheet
- Polymer Lithium Ion Battery (40mAh)
- Datasheet
- MSDS
- Arduino Reference Language: ArduinoBLE Library
- GitHub Example Repo
- MyoWare 2.0 Ecosystem Page
[1] Note: This product is patent protected. To prevent counterfeit boards
