Description
- 16 Balanced Line Level Inputs
- For Use with myMix Systems

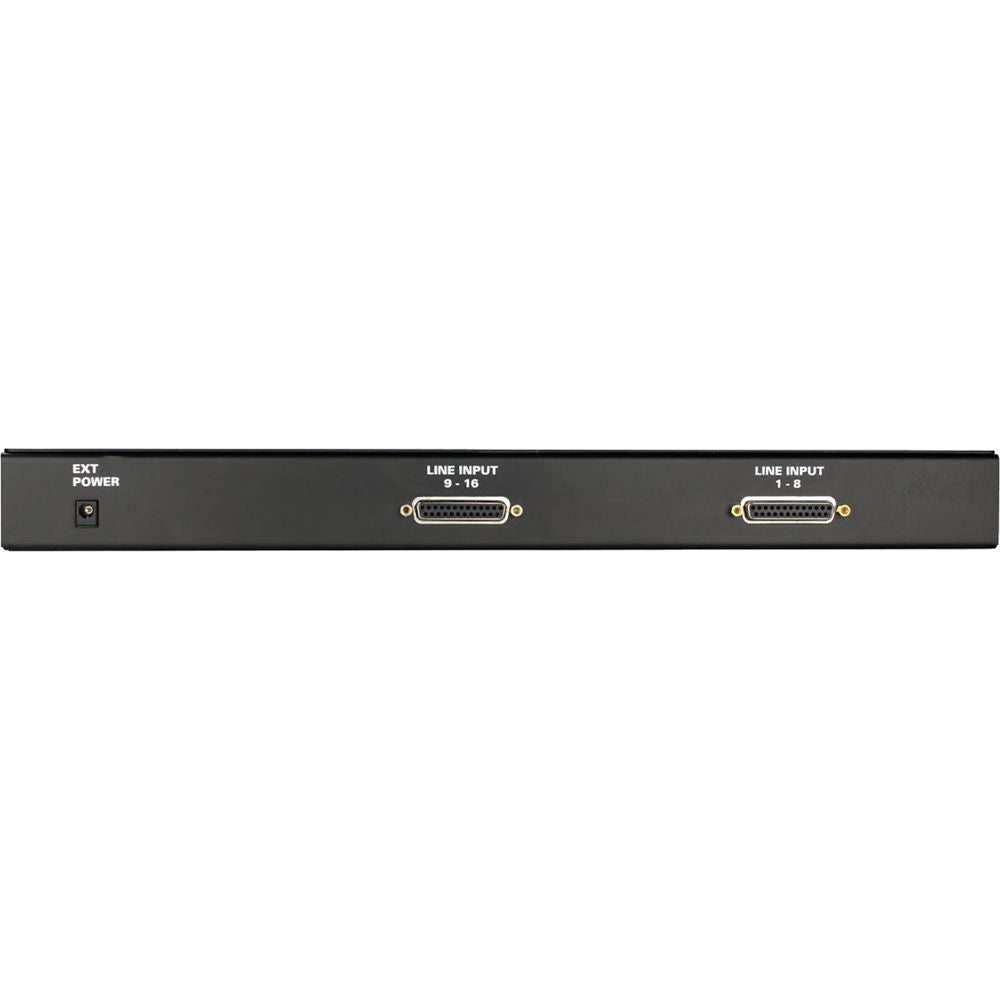

- Dual DB25 Connectors
- Digital Gain Control Per Channel
- Controlled by myMix Devices or Software

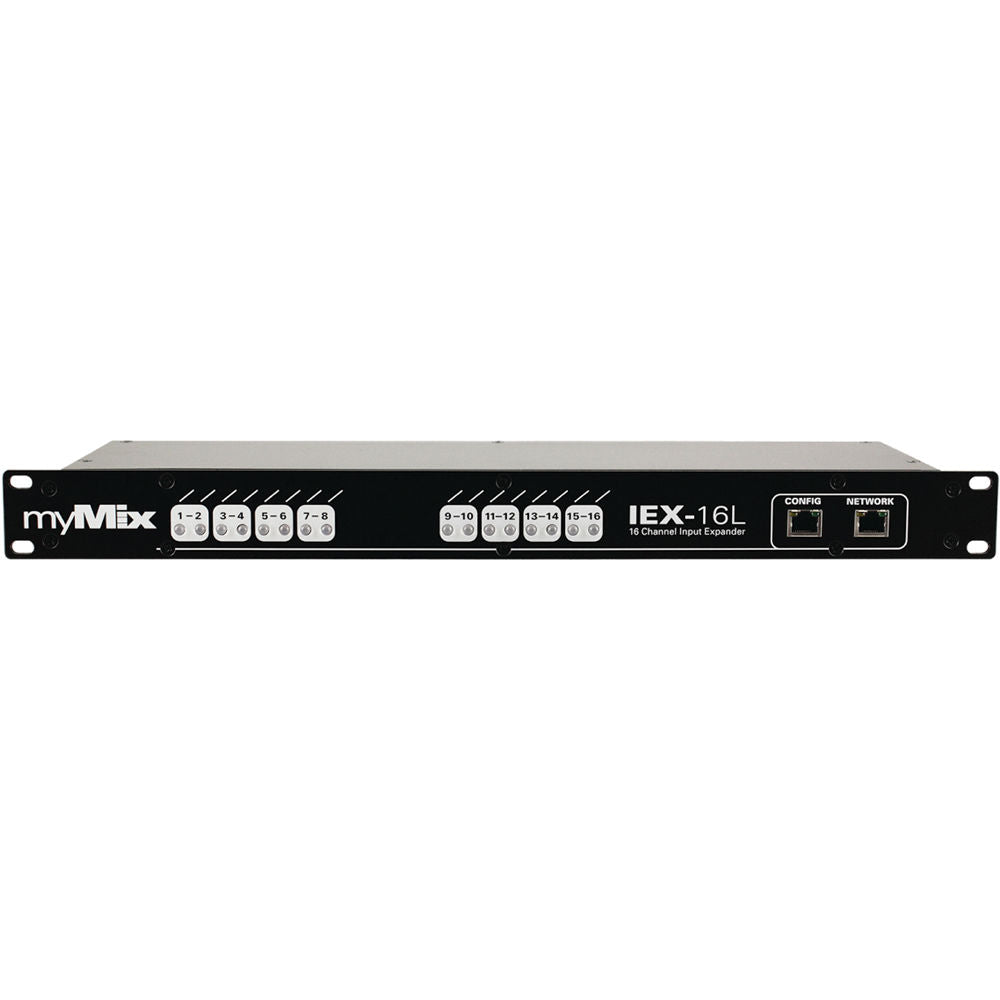

The myMix IEX-16L 16-Channel Input Expander is designed to provide an additional 16 channels of analog audio into a myMix system. It has dual DB25 connectors for signal from a mixing console, mic preamps, or digital interfaces. The IEX-16L features three levels of digital gain control per channel, allowing you to set the input at 0dB, +6dB, or +12dB. The unit is configurable with any myMix device or through a PC with the myMix CONTROL software.
Multiple IEX-16Ls can be connected to add as many channels of audio as needed into your myMix system. It connects to multiple myMix devices through an optional 100MBps Ethernet switch.
In the Box
myMix IEX-16L 16-Channel Input Expander
myMix IEX-16L specs
| Inputs | 2x 8-Channel DB-25 Line Level Connectors |
| Input Impedance | 20 k?, balanced |
| Maximum Input Level | + 20 dBu |
| Input Gain Adjustment | 0 dB, +6 dB, + 12dB (Digital) |
| Frequency Response | 20 Hz to 20 kHz (-1 dB) |
| Signal to Noise Ratio | > 104 dB |
| Total Harmonic Distortion/Noise | < 0.022 % |
| Network Type | 100 MBps Fast Ethernet |
| Network Cable Type | CAT5/CAT5e |
| Network Connection | 1x Network RJ45 1x myMix RJ45 |
| Network Switch | Unmanaged 100BASE-TX, Full-Duplex (for 16 Channels) |
| Audio Channel Limit | 2x Maximum of Multicast Groups Handled by the Switch |
| AD/DA Conversion | 24-Bit/48kHz |
| Dimensions (WxHxD) | 19 x 1.75 x 5" (483 x 44 x 146 mm) |
| Weight | 6 lb (2.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 6.0 lb |
| Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" |
