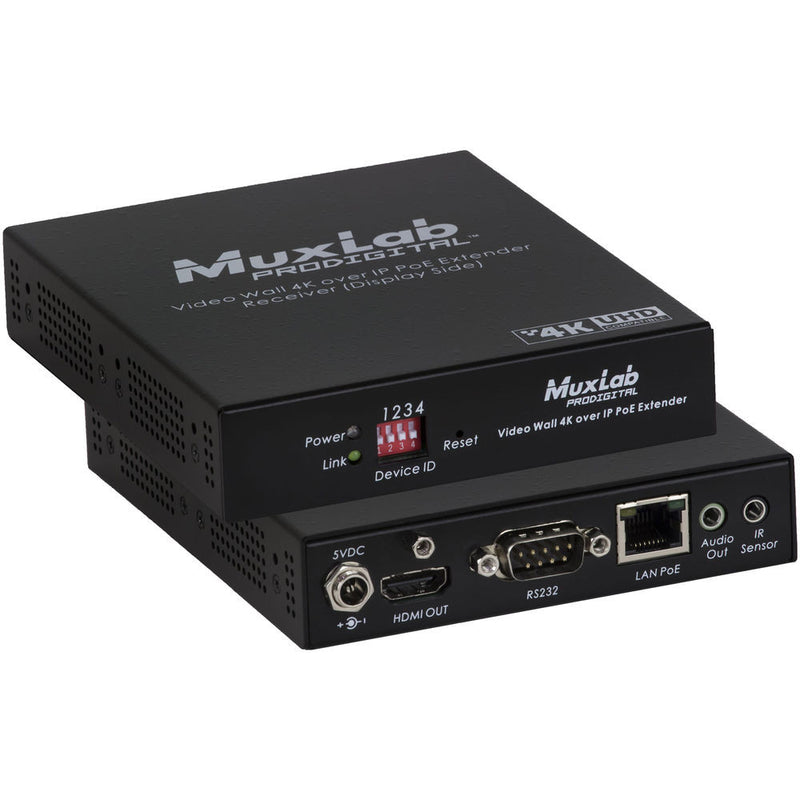

Provided by third party: The Video Wall 4K over IP PoE Extender kit allows HDMI equipment to be connected and extended to create a video wall of user configurable size supporting screens, depending on network bandwidth, utilizing one receiver for each display in the array. Each transmitter and receiver can be connected via cable. The transmitters and receivers support PoE (PD) and may be powered by a PoE (PSE) Ethernet switch.
- Key Features
-
- Configure a video wall array with displays, depending on network bandwidth
- Visually lossless video
- Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
- Supports audio insert & audio extract
- PoE powered
UPC: 627699807590
| General |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Networking |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, infrared |
| Max Video Bandwidth | 300 MHz |
| Max Transfer Distance | 328 ft |
| Features | Power over Ethernet (PoE), 4K resolution support |
| Compliant Standards | IEEE 802.3af |
| Expansion / Connectivity |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A female
1 x RS-232 - DB-9 male
1 x IrDA - mini jack female
1 x network - RJ-45 female
1 x audio - mini jack female |
| Power |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 2.55 Watt |
| Environmental Parameters |
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
