MuxLab 100515 Overview

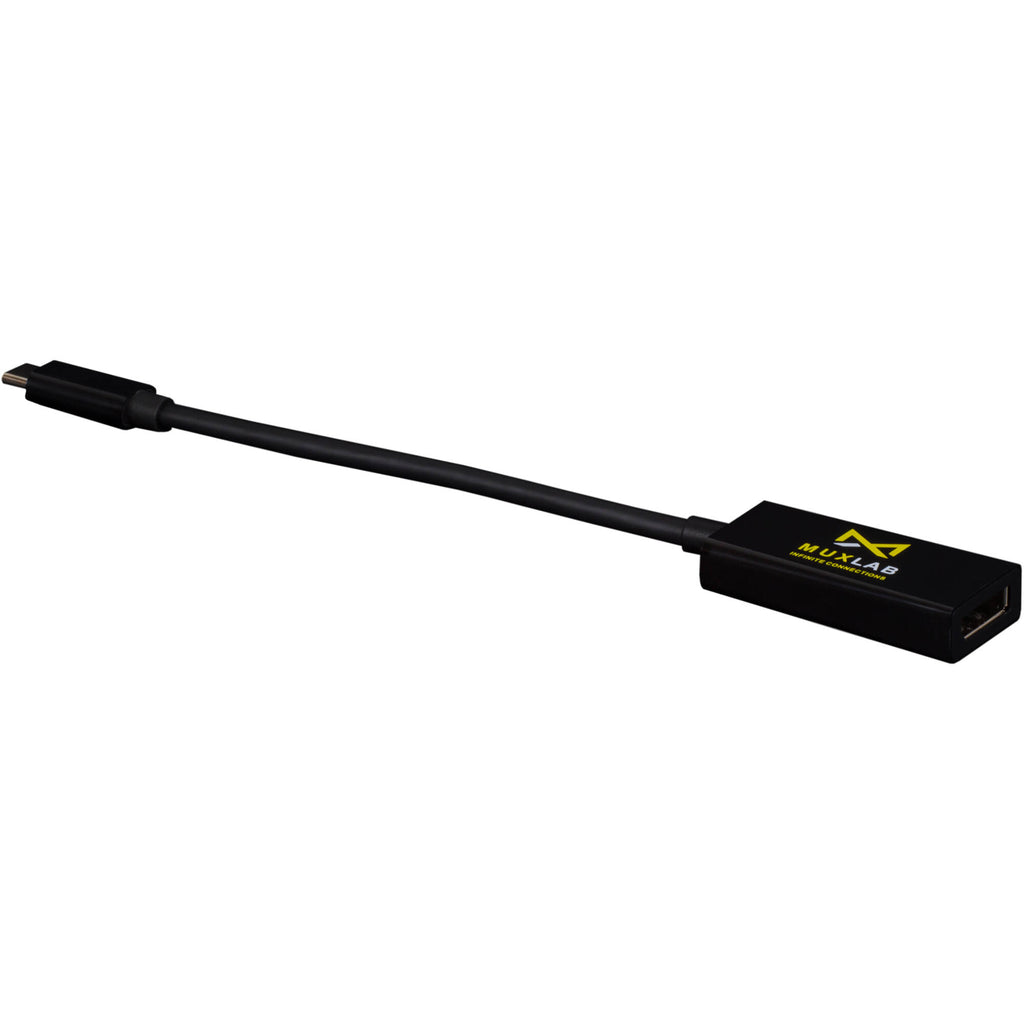

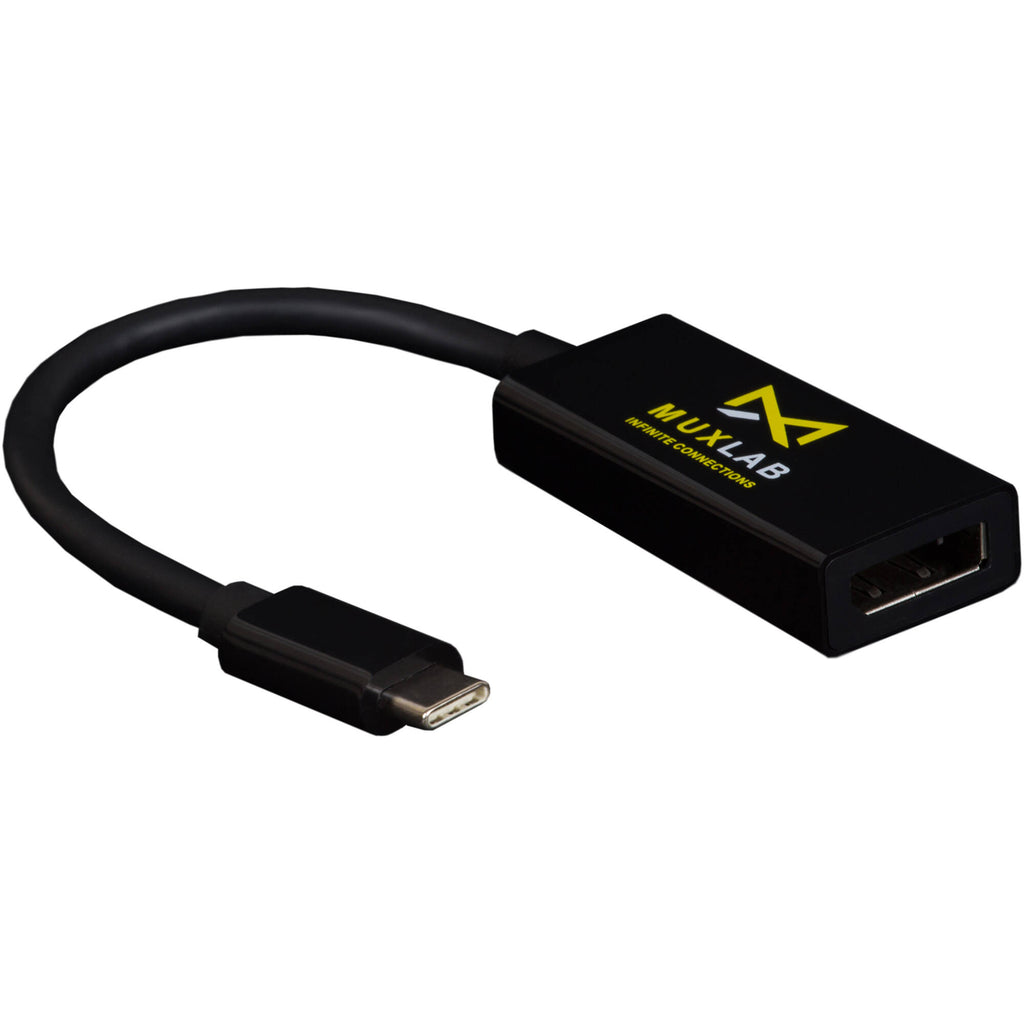

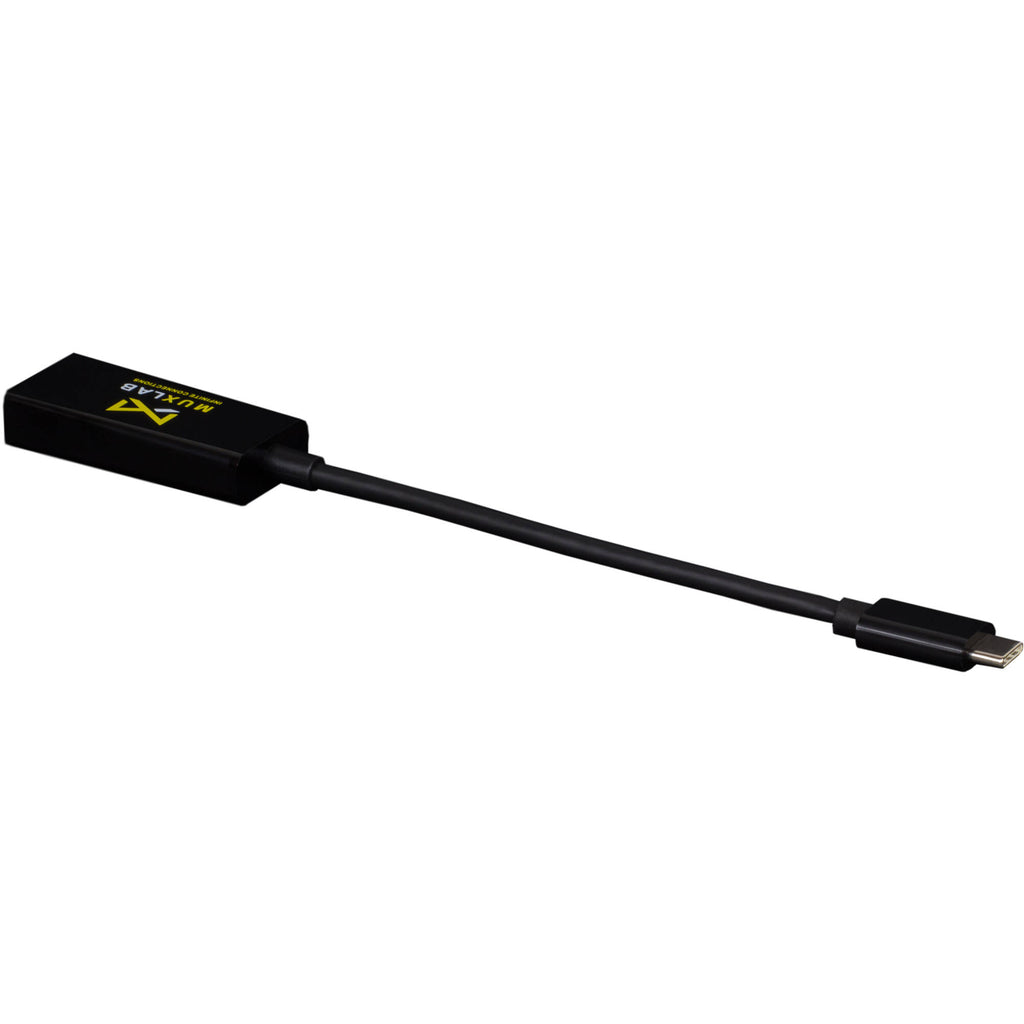

Quickly and conveniently connect your compatible USB Type-C laptop to a DisplayPort monitor with the MuxLab USB Type-C Male to DisplayPort 1.2a Female Adapter. This compact adapter is designed to deliver crisp, clear 3840 x 2160 4K resolution images and videos at 60 Hz with a full range of digital multichannel audio for immersive for presentations, entertainment, and more. Simply connect the USB Type-C male connector to your compatible laptop and use a separately purchased cable with the DisplayPort 1.2a female port. This adapter works with most compatible systems and monitors without needing any additional power adapters or software drivers. Its pigtail design also allows it to fit into tight spaces. Additionally, the compact adapter fits into a pocket or bag for easy travel.
![]()
UPC: 627699505151
In the Box
- MuxLab USB Type-C Male to DisplayPort 1.2a Female Adapter
- Limited 1-Year Warranty
MuxLab 100515 Specs
Connectivity
| Connector 1 |
USB (Version Unspecified) Type-C Male |
| Connector 2 |
DisplayPort 1.2a Female |
General
| Maximum Resolution Support |
3840 x 2160 at 60 Hz |
| Converter Type |
Passive |
| Audio Support |
Yes |
Cable
| Cable Length |
4.6" / 11.7 cm |
| Shielding |
None |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Operating Humidity |
90% |
| Certifications |
CE, FCC, HDCP, RoHS, as per Manufacturer |
Physical
| Material |
Plastic |
| Dimensions |
8.0 x 0.9 x 0.4" / 203.0 x 23.0 x 10.0 mm |
Packaging Info
| Package Weight |
0.08 lb |
| Box Dimensions (LxWxH) |
7.2 x 4 x 0.9" |
