Description
MuxLab 500535 Overview

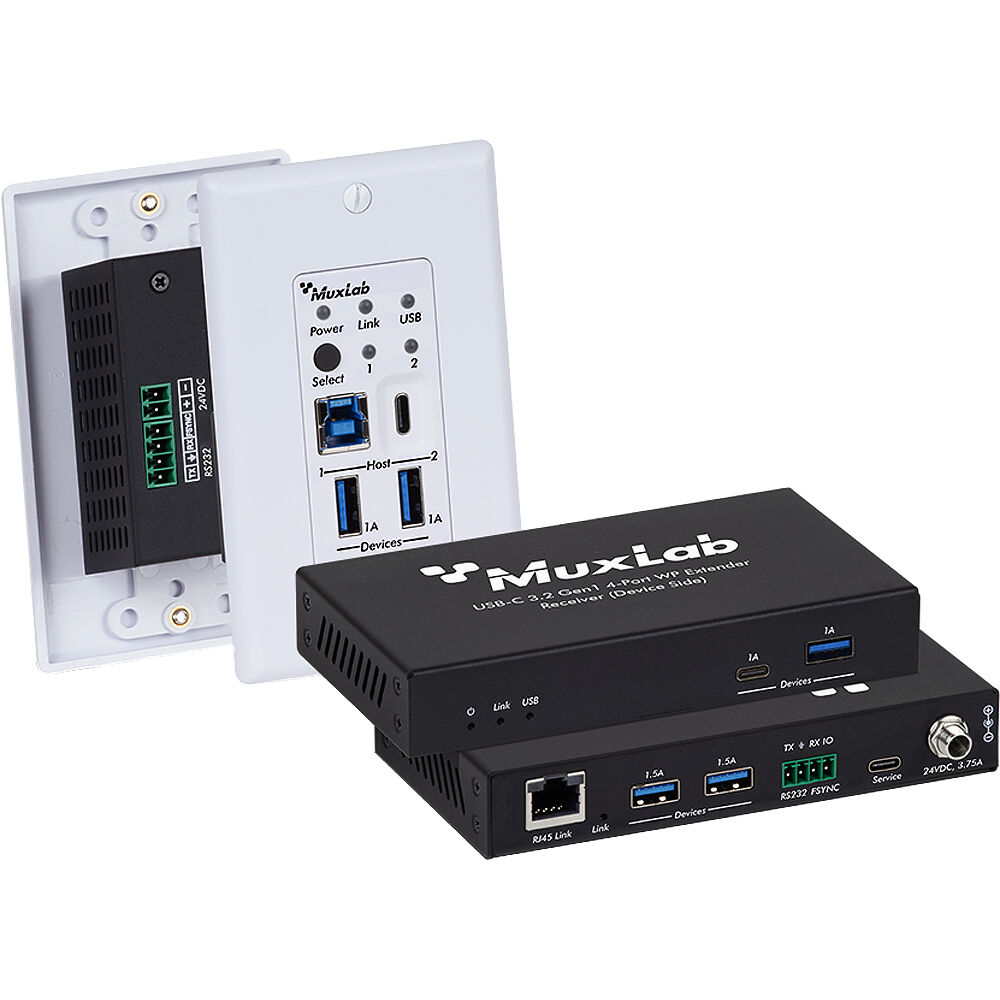

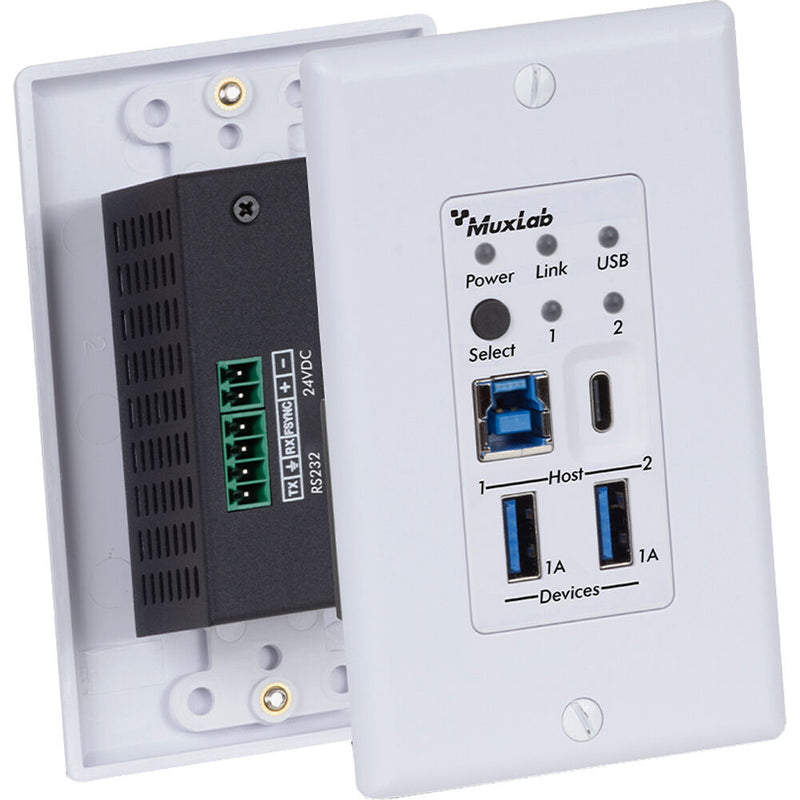

The MuxLab USB-C 3.2 Gen 1 4-Port Wall Plate Extender Kit enables USB 3.2 Gen 1 connectivity at data rates up to 5 Gb/s and extends true USB up to 328' over standard Cat6a UTP. The transmitter features one USB-C host input, one USB-B host input, two USB-A local ports, one FSYSNC GPIO input, and one RS-232 pass-through. The receiver features four USB 3.2 Gen 1 outputs (one USB-C and three USB-A), one FSYSNC GPIO output, and one RS-232 pass-through. The device also supports 24V Bi-directional PoC.
This kit is plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition, and other implementations of USB standards.
- Extension of USB 3.2 Gen 1 up to 328' over CAT6a cable
- USB 3.2 Gen 1 connectivity with data transfer rate up to 5 Gb/s
- Backwards compatible with USB 2.0 and USB 1.1
- Hardware acceleration for isochronous and bulk transfer
- USB-C and USB-A ports supports 5VDC up to 1.5A and 1A on the receiver
- Support RS-232 passthrough and FSYNC GPIO passthrough (for industry camera use)
- Support bi-directional 24 VDC PoC
- Simple plug and play no driver and setting installation required
- Conference rooms
- Classroom projector systems
- Collaborative PC systems
- Digital signage
- Educational institutions
- Boardroom systems
Items Included
- MuxLab USB-C 3.2 Gen 1 4-Port Wall Plate Extender Kit (328')
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
MuxLab 500535 Specs
| Maximum Range |
USB 3.0 / 3.1/3.2 Gen 1: 328.1' / 100 m over Cat 6a Cable
|
| Receiver I/O |
1x RJ45 Input
1x USB-C Input 1x Block 3-Pin (RS-232) Input 1x USB-C Output 3x USB-A Output |
| Transmitter I/O |
2x USB-C Input
1x USB-B Input 1x Block 3-Pin (RS-232) Input 1x RJ45 Output 2x USB-A Output |
| Power Source |
Power Adapter
|
| Receiver I/O |
1x RJ45 Input
1x USB-C Input 1x Block 3-Pin (RS-232) Input 1x USB-C Output 3x USB-A Output |
| Transmitter I/O |
2x USB-C Input
1x USB-B Input 1x Block 3-Pin (RS-232) Input 1x RJ45 Output 2x USB-A Output |
| Maximum Number of Devices |
7
|
| Power Source |
Power Adapter
|
| Power Connector |
Unspecified Size Barrel
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
62 W (Maximum)
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Certifications |
IEC 61000-4-2
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Enclosure Material |
Metal
|
| Dimensions |
1.8 x 4.1 x 1.7" / 45.0 x 103.5 x 42.0 mm Transmitter
5.5 x 0.9 x 3.0" / 140.0 x 23.0 x 75.0 mm Receiver |
| Weight |
Transmitter: 4.1 oz / 115 g
Receiver: 11.2 oz / 318 g |
