Description
Provided by third party:

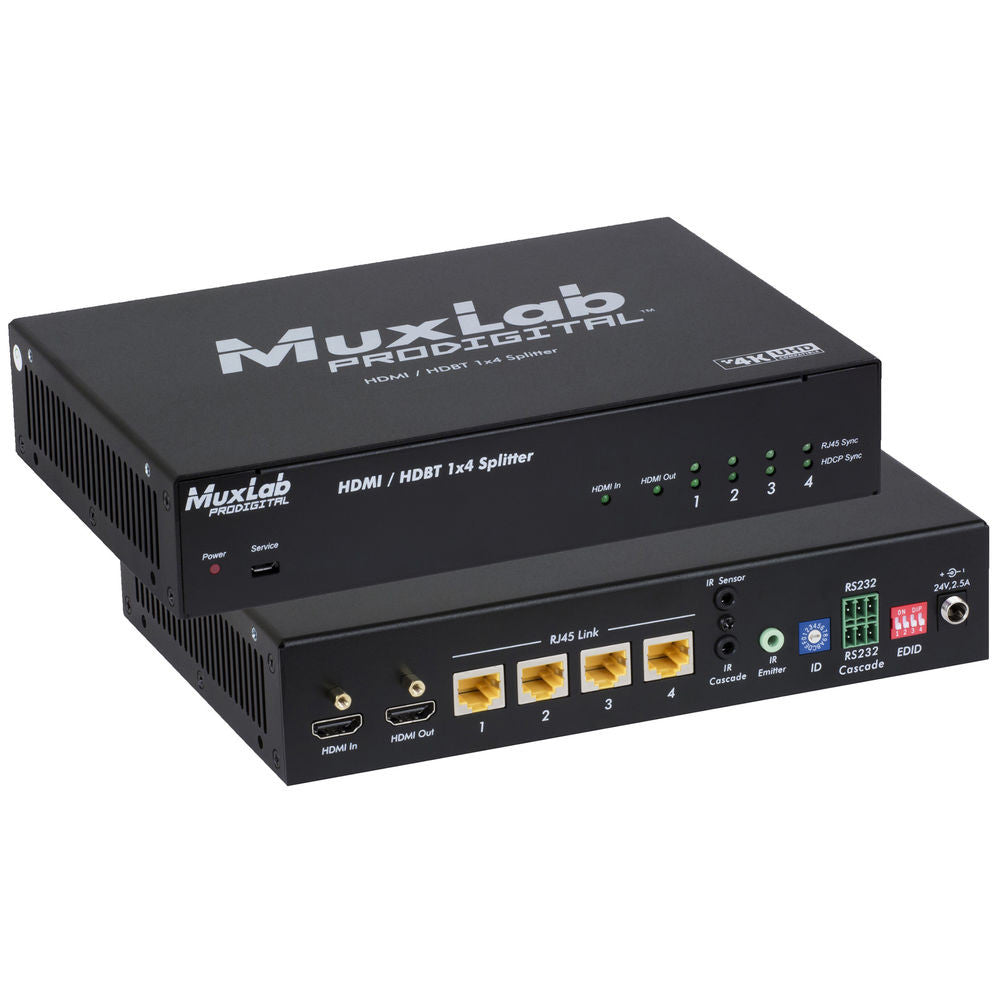

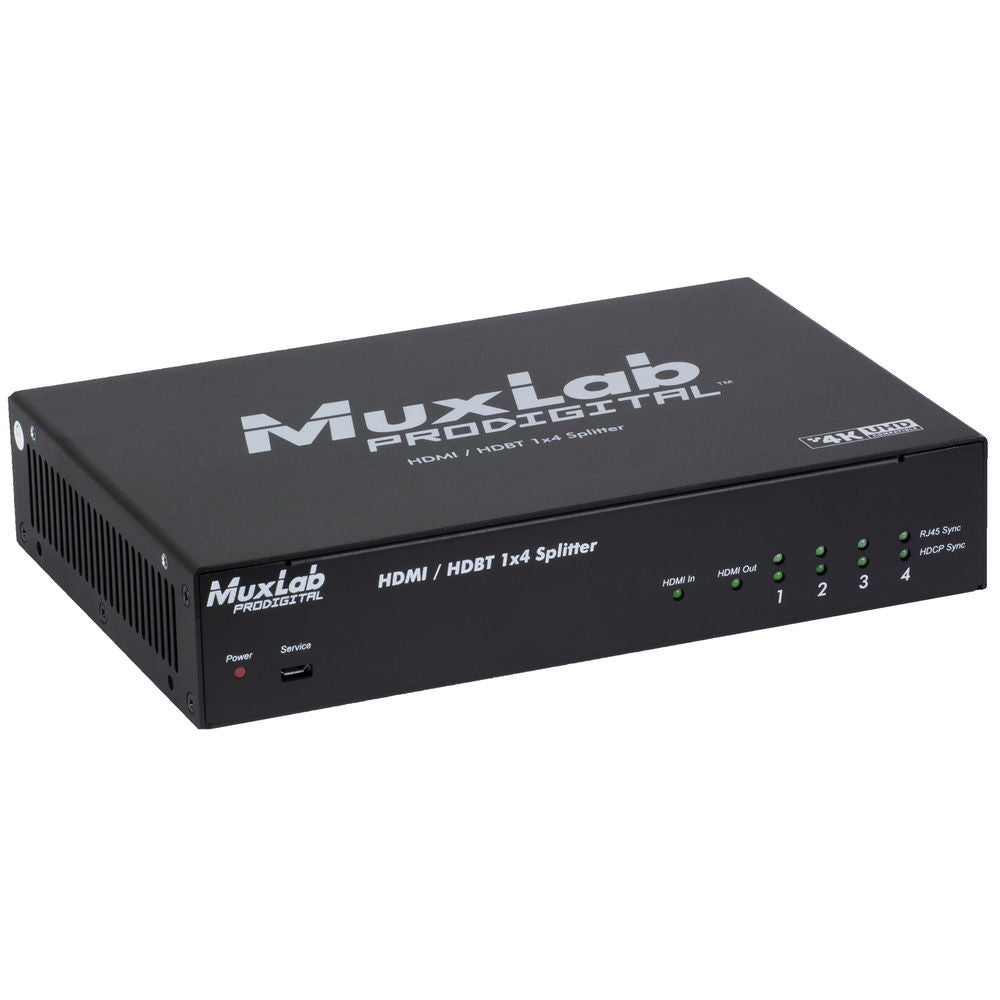

The HDMI/HDBT 1�4 Splitter is HDBT splitter accepting 1 HDMI input and distributing to 4 HDBT outputs, plus 1 HDMI output for local monitoring or for cascading up to four other splitters. The HDMI/HDBT 1�4 Splitter is also capable of bi-directional IR transmission and EDID management.
- Key Features
-
- Distribute one HDMI source to four displays
- HDCP compliant
- EDID management
- Connectors on rear for neater cabling
- LED diagnostics
UPC: 627699914243
| General | |
|---|---|
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | External |
| Localization | United Kingdom |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, HDBaseT, infrared |
| Max Resolution | 30 Hz |
| Max Video Bandwidth | 297 MHz |
| Max Transfer Distance | 230 ft |
| Features | HDCP compliant, cascadable, 4K resolution support, EDID Management |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female 1 x RS-232 1 x IrDA (input) - mini jack female 1 x IrDA (output) - mini jack female 1 x HDMI (output) - 19 pin HDMI Type A female 4 x HDBaseT (output) - RJ-45 |
| Miscellaneous | |
|---|---|
| Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Power | |
|---|---|
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 104 �F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
