Description
MuxLab 500772-RX Overview

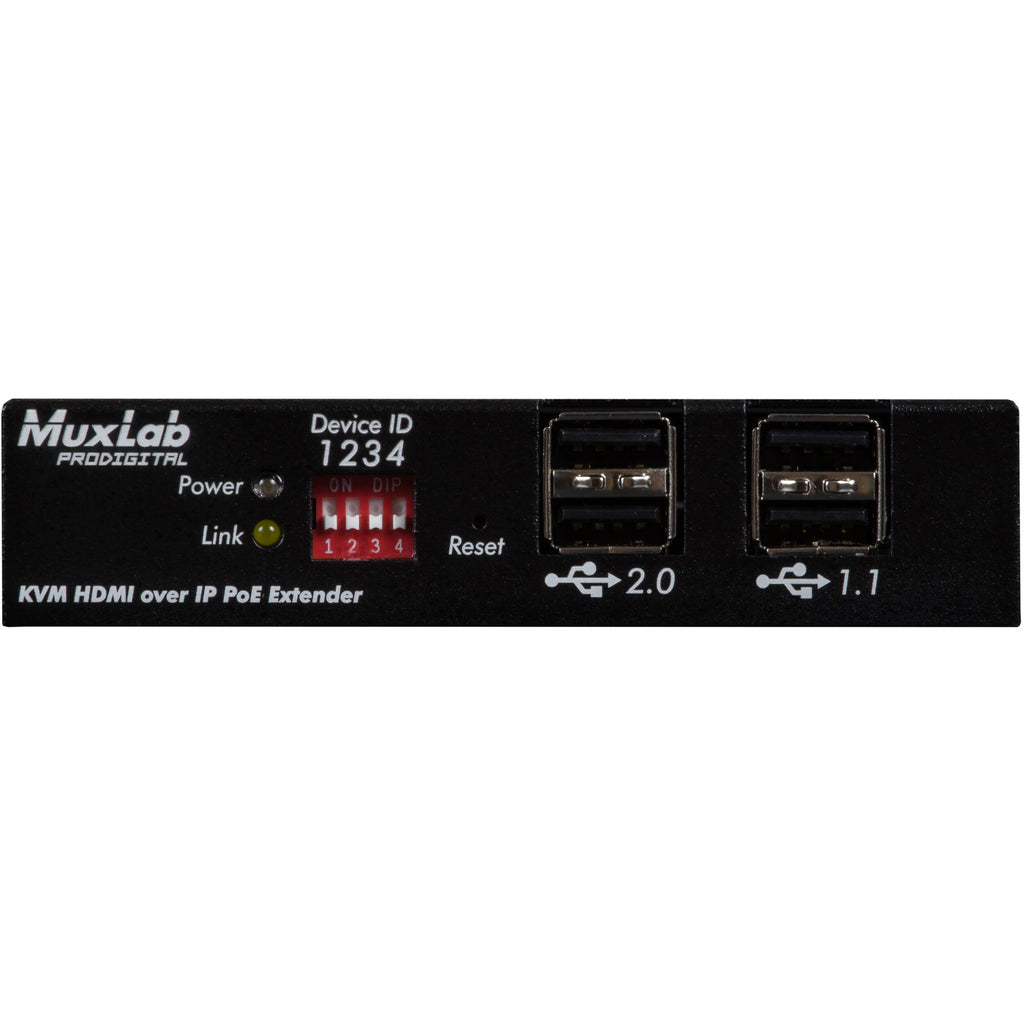

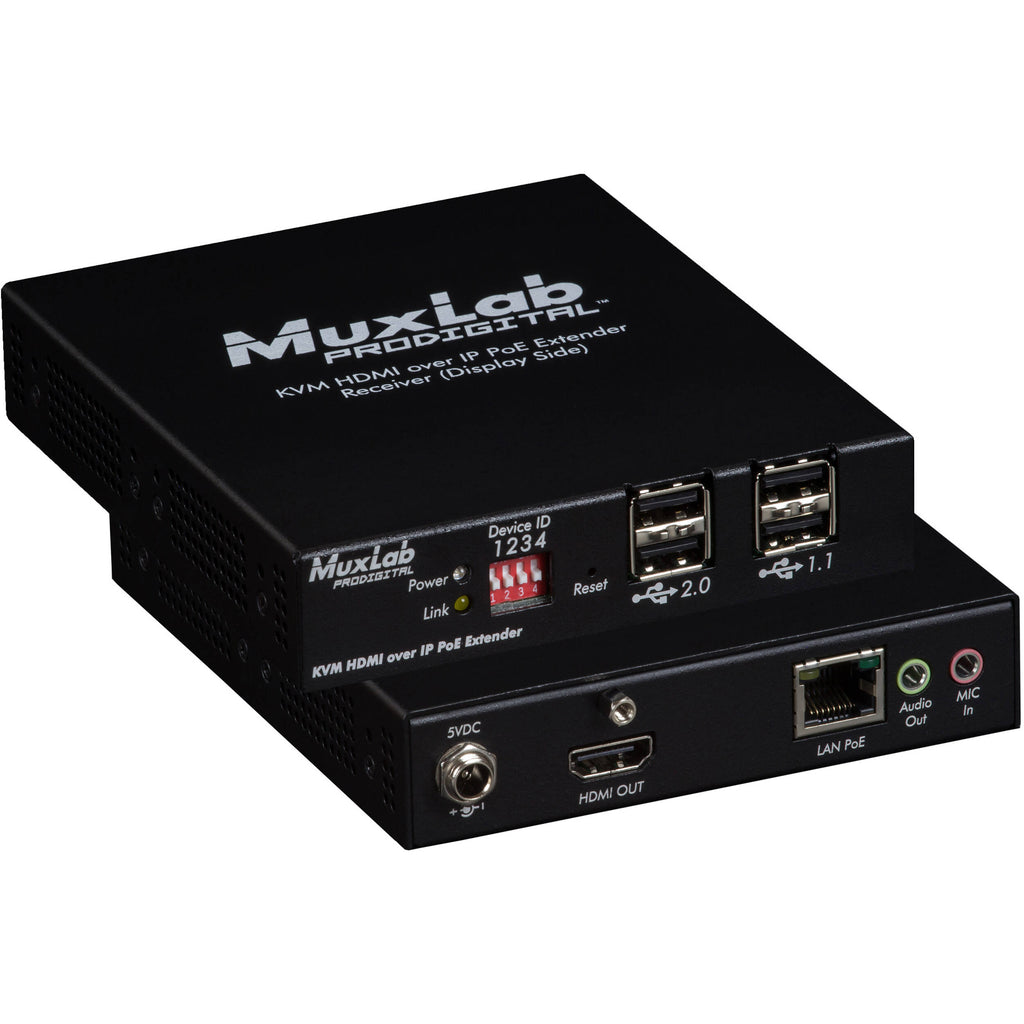

Receive 4K60 video from up to 328' away and output companion KVM commands to local devices with the UHD 4K KVM HDMI-over-IP PoE Extender Receiver from MuxLab. The receiver can decode video directly from the separately available 500772-TX transmitter on a local LAN, and it is powered via PoE on a supported network or by an optional power supply. The receiver will fit right into your IT server room, media center, meeting room, or classroom environment where video distribution and central keyboard control is used.
The receiver supports up to UHD 4K60 4:2:0 input from the Ethernet feed and output to HDMI, and it supports HDR video. It features four USB Type-A outputs to distribute keyboard and mouse control to various destination devices, and the operator can utilize hotkey sequences to switch transmitter sources. It supports embedded HDMI audio and also has a 3.5mm mic audio input to embed analog audio, and it features a 3.5mm audio output for de-embedding to speakers. It also supports point-to-multipoint and multipoint-to-multipoint configurations when using an Ethernet switch.
MuxLab 500772-RX Specs
| Inputs/Outputs | Receiver: 1 x HDMI Type-A (Video) FemaleOutput 4 x USB-A (Control) FemaleInput 1 x RJ45 (Ethernet) FemaleInput 1 x 1/8" / 3.5 mm (Audio) FemaleInput 1 x 1/8" / 3.5 mm (Audio) FemaleOutput |
| Supported Resolutions | 3840 x 2160 @ 60 Hz 3840 x 2160 @ 30 Hz |
| Maximum Transmission Distance | 328.1' / 100 m |
| Transmission Method | CAT5e/CAT6/CAT7 Cable |
| HDCP Support | Yes, Version 2.2 |
| Video Channel | 1-Channel |
| Audio Channels Supported | 2-Channel Stereo |
| Bandwidth | 300 MHz |
| Power Consumption | 6 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | 95% |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 5.1 x 4.4 x 1.0" / 129.0 x 112.0 x 25.0 mm |
| Weight | 1.5 lb / 680.0 g (Transmitter) |
| Package Weight | 0.955 lb |
| Box Dimensions (LxWxH) | 8 x 6 x 2.3" |
