Description
MuxLab 500869 Overview

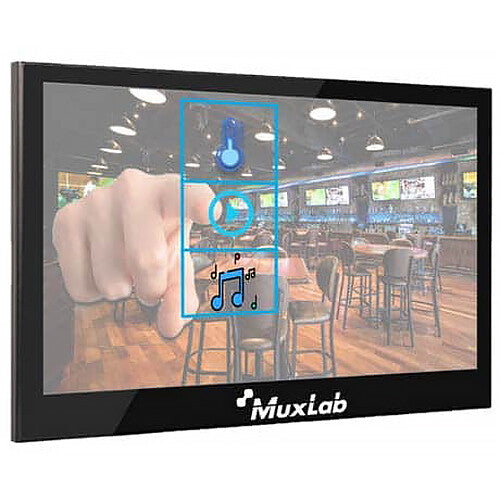

Facilitate intuitive control of your MuxLab devices in your meeting space using the SmartControl AV Touch Panel. This 11.6" panel features a 1366 x 768 resolution, 10-point capacitive touchscreen interface. Two built-in speakers allow you to control audio and video functions. A quad-core processor and 16GB storage capacity make for a high-performing device. Connect the device to your preexisting A/V ecosystem via RJ45 Ethernet port and Wi-Fi/Bluetooth signals. An included wall mount bracket integrates the panel seamlessly into your space.
Features at a Glance
- 11.6" LCD panel, 1366 × 768 resolution
- 10-point capacitive touchscreen, RK3568 Quad-core A55
- 2GB of RAM memory, 16GB of internal memory storage
- Android 11 operating system
- PoE 802.3af/at, Bluetooth 5.2
- Two 1W Speakers
Items Included
- MuxLab SmartControl AV Touch Panel (11.6")
- Wall Mounting Bracket
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab 500869 Specs
General
| CPU |
RK3568?Quad-core A55
|
| RAM |
2 GB
|
| Operating System |
Android 11
|
Display
| Panel Type |
LCD
|
| Display Size |
11.6"
|
| Native Resolution |
1366 x 768
|
| Touchscreen |
Yes
|
| Viewing Angle (H x V) |
85 x 85°
|
| Contrast Ratio |
800:1
|
| Aspect Ratio |
16:9
|
Inputs/Outputs
| USB I/O |
1 x USB-C Female Input
|
| Internal Storage |
16 GB
|
| Other I/O |
1 x Block 2-Pin RS-485
1 x RJ45 Ethernet |
Wireless
| Wireless |
802.11b/g Wi-Fi / Bluetooth 5.2
*Built-In |
Power
| Power Source |
DC Input
|
| DC Input Power |
12 / 24 VDC
|
| Power Consumption |
20 W (Maximum)
|
Physical
| Mounting |
1x Wall Mount Bracket
|
| Dimensions |
11.2 x 7.2 x 0.5" / 284.9 x 182.2 x 11.5 mm
|
| Weight |
2.89 lb / 1.31 kg
|
