Description
MuxLab Single-Mode HDMI 2.0 Fiber Extender Ki... Overview

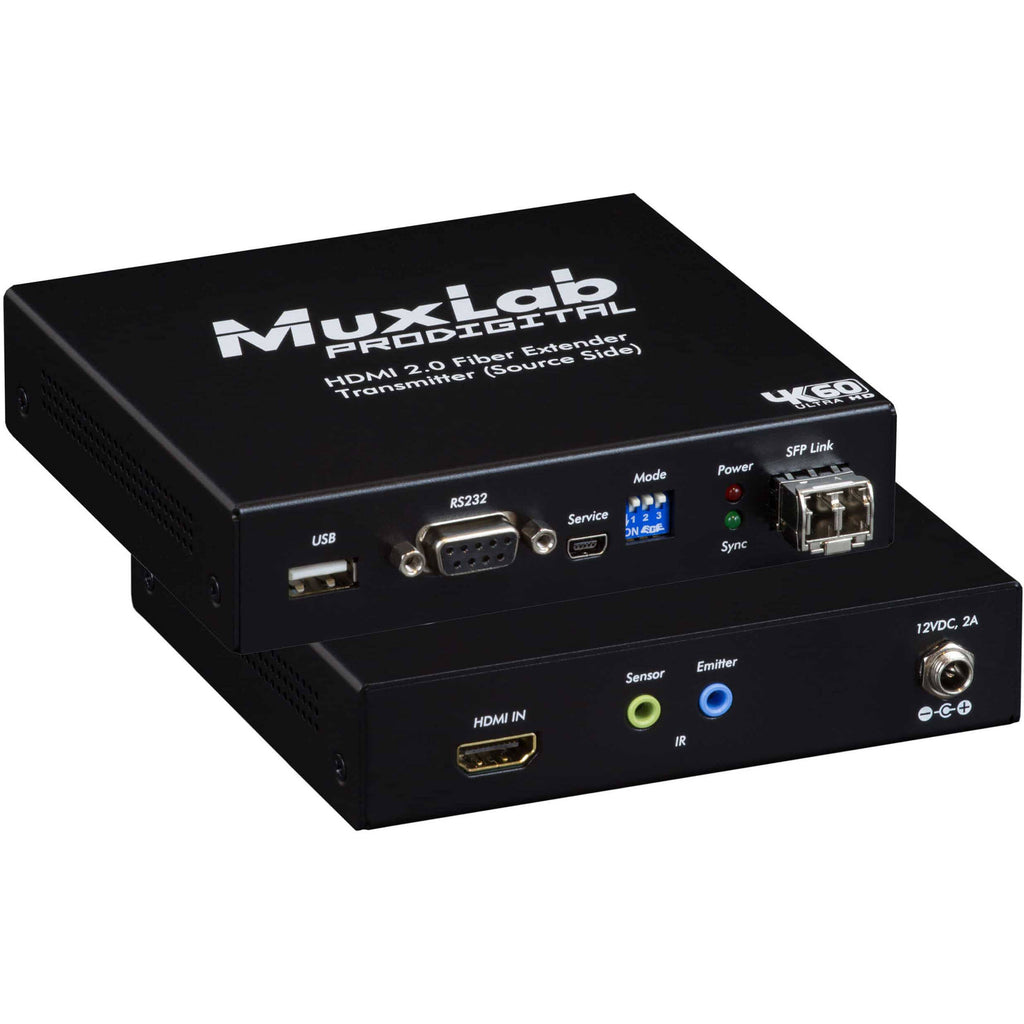

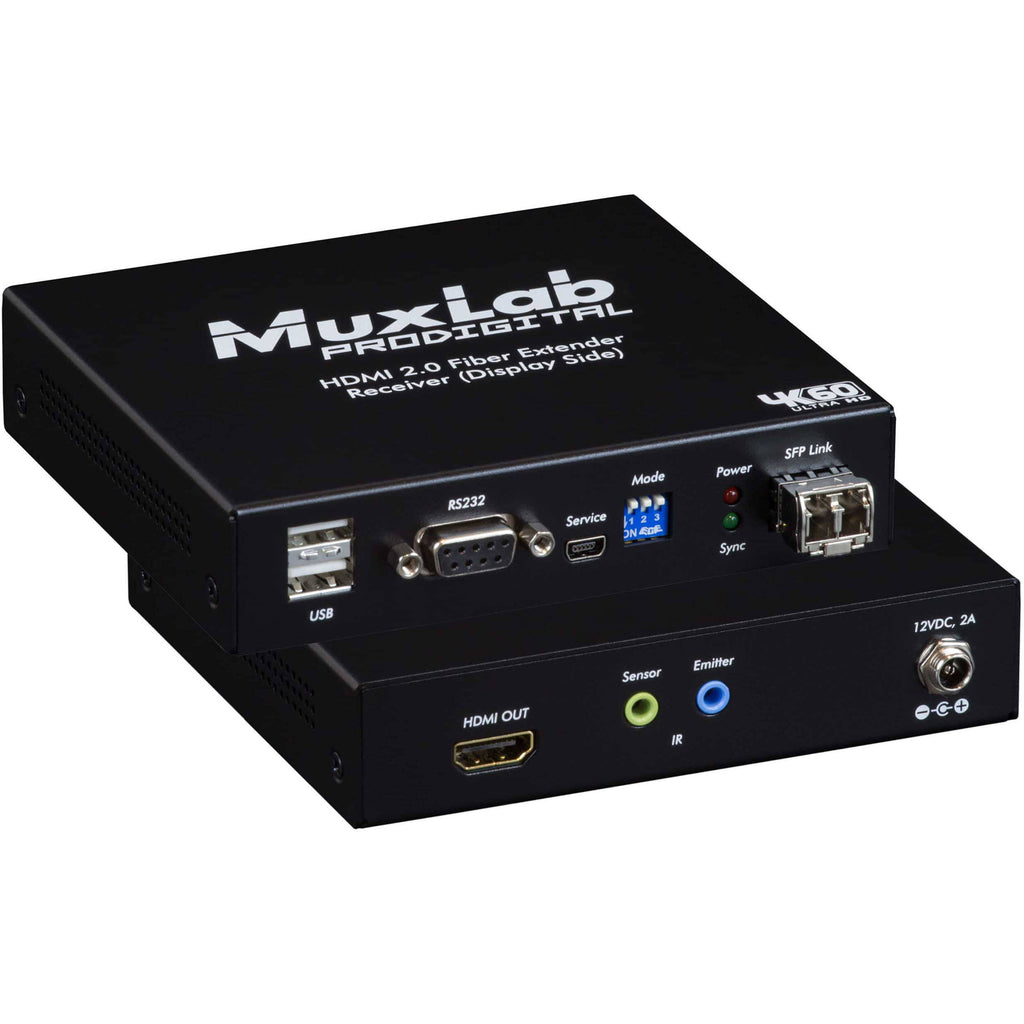

This Single-Mode HDMI 2.0 Fiber Extender Kit from MuxLab can transmit and receive a HDMI 2.0 signal up to 6.2 miles over a single-mode fiber optic cable in point to point configuration. Up to 4K video at 60 Hz is supported by both the transmitter and receiver. The kit is HDCP 2.2 compliant and is compatible with USB 1.1 devices such as keyboards and mice.
Control over both the transmitter and the receiver can be achieved via the RS-232 port or the IR receiver and blaster connectors. An LED indicator shows the power and link status of each device. The kit includes brackets and screws to mount it to the wall and two 12 VDC power supplies for easy integration into your preexisting workflow.
- Supports HDMI 4K at 60 fps, HDR 4K at 60 fps, and HDCP 2.2
- Extends signal up to 6.2 miles over single-mode fiber optic cable
- Supports USB 1.1 for keyboard and mouse connection
- Full frequency IR signal from 20 kHz to 60 kHz
- Bidirectional IR passthrough
- Link LED indicator light
- Wall bracket kit with screws to mount onto wall
- Includes two 12 VDC power supplies

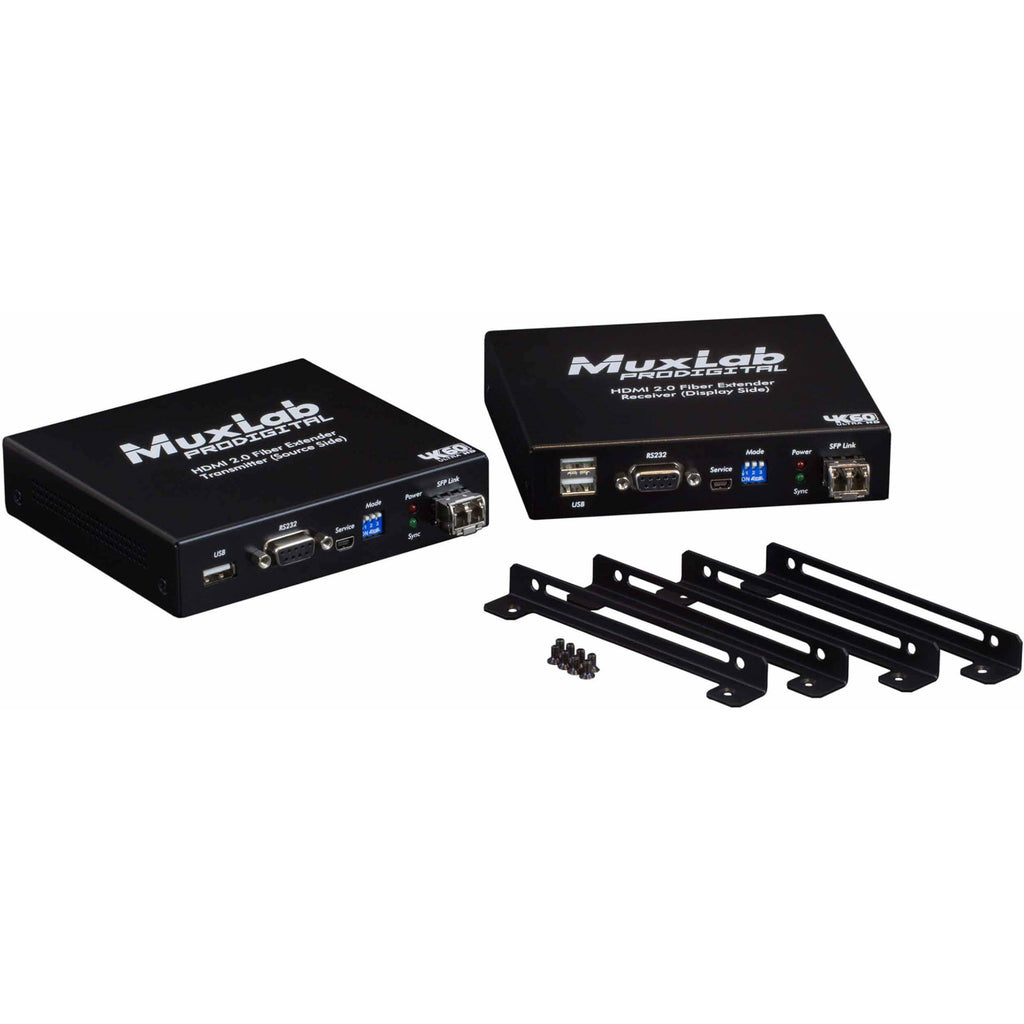

In the Box
- MuxLab Single-Mode HDMI 2.0 Fiber Extender Kit
- IR Blaster
- IR Receiver
- 2 x Single-Mode Module
- Wall Bracket Kit with Screws
- 2 x 12 VDC Power Supply
MuxLab Single-Mode HDMI 2.0 Fiber Extender Ki... Specs
| Inputs | 1 x HDMI (HDMI 2.0) Female 1 x 1/8" / 3.5 mm TS (IR) Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x SFP Female 1 x 1/8" / 3.5 mm TS (IR) Female |
| Transmitter Other I/O | 1 x DE-9/DB-9 RS-232 Input/Output 1 x USB Type-A Input/Output 1 x USB Mini-B Input |
| Inputs | 1 x SFP Female 1 x 1/8" / 3.5 mm TS (IR) Female |
| Outputs | 1 x HDMI (HDMI 2.0) Female 1 x 1/8" / 3.5 mm TS (IR) Female |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x DE-9/DB-9 RS-232 Input/Output 2 x USB Type-A Input/Output 1 x USB Mini-B Input |
| Reclocking | No |
| HDCP Support | Version 2.2 |
| EDID Support | None |
| Max Transmission Distance | UHD 4K at 60 Hz: 6.2 Miles / 10 km |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:0) UHD 4K |
| Audio Format | S/PDIF: |
| Supported Cable Types | Single-Mode Fiber |
| Transmitter Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
| Receiver Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
| Transmitter Power Consumption | Device: (10 W) |
| Receiver Power Consumption | Device: (10 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Transmitter Dimensions | 4.9 x 4.4 x 1.1" / 124.5 x 111.8 x 27.9 mm |
| Receiver Dimensions | 4.9 x 4.4 x 1.1" / 124.5 x 111.8 x 27.9 mm |
| Transmitter Weight | 1 lb / 0.5 kg |
| Receiver Weight | 1 lb / 0.5 kg |
| Package Weight | 3.48 lb |
| Box Dimensions (LxWxH) | 14.7 x 6.9 x 3.1" |
