Description
MuxLab MuxStream Overview

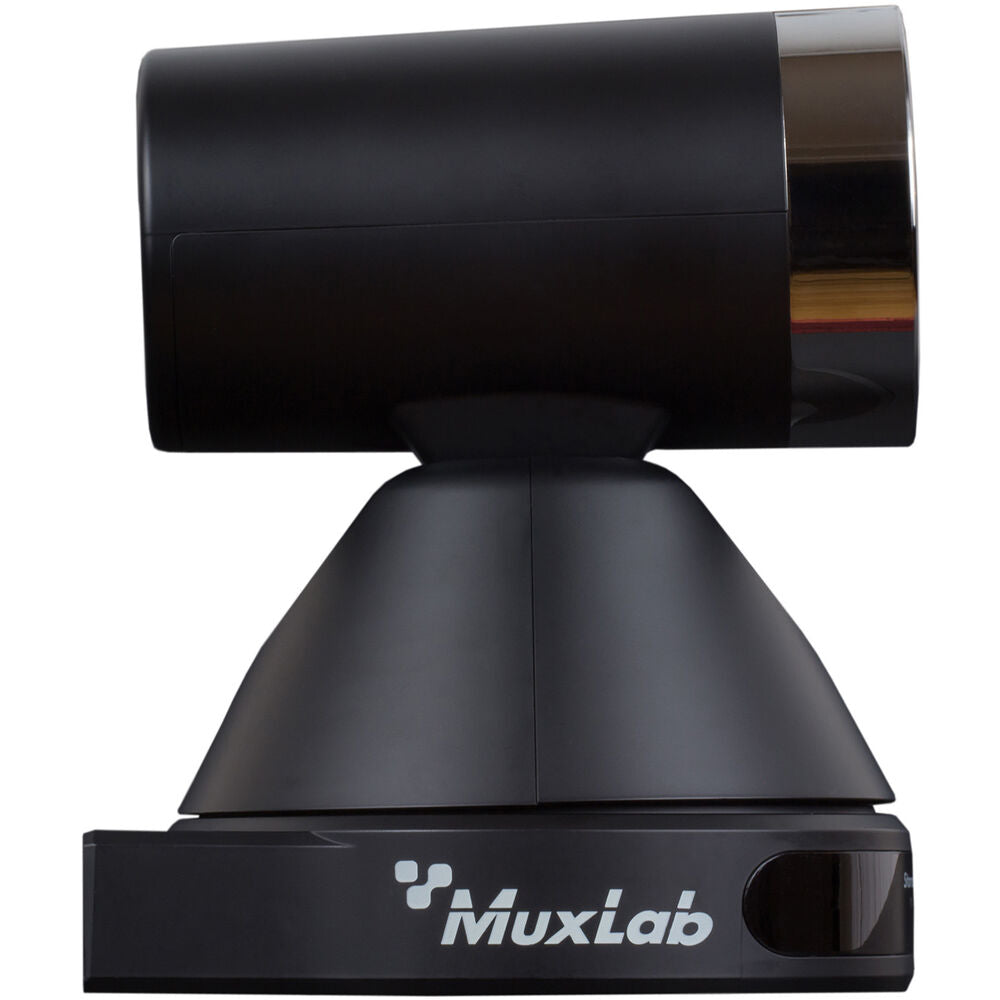

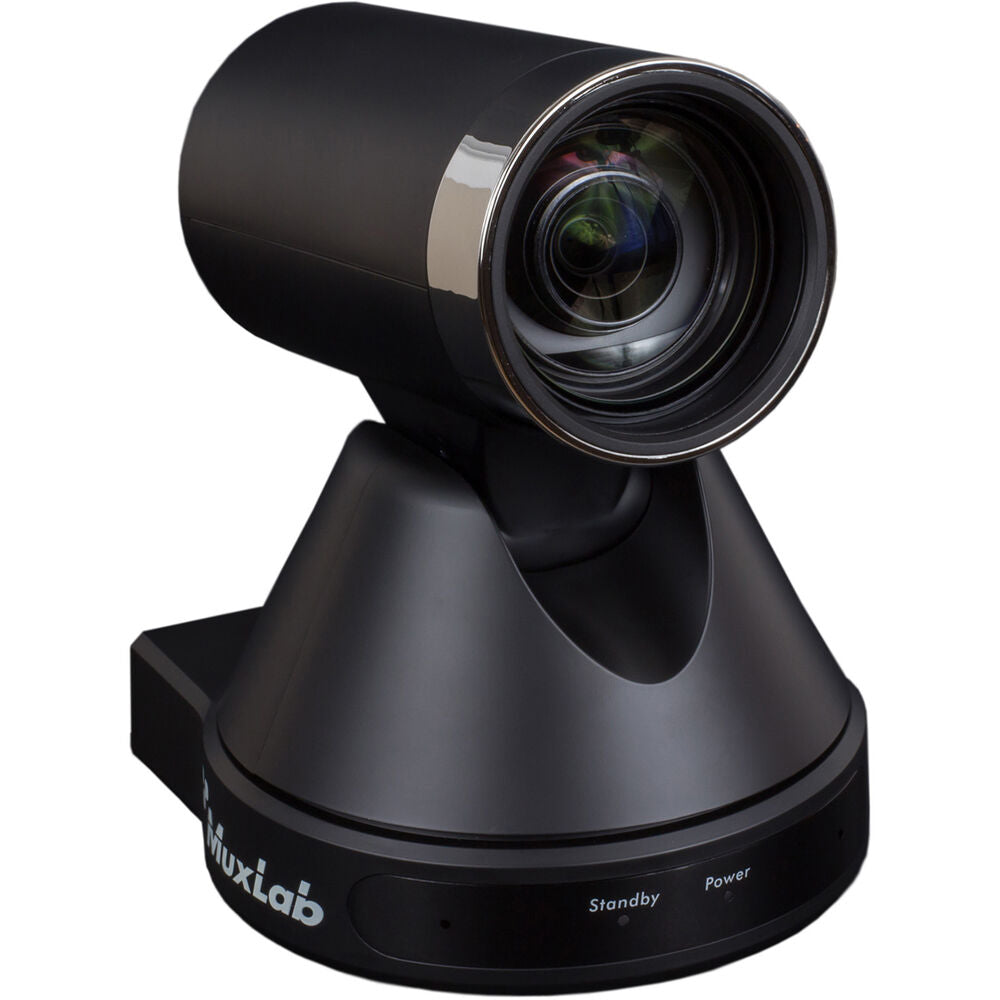

Add a standalone video conferencing device to your conference room, lecture hall, event space, or house of worship with this MuxStream 1080p HDMI/IP PTZ Streaming Camera with 12x Optical Zoom from MuxLab. The camera features a high-quality HD 1/2.7" 2.07MP CMOS sensor, 12x optical zoom, 16x digital zoom, wide 72.5° angle of view, noise reduction, analog audio input, and serial control capability.
The PTZ camera allows you to capture up to 1080p60 video that it can output via HDMI to a video switcher or via IP to a computer for optional streaming to popular internet sites, using low-latency H.265/H.264 video codecs. The free-to-download MuxStream control app installs onto your Android or iOS tablet or Windows system, allowing you to set up and control the PTZ camera.
The sensor features 2D/3D noise reduction that reduces image noise for a crisp, clean image in low-light. Its quiet motor allows you to pan and tilt smoothly using the included IR remote, via IP connectivity, or via an optional serial controller, using RS-232 serial protocols such as VISCA, Pelco-P, and Pelco-D. A power adapter, power cord, and RS-232 cable are also included with the camera.
In the Box
- MuxLab MuxStream 1080p HDMI/IP PTZ Streaming Camera with 12x Optical Zoom
- Power Adapter
- Power Cord

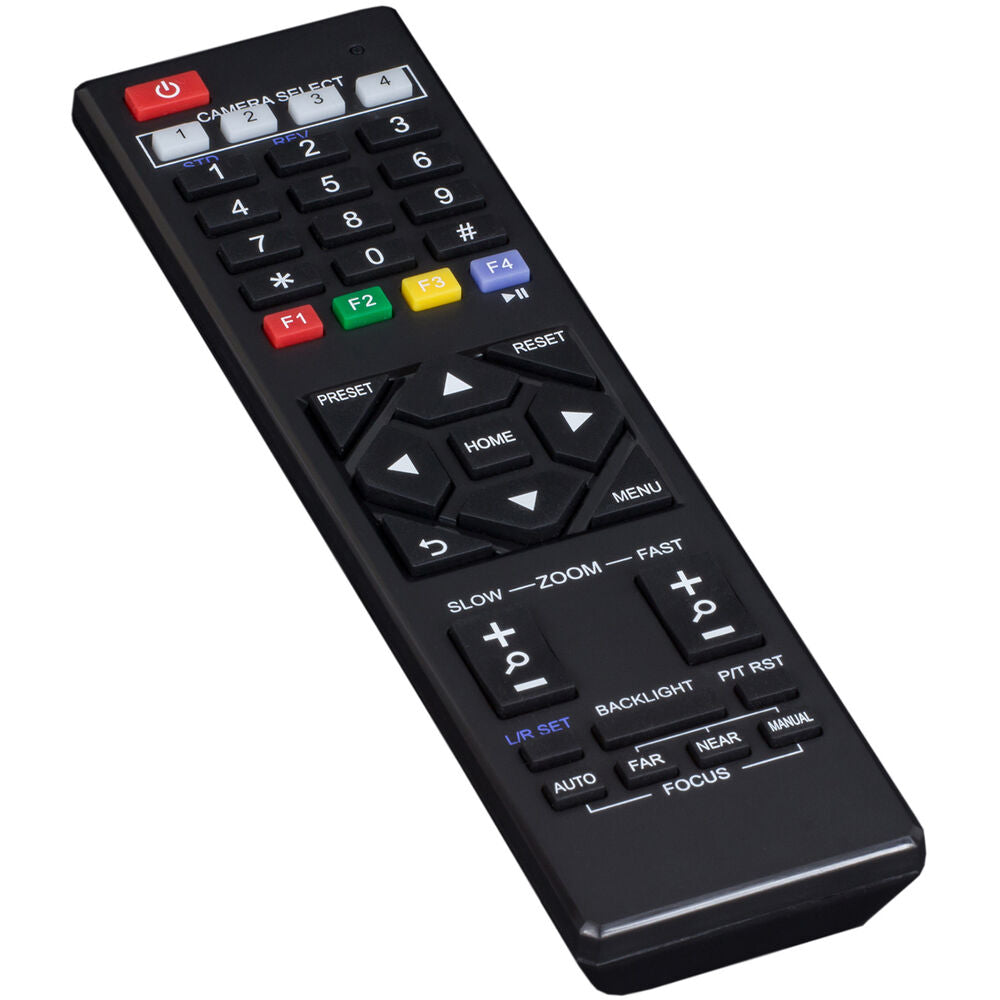

- IR Remote
- RS-232 Cable
- Limited 2-Year Warranty
MuxLab MuxStream Specs
| Image Sensor | 1-Chip 1/2.7" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Shutter Speed | 1/30 to 1/10,000 sec |
| Max Digital Zoom | 16x |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 12x |
| Focal Length | 3.5 to 42.3mm |
| Field of View | Horizontal: 6.9 to 72.5° Vertical: 3.9 to 44.8° |
| Maximum Aperture | f/1.8 to 2.8 |
| Focus Control | Autofocus |
| Output Formats | HDMI: 1920 x 1080p at 50, 60 fps 1280 x 720p at 50, 60 fps 1024 x 576p at 50, 60 fps 960 x 540p at 50, 60 fps 640 x 480p at 50, 60 fps 640 x 360p at 50, 60 fps |
| IP Streaming | H.264, H.265, MJPEG: 1080p, 720p, 480p, 360p at 60p (128.00 to 8192.00 Kb/s) |
| IP Multi-Stream Support | Simultaneous H.264, H.265, MJPEG, ONVIF, RTMP, RTSP: 720p, 480p, 360p at 50p, 60p |
| Presets | 255 via IP, RS-232, VISCA |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 0.7 to 28°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 |

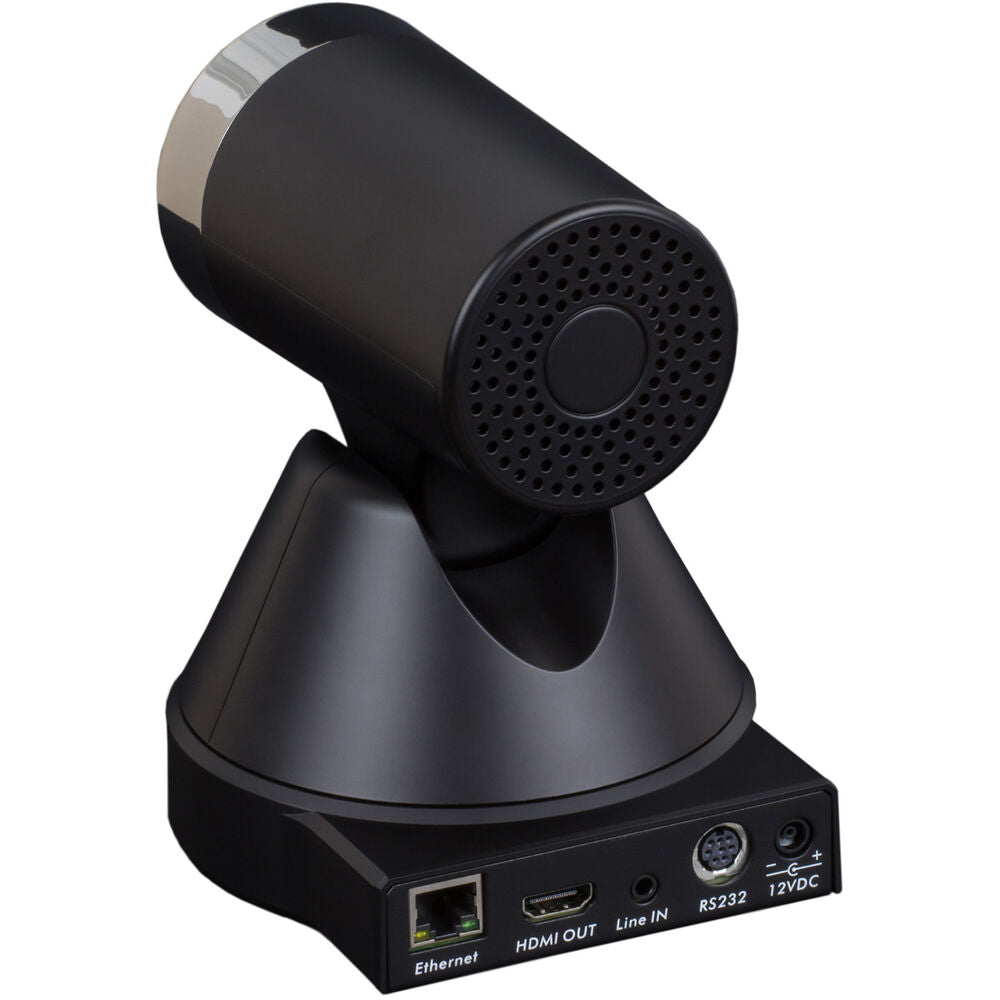

| Video Output Connectors | 1 x HDMI Type A (HDMI 1.3) Female 1 x RJ45 Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input |
| PoE Support | None |
| Power Connectors | 1 x JEITA (12 VDC up to 1 A) |
| Power Consumption | Power Supply: 12 W |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Dimensions | 6.7 x 6.5 x 5.6" / 16.9 x 16.4 x 14.2 cm |
| Weight | 2.02 lb / 0.92 kg |
