Description
MuxLab 500600 Overview

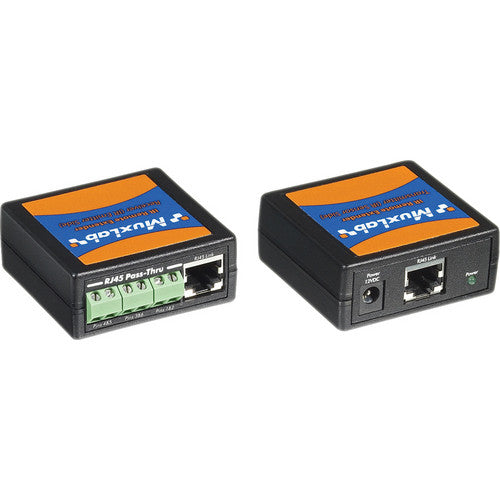

The MuxLab IR Remote Extender Kit is used to transmit control signals via remote IR between a display and up to 4 audio-video sources. Using Cat5e/6 cable, the kit lets you control the source which is kept up to 2200� (670.56m) away. It includes 3 pairs of screw terminal block which allow you to utilize the 3 unused twisted pairs to be accessed for low voltage services such as balanced video, audio, or data. The remote extender kit can be used in residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems, commercial display on/off control, etc.
Used to transmit control signals via remote IR between an display and up to 4 audio-video sources
Uses Cat5e/6 cable
Extends control distance up to 2200' (670.56m)
Includes 3 pairs of screw terminal block - allows you to utilize the 3 unused twisted pairs, to be accessed for low voltage services such as balanced video, audio, or data
Used in residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative pc systems, medical information systems, commercial display on/off control, etc
UPC: 627699006009
In the Box
- MuxLab IR Remote Extender Kit
- Limited 2-Year Manufacturer Warranty
MuxLab 500600 Specs
| Environment |
Infra-red (IR) control
|
| Devices |
TV Sets, STB, DVD, DVR, PVR, and satellite receivers
|
| Transmission |
Transparent to the user
|
| IR Data Format Supported |
NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code
|
| Carrier Frequency |
38 kHz
|
| IR Wavelength |
940nm
|
| Connector |
Transmitter:

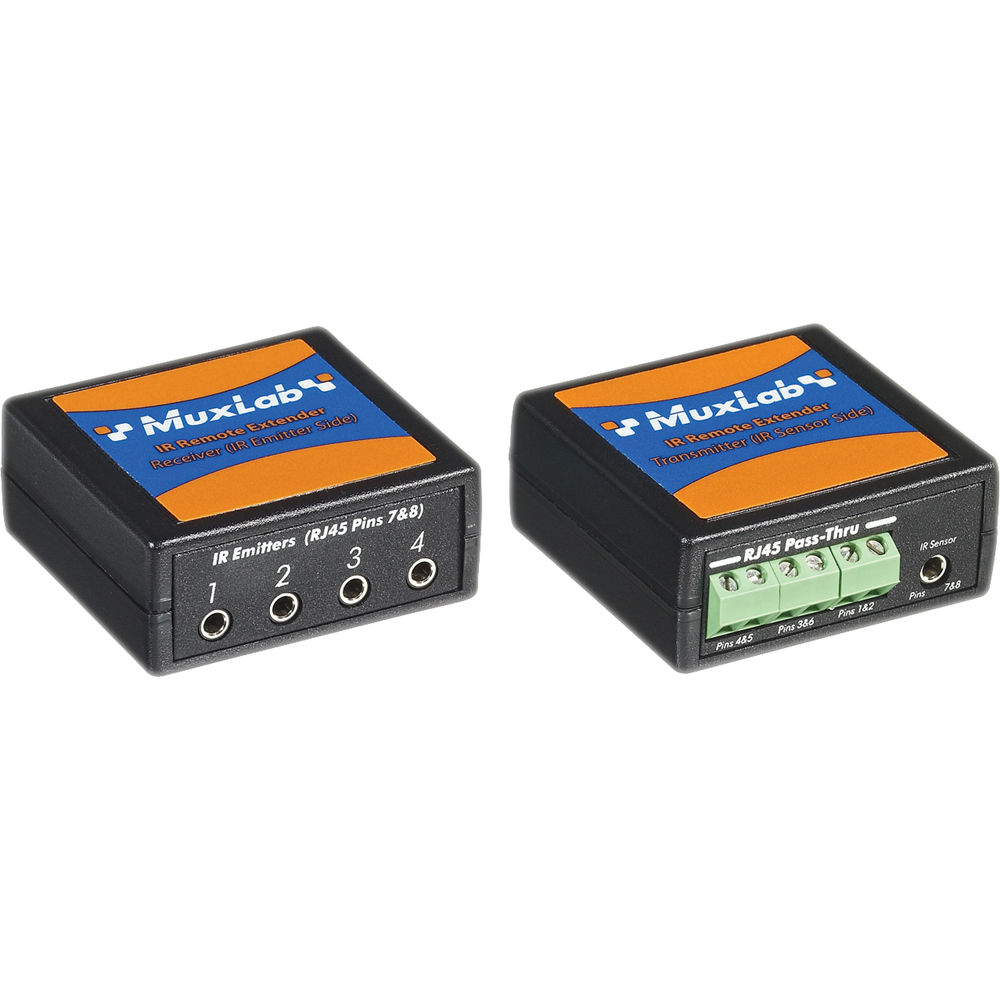

1 3.5mm stereo jack for IR sensor, 1 RJ45S for Cat 5e/6 unshielded or shielded twisted pair, 3 screw-type terminal blocks for RJ45 pass-thru, 1 PSU connector RX: 4 3.5mm stereo jacks for IR Emitter, 1 RJ45S for Cat 5e/6 unshielded or shielded twisted pair, 3 screw-type terminal blocks for RJ45 pass-thru |
| Maximum Distance IR |
2200' (670m)
|
| RJ45 Pin Configuration |
IR remote: pin 7 (R) pin 8 (T)
Pass-thru: pin 1 (R) pin 2 (T) Pass-thru: pin 3 (R) pin 6 (T) Pass-thru: pin 4 (R) pin 5 (T) |
| Cable |
Cat 5e/6
|
| Power Supply |
110-240V / 12VDC - 500mA power supply with interchangeable blades
|
| Power Consumption |
Transmitter: 1.8W
|
| Temperature |
Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C) Humidity: Up to 95% non-condensing |
| Enclosure |
Fire retardant plastic
|
| Dimensions |
Transmitter: 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.5 cm)
Receiver: 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.5 cm) |
| Weight |
1.3lb (0.6 kg)
|
| Mounting |
Hook and loop pads
|
| Compliance |
Regulatory: FCC, CE, RoHS
Flammability: 94V0 |
Packaging Info
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
9.8 x 5.6 x 2.7"
|
