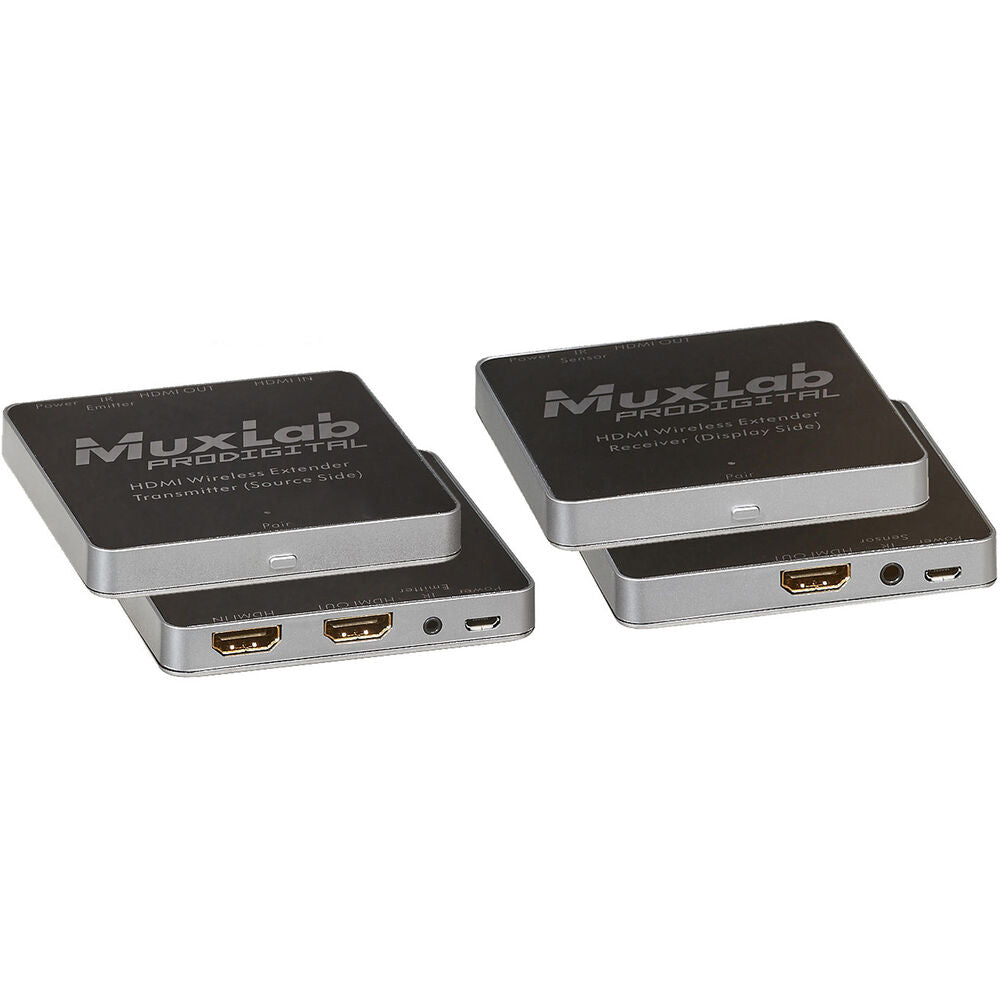

MuxLab HDMI Wireless Extender Kit Overview
Wirelessly transmit and receive HDMI video signals over up to 100' with this HDMI Wireless Extender Kit from MuxLab. This transmitter and receiver kit enables you to transmit up to 1080p video from an HDMI source such as a Blu-ray device, cable box, or laptop to a remotely located display over Wi-Fi.
Since the wireless network is created privately between the transmitter and receiver units, you don't need a wireless router to operate the extender kit. Just press the pairing button and the units will be connected and ready to transmit and receive H.264 video with <500 ms latency. The transmitter supports simultaneous transmission to up to four receivers.
The included IR emitter and sensor cables help to maintain two-way wireless IR remote control over your devices from a distance. The transmitter features an HDMI input and an HDMI loop output so you can monitor the signal near the source, and the receiver features a single HDMI output. Each unit is powered using a micro-USB power supply.
Note:
The units can communicate with each other through thin walls, but thicker walls such as metal or concrete may limit or block the wireless signal. The 100' maximum transmission distance includes the maximum 6.6' length of HDMI cable length on each end.
Applications
Commercial and residential AV systems, classroom training systems, digital signage, boardroom systems, and medical video systems
DVD/Blu-ray, TV, projector, monitor, desktop computer, and laptop sources
Key Features
Supports up to 1080p using HDMI 1.3a, and supports the 3D feature of HDMI 1.4
H.264 video compression with <500 ms latency
Transmit video via Wi-Fi up to 100' line of sight between TX and RX over a private network using pairing buttons
One transmitter can simultaneously transmit to up to four receivers
Included IR emitter and sensor cables are included to maintain two-way IR function for connected devices
Transmitter has one HDMI loop output, enabling you to preview the signal locally
Compact units are made from lightweight plastic material
USB power supplies are included
![]()
UPC: 627699505038
In the Box
- MuxLab HDMI Wireless Extender Kit
- Transmitter
- Receiver
- 2 x Power Adapter
- IR Sensor Extension Cable
- IR Emitter Extension Cable
- Limited 2-Year Warranty
MuxLab HDMI Wireless Extender Kit Specs
Transmitter Interfaces
| Input Connectors |
1 x HDMI (HDMI 1.4) Female |
| Output Connectors |
1 x HDMI (HDMI 1.4) Female |
| Transmitter Other I/O |
1 x 3.5 mm IR Input/Output |
Receiver Interfaces
| Output Connectors |
1 x HDMI (HDMI 1.4) Female |
| Receiver Other I/O |
1 x 3.5 mm IR Input/Output |
Standards
| HDCP Support |
None |
| EDID Support |
None |
Transmission
| Max Transmission Distance |
1080p:
100' / 30.5 m |
| Video Format |
HDMI
1080p |
| Latency |
1 to 500 ms |
Power
| Transmitter Power Connector |
1 x USB Micro-B (5 VDC at 1 A) Input |
| Receiver Power Connector |
1 x USB Micro-B (5 VDC at 1 A) Input |
| Transmitter Power Consumption |
Power Supply: 5 VDC at 1 A (4.5 W) |
| Receiver Power Consumption |
Power Supply: 5 VDC at 1 A (3.5 W) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Operating Humidity |
95% |
General
| Certifications |
CE, FCC, RoHS, as per Manufacturer |
| Transmitter Dimensions |
3.3 x 3.3 x 0.5" / 84 x 84 x 13 mm |
| Receiver Dimensions |
3.3 x 3.3 x 0.5" / 84 x 84 x 13 mm |
| Transmitter Weight |
15.9 oz / 450 g |
| Receiver Weight |
15.9 oz / 450 g |
Packaging Info
| Package Weight |
0.93 lb |
| Box Dimensions (LxWxH) |
7.6 x 6.3 x 2.4" |
