Description

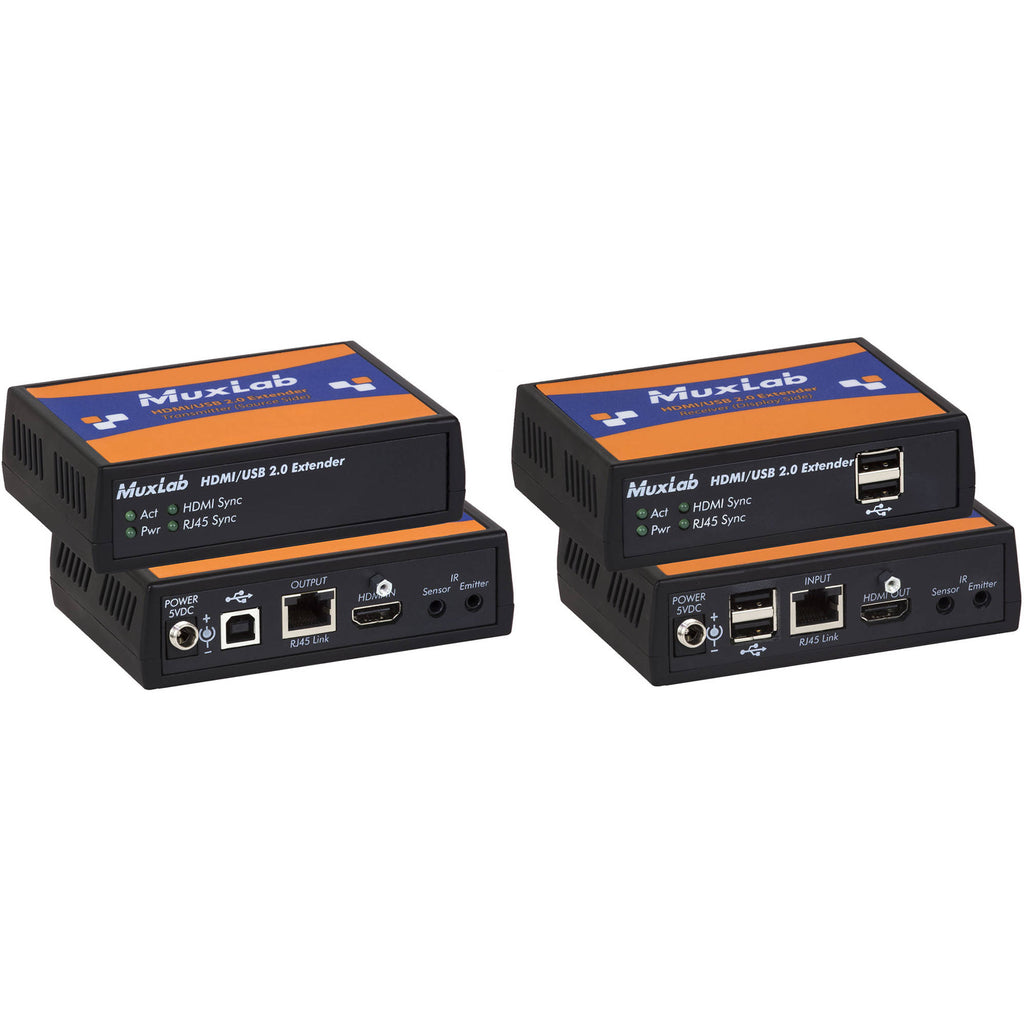

MuxLab HDMI/USB 2.0 Extender Overview
The HDMI/USB 2.0 Extender Kit from MuxLab allows one HDMI 1.4 and one USB 2.0 channel to be transmitted up to 330 ft over a single Cat5e/6 cable. It supports resolutions up to 1920 x 1200 at 60 Hz. The receiver unit includes a four-port USB 2.0 hub, supporting KVM applications.
Key Features
Supports HDMI 4K at 30 fps (4:4:4) and at 60 fps (4:2:0)
Uncompressed signal transmission
USB 2.0 (250 Mb/s maximum)
Receiver side includes a four-port USB hub, supporting KVM applications
Up to 330' (100m) over Cat5e/6 at 4K30
Supports bi-directional IR transmission
KVM Applications
Commercial and residential AV systems
Classroom projector systems
Boardroom systems
Collaborative PC systems
Medical information systems
UPC: 627699004579
In the Box
- MuxLab HDMI/USB 2.0 Extender Kit
- Transmitter Unit
- Receiver Unit
MuxLab HDMI/USB 2.0 Extender Specs
| Environment | KVM, HDMI 1.4, and USB 2.0 |
| Devices | KVM, Monitors, TV, PC, laptops, mouse, keyboard |
| Transmission | Transparent to the user |
| Bandwidth | 340 MHz |
| Signals | HDMI 1.4 protocol and USB 2.0 |
| USB | 1 x Input on transmitter 4 x Output on receiver Bandwidth Available: Up to 250 Mb/s |
| Connectors | 1 x HDMI receptacle 1 x RJ45 for Cat5e/6 unshielded or shielded twisted pair 1 x Standard USB connector, type B (transmitter) 4 x Standard USB connector, type A (receiver) |
| Maximum Distance | Cat5e/6: 330' (100 m) for up to 1920 x 1200 resolution, up to 60 Hz 330' (100 m) for UHD 4K (3840 x 2160), up to 30 Hz Note: A Cat5e/6 cable with minimum length of 12' (4m) is required. When installed in an electrically noisy environment, an STP cable must be used. |
| Cable | 1 x Cat5e/6 or better twisted pair cable required (not included) |
| Power Supply | Two 110 to 240 V, 5 VDC power supplies with interchangeable blades |
| Power Consumption | Transmitter: 3 W Receiver: 7 W + USB power |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95%, non-condensing |
| Enclosure | Aluminum casting with plastic side panel |
| Compliance | Regulatory: FCC, CE, RoHS Flammability: 94V0 |
| Dimensions | 4.5 x 3.0 x 1.3" (11.4 x 7.6 x 3.2 cm) each unit |
| Weight | 2.6 lb (1.2 kg) each unit |
Packaging Info
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 8.4 x 7 x 3.2" |
