Description
- Transfers HDMI 1.3a Signals
- Uses Cat5e/6 Unshielded Twisted Pair
- Up to 330' Transmission Distance
- Supports IR Signaling for Remote Control
- Includes IR Emitter & IR Sensor

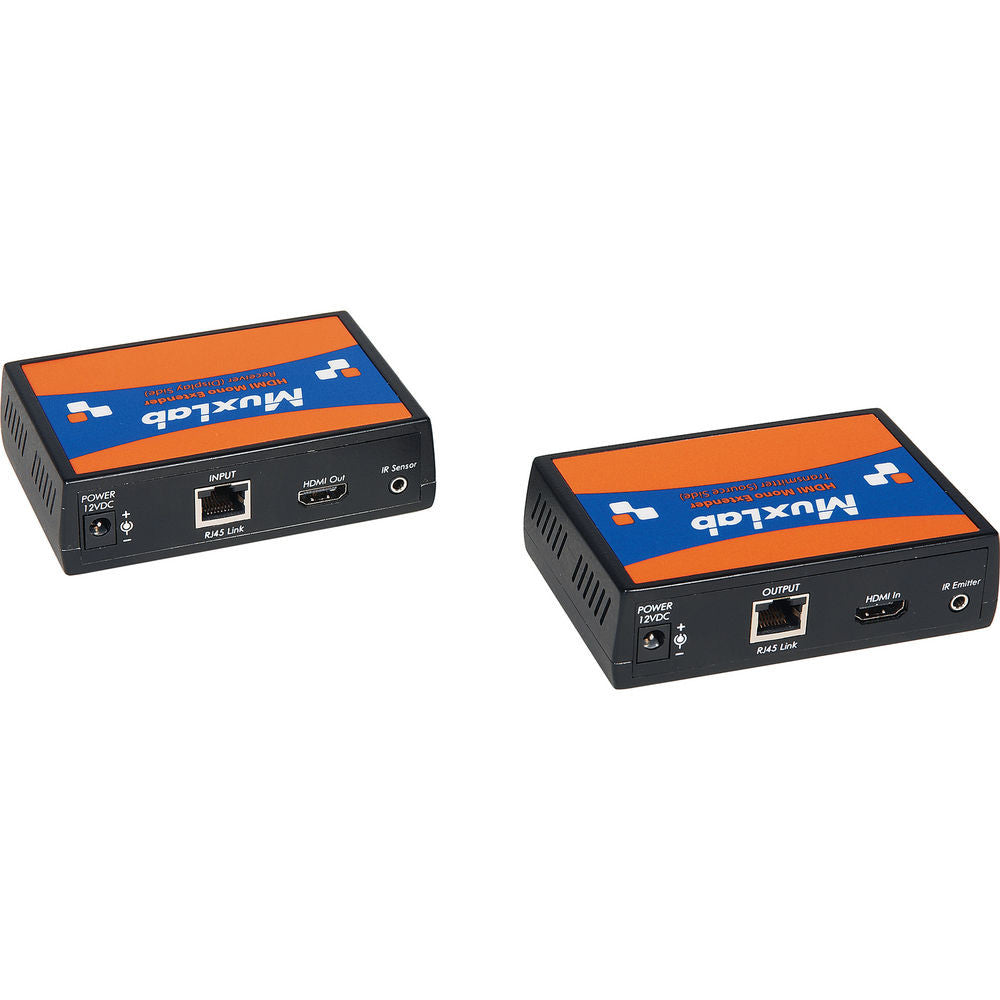

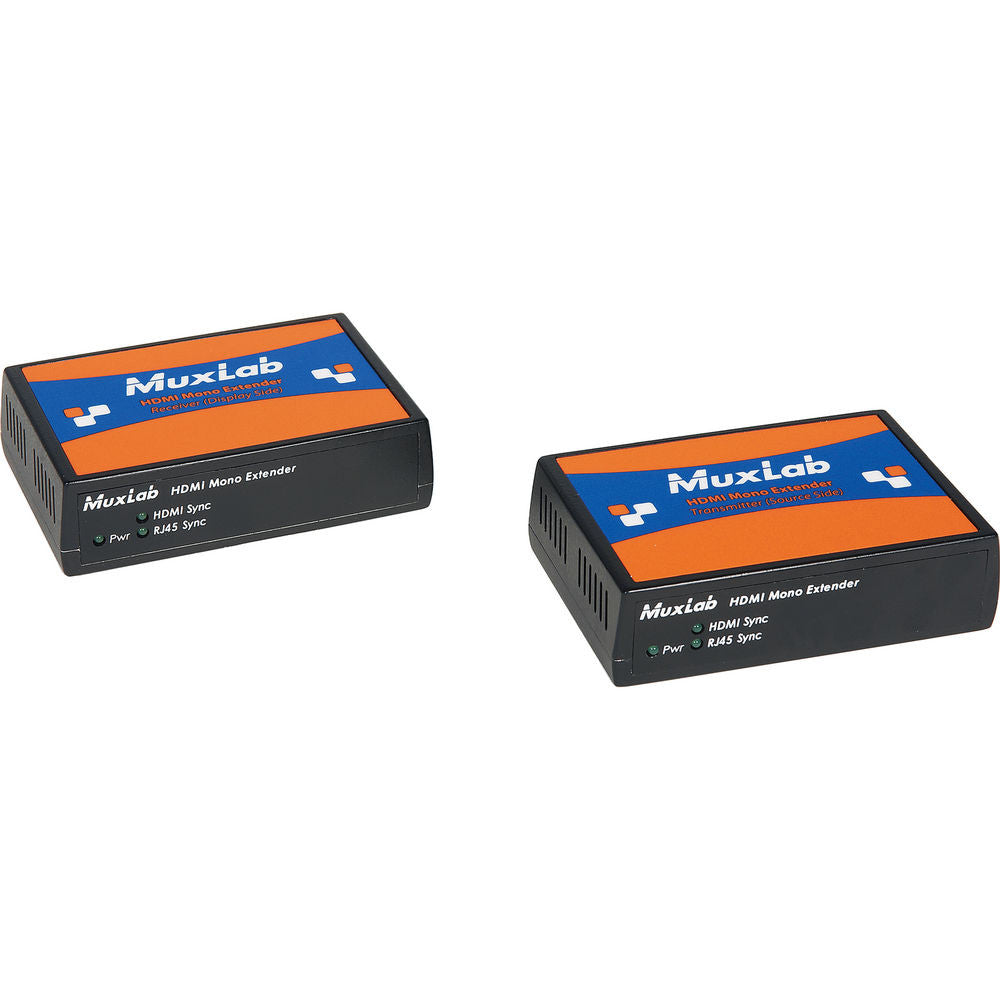

The HDMI Mono Extender Kit from MuxLab is designed to extend HDMI 1.3a signals using a transmitter and receiver. When connected to a Cat5e/6 unshielded twisted pair cable, the kit can extend your transmission distances up to 330� in a point-to-point configuration. It supports resolutions of up to 4K, and it includes an IR emitter and sensor for remote control. This kit is suitable for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.
- Extend transmission distances for HDMI 1.3a signals with a transmitter and a receiver
- Uses Cat5e/6 unshielded twisted pair cable
- Transmission distances up to 330' in a point-to-point configuration
- Supports up to 4K resolutions
- IR signaling for remote control using an included IR emitter and sensor
- Suitable for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
Environment | HDMI 1.3a, HDBaseT (supports 3D feature of HDMI 1.4) |
Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI |
Transmission | Transparent to the user |
Bandwidth | 340 MHz |
Signals | HDMI 1.3a, HDBaseT |
Connectors | 1 x HDMI receptacle 1 x RJ45S for Cat5e/6 unshielded or shielded twisted pair 1 x 3.5mm jack for IR emitter and IR Sensor |
Maximum Distance | 480i/p, 720p, 1080i, 1080p, 1080p Deep Color: Cat 5e/6 up to 330' (100 m) STP cable is suggested for electrically noisy environments Cross connection can reduce effective distance, depending on cables used |
Cable | Cat5e/6 or better twisted pair cable required |
Power Supply | 110 to 240 V / 12 VDC power supply with interchangeable blades |
Power Consumption | Transmitter: 1.8 W Receiver: 3.6 W |
Temperature | Operating: 32 to 131° F (0 to 55° C) Storage: -4 to 185° F (-20 to 85° C) Humidity: Up to 95% non-condensing |
Enclosure | Cast aluminum |
Compliance | Regulatory: FCC, CE, RoHS Flammability: 94V0 |
Dimensions | 4.50 x 3.00 x 1.25" (11.4 x 7.6 x 3.2 cm) |
Weight | 2.0lb (0.9kg) |
Packaging Info | |
---|---|
Package Weight | 2.4 lb |
Box Dimensions (LxWxH) | 12.1 x 7.1 x 4.3" |
- Power Adapter
- IR Emitter (500998)
- IR Sensor (500999)
- Limited 2-year Warranty
