Description

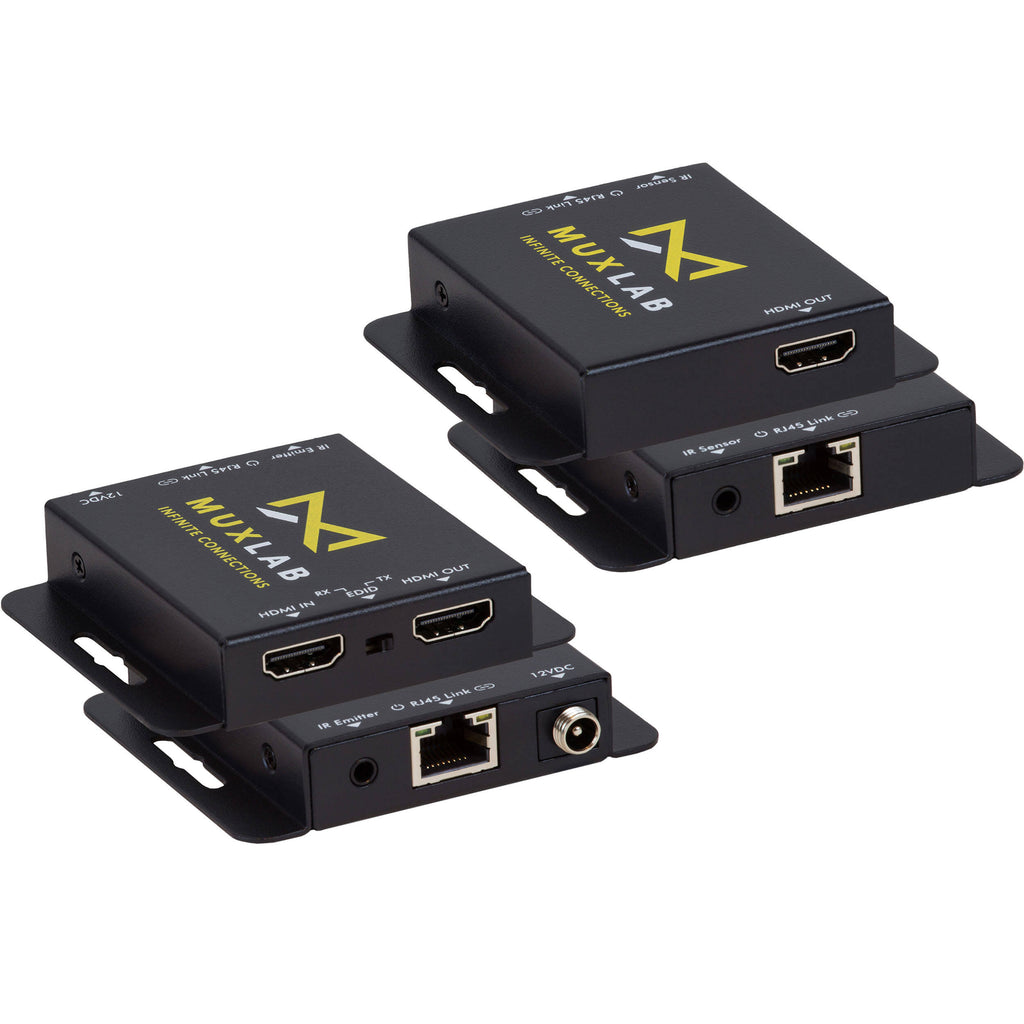

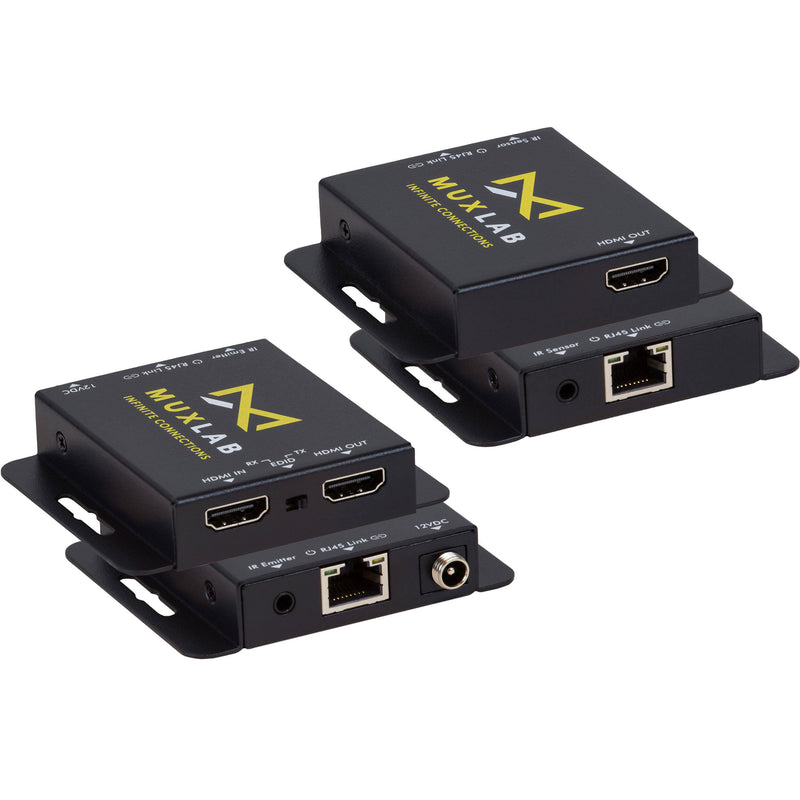

MuxLab HDMI Extender Pair Overview
Extend your HDMI signal to up to 197' using an optional, unshielded Cat 6 cable with this HDMI Extender Kit from MuxLab. The versatile transmitter and receiver kit extends uncompressed UHD 4K30 video to up to 131' and HD 1080p60 to up to 197' with support for Dolby TrueHD, DTS-HD, and PCM 7.1 master audio pass-through. HDMI loop out is supported on the transmitter and the system is HDCP 1.4 compliant.
The kit supports a carrier wave, one-way IR port for use with the remote control of end devices and comes with one transmitter, one receiver, an IR emitter, and an IR sensor. One-way POC functionality is also supported from the transmitter to the receiver. Boasting a low profile and sleek design, the kit is ideal for use in commercial and residential AV systems, digital signage, classroom and boardroom training systems, and medical presentations.
- HDMI 1.4, HDCP 1.4, and DVI 1.0 compliant
- Supports video resolution up to UHD 4K30 (4:4:4)
- Supports copying EDID from receiver display or loop-out display
- Support Dolby TrueHD, DTS-HD, and PCM 7.1 master audio pass-through
- HDMI loop out on transmitter
- Supports one-way POC functionality (from transmitter to receiver)
- One-way IR for remote control of end devices
In the Box
- MuxLab HDMI Extender Kit
- Transmitter
- Receiver
- IR Emitter
- IR Sensor
- 12 VDC Power Adapter
- Limited 1-Year Manufacturer Warranty
MuxLab HDMI Extender Pair Specs
| Inputs | 1 x HDMI (HDMI 1.4) Female |
| Embedded Audio Input | HDMI: 8-Channel RJ45: 8-Channel |
| Outputs | 1 x HDMI (HDMI 1.4) Female 1 x RJ45 (HDMI 1.4 / LAN / PoC) Female |
| Transmitter Other I/O | 1 x 1/8" / 3.5 mm IR Output |
| Inputs | 1 x RJ45 (LAN / PoC) Female 1 x 1/8" / 3.5 mm TS (IR) Female |
| Outputs | 1 x HDMI (HDMI 1.4) Female |
| Embedded Audio Output | HDMI: 8-Channel |
| HDCP Support | , Version 1.4 |
| EDID Support | Manual Control |
| Max Transmission Distance | UHD 4K: 131.2' / 40 m 1080p: 196.9' / 60 m |
| Video Format | HDMI Input (4:4:4) UHD 4K: 30 fps 1080p: 60 fps |
| DTS Compatibility | DTS |
| Dolby Compatibility | Dolby TrueHD |
| Supported Cable Types | Cat 6 |
| Transmitter Power Connector | 1 x Barrel (12 VDC at 1 A) Input |
| Receiver Power Connector | 1 x RJ45 Input |
| Transmitter Power Consumption | (1.86 W) |
| Receiver Power Consumption | (0.87 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Transmitter Dimensions | 3.1 x 2.7 x 0.6" / 79.5 x 69 x 16.5 mm |
| Receiver Dimensions | 3.1 x 2.7 x 0.6" / 79.5 x 69 x 16.5 mm |
| Transmitter Weight | 4.7 oz / 132 g |
| Receiver Weight | 4.6 oz / 130 g |
| Package Weight | 1.11 lb |
| Box Dimensions (LxWxH) | 8 x 5.1 x 3" |
