Description

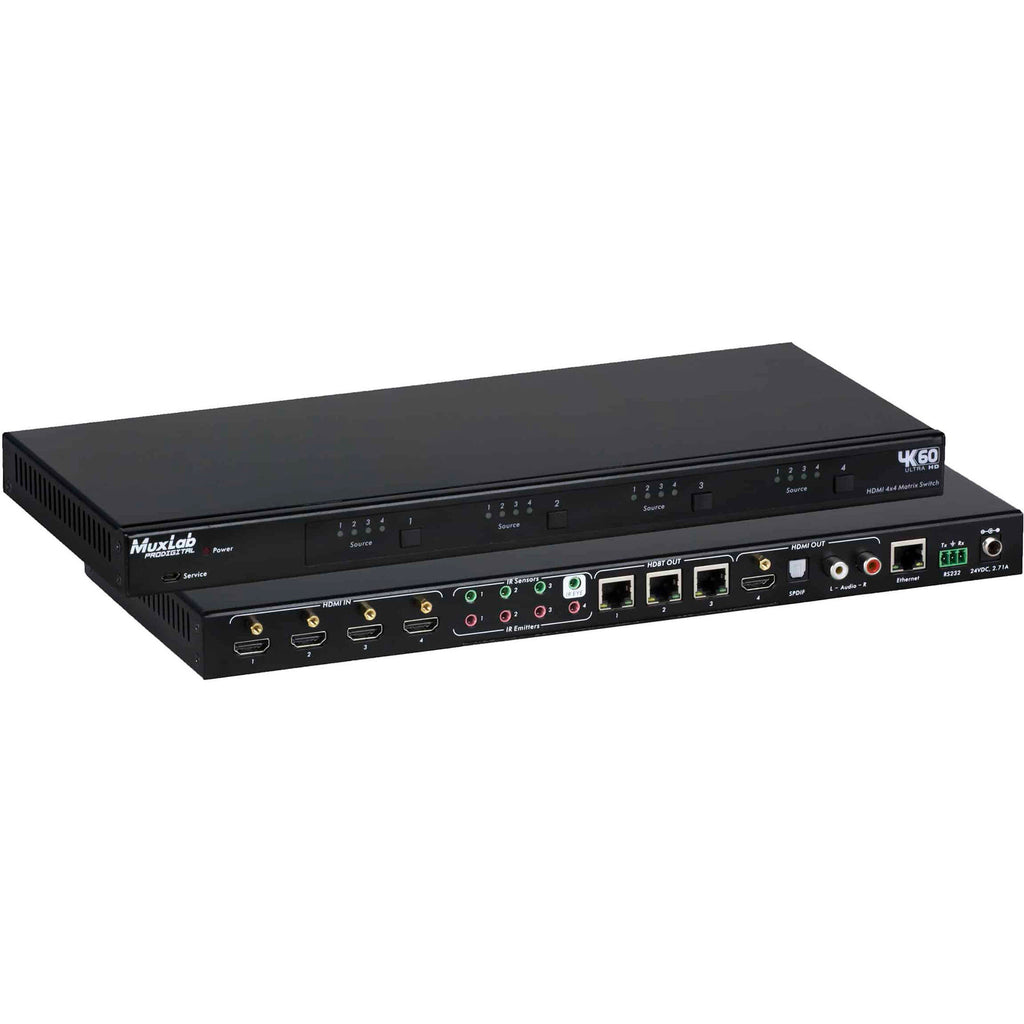

MuxLab HDMI 4x4 Matrix Switcher Kit Overview
Distribute audio and video sources to various HDMI displays MuxLab HDMI 4x4 Matrix Switcher Kit V2. The kit features a single matrix switcher unit and four HDBaseT receivers, as well as a US power cord to power the main switcher. The switcher has four HDMI inputs which deliver up to 4K video to four HDMI outputs and four HDBaseT outputs. All four receivers have a single RJ45 input and a single HDMI output. Ideal for AV systems, boardrooms, and collaborative PC systems, this ecosystem allows for both local and long distance connectivity. Control over the kit can be achieved via front-panel push buttons, IR remote, RS-232, and web interface.
Features at a Glance
- Matrix switcher has four 3.5mm stereo coax audio ports and four balanced analog audio ports
- HDMI audio pass-through up to 7.1 surround sound (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Each HDBaseT receiver has one 3.5mm audio output and a mini-USB port for firmware updates
- HDCP 2.2 compliant
- Deliver 1080p video up to 494.1' and 4K video up to 393.7' via Cat 5e/6/7 cable
- Receivers powered via 24 VDC Power over Connection with matrix switcher
- US power cord for switcher
- Supports 4K to 1080p downscaling on each output port
- Supports IR matrix for remote control
- EDID management and CEC control, built-in WebGUI interface
UPC: 627699034125
In the Box
- MuxLab HDMI 4x4 Matrix Switcher Kit V2 (US Power Cord)
- Matrix Switcher
- 4 x HDBaseT Receiver
- US Power Cord
- Limited 2-Year Manufacturer Warranty
MuxLab HDMI 4x4 Matrix Switcher Kit Specs
Processing
| Switching Type |
Pushbutton, Software
|
| Color Processing |
4:4:4RGB
4:4:4YCbCr 4:2:2YCbCr 4:2:0YCbCr |
Input
| Video Inputs |
4x HDMI (2.0b) Female
4x RJ45 (HDBaseT) Female |
| Input Video Format |
HDMI / RJ45 (8/10/12-Bit)
1080p at 60 fps HDMI / RJ45 (8-Bit) UHD 4K at 60 fps DCI 2K at 60 fps HDMI / RJ45 (8/10/12-Bit 4:2:2/4:2:0 YCC) UHD 4K at 60 fps DCI 2K at 60 fps |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
4x HDMI (2.0b) Female
4x RJ45 (HDBaseT) Female 4x HDMI Female |
| Output Video Format |
HDMI / RJ45 (8/10/12-Bit)
1080p at 60 fps HDMI / RJ45 (8-Bit 4:4:4 YUV) UHD 4K at 60 fps DCI 2K at 60 fps HDMI / RJ45 (8/10/12-Bit 4:2:2/4:2:0 YCC) UHD 4K at 60 fps DCI 2K at 60 fps |
| Audio Outputs |
4x 1/8" / 3.5 mm TRS Stereo Female
4x Block 5-Pin Analog Female 4x 1/8" / 3.5 mm TRS Stereo Female |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
9x 1/8" / 3.5 mm IR Input
9x 1/8" / 3.5 mm IR Output 1x RJ45 LAN 1x DE-9/DB-9 RS-232 1x Block 3-Pin RS-232 1x Mini-USB Firmware |
| HDCP Support |
Yes, Version 1.0
Yes, Version 2.2 |
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS-ES, DTS-HD High Resolution, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
Hardware
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power Consumption |
Device: 60 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% ()
|
General
| Certifications |
FCC, CE, RoHS
|
| Dimensions |
17.3 x 7.9 x 1.8" / 440 x 200 x 44.5 mm
|
| Weight |
6.8 lb / 3.1 kg
|
Packaging Info
| Package Weight |
12.515 lb
|
| Box Dimensions (LxWxH) |
21 x 16.4 x 3.8"
|
