Description

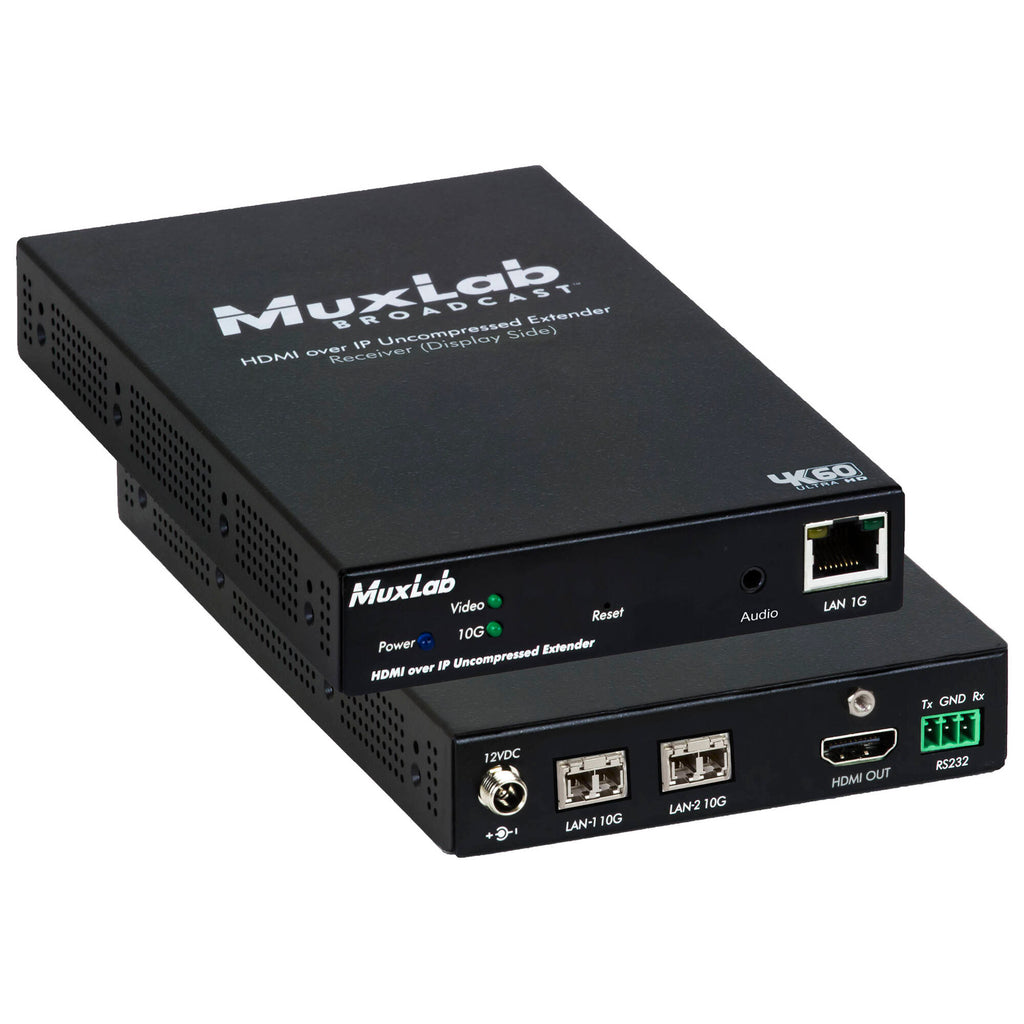

MuxLab 500774-RX-UTP Overview
Extend an HDMI signal up to 1300' using fiber connectivity with the HDMI 4K/ST2110 over IP Uncompressed Gateway Receiver from MuxLab. This unit allows you to receive up to a UHD 4K60 signal from up to 1300' away over a LAN or a fiber connection. It's compatible with the separately available MuxLab 500774-TX transmitter and can be set up in various combinations with Ethernet switches, network controllers, and routers. The receiver then outputs the signal to an HDMI display.
The receiver supports uncompressed 4K30 video and SMPTE ST-2110 video over IP, and it features a 1G Ethernet port for management and two 10G fiber ports that support long-distance video/audio transmission up to 1300'.
- Supports uncompressed HDMI video up to 4K30 (4K 4:4:4 8-bit and 4K 4:2:2 10-bit) and SMPTE ST-2110
- Supports ST-2022-7 (Class D) data link redundancy
- Extend HDMI over an IP network at up to 1300' over duplex OM4 multi-mode fiber
- Supports hundreds of transmitters and receivers depending on network bandwidth
- Supports point-to-point, point-to-multipoint and multipoint to-multipoint applications
- Supports two 10G Ethernet ports for redundant audio/video signal transmission
- Supports a 1G Ethernet port for 3rd party unit control
- Audio insert (TX) and audio extract (RX) ports (future use)
- RS-232 for remote control of end devices (TX side)
- Manage with 3rd party control software platforms supporting a Rest API and NMOS (IS-04 and IS-05)
- Commercial broadcast AV systems
- News/sports/TV stations
- Movie networks
Items Included
- MuxLab HDMI 4K/ST2110 over IP Uncompressed Gateway Receiver
- Power Adapter
- Limited 3-Year Manufacturer Warranty
Additional Resources
MuxLab 500774-RX-UTP Specs
| Inputs |
2x SFP (Fiber) Female
|
| Outputs |
1x HDMI (HDMI 2.0) Female
|
| Embedded Audio Output |
HDMI
RJ45 |
| Other I/O |
1x RJ45 10/100/1000 Ethernet Input/Output
|
| HDR Support |
Yes
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
| Max Transmission Distance |
UHD 4K at 30 Hz:
1312.3' / 400 m (via OM4 Multi-Mode Fiber) UHD 4K at 30 Hz: 984.3' / 300 m (via OM3 Multi-Mode Fiber) |
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2)
UHD 4K: 60 fps |
| Supported Cable Types |
Cat 5e/6 UTP
Multi-Mode Fiber |
| Power I/O |
1x Barrel Input
|
| PoE Support |
Yes
|
| Power Consumption |
Device: (15 W)
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 185°F / -20 to 85°C
|
| Operating Humidity |
95%
|
| Storage Humidity |
95%
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
6.9 x 4.4 x 1" / 175 x 111 x 25 mm
|
| Weight |
1.5 lb / 700 g
|
