Description

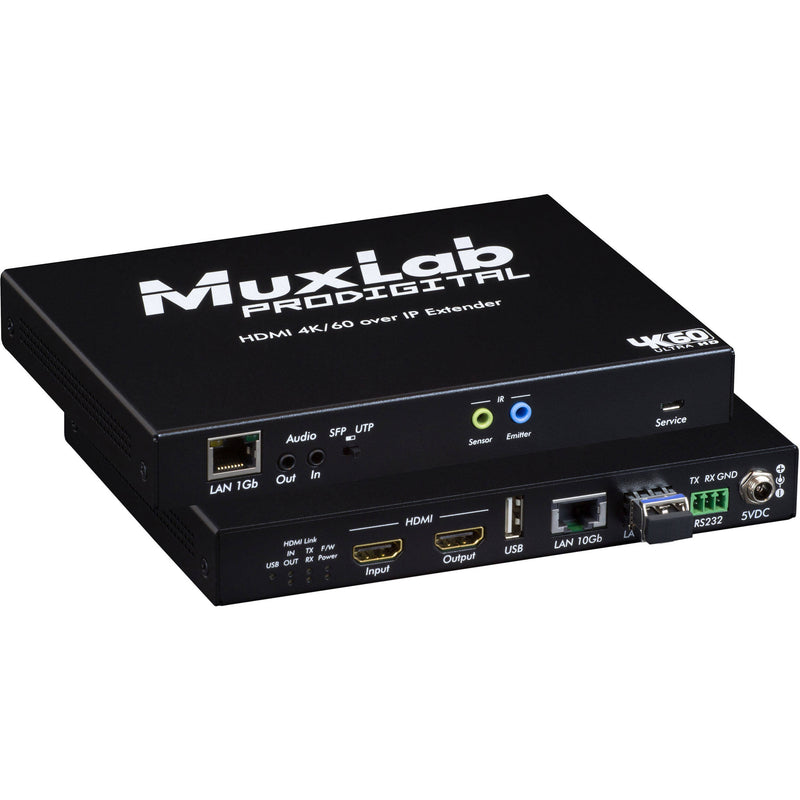

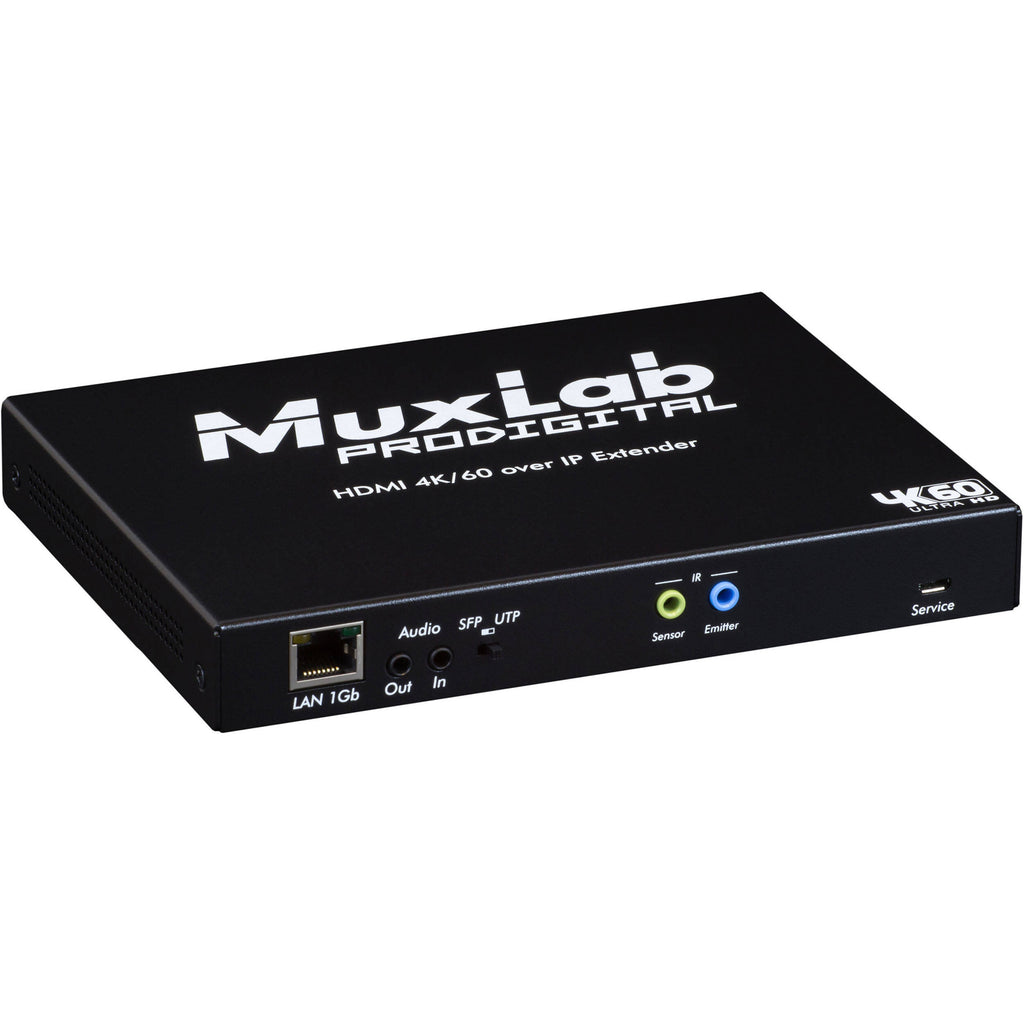

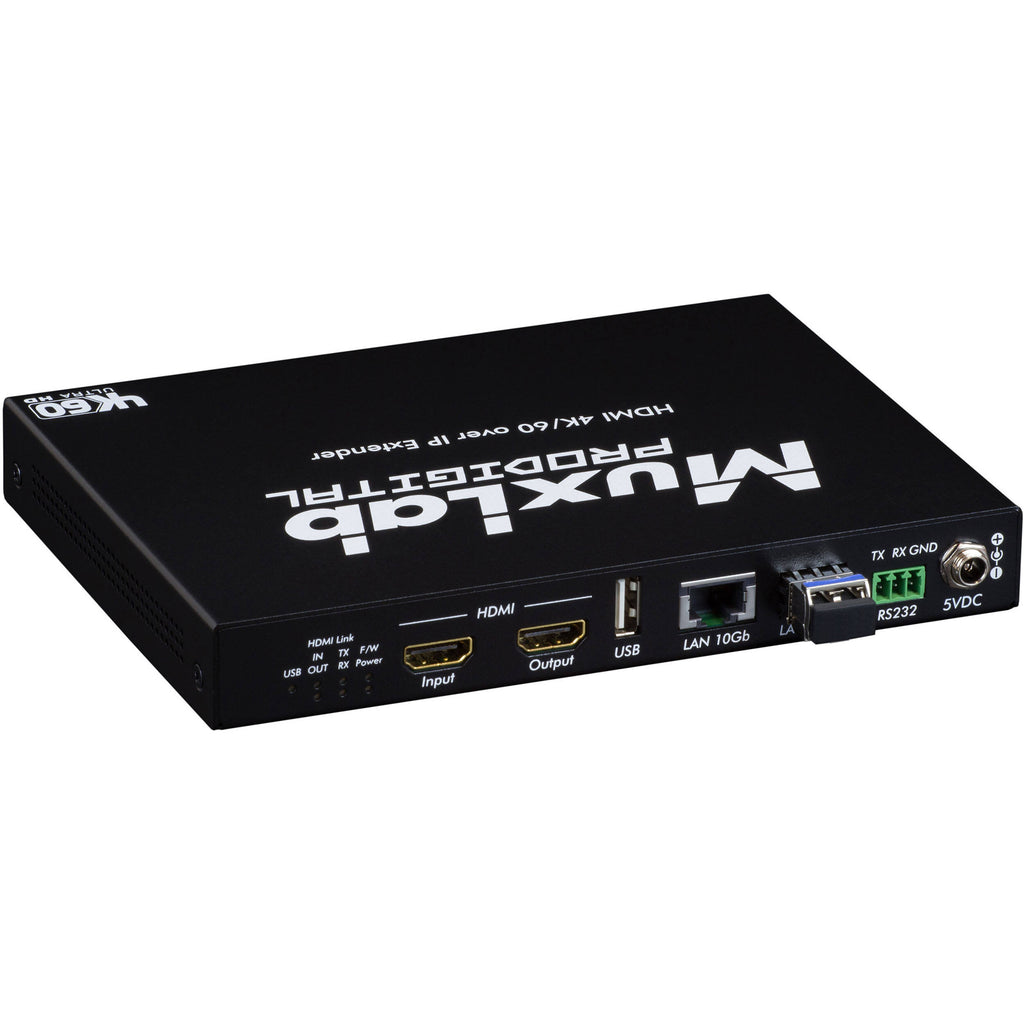

MuxLab 500766 Overview
The MuxLab HDMI 4K/60 KVM over IP Transceiver 10GB, UTP allows HDMI equipment supporting up to 4K @ 60Hz resolution to be connected and extended to create a 4K/60 HDMI based Video Wall, Virtual Matrix Switch, and Virtual Splitter arrangements of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth. The HDMI 4K/60 KVM over IP Transceiver 10GB, UTP can be connected via Cat6a/7 cable up to 330ft (100m) from a 10Gig Ethernet Switch. The unit supports a 1Gig Ethernet port to connect other 1Gig network devices, USB ports for KVM applications, RS232 and Bi-directional IR ports for remote control of end devices and Analog Audio embedded & de-embedded.
- Supports HDMI up to 4K/60
- Uncompressed up to 4K/60 (4:2:0) (zero latency), and light compression visually lossless at (4:4:4) (<1 frame latency)
- Supports Video Wall, Virtual Switch & Splitter configurations
- Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
- Transmission up to 330' over Cat6a/71G Ethernet Switch port to connect network devices
- Supports RS232 and IR transmission for remote control
- Supports Analog Audio embedded & de-embedded
- Supports USB 1.1 keyboard/mouse device
- Managed via Pro Digital Network Controller (500812), MuxControl Smartphone & Tablet App, and third-party App
MuxLab 500766 Specs
| Inputs/Outputs | 1 x HDMI Type-AInput 1 x HDMI Type-AOutput 1 x USB-A 1.1 3 x RJ45 (Ethernet) 1 x SFP 1 x 1/8" / 3.5 mm (Audio)Input 1 x 1/8" / 3.5 mm (Audio)Output 1 x 1/8" / 3.5 mm (IR)Input 1 x 1/8" / 3.5 mm (IR)Output 1 x Block (RS232) |
| Supported Resolutions | 3840 x 2160 |
| Maximum Transmission Distance | 330' / 100.6 m |
| Transmission Method | CAT6/CAT7 Cable |
| HDCP Support | Yes, Version 2.2 |
| Bandwidth | 594 Hz |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 11 W |
| DC Input Power | 5 VDC at 2 A |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 8.3 x 5.2 x 0.9" / 210.0 x 132.0 x 24.0 mm |
| Weight | 21.9 oz / 620.0 g |
