Description
- Quad Single-Channel Analog & Dante Audio
- Dante Standard Signal Protocol
- 2 x 6-Pin Phoenix Input Connectors
- 2 x 6-Pin Phoenix Output Connectors
- 1 x RJ45S for Cat 5e/6 Ethernet
- PoE IEE802.3af
- 20 Hz to 20 kHz Analog Bandwidth

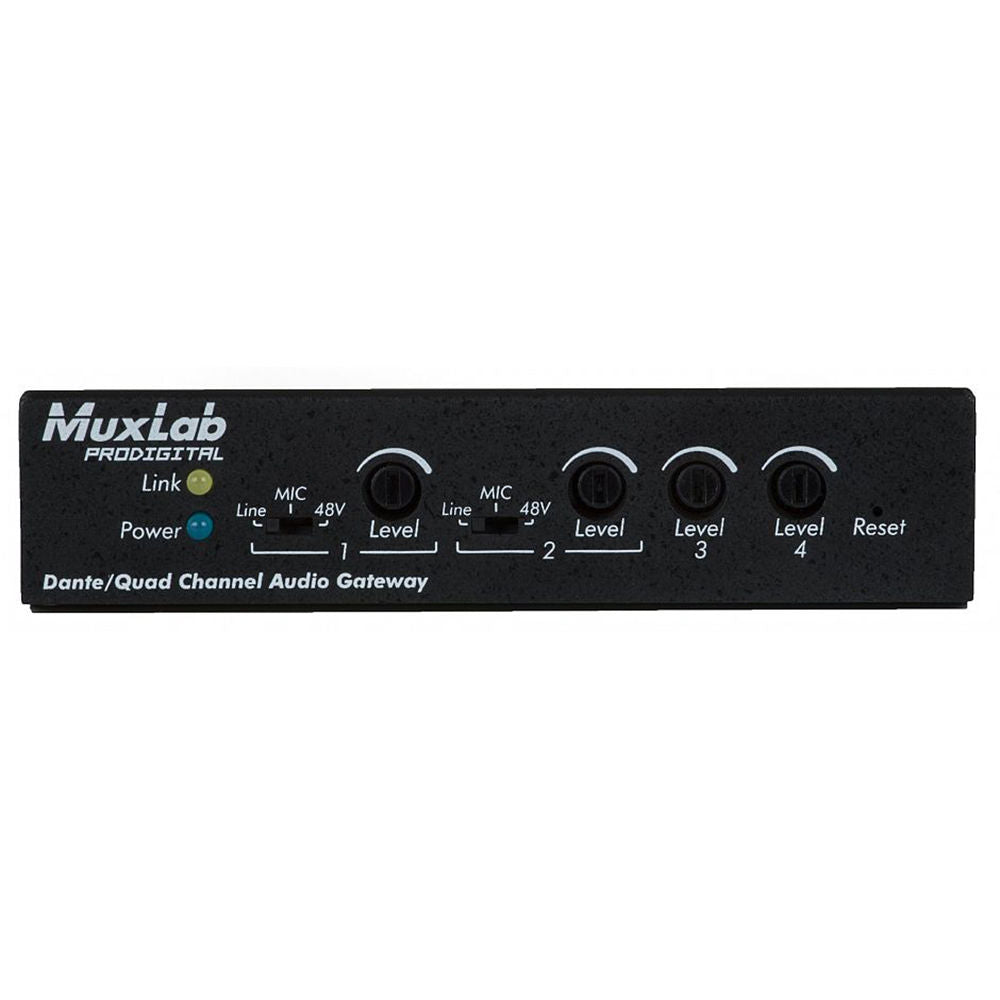

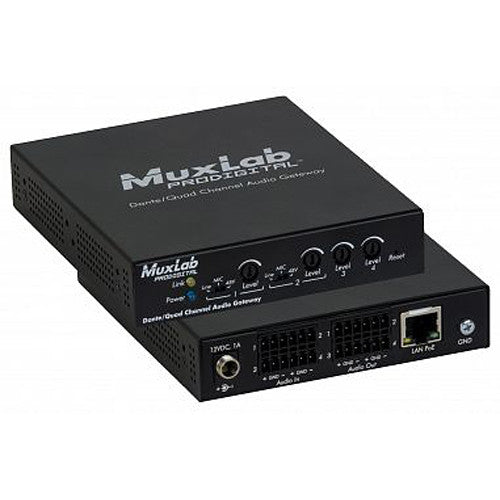

The Dante/Quad Channel Audio PoE Gateway from MuxLab permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. It can be used to transmit dual two-channel or quad single-channel full-range audio�20 Hz to 20 kHz�over the network to Dante. In addition, dual two-channel or quad single-channel balanced analog audio signals may also be received from Dante compatible equipment in the same manner.
The unit may be connected via Cat 5e/6 cable up to 330' from an Ethernet switch. The Dante/Quad Channel Audio PoE Gateway includes four single-channel balanced analog audio-in and four single-channel balanced analog audio-out ports via phoenix connectors. The quad single-channel balanced analog audio-in ports may be connected to line-level balanced analog audio signals or to line-level balanced microphones.
Furthermore, the quad single-channel balanced analog audio-out ports may be connected to balanced analog audio amplifiers supporting line-level inputs, such as a zone amplifier (100W), or to two pairs of powered speakers for direct sound output. Finally, the Dante/Quad Channel Audio PoE Gateway can be powered by a PoE Ethernet switch. Cables and a power supply are not included.
- Interface analog audio equipment to Dante audio equipment
- Supports dual two-channel or quad single-channel full-range balanced analog audio from 20 Hz to 20 kHz
- Transmission up to 330' over Cat 5e/6
- Supports quad single-channel balanced analog audio-in and quad single-channel balanced analog audio-out from Dante audio equipment
- Balanced audio ports may be interfaced to unbalanced audio ports when only 2 of 3 pins are used per channel
- IP managed for remote control
- Controllable via the Audinate Dante controller software
- PoE powered
| Environment | Quad single-channel balanced analog audio and Dante audio |
| Devices | Analog audio equipment and Dante professional audio equipment |

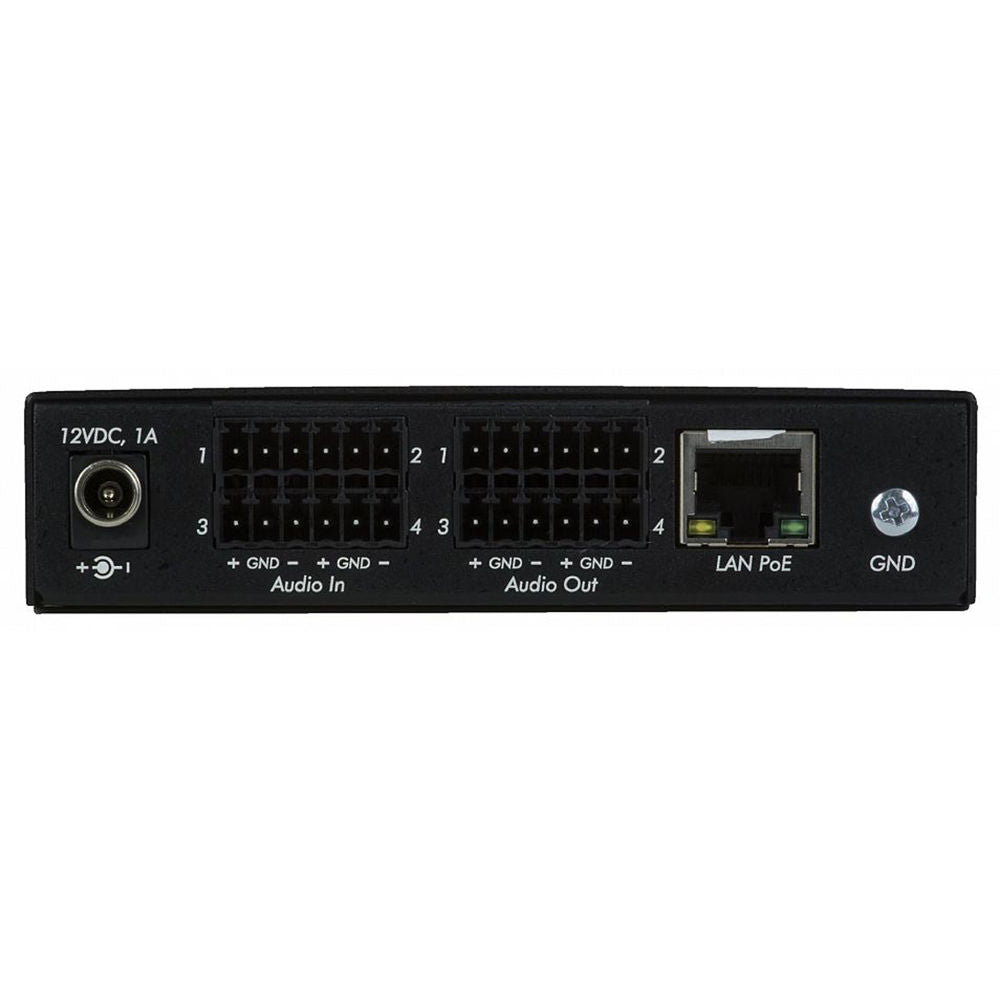

| Connectors | 2 x 6-pin phoenix connector, for quad single-channel balanced analog audio-in 2 x 6-pin phoenix connector, for quad single-channel balanced analog audio-out 1 x RJ45S for Cat 5e/6 unshielded or shielded twisted pair, for Ethernet connection 1 x 2.1 mm jack, for power |
| Maximum Distance | Cat 5e/6: 330' / 100 m from Ethernet Switch Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. |
| Signal Format | Dante |
| Bandwidth | Analog: 20 Hz to 20 kHz Network: TBD |
| RJ45 Pin Configuration | Reverse Polarity Sensitive: Use EIA/TIA 568A or 586B straight-through wiring RJ45 Link: Pin 1 (R) pin 2 (T) Pin 3 (R) pin 6 (T) Pin 4 (R) pin 5 (T) Pin 7 (R) pin 8 (T) |
| Cables Supported | 1 x Cat 5e/6 or better twisted pair cables required 8 x quad single-channel balanced audio cables with 3-pin phoenix connectors (for audio-in and audio-out) |
| Power Source | This device supports PoE (PD); an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet switch. If required, an optional power supply may be purchased separately. |
| PoE | IEEE 802.3af |
| Power Consumption | 4.5 W |
| Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 185°F / -20 to 85°C |
| Humidity (Non-Condensing) | Up to 95% |
| Compliance | Regulatory: FCC, CE, RoHS Flammability: 94V0 |
| Dimensions (W x L x H) | 4.4 x 4.6 x 1.0" / 11.2 x 11.7 x 2.5 cm |
| Weight | 1.5 lb / 0.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
