Description
MuxLab 500553 Overview

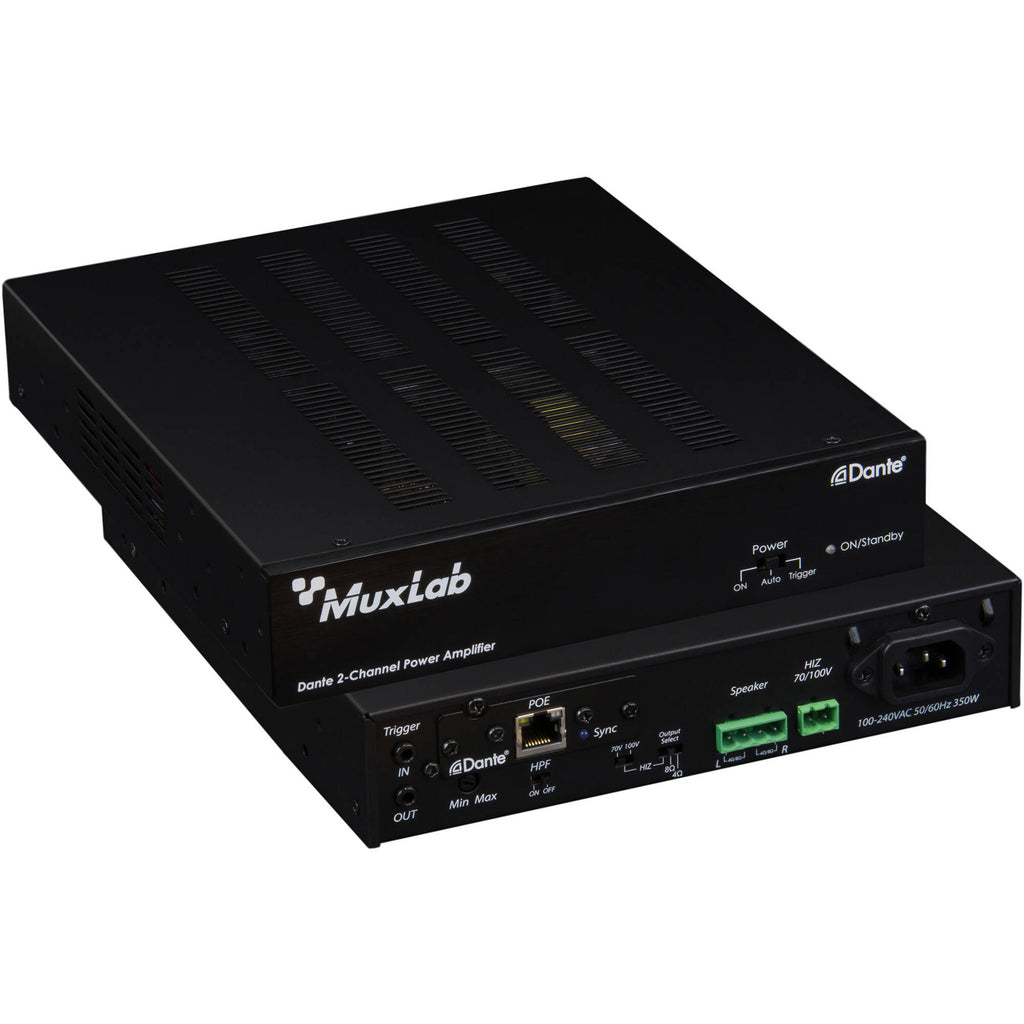

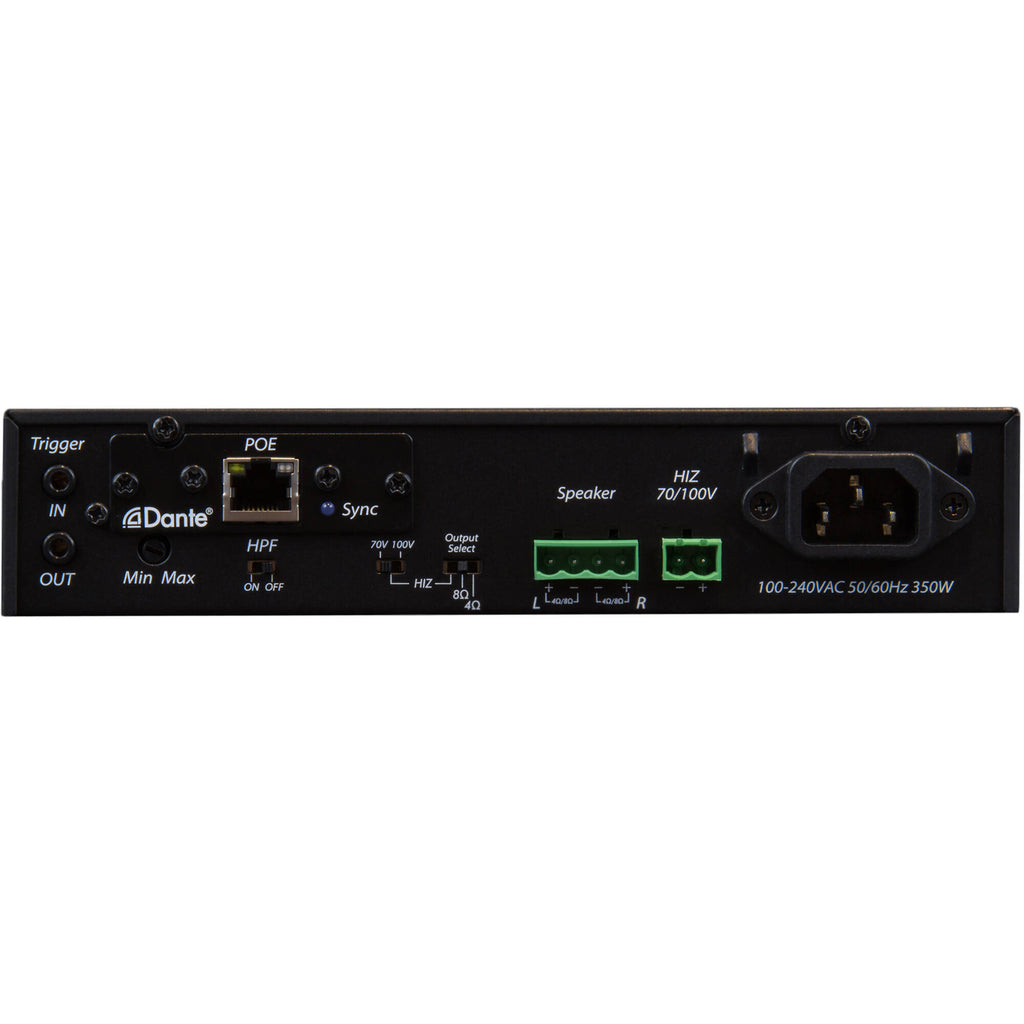

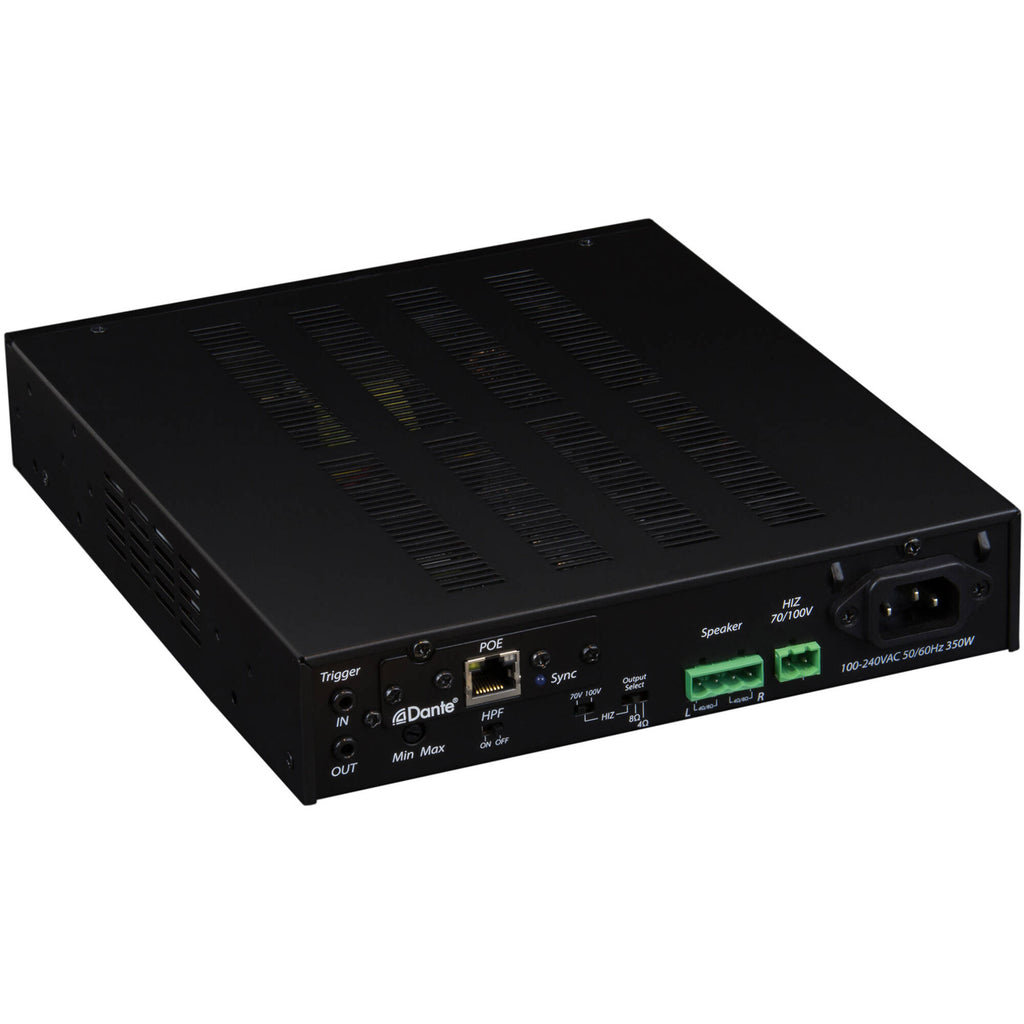

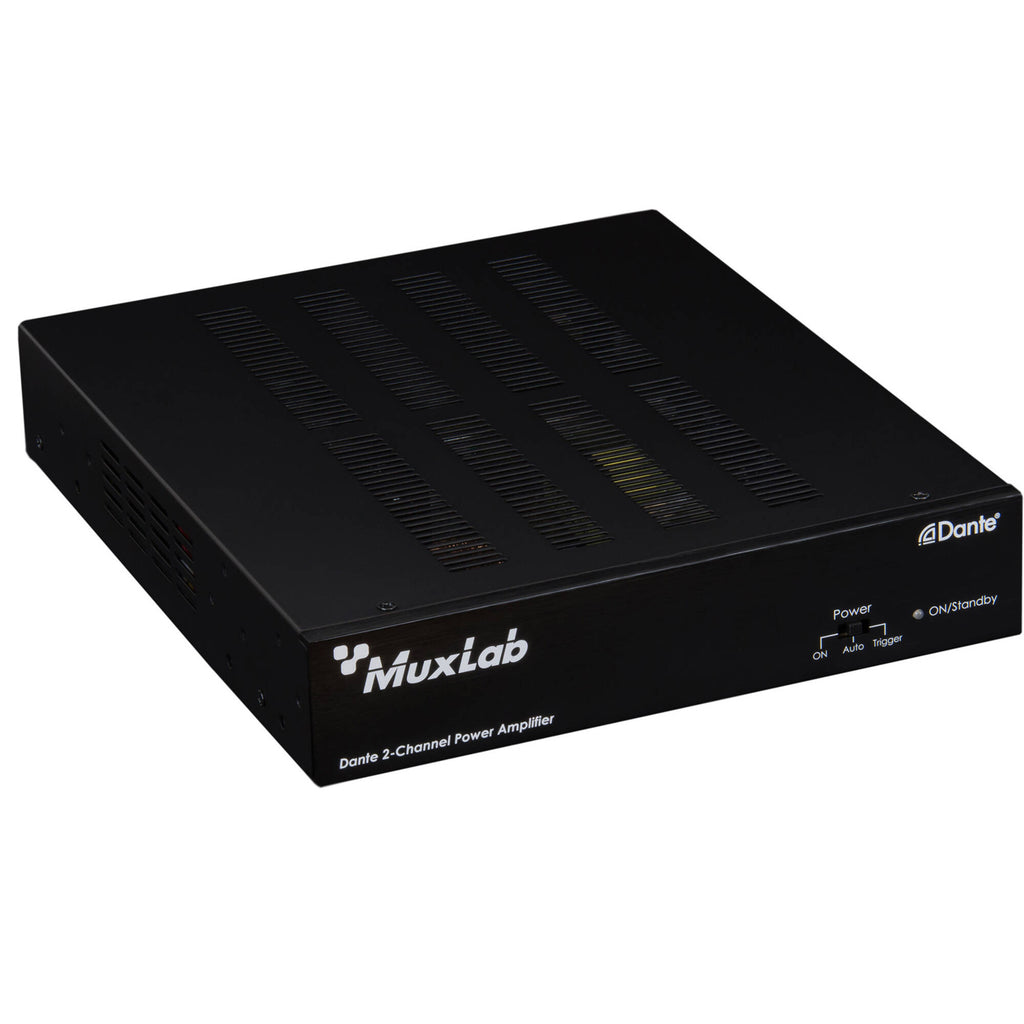

Broadcast your Dante network with the MuxLab Dante 2-Channel Power Amplifier, a 2-channel, 240W power amplifier that utilizes a Dante input as the input source for sound reinforcement applications. Simply use a Dante controller to route a signal from source devices that are on the same Dante network.
The amplifier's space-saving 1/2 rack design allows for quick installation and provides flexibility to mix and match with other 1/2 rack products to save valuable equipment rack space. This powerful Class-D amplifier is combined with features such as 12V trigger control, audio sensing, volume gain adjustment, short-circuit protection, and overheating protection. The Dante 2-Channel Power Amplifier includes mounting hardware, a power cord, a set of Phoenix block connectors, and four rubber feet.
- Two-channel audio amplifier with Dante integration
- Supports 2 x 120W (4/8 ohms) or 1 x 240W 70/100V constant output for multiple speakers
- Switch for high-pass filter
- Selection for Power-Up mode
- Natural cooling without fan
- Short-circuit protection
- Overheating protection
- Red LED (front panel) to indicate Standby mode is active
- Power down after 15 minutes of no signal and meets with Energy Star power consumption limits of <0.5W in standby
In the Box
- MuxLab Dante 2-Channel 240W Power Amplifier
- 3 x Mounting Ears
- Wall Mounting Bracket
- Power Cable
- 4-Pin Phoenix Connector
- 2-Pin Phoenix Connector
- 4 x Rubber Feet
- Limited 2-Year Manufacturer Warranty
MuxLab 500553 Specs
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms:
2x 120 W RMS per Channel (1% THD) 70 V / 100 V: 1x 240 W RMS Bridged (1% THD) |
| Load Impedance / Voltage |
Bridged/Stereo:
4 / 8 Ohms per Channel 70 / 100 V |
| DSP |
Yes
|
| Analog Audio I/O |
1x Block 4-Pin Speaker Output
1x Block 2-Pin Speaker Output |
| Digital I/O |
1x RJ45 Dante Input
|
| Network I/O |
No
|
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms:
2x 120 W RMS per Channel (1% THD) 70 V / 100 V: 1x 240 W RMS Bridged (1% THD) |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
Bridged/Stereo:
4 / 8 Ohms per Channel 70 / 100 V |
| Protections |
Short Circuit, Thermal
|
| Frequency Response |
20 Hz to 20 kHz ±2 dB (Max Out at 4 Ohms)
|
| Input Sensitivity |
1 V (at 4 Ohms)
|
| Max Input Level |
+24 dBu / 12.3 V
|
| SNR |
> 90 dB
|
| DSP |
Yes
|
| Crossover |
Yes
|
| Analog Audio I/O |
1x Block 4-Pin Speaker Output
1x Block 2-Pin Speaker Output |
| Digital I/O |
1x RJ45 Dante Input
|
| Network I/O |
No
|
| USB I/O |
No
|
| Mobile App Compatible |
No
|
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC Power Connector |
1 x IEC 15 A / NEMA 5-15
|
| Power Consumption |
350 W
|
| Cooling |
Convection
|
| Dimensions |
8.4 x 9.8 x 1.7" / 214.0 x 249.8 x 44.0 mm
|
| Weight |
4.2 lb / 1.9 kg
|
| Package Weight |
6.575 lb
|
| Box Dimensions (LxWxH) |
12.9 x 11.4 x 4.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
