Description
The Audio Zone Amplifier 100W from MuxLab features two 50W digital amplifiers (Class-D), three inputs, and a switchable stereo or mono (bridged) output. For EQ management, the Audio Zone Amplifier lets you control the volume, bass, and treble. These three control options can be controlled, in a circular pattern, via the control button on the front panel. This compact amplifier is suitable for applications such as classrooms, small meeting rooms, lecture halls, bars/pubs, and more.
- One 2-channel RCA analog input, one 2-channel 3.5mm analog input, and one PCM digital/optical TosLink input
- Supports two 50W for 2-channel audio at 8 Ohms
- Supports one 100W for mono bridge mode function at 4 Ohms
- Supports 70V speaker systems when connected to a MuxLab 70V transformer such as the 500755-70V (not included)
- Audio inputs switchable by pushbutton
- Can be controlled via an IR remote (included), RS232, or over the Web
- Supports a web-based GUI via the Ethernet port

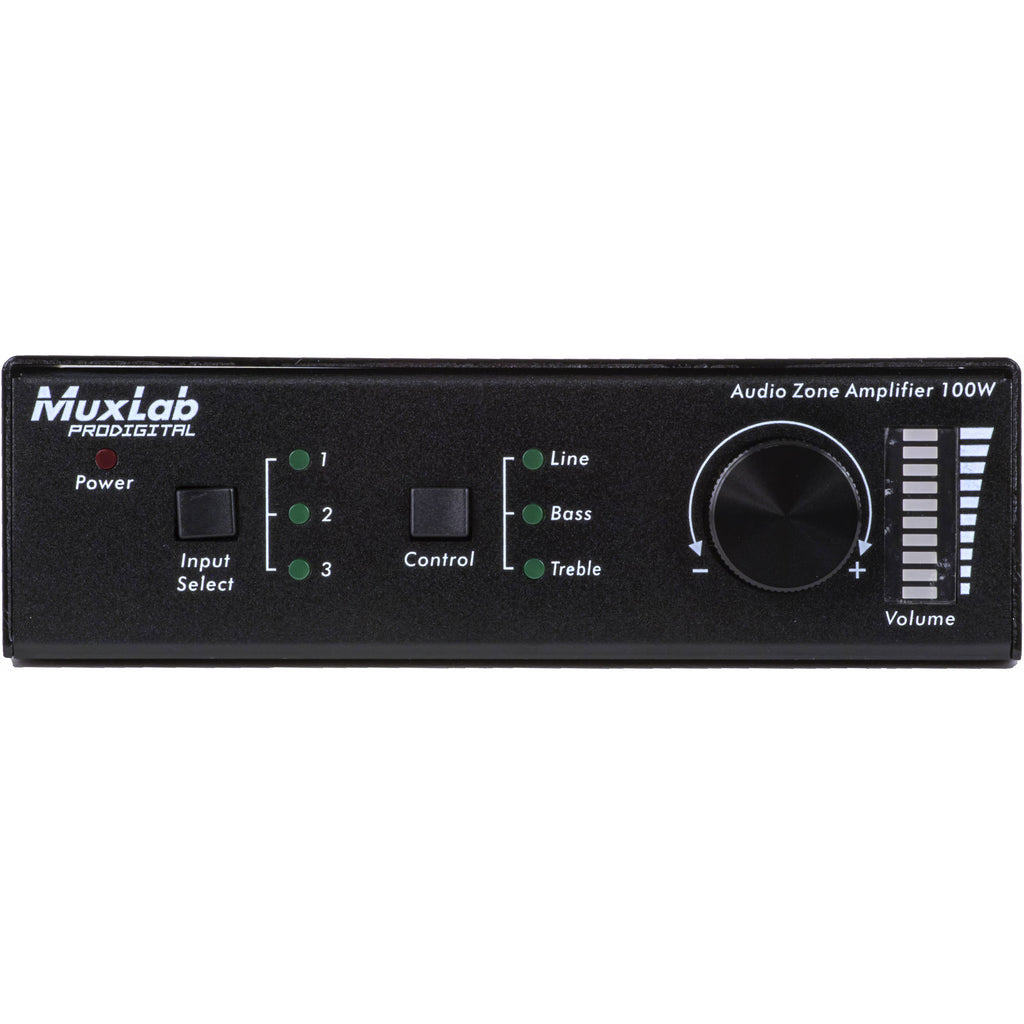

- Easy adjustments via a volume (level) rotary knob on the front panel
- Audio Cascade output support
- Intuitive LED indicators for input source, control, and volume setting
- Power off memory
- Convection cooling, no fan needed
- Antistatic case design
UPC: 627699012178
In the Box

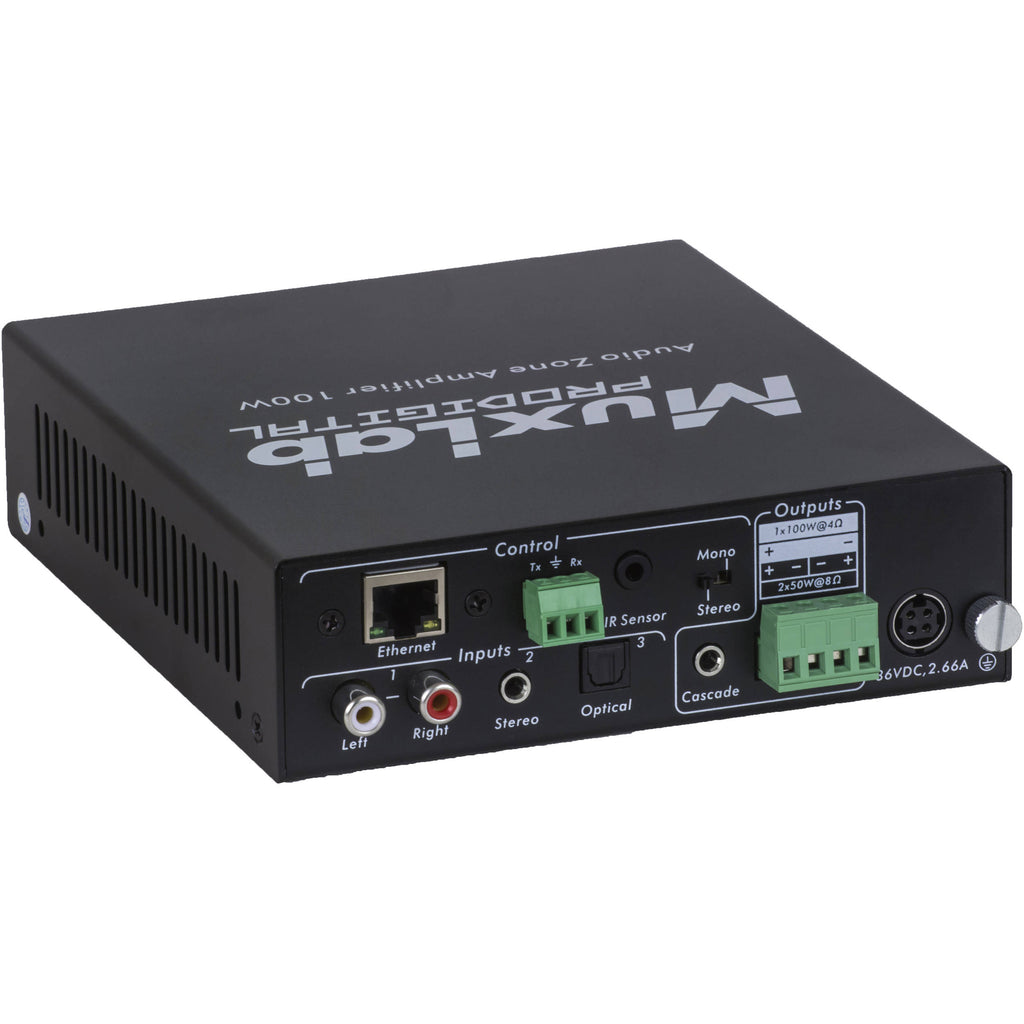

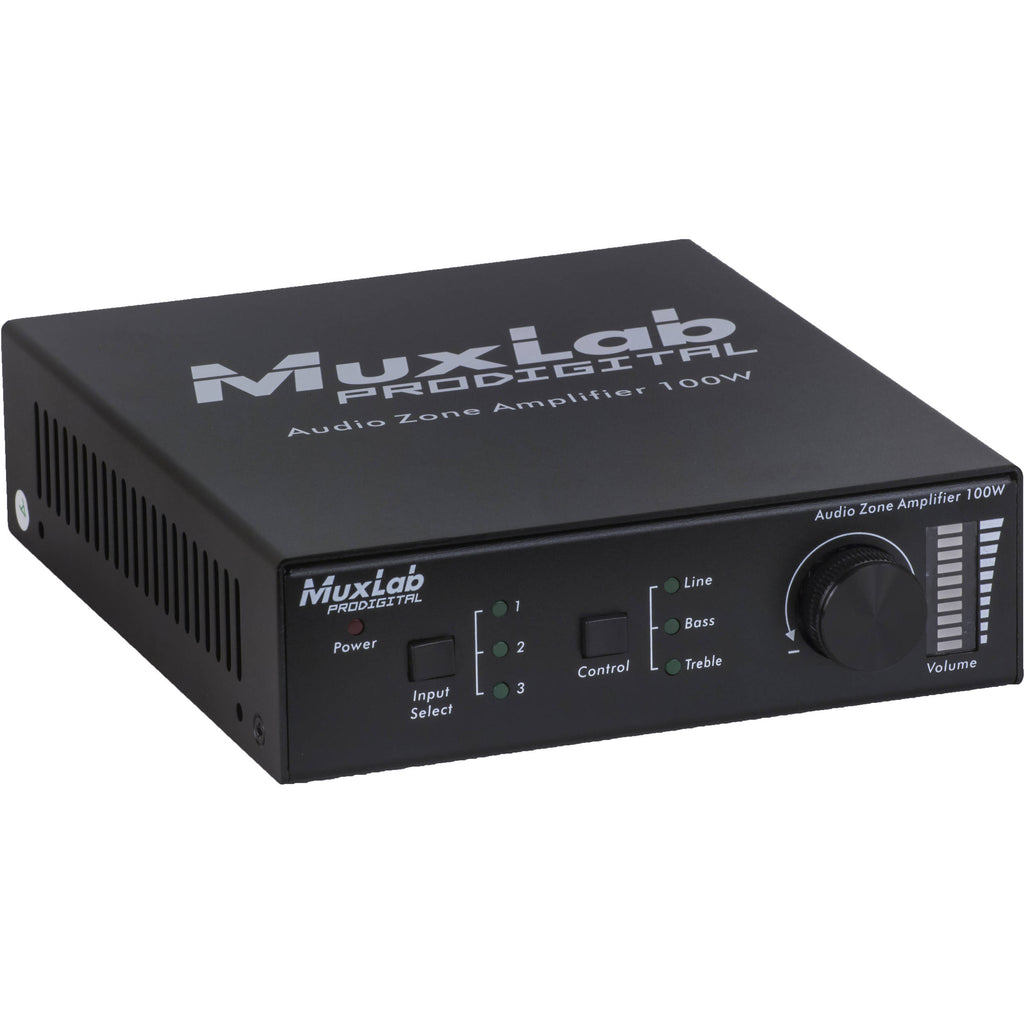

MuxLab Audio Zone Amplifier 100W
- Pluggable 4-Position Terminal Block
- RS232 Cable
- 33 VDC, 4A Power Adapter

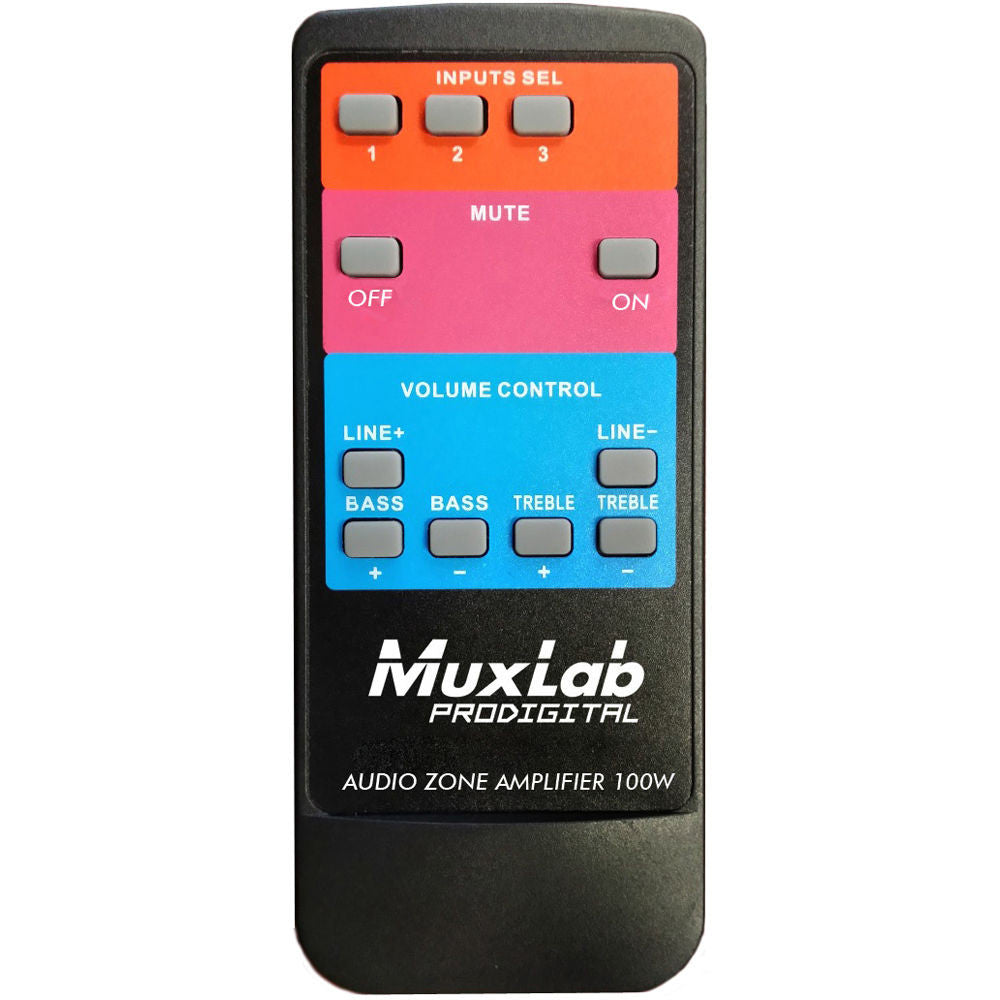

- Remote Control
- IR Sensor
- Power Cord
- 2 x Detachable Mounting Ear
- 4 x Screw
- 4 x Plastic Feet
- Limited 2-Year Warranty
| Type | Analog Audio |
| Devices | Supports audio system, line output, microphone, and speaker |
| Compatibility | Compatible with MuxLab analog audio products |
| Transmission | Transparent to the user |
| Frequency Response | 20 Hz to 20 kHz |
| CMMR | >75 dB @ 20 Hz to 20 KHz |
| SNR | 80 dB at maximum output |
| Input Impedance | >10 kOhms |
| Damping | >100 |
| Stereo Channel Separation | >75 dB @ 20 HZ to 20 kHz |
| THD + Noise | 1% @ 1 kHz, 50 W |
| Voltage Gain | 32 dB |
| Power Output | 1 x 100 W @ 4 Ohms 2 x 50 W @ 8 Ohms |

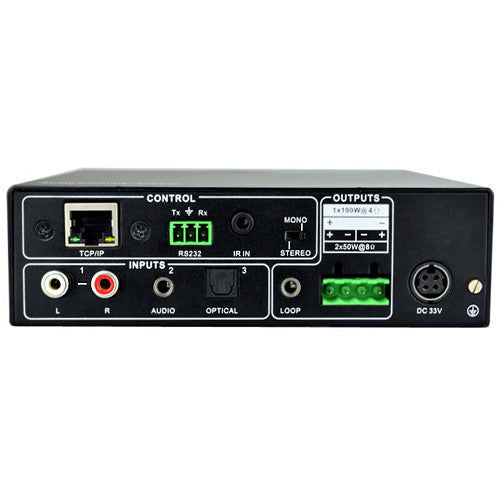

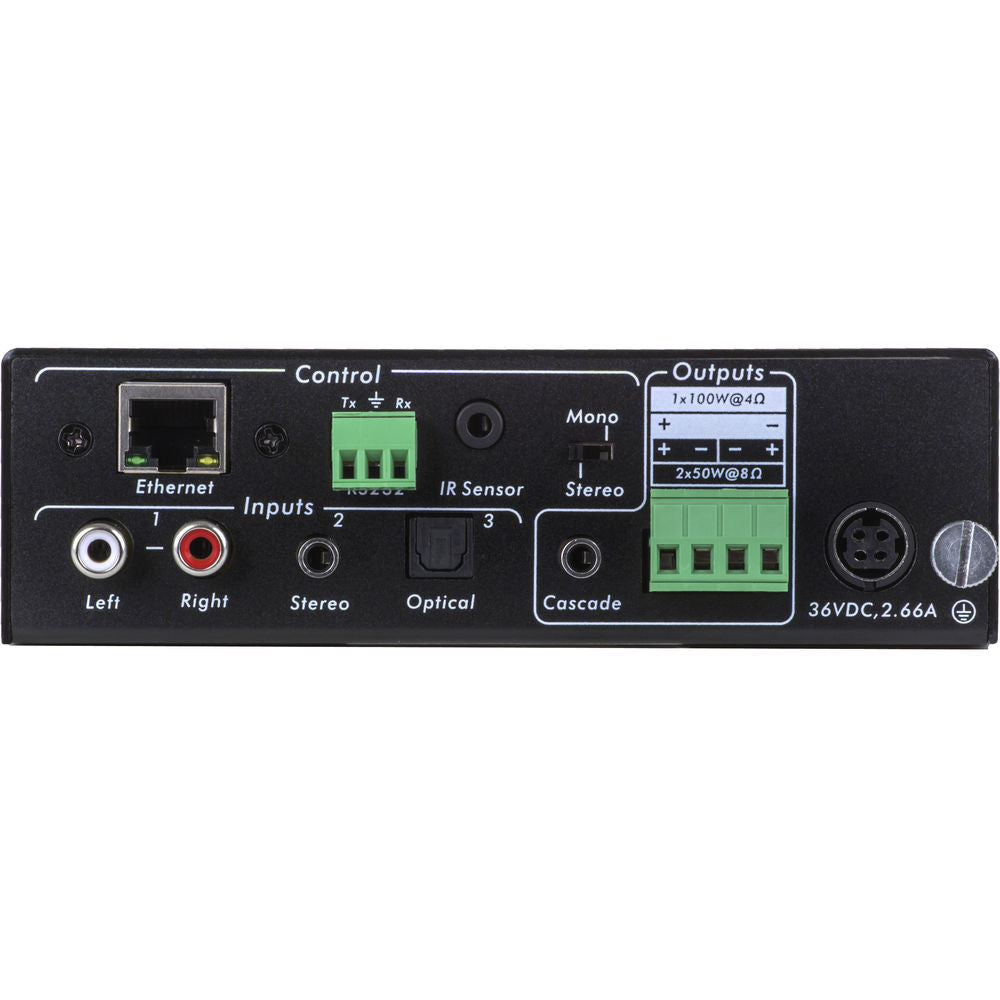

| Connectors | 2 x RCA input jacks for L+R audio input 2 x 1/8" (3.5 mm) jacks; one input & one cascade output 1 x 4-pin 0.2" (5.08 mm) terminal block for the speakers 1 x Optical TosLink for the digital audio 1 x IR sensor 0.13" (3.5 mm) stereo jack 1 x RJ45 shielded for the Ethernet LAN connection 1 x 3-pin 0.15" (3.81 mm) terminal block for RS232 1 x 4-pin DIN Jack for power |
| Power Supply | 110 - 240 VAC to 33 VDC power supply |
| Environmental Conditions | Operating Temperature: 0 to 122�F (0 to 50�C) Storage Temperature: -4 to 185�F (-20 to 85�C) Humidity: Up to 95% non-condensing |
| Regulatory | FCC, CE, RoHS |
| Enclosure | Metal |
| Dimensions | 5.83 x 1.73 x 6.50" (148 x 44 x 165 mm) |
| Weight | 1.59 lb (0.72 kg) |
