Description

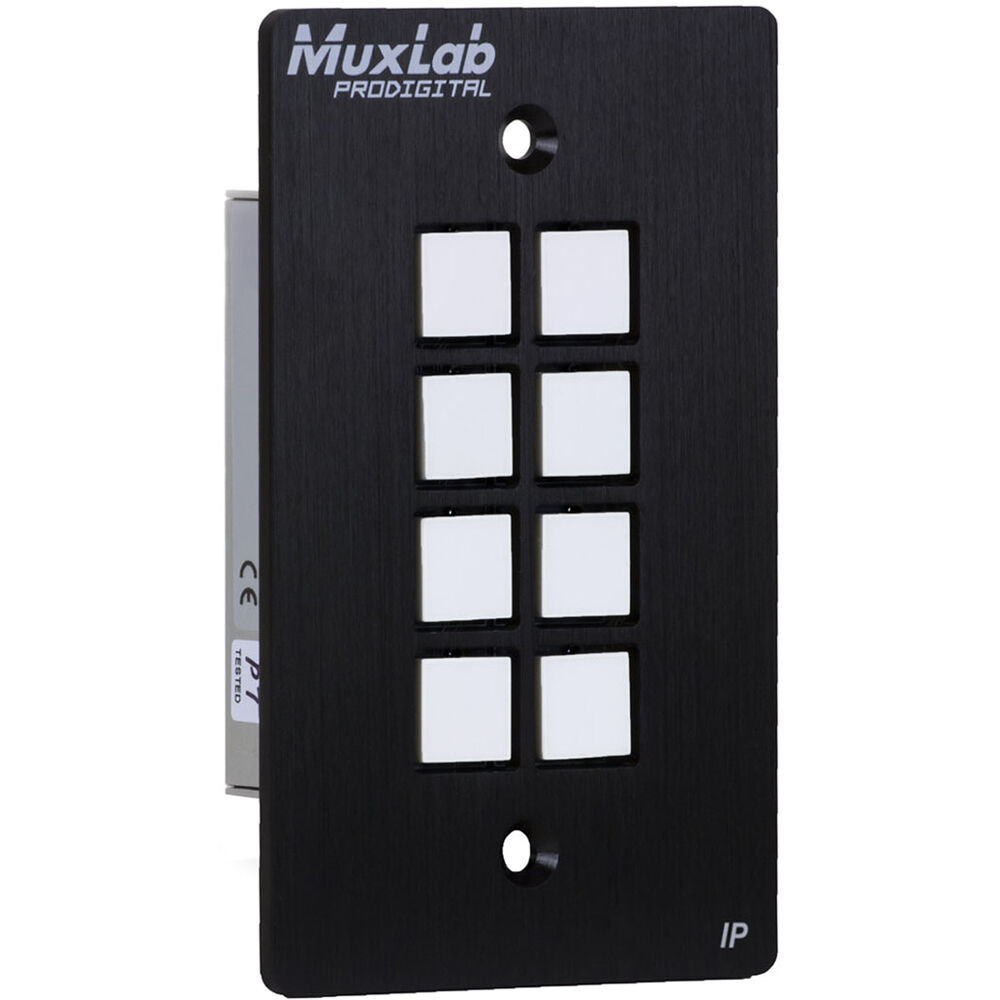

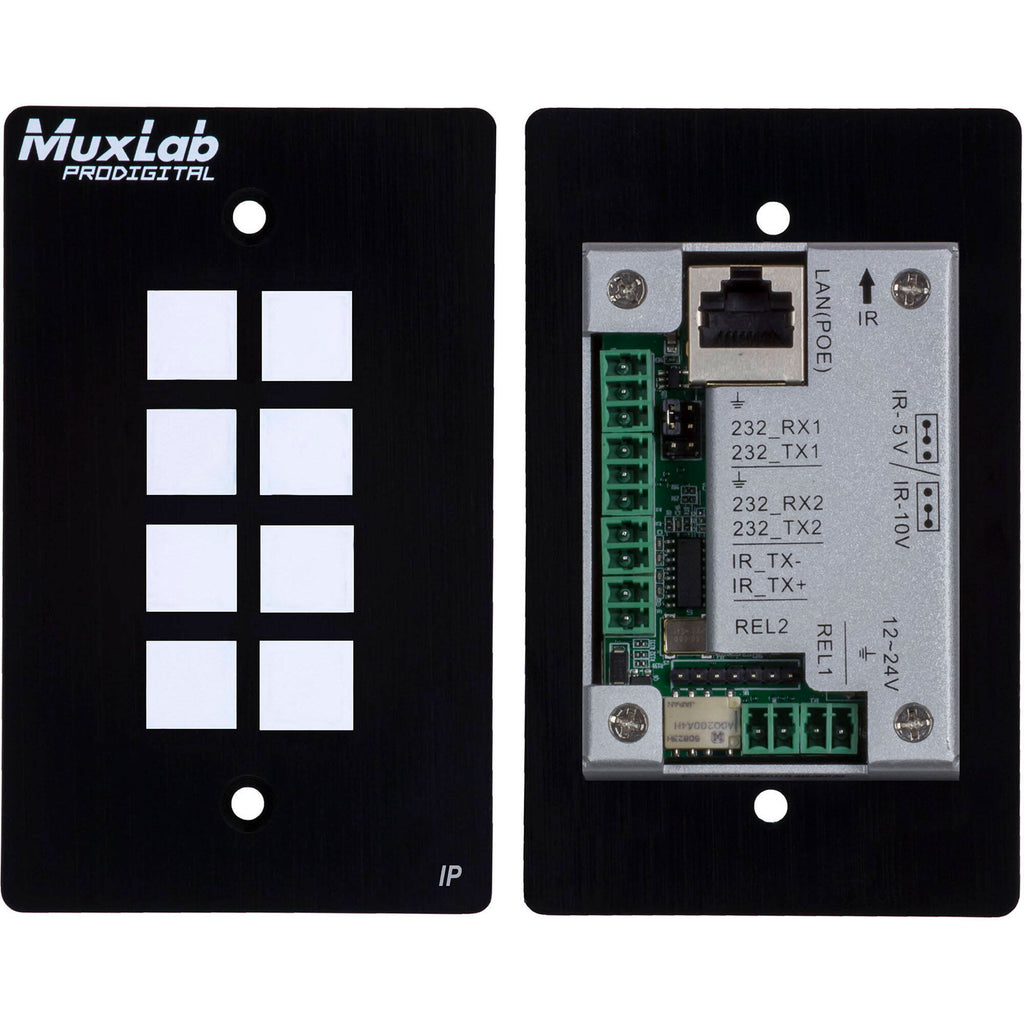

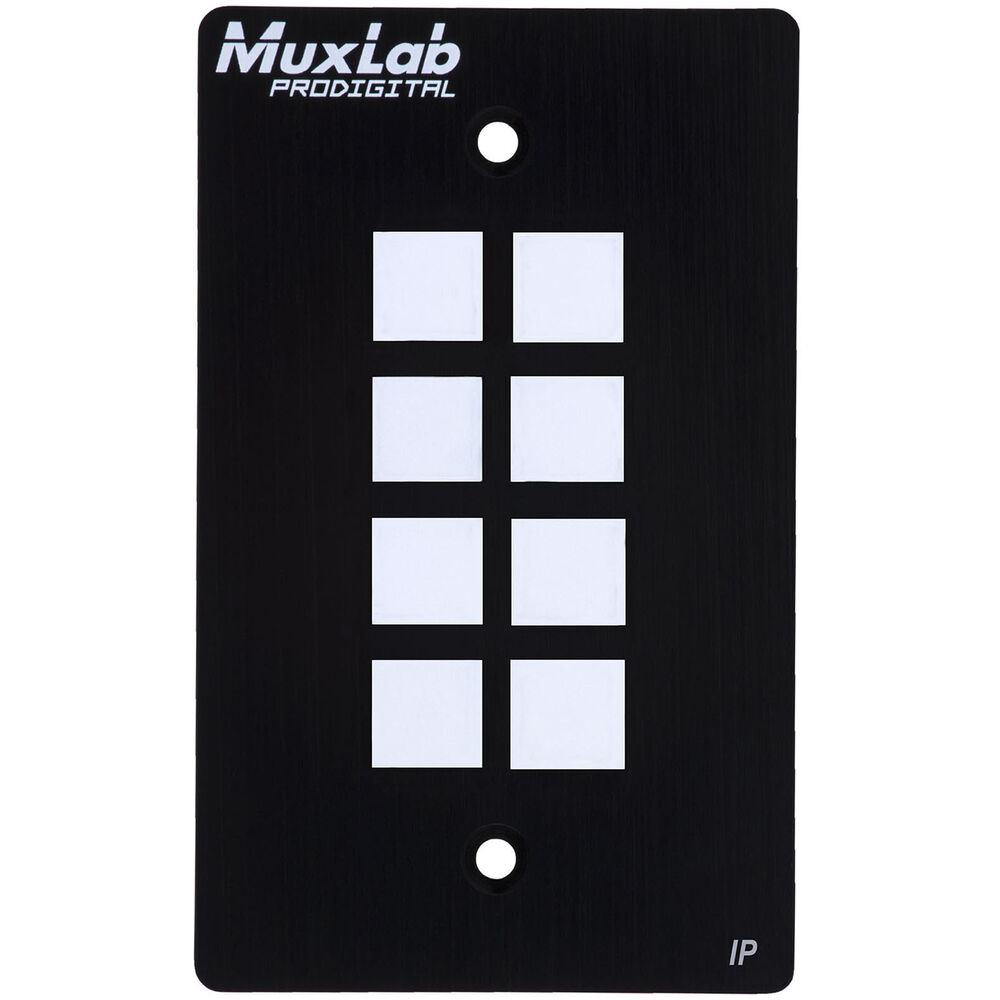

MuxLab 500816-IP Overview
Control AV over IP systems, projectors, screen displays, and other AV sources in your boardroom, classroom, or showroom environment with this MuxLab 8-Button IP PoE Control Panel. The panel's eight onboard buttons can be individually programmed via web interface. Ethernet, RS-232, IR, and Relay ports facilitate TCP/IP, Telnet, HTTP, and UDP control protocols to MuxLab or third-party devices. The panel can be wall- or table-mounted and supports PoE power delivery for easy integration into your home theater or office AV configuration.
Features at a Glance
- 8 onboard buttons
- Buttons can be individually programmed
- Control devices via TCP/IP, Telnet, HTTP, UDP, RS-232, IR, and Relay
- Programmable via web interface
- Buttons are backlit and support customizable labels
- Wall- or table-mounted
- Firmware updates via web interface
- Supports PoE
UPC: 627699028162
In the Box
- MuxLab 8-Button IP PoE Control Panel
- Power Supply
- Limited 2-Year Manufacturer Warranty
MuxLab 500816-IP Specs

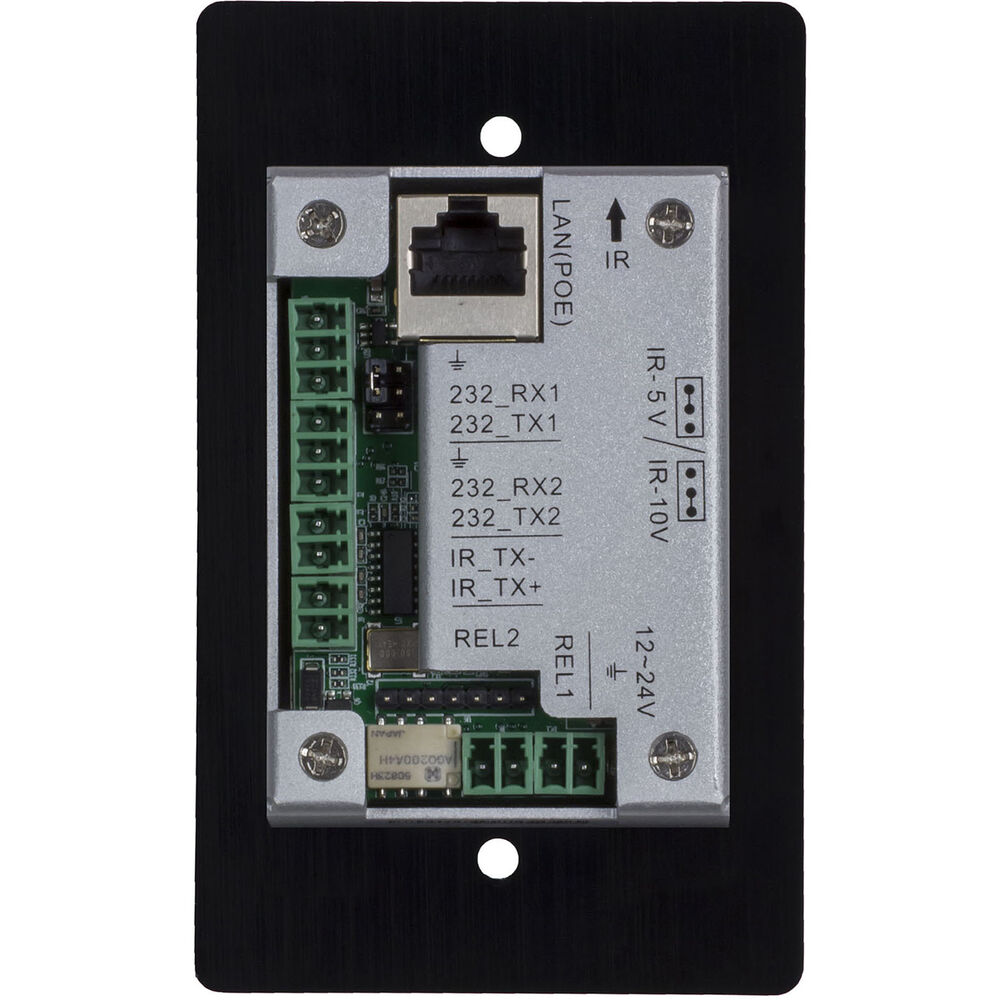

| Output Ports |
1 x RJ45 Ethernet TCP/IP
2 x 3-Pin Terminal Block RS-232 1 x 2-Pin Terminal Block IR Emitter 2 x 2-Pin Terminal Block Relay 1 x 2-Pin Terminal Block Power |
| Control Port |
1 x RJ45 Ethernet LAN
|
| Power Supply |
110-240 VAC to 12 VDC at 1.0A
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
0 to 95% (Non-condensing)
|
| Enclosure |
Metal
|
| Certifications |
FCC, CE, RoHS
|
| Dimensions |
4.49 x 2.76 x 1.41" / 114 x 70 x 36 mm
|
| Weight |
12 oz / 340.2 g
|
Packaging Info
| Package Weight |
1.085 lb
|
| Box Dimensions (LxWxH) |
10.2 x 7.7 x 2.9"
|
