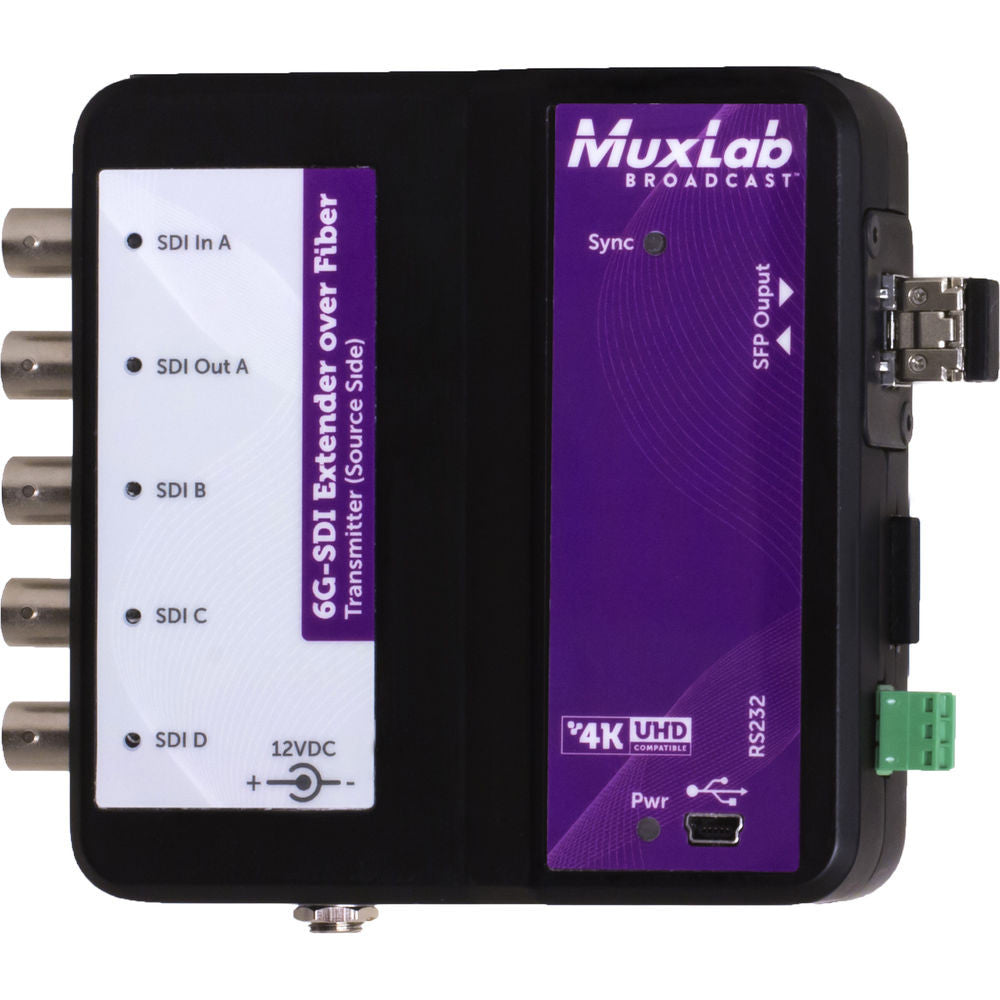

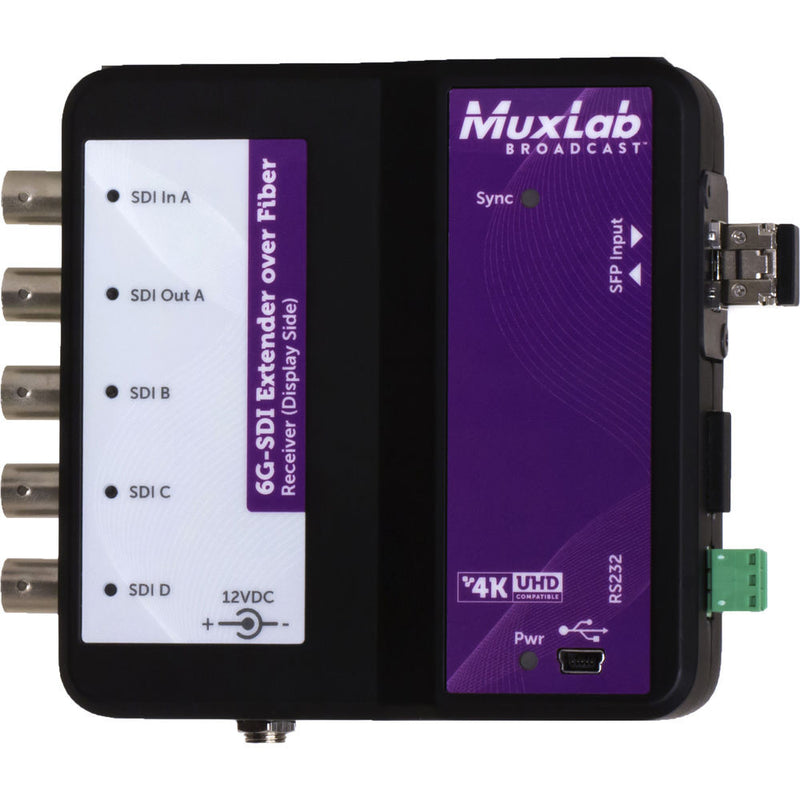

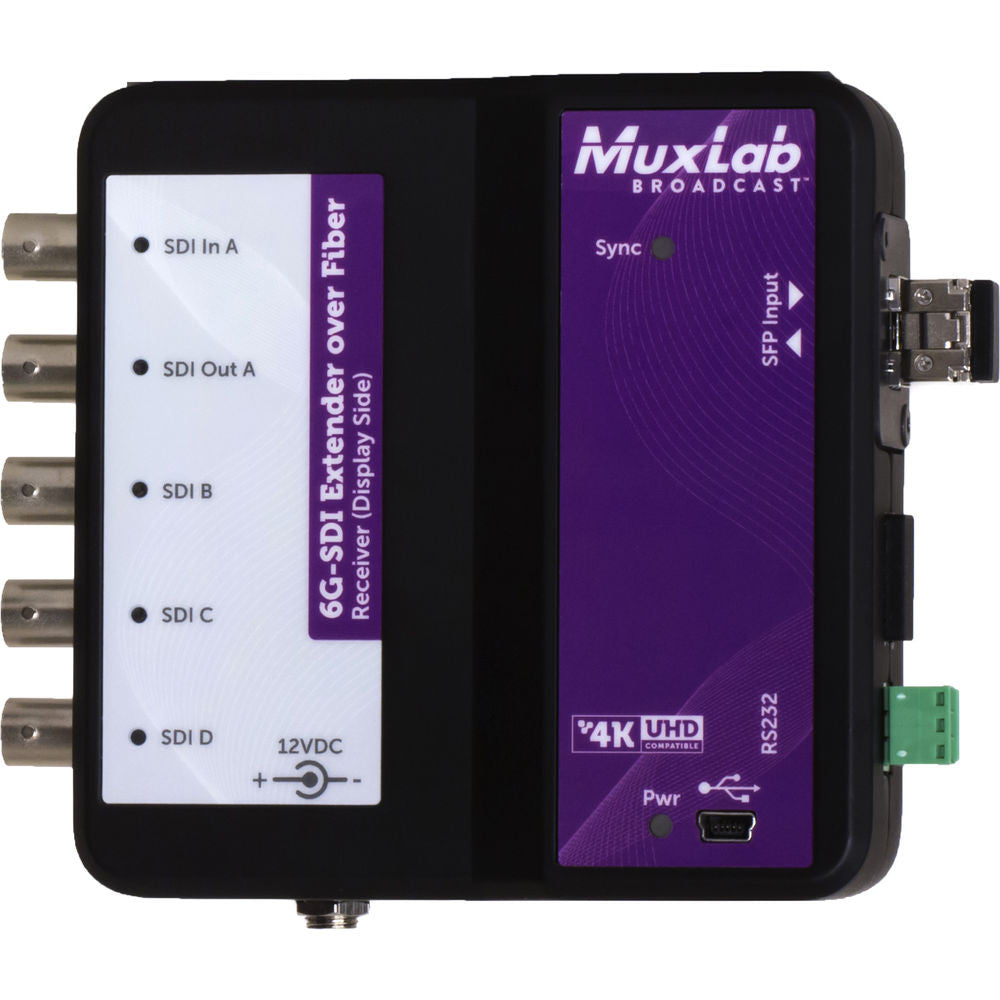

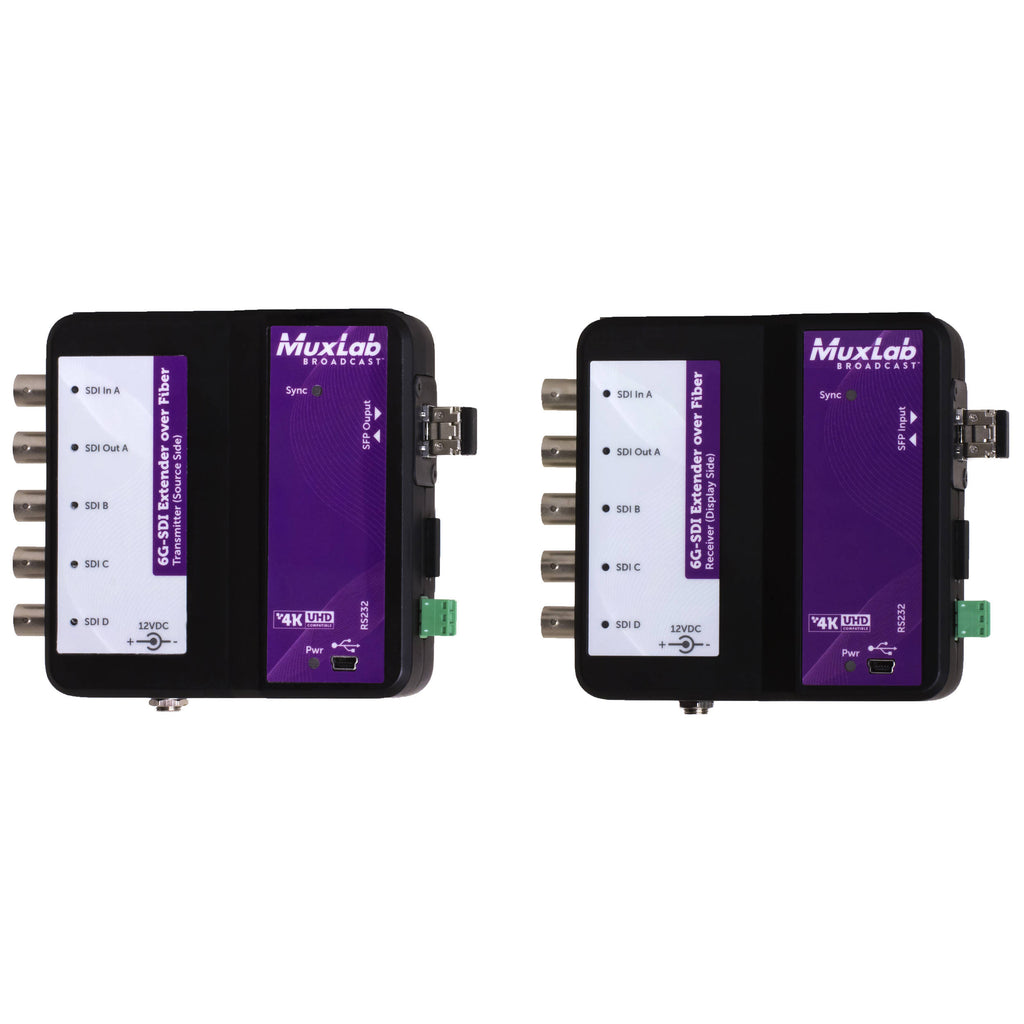

Provided by third party: The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions. This product allows for versatile combinations of sources, such as one 6G-SDI source, two 3G-SDI sources, or four HDSDI sources.
- Key Features
-
- Accepts up to four HD-SDI feeds, two 3G-SDI feeds or one 6G-SDI feed
- Supports all 6G channel configurations (1, 2, or 4 BNC)
- Automatic SDI Link recognition and configuration
- USB interface for diagnostics and field upgradable firmware
- Standard SFP+ module for optical fiber interface, or other media
- Heavy duty aluminum casing
- Supports RS232 pass-through
UPC: 627699907344
| General |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Localization | United Kingdom, United States, Europe |
| Networking |
| Connectivity Technology | Wired |
| Max Resolution | 4096 x 2160 @ 25 Hz |
| Max Transfer Distance | 6.2 miles |
| Status Indicators | Link activity, power |
| Features | Firmware upgradable, 4K resolution support |
| Miscellaneous |
| Included Accessories | 2 x SFP+ transceivers (LC duplex) |
| Compliant Standards | FCC, RoHS |
| Power |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Packaging Info |
| Package Weight | 2.9 lb |
| Box Dimensions (LxWxH) | 12.2 x 7.0 x 4.4" |
