Description

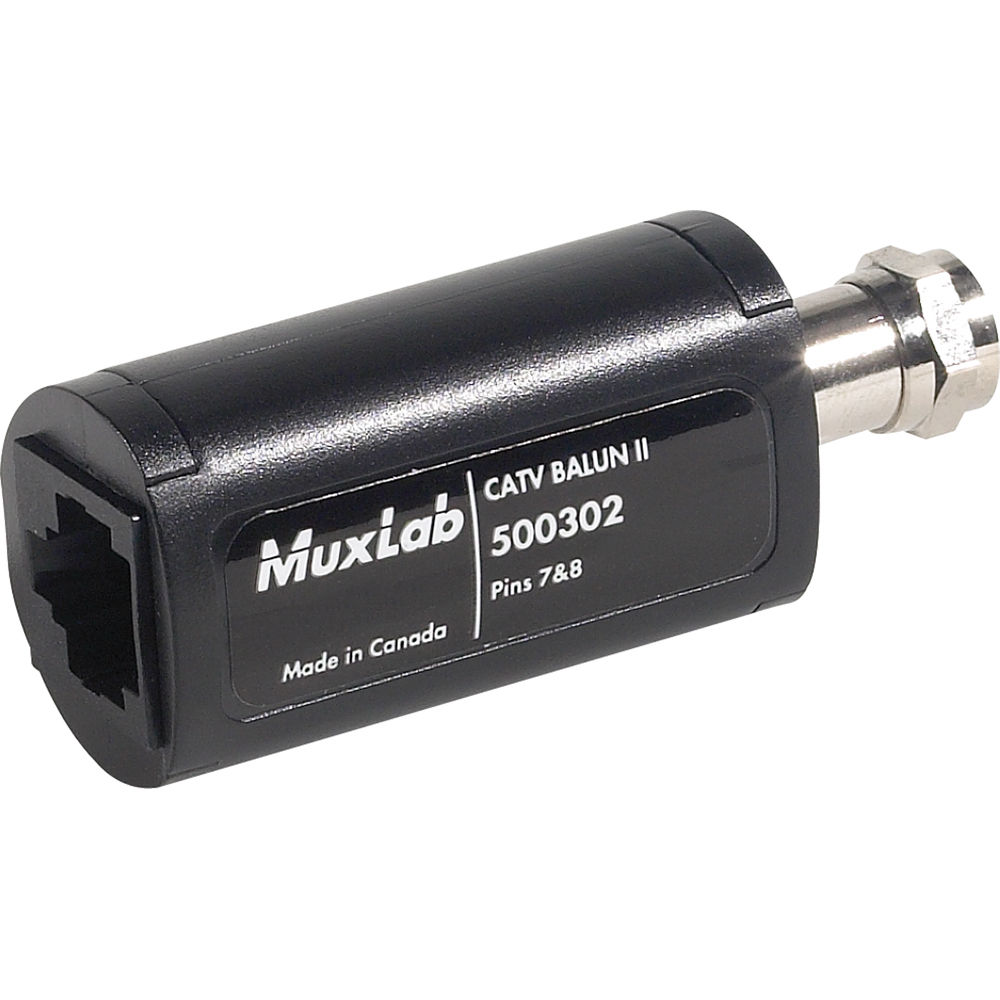

MuxLab 500302 Overview
The 500302 CATV Balun II from MuxLab integrates terrestrial broadband video (bandwidth up to 900 MHz) by replacing traditional coax cabling with Cat5 UTP cables. Using Cat5 cables, the balun can transmit video signals at distances of up to 330', depending on the channel frequency and input power being used. Additionally, the balun is designed to be used in pairs, enabling you to easily move or add CATV equipment to any convenient modular wall outlet.
Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the balun is ideal for use in schools, government offices, hospitals, financial institutions, hotels, and residential complexes. Constructed of ABS fire retardant plastic for strength and durability, this balun is designed for long-lasting use. Furthermore, it features low return loss for maximum power transfer with no line faults between the input and output. This balun can be used in conjunction with RF splitters, amplifiers, and cable modems for a comprehensive cabling solution.
In the Box
- MuxLab 500302 CATV Balun II
- Limited Lifetime Manufacturer Warranty
MuxLab 500302 Specs
| Environment |
Private and public broadband CATV, VHF, and FM networks
|
| Application |
Terrestrial CATV, local channel amplified antennas, DVD players, RF modulators, splitters, cable modems, and other broadband video equipment.
|
| Transmission |
Transparent to the user
|
| 3dB Bandwidth |
5 to 900 MHz
|
| Video Channels Supported |
CATV 2 to 142
VHF channels 2 to 13 FM broadcast band |
| Insertion Loss |
< 10 dB: 5 to 10 MHz
< 4 dB: 600 to 725 MHz < 3 dB: 10 to 600 MHz < 3 dB: 725 to 900 MHz |
| Return Loss |
> 10 dB: 15 to 370 MHz
> 10 dB: 770 to 900 MHz > 7 dB: 370 to 770 MHz |
| Common Mode Rejection |
-20 dB or higher at 5 to 900 MHz
|
| Cable Requirements |
Cat5e/6 UTP
24-AWG or lower solid copper twisted pair Impedance: 100 to 120 Ohms Coax: Impedance: 75 Ohms at 1 MHz (RG6) |
| Connectors |
Input: "F" connector (male)
Output: RJ45 (female) RJ45 Pin Configuration: RJ45 Pins 7 & 8 |
| Maximum Distance |
Up to 330' (100 m) via Cat5 UTP depending on channel frequency and input power
Maximum 330' (100 m) at CATV Channel 2 (May require tilt amplifiers at higher frequencies) |
| Temperature |
Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C) Humidity: up to 95% (non-condensing) |
| Housing |
ABS construction
|
| Approvals |
FCC Part 15 Class A, CE
|
| Dimensions |
Ø1 x 2.5" (Ø2.5 x 6.4cm)
|
| Weight |
1.1 oz (30 g)
|
| Package Weight |
0.085 lb
|
| Box Dimensions (LxWxH) |
7.15 x 5.95 x 0.9"
|
