Description
MuxLab 500080 Overview
The MuxLab 500080 Digital to Analog Converter LPCM is capable of converting up to 24-bit, 96kHz linear pulse code modulation, or LPCM digital audio to analog. It can be used to integrate digital audio sources, such as the digital audio output of a computer, DVD, or CD player into analog audio systems like televisions or home theater setups.

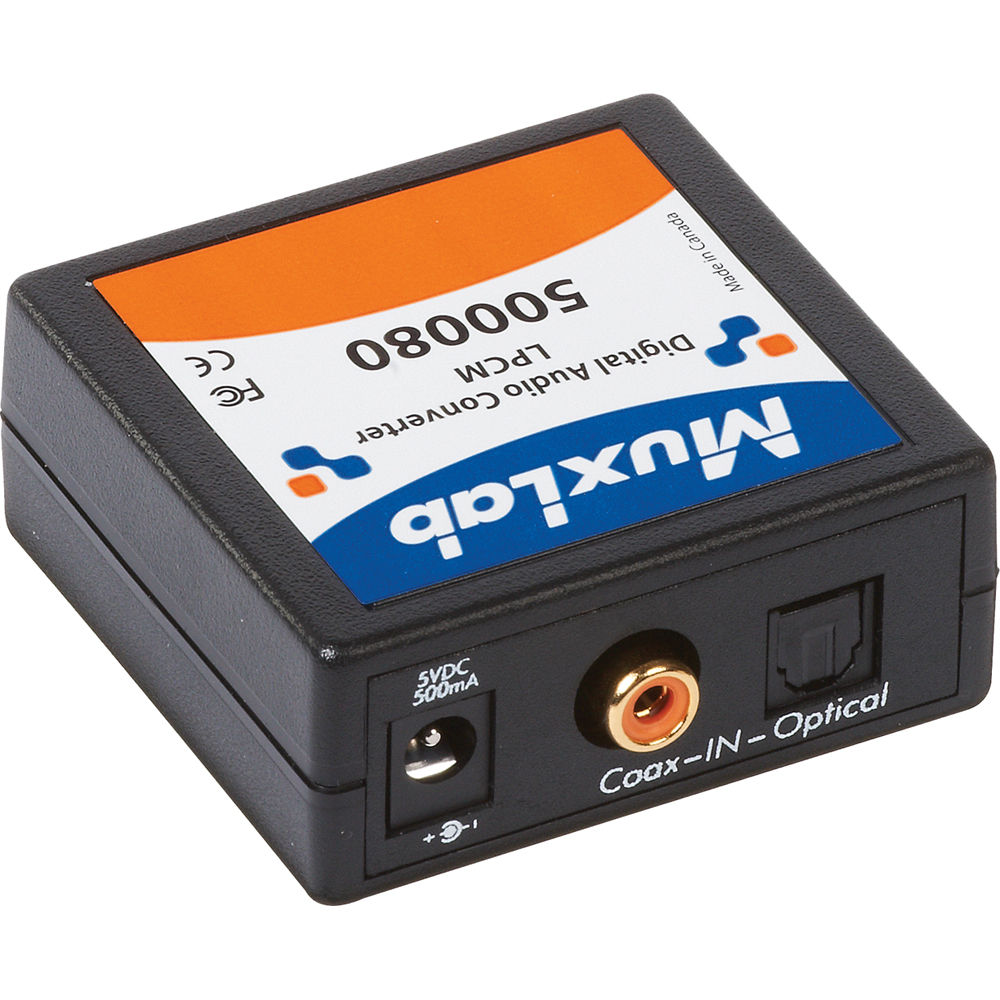

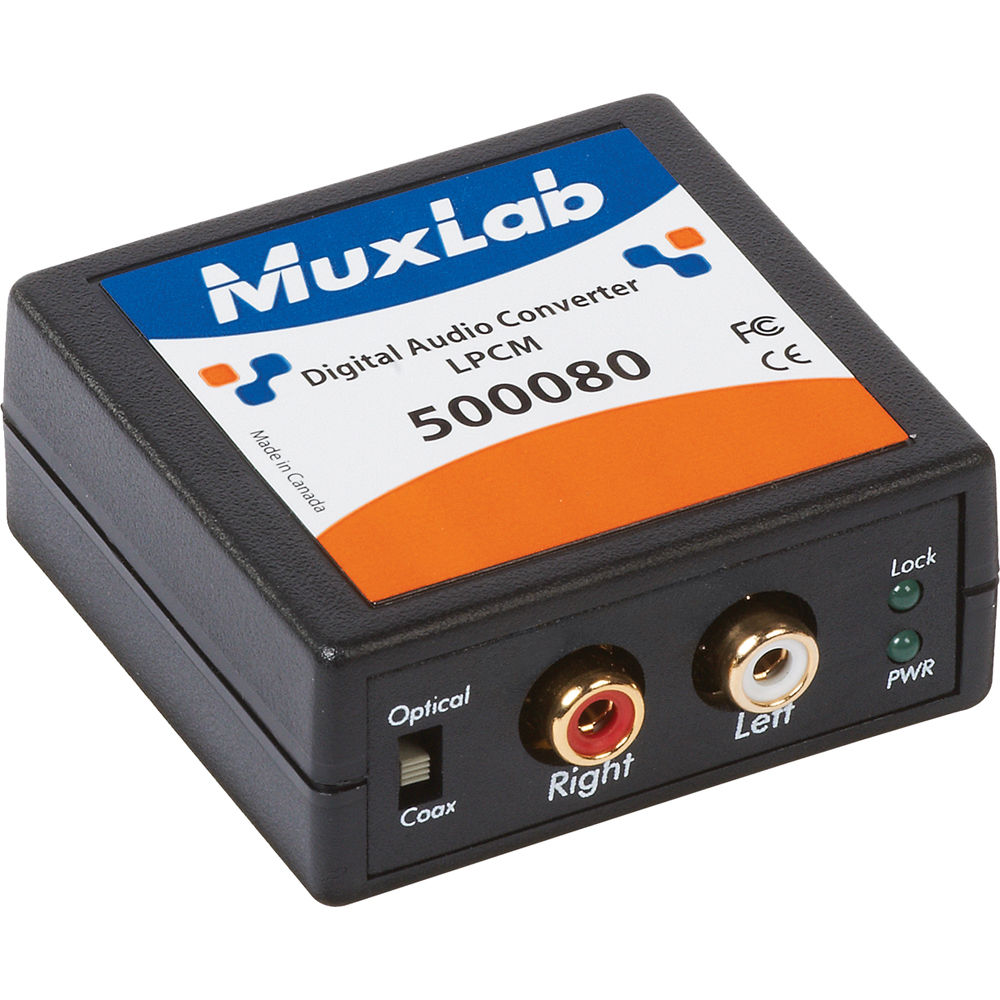

The 500080 features one S/PDIF and one TOSlink digital input with a switch to select between the two. It provides stereo analog output via its two RCA jacks. The 500080 is mountable to a variety of surfaces using either the included hook & loop fasteners pad or the optional MuxLab mounting accessories.
Converts 2-channel LPCM digital audio to left and right analog audio
Switch selects between TOSLink and S/PDIF inputs
Can be used with DVD, CD Players, TVs, PCs, IP streaming devices, and AVRs
UPC: 627699000809
In the Box
- MuxLab 500080 LPCM Digital to Analog Converter
- Power Supply
- TOSlink Cable
- Hook & Loop Fasteners Mounting Pad
- Limited 2-Year Manufacturer Warranty
MuxLab 500080 Specs
Key Specs
| Converter Type |
AD/DA Converter
|
| Number of Channels |
2
|
| Analog Audio I/O |
1 x Stereo RCA Coaxial Output
|
| Digital Audio I/O |
1 x RCA Coaxial S/PDIF Input
1 x TOSLINK Optical S/PDIF Input |
| Number of Channels |
2
|
Connectivity
| Analog Audio I/O |
1 x Stereo RCA Coaxial Output
|
| Digital Audio I/O |
1 x RCA Coaxial S/PDIF Input
1 x TOSLINK Optical S/PDIF Input |
| Host Connection Protocol |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
Performance
| SNR |
> 90 dB (20 Hz to 20 kHz)
|
| THD |
< 0 (1 kHz)
|
Digital Audio
| Sample Rates |
32 / 44.1 / 48 / 96 kHz
|
| Bit Depths |
24-Bit
|
Power
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz
|
| AC/DC Power Adapter |
5 VDC
|
| Power Consumption |
0.75 W
|
Physical
| Operating Humidity |
0 to 95%
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 185°F / -20 to 85°C
|
| Dimensions |
2.4 x 2.25 x 1" / 6.1 x 5.5 x 2.5 cm
|
| Weight |
1.0 lb / 0.5 kg
|
Packaging Info
| Package Weight |
0.49 lb
|
| Box Dimensions (LxWxH) |
5.5 x 4.5 x 2.2"
|
