Description
MuxLab 500023 Overview

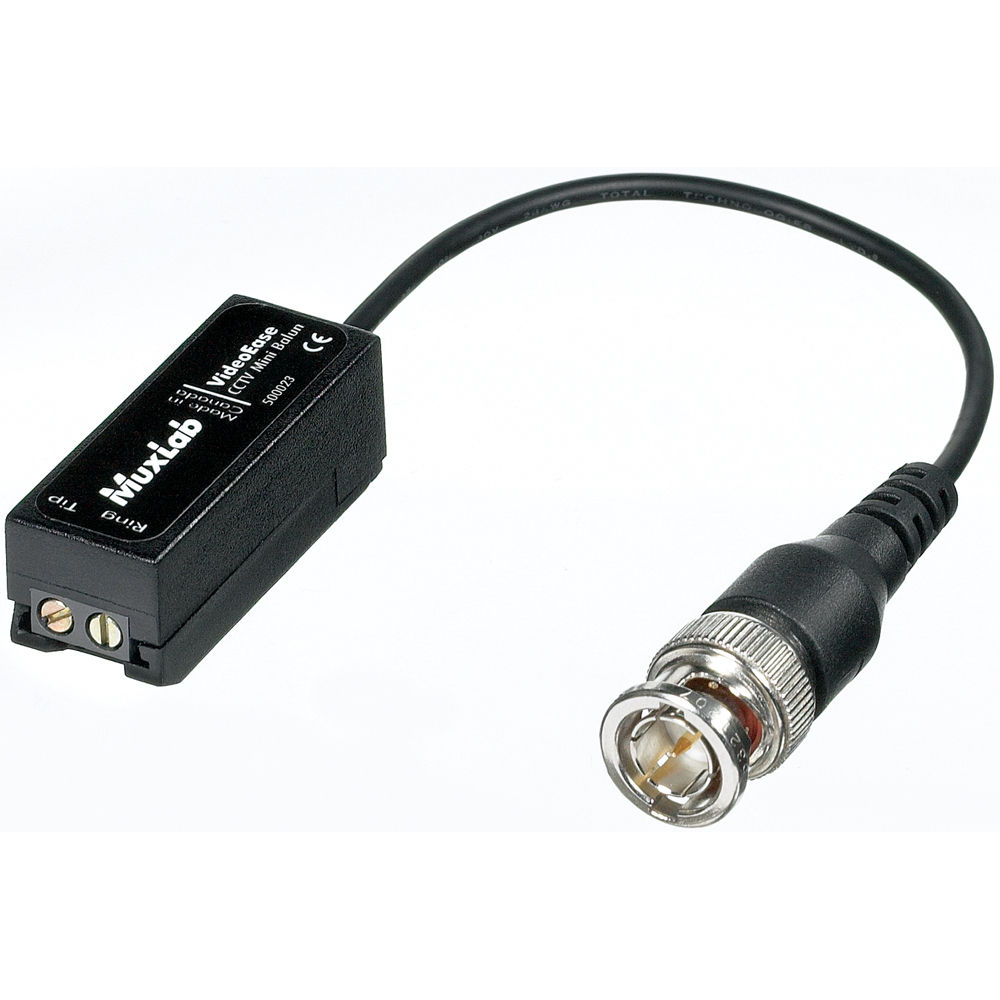

The 500023 CCTV Mini Balun from MuxLab transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.
This mini balun supports transmission of color signals at up to 1200' via Cat 3 cable, which can be extended to up to 2200' via Cat 5 cabling. Additionally, the balun can transmit B&W signals up to 1500' via Cat 3 cables, with extended transmissions of up to 2500' using Cat 5 cable.
The balun is designed to be used in pairs, and it works in conjunction with other MuxLab CCTV baluns (500000, 500009, and 500015) for additional compatibility. Featuring a compact design, the balun can fit inside a camera back box or dome enclosure for a neat installation, and it is constructed of ABS fire-retardant plastic for durability.
In the Box

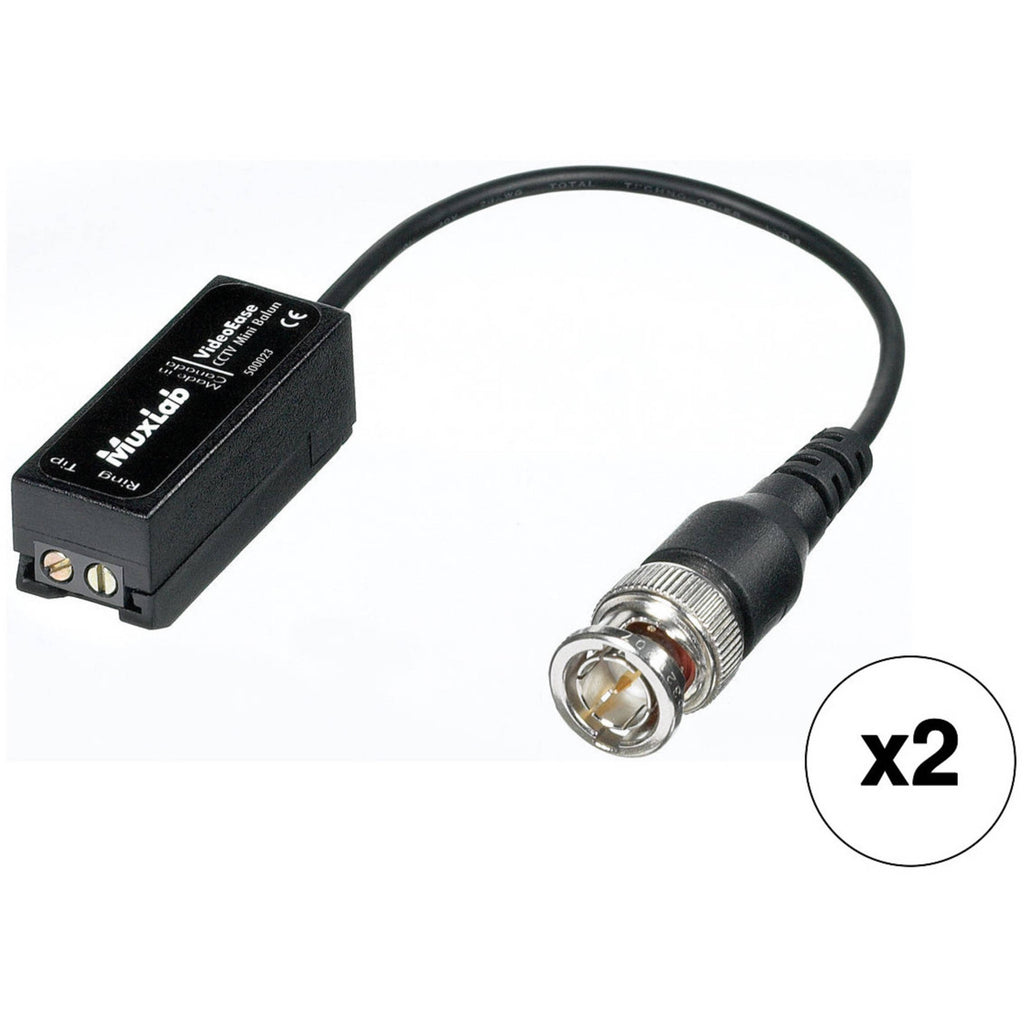

- 2 x MuxLab 500023 CCTV Mini Balun
- Limited Lifetime Manufacturer Warranty
MuxLab 500023 Specs
| Environment |
Closed-Circuit TV (CCTV) equipment for security and surveillance
|
| Devices |
CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers, and other CCTV equipment
|
| Transmission |
Transparent to the user
|
| Bandwidth |
Video: DC - 8 MHz
|
| Maximum Input |
1.1 V p-p
|
| Insertion Loss |
Less than 2 dB per pair over the frequency range from DC - 8 MHz
|
| Return Loss |
Greater than 15 dB over the frequency range from DC - 8 MHz
|
| Common Mode Rejection |
Greater than 40 dB @ 8 MHz
|
| Maximum Distance |
Color: Cat 3: 1200' (365 m); Cat 5: 2200' (670m)
(Shorter distances may be achieved when used with DVRs) B/W: Cat 3: 1500' (457 m); Cat 5: 2500' (762 m) |
| Cable Requirements |
UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 Ohms at 1 MHz
Maximum capacitance: 20 pf/foot Attenuation: 6.6 dB/1000' (305 m) at 1 MHz BNC: Impedance: 75 Ohms at 1 MHz (RG59/U mini coax) |
| Connectors |
Two (2) screw terminals for twisted pair
BNC-M for coax |
| Impedance |
Input: 75 Ohms (BNC)
Output: 100 Ohms (screw terminals) |
| Temperature |
Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) Humidity: Up to 95% |
| Enclosure |
ABS fire-retardant plastic
|
| Dimensions |
2.3 x 0.62 x 0.62" (5.8 x 1.6 x 1.6cm) + 8" (20.3cm) mini coax lead
|
| Weight |
1 oz (28g)
|
| Package Weight |
0.07 lb
|
| Box Dimensions (LxWxH) |
4.5 x 2.45 x 0.85"
|
