Description
MuxLab 100518 Overview

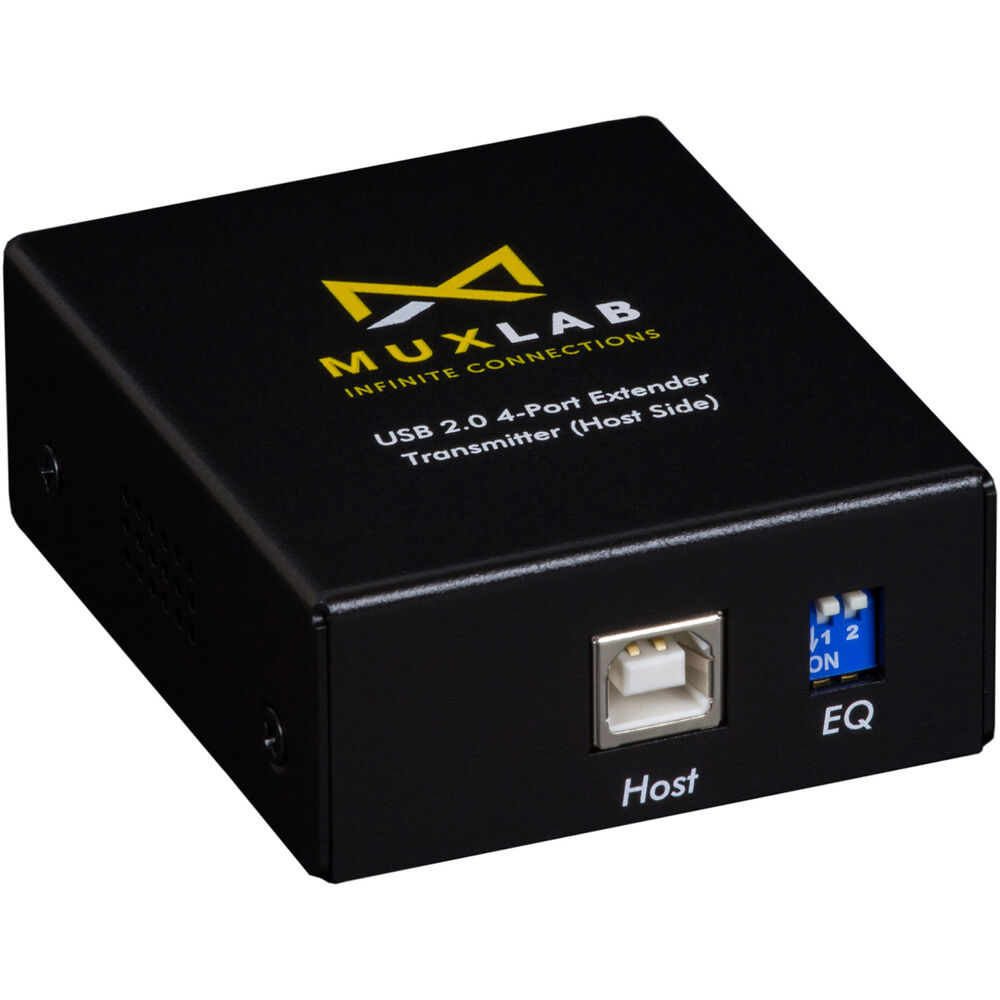

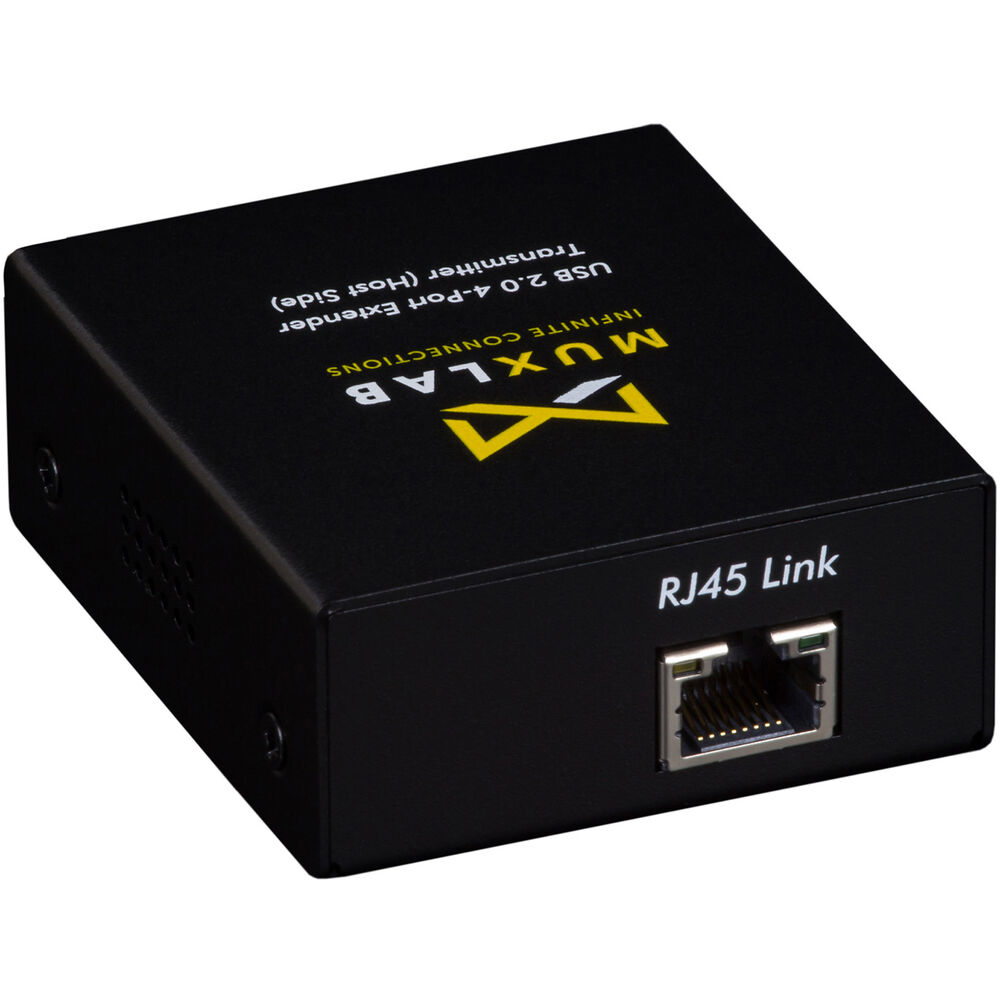

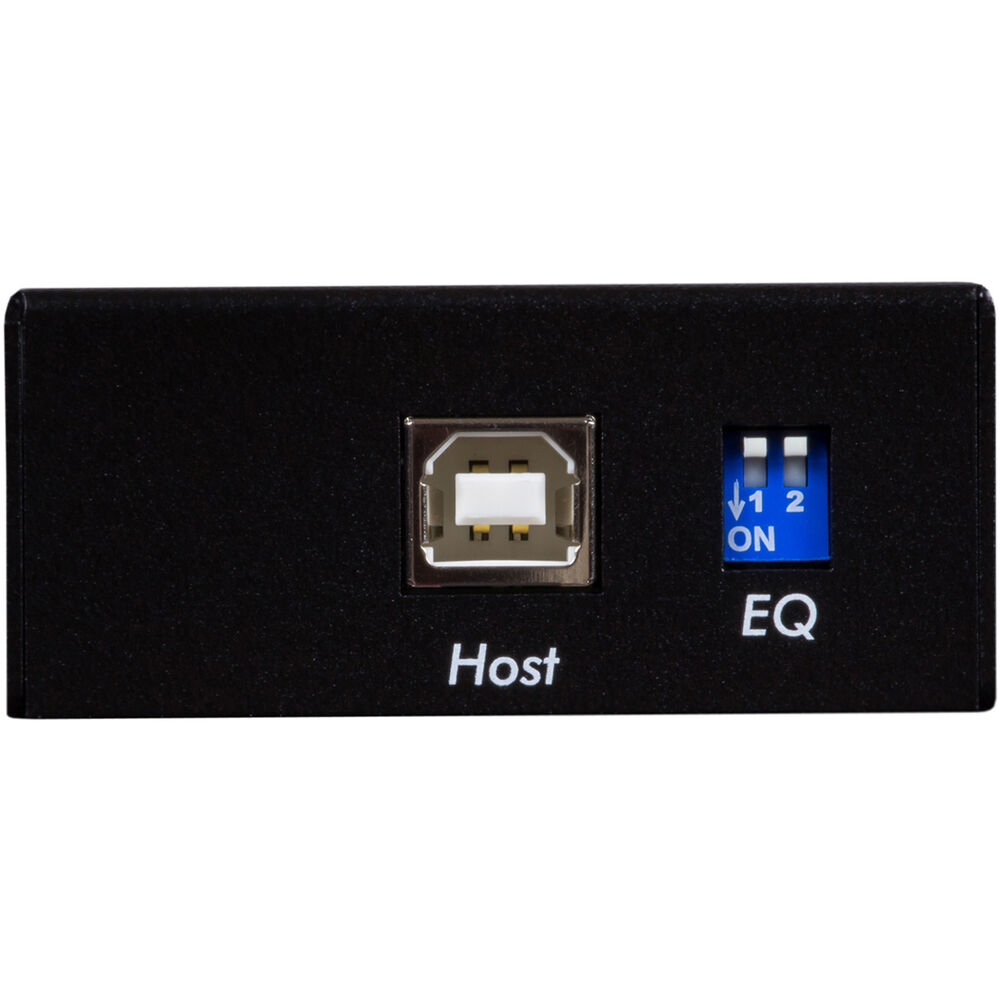

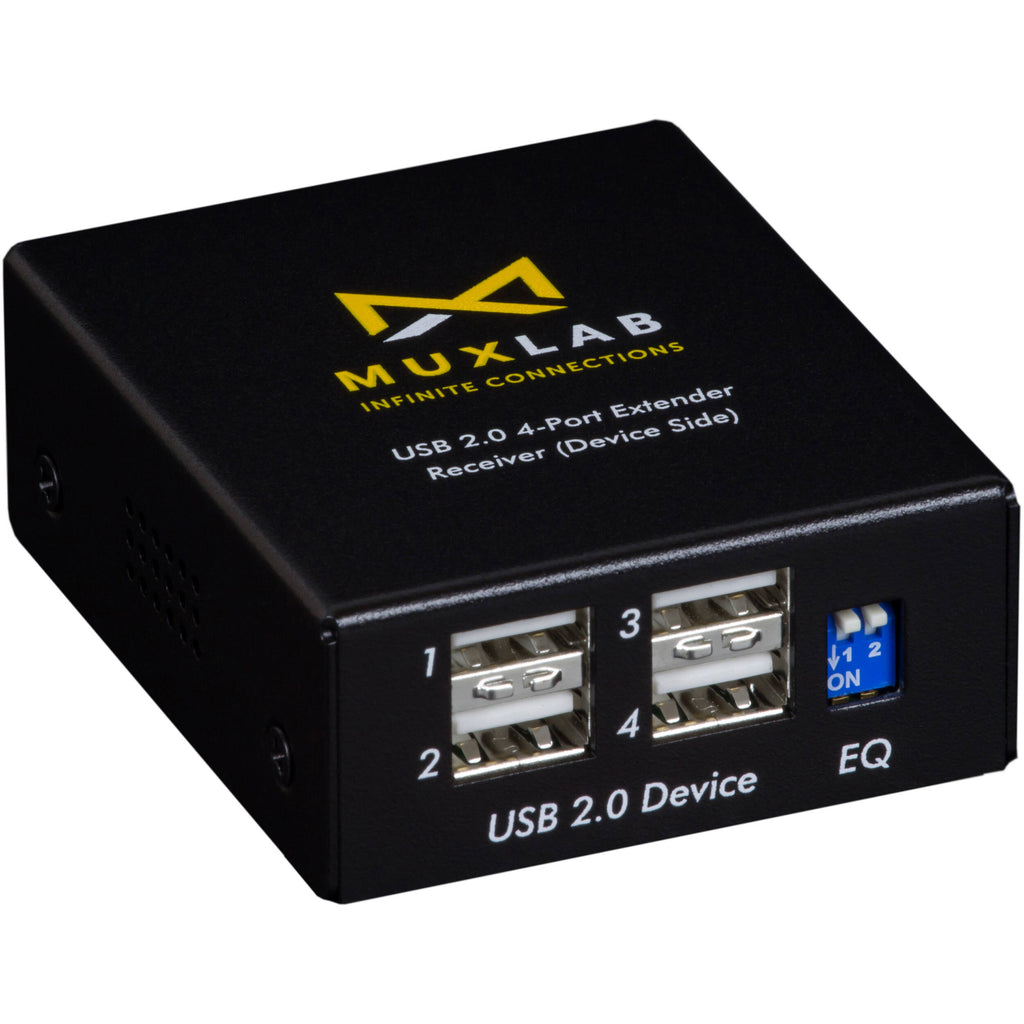

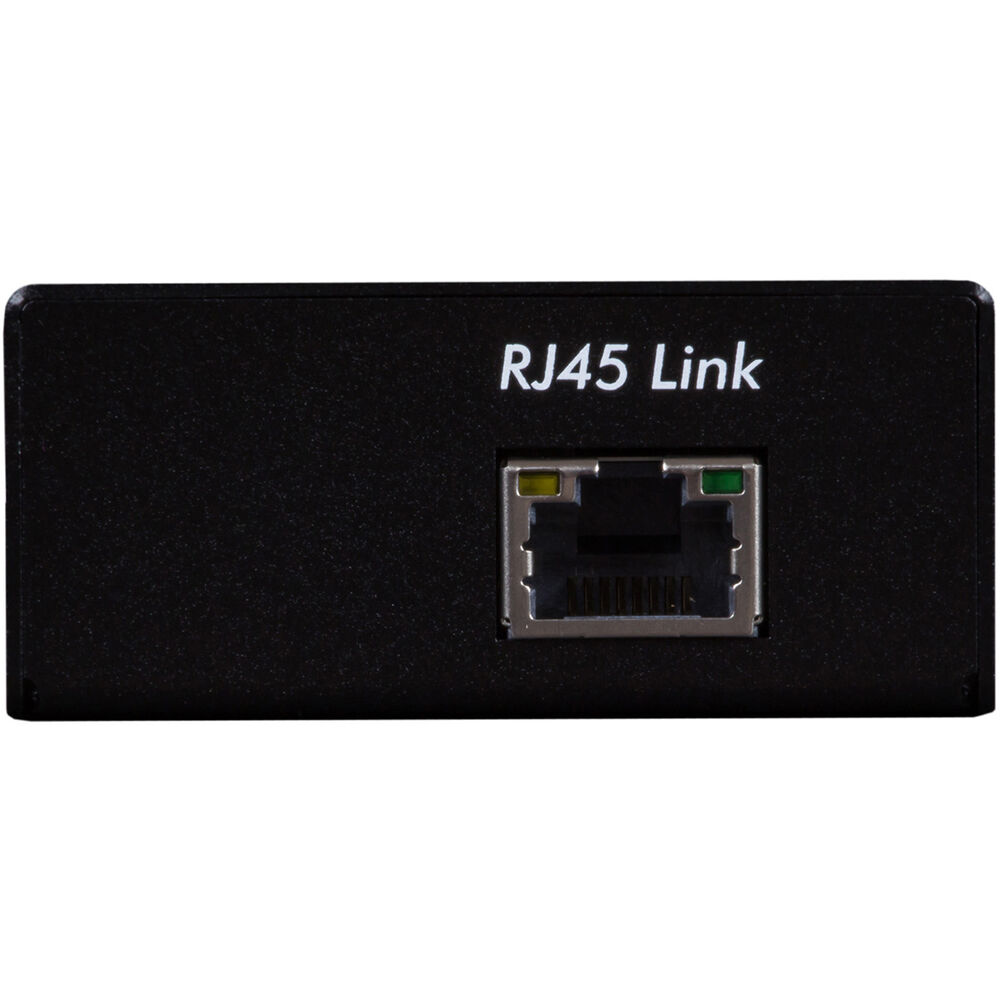

Operate up to four USB devices from up to 164' away with the MuxLab 4-Port USB 2.0 Extender Kit. This transmitter and receiver set can be connected using a single Cat 5e or Cat 6 Ethernet cable. With four USB 2.0 ports on the receiver, you can use compatible USB cameras, storage drives, printers, and more for security, industrial control, digital signage, and other applications. This extender kit has a maximum data throughput of 480 Mb/s and supports hot-plugging for quickly changing storage devices. Adjust the DIP switches to balance the signal according to the maximum range you need. The plug-and-play design allows the set to work with most computer systems without requiring any additional hardware or software drivers.
In the Box

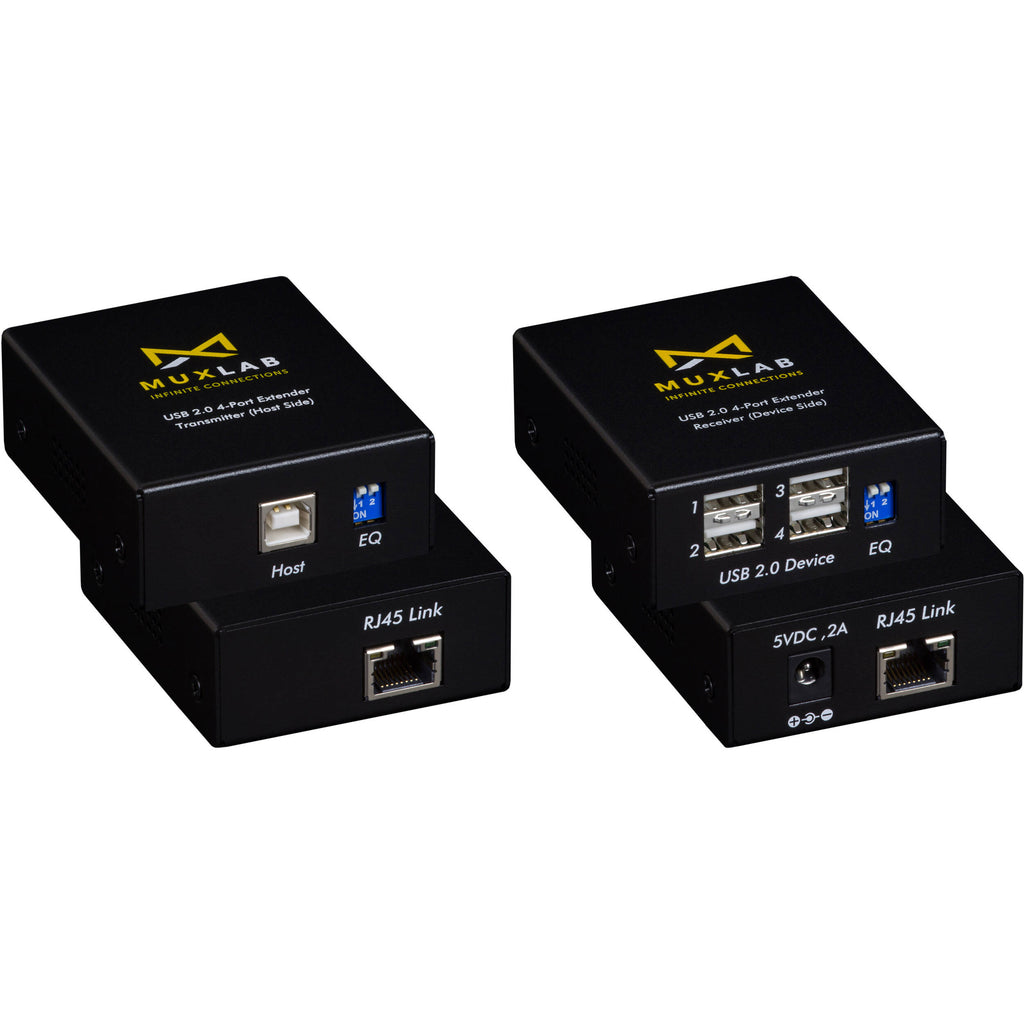

- MuxLab 4-Port USB 2.0 Extender Kit (164')
- USB Type-A to Type-B Cable (2')
- Power Adapter
- Limited 1-Year Manufacturer Warranty
MuxLab 100518 Specs
| Maximum Range |
USB 2.0: 164' / 50 m over Cat 5e Cable
|
| Receiver I/O |
1 x RJ45 (Ethernet) Input
4 x USB Type-A (USB 2.0) Output |
| Transmitter I/O |
1 x USB Type-B (USB 2.0) Input
1 x RJ45 (Ethernet) Output |
| Power Source |
Transmitter: USB Bus Power
Receiver: Power Adapter |
| Receiver I/O |
1 x RJ45 (Ethernet) Input
4 x USB Type-A (USB 2.0) Output |
| Transmitter I/O |
1 x USB Type-B (USB 2.0) Input
1 x RJ45 (Ethernet) Output |
| Maximum Number of Devices |
4
|
| Power Source |
Transmitter: USB Bus Power
Receiver: Power Adapter |
| DC Input Power |
5 VDC at 2 A
|
| Operating Humidity |
20 to 90%
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Enclosure Material |
Metal
|
| Dimensions |
2.8 x 2.4 x 1.0" / 72.0 x 61.0 x 26.0 mm Each
|
| Weight |
Each: 1.43 lb / 0.65 kg
|
| Package Weight |
1.445 lb
|
| Box Dimensions (LxWxH) |
8 x 5.6 x 3"
|
