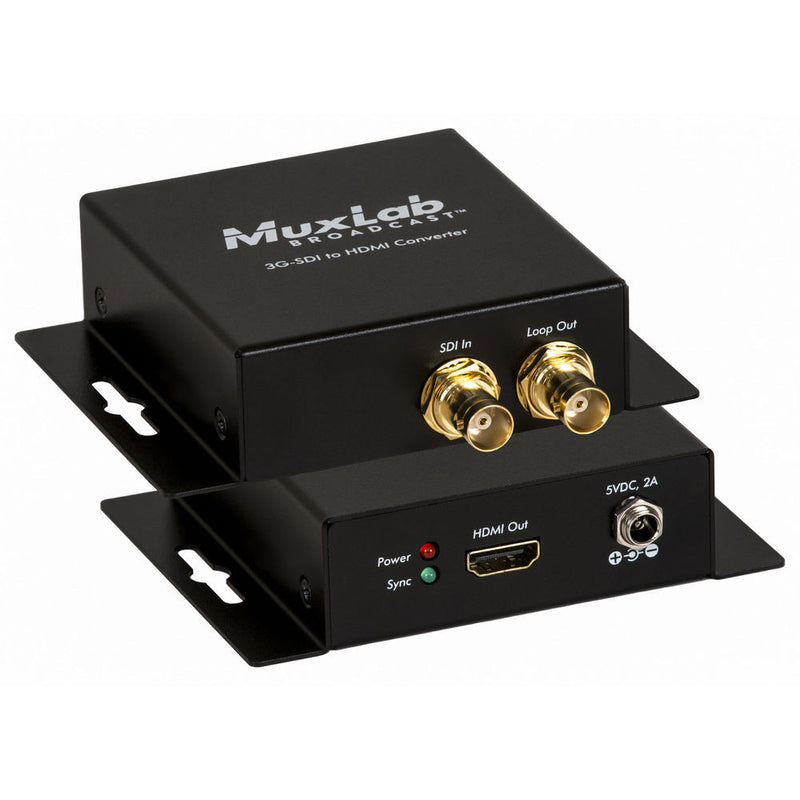

MuxLab 3G-SDI to HDMI Converter


	₹ 35980.0 includes GST and import duties.
	B2B customers can avail ₹ 5486.95 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MuxLab
SKU:	8958854416
MPN:	500717
UPC/HSN:	627699007174

Share this product

The 3G-SDI to HDMI Converter from MuxLab allows you to connect an SDI equipment to an HDMI Display. It converts the SDI signal back to HDMI and supports resolutions of 480i (SD-SDI), 720p/1080i (HD-SDI), and 1080p (3G-SDI). The converter provides a low jitter and re-clocked outputs, allowing for unit daisy chain.

Auto 3G/HD/SD-SDI detection and conversion
View SDI source video on an HDMI display
Supports up to 1080p
Operating range of up to 300' via RG59 coax
Low jitter & re-clocked output
Supports daisy chain
Wall mountable
LED diagnostics

UPC: 627699007174

In the Box

MuxLab 3G-SDI to HDMI Converter

Limited 2-Year Warranty

Input Signal	3G-SDI: SMPTE-424M HD-SDI: SMPTE 292M, 296M SD-SDI: SMPTE 259M
Supported Resolution	3G-SDI: 1080p 60/59.94/50 Hz (4:2:2) HD-SDI: 1080p 30/29.97/25/24/23.98 Hz 720p 60/59.94/50 Hz 1080i 60/59.94/50 Hz SD-SDI: NTSC (59.94 Hz), PAL (50 Hz)
Audio	Up to 8 audio channels
Detection	Auto detection of the 3G/HD/SD-SDI signal
Bandwidth	2.97 Gbps 2.975/1.001 Gbps
Signals	HDMI 1.3a and SDI protocol
Connectors	2 x Gold plated BNC 75 Ohms (female) 1 x HDMI type A receptacle HDMI and RG59 coaxial cables not included
Cable Equalization	3G-SDI: Up to 300' (90 m) HD-SDI: Up to 500' (150 m) SD-SDI: Up to 1000' (300 m)
Power Supply	110 to 240 VAC; 5 VDC power supply with interchangeable blades
Power Consumption	3 W maximum
Compliance	Regulatory: FCC, CE, RoHS Flammability: 94V0
Enclosure	Metal
Operating Temperature	32 to 104ï¿½F (0 to 40ï¿½C)
Storage Temperature	-4 to 140ï¿½F (-20 to 60ï¿½C)
Humidity	Up to 90% non-condensing
Dimensions	3.1 x 3.3 x 1.2" (7.9 x 8.4 x 2.7 cm)
Weight	1.7 lb (0.78 kg)

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 35260.4
3-5	₹ 34900.6
5-10	₹ 34181.0
10+	₹ 33461.4

Bulk discount will be automatically applied during checkout based on quantity.
