Description
MuxLab 2110-MM Overview
- 1Description
- 23G-SDI Support
- 3Flexible Transceiver Design
- 4SMPTE ST 2110
- 5ST 2022-7 Redundancy
- 6Applications
- 7Software Control

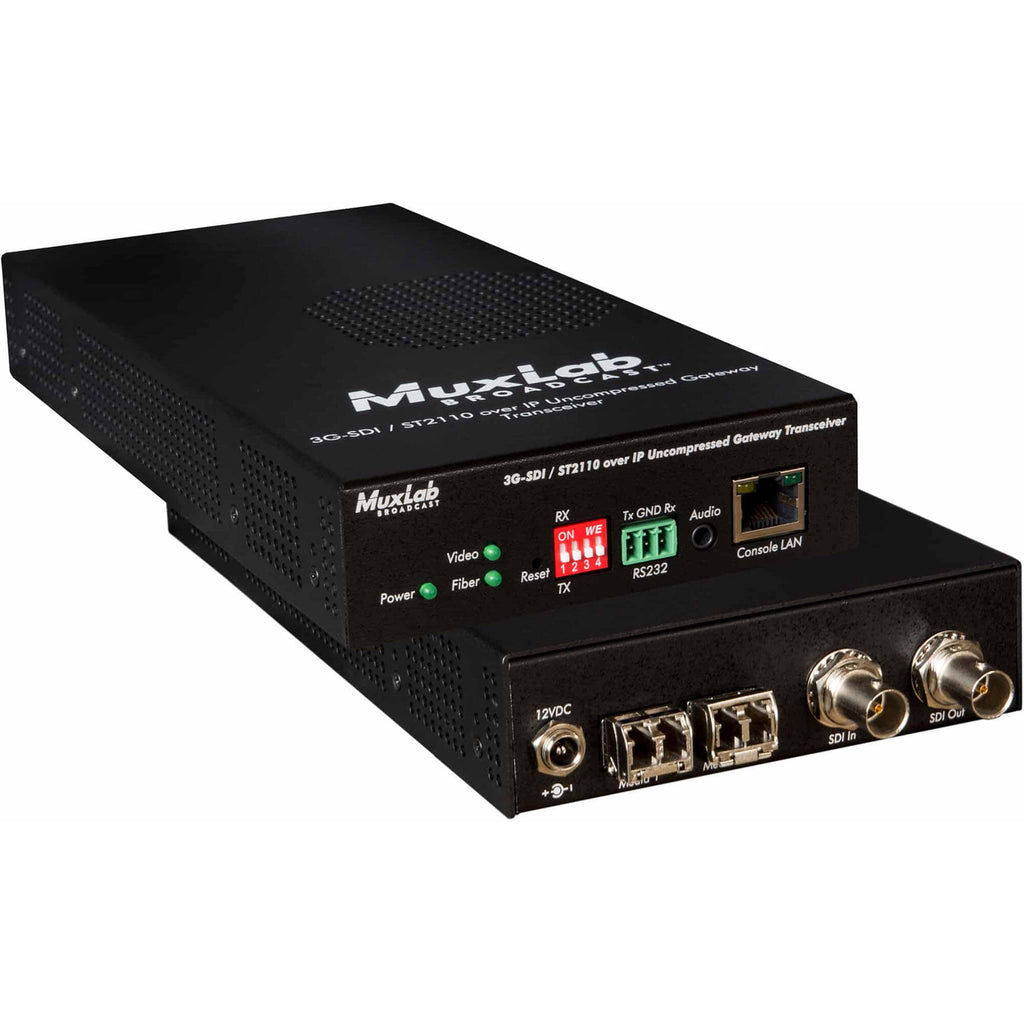

Use the versatile 3G-SDI/ST2110 over IP MM Gateway Transceiver from MuxLab as either a transmitter or receiver, depending on your needs. Used to integrate 3G-SDI components into an IP network, this transceiver supports up to ST-2110 1080p60 video resolutions. It has two 3G-SDI ports, one RJ45 control port, and two SFP ports that can be used with OM4, OM3, or UTP cable for redundant AV transmission. Manage this transceiver using third-party control software using a REST API and NMOS.
3G-SDI Support
- Enables 3G-SDI components to be used in a network-based broadcast environment
- Extends end-point source and sink devices at ranges up to 1300' via duplex OM4 fiber with LC connectors
- Extends devices up to 100' at uncompressed 1080p60 in point-to-point configurations
- Connect several units to a 10G Ethernet network for point-to-multipoint and multipoint-to-multipoint configurations
Flexible Transceiver Design
This flexible transceiver unit can be configured as a transmitter or a receiver
SMPTE ST 2110
Supports the SMPTE ST 2110 AV over IP protocol for broadcast applications
ST 2022-7 Redundancy
- This transceiver supports ST 2022-7 (Class D) redundancy for critical fail-safe applications
- Enables the audio/video signal to run over two independent 10G Ethernet networks
Applications
Use for commercial broadcast AV systems, news, sports, television stations, and movie distribution networks
Software Control
Manage the transceiver using third-party control software platforms that support a REST API and NMOS (IS-04 and IS-05).
In the Box
- MuxLab 3G-SDI/ST2110 over IP MM Gateway Transceiver
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 3G-SDI Support
- Flexible Transceiver Design
- SMPTE ST 2110
- ST 2022-7 Redundancy
- Applications
- Software Control
MuxLab 2110-MM Specs
| Interfaces |
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output 2 x SFP 1 x 1/8" / 3.5 mm 1 x RJ45 (LAN) 1 x 3-Pin Block (RS-232) |
| Standards |
SMPTE ST-2022-7/ST-2110
|
| Transmission |
1312.3' / 400 m (via OM4 Multi-Mode Fiber)
984.3' / 300 m (via OM3 Multi-Mode Fiber) |
| Video Format |
SDI (10-Bit 4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
| Cable Type |
Multi-Mode Fiber
|
| Power Connector |
1 x 2.1 mm (12 VDC) Input
|
| Power Consumption |
12 W
|
| Latency |
0 ms
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 185°F / -20 to 85°C
|
| Operating Humidity |
Up to 95% (Non-Condensing)
|
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
| Dimensions |
4.4 x 9.8 x 1.3" / 11.3 x 25 x 3.3 cm
|
| Weight |
1.75 lb / 0.79 kg
|
