Description

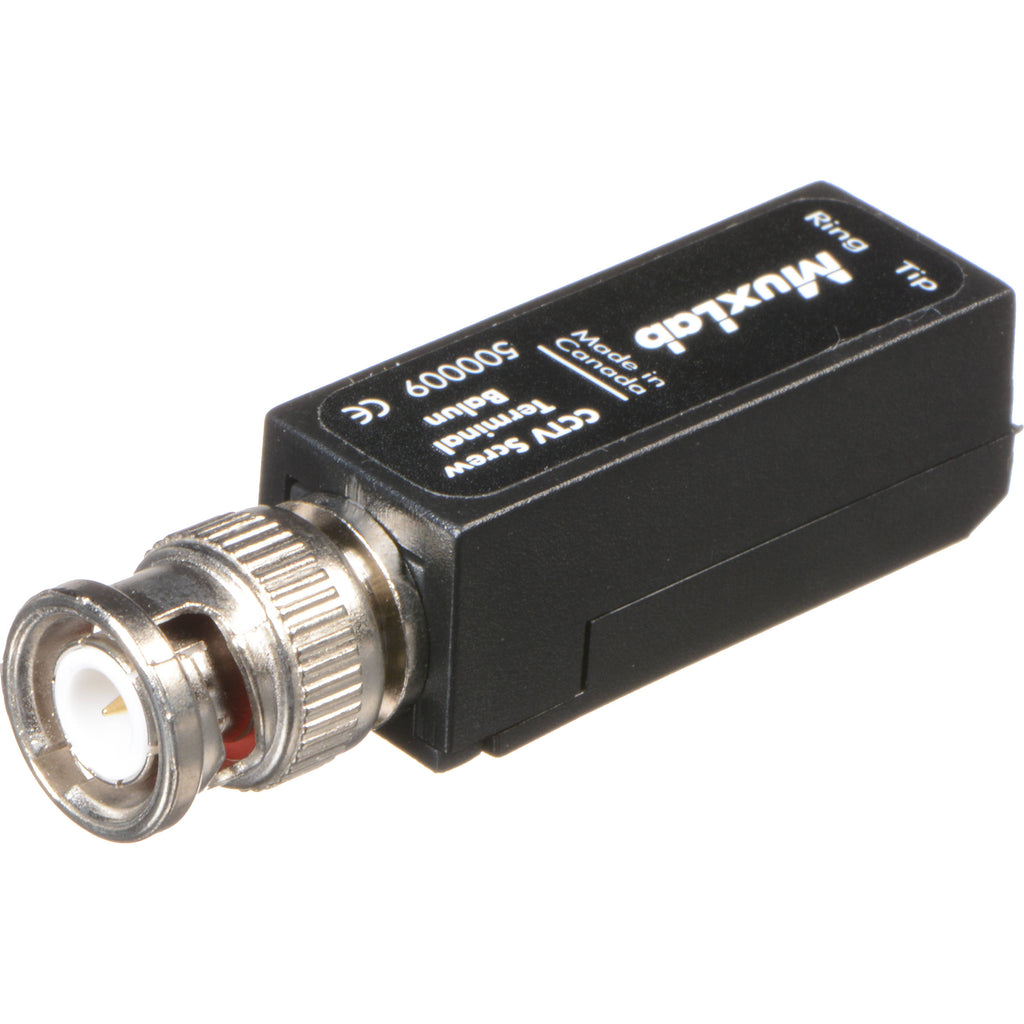

MuxLab 500009 Overview
The package of two MuxLab 2 x CCTV Screw Terminal Baluns from is designed to transmit CCTV video signals via Cat 3, 5e, or 6 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, the baluns connect a wide range of surveillance devices including cameras, IP camera encoders, video switchers, sequencers, multiplexers, DVRs, and camera servers. These baluns can also be used with other composite baseband video equipment such as DVD players, cable boxes, media servers, and audio/video monitors.
Video extender used in pairs
Allows use of Cat3/5/5E cables as a cost-effective alternative to coaxial cables
Transmits color signals up to 1200' (365m) via Cat3; distance can be extended up to 2200' (670m) via Cat5
Transmits black and white signals up to 1500' (457m) via Cat3; distance can be extended up to 2500' (762m) via Cat5/6

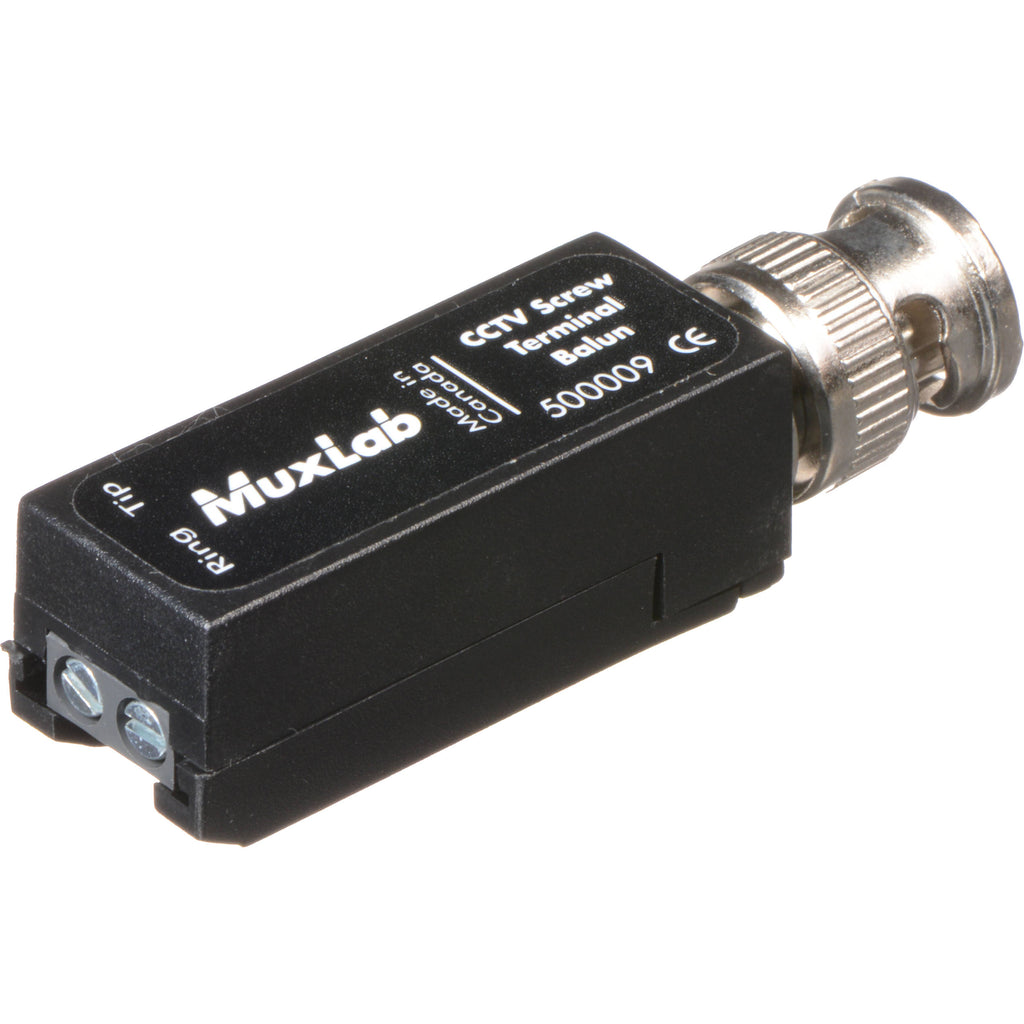

2 screw terminals
Made of ABS fire retardant plastic
Compact design - 2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57 cm)
Low return loss - ensures maximum power transfer with no line faults
Allows use of Cat5E/6 cables as an alternate to coaxial cables, making changes and additions easier
Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699900093
In the Box
- MuxLab 2 x CCTV Screw Terminal Balun
- Limited Lifetime Manufacturer Warranty
MuxLab 500009 Specs
| Environment |
Close-Circuit TV (CCTV) equipment for security and surveillance
|
| Devices |
CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs), IP camera servers and other CCTV equipment
|
| Transmission |
Transparent to the user
|
| Bandwidth |
Video: DC to 8 MHz
|
| Maximum Input |
1.1Vp-p
|
| Insertion Loss |
Less than 2 dB per pair over the frequency range from DC to 8 MHz
|
| Return Loss |
Greater than 15 dB over the frequency range from DC to 8 MHz
|
| Common Mode Rejection |
Greater than 40 dB @ 8 MHz
|
| Maximum Distance |
Color: Cat 3 - 1200' (365m); Cat 5 or higher - 2200' (670m)
Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m) B/W: Cat 3 -1500' (457m); Cat 5/6 - 2500' (762m) |
| Cable Requirements |
UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz
BNC: Impedance: 75 ohms at 1 MHz (RG59/U) |
| Connectors |
(reverse polarity sensitive)
Two (2) screw terminals |
| Impedance |
Input: 75 ohms (BNC)
Output: 100 ohms (RJ45) |
| Temperature |
Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C) Humidity: up to 95% |
| Enclosure |
ABS fire retardant plastic
|
| Dimensions |
2.30 x 0.62 x 0.62" (5.8 x 1.57 x 1.57cm)
|
| Weight |
1.5 oz (42.5g)
|
| Regulatory |
FCC Class A, CE, RoHS
|
Packaging Info
| Package Weight |
0.15 lb
|
| Box Dimensions (LxWxH) |
6.35 x 4.45 x 0.9"
|
