Description

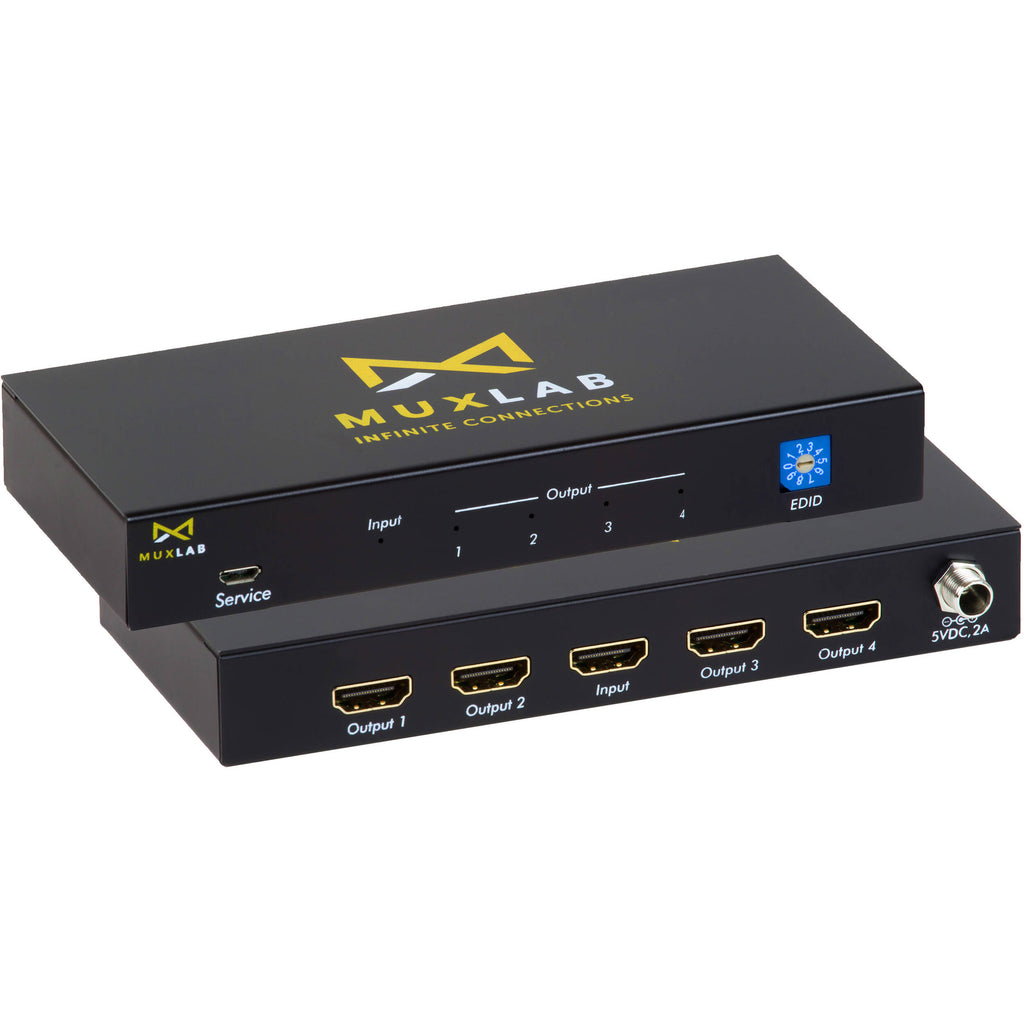

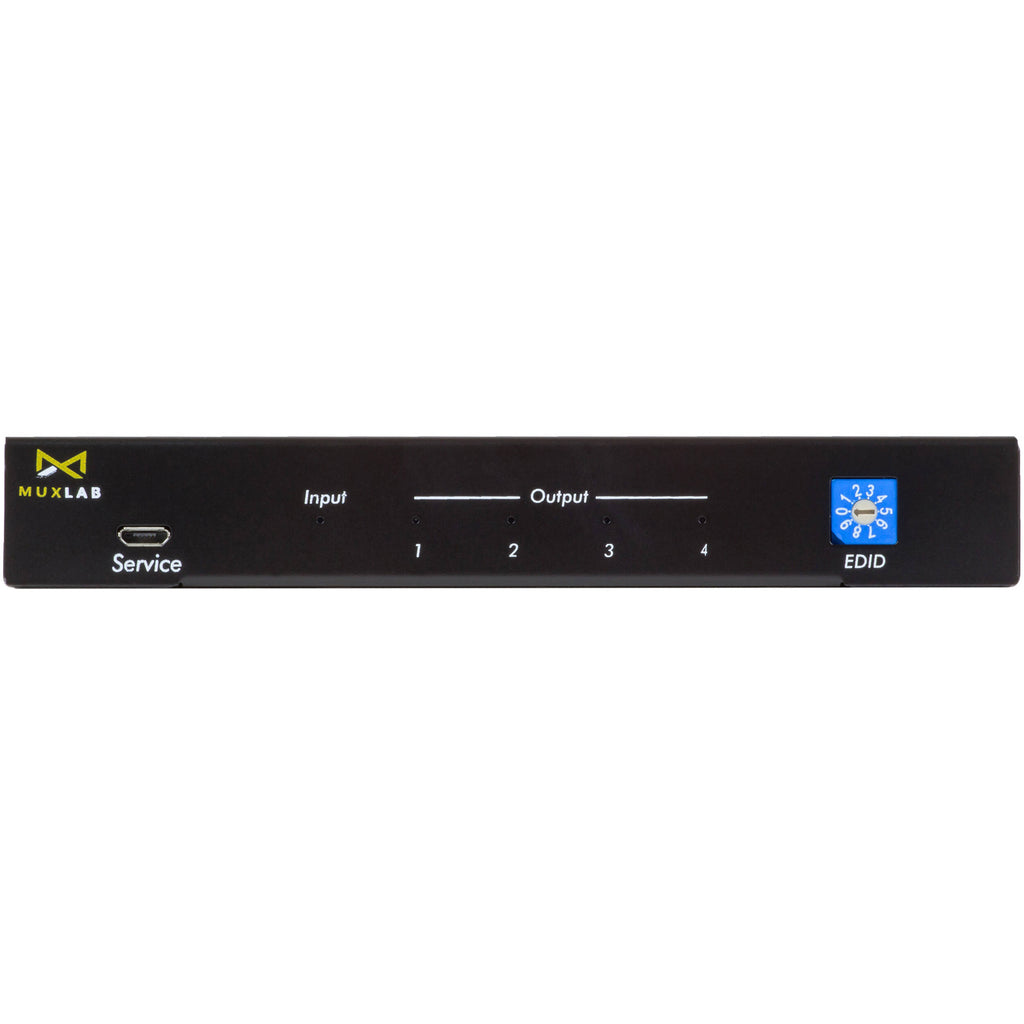

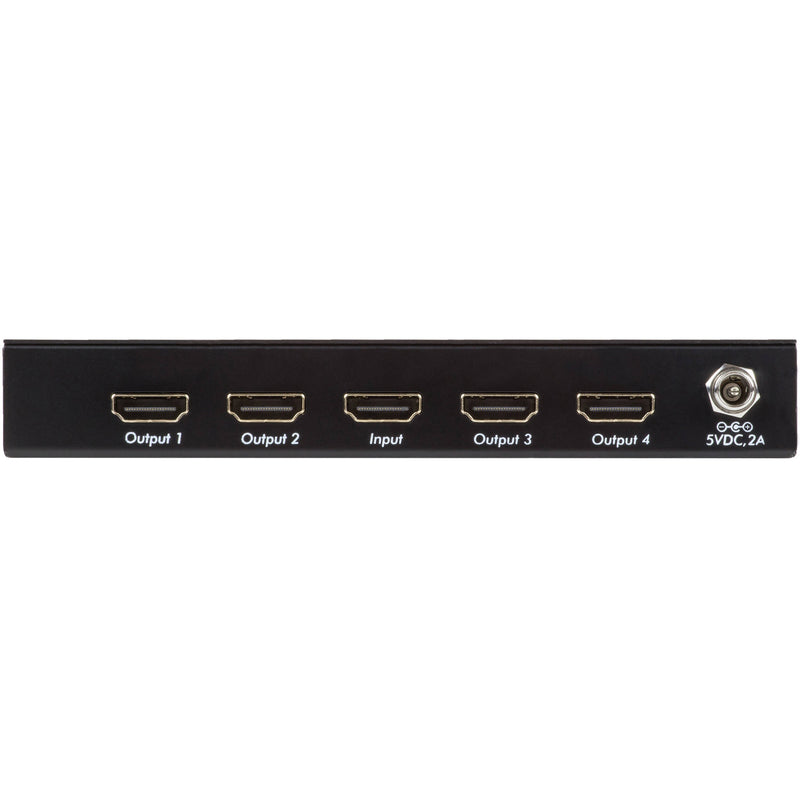

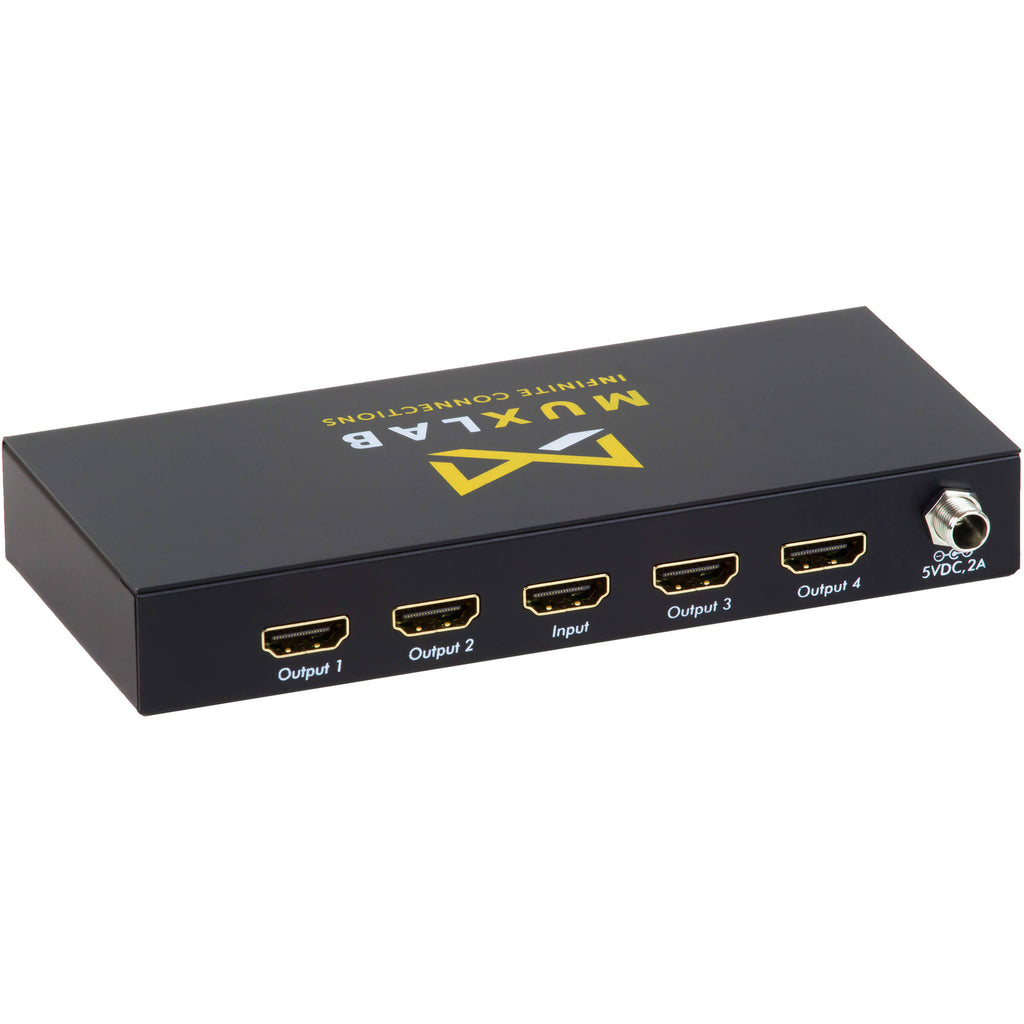

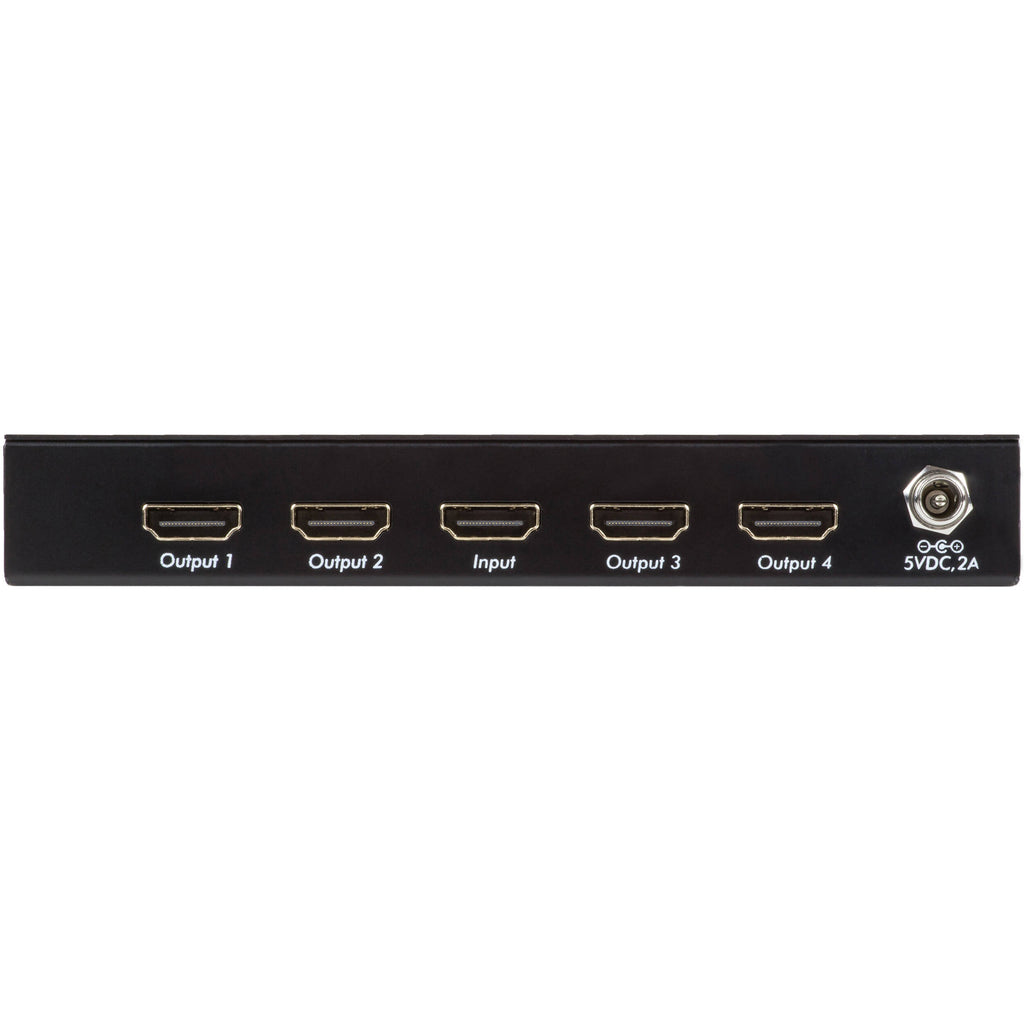

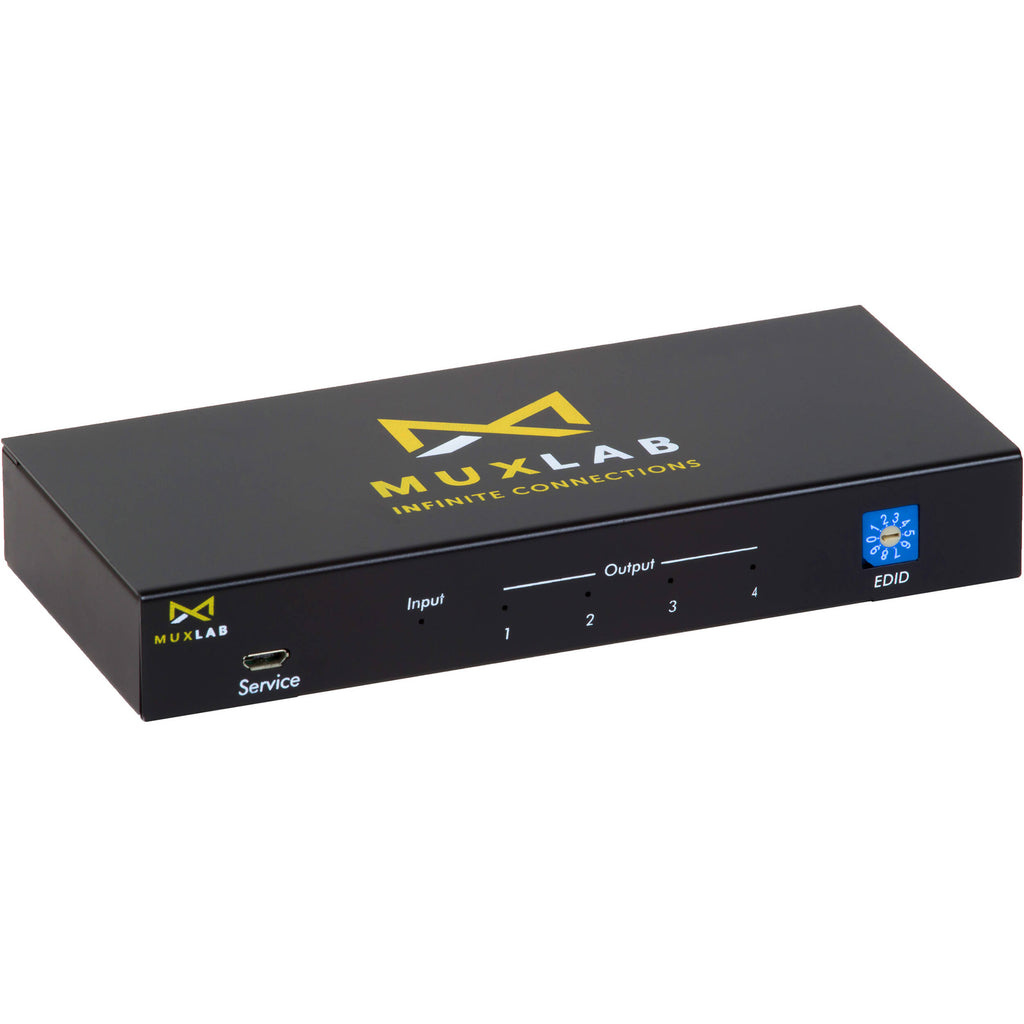

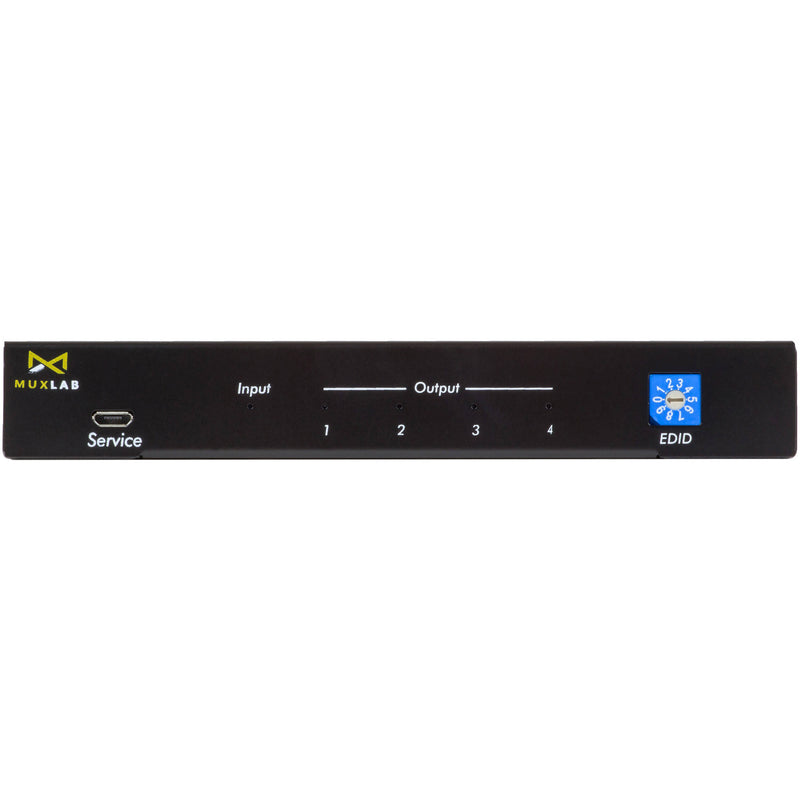

MuxLab 1x4 4K/60 HDMI Splitter Overview
Send one HDMI signal to up to four displays with the 1x4 UHD 4K60 HDMI Splitter from MuxLab. This splitter can be used to transmit HDMI 2.0 video content protected by HDCP 1.4 or 2.2, useful for Blu-ray discs and other HD content to up to four displays, TVs, or projectors.
Resolutions up to UHD 4K60 are supported via one HDMI input for distribution to four HDMI outputs, and it also supports embedded LPCM and Dolby HDMI audio pass-through. The unit is built in a metal enclosure and comes with a power supply, so it's ready to be used right out of the box. This version has an EDID mode for applying a set display resolution from one output to all the outputs, and it features status LEDs for power and input/output.
Applications
Key Features
In the Box
- MuxLab 1x4 UHD 4K60 HDMI Splitter
- Power Supply
- Limited 1-Year Warranty
MuxLab 1x4 4K/60 HDMI Splitter Specs
Input Connectors | 1 x HDMI (HDMI 2.0) Female |
Embedded Audio Input | HDMI |
Output Connectors | 4 x HDMI (HDMI 2.0) Female |
Other I/O | 1 x USB Micro-B Firmware Input |
HDR Compatibility | HDR10, Dolby Vision |
HDCP Support | Version 2.2 |
EDID Support | Yes |
Audio Decoding | DTS-HD, DTS:X, Dolby Atmos, Dolby TrueHD, LPCM |
Video Format | HDMI (8/10/12-Bit) UHD 4K: 24/25/30/60 fps 1080p: 24/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50/60 fps 480p: 50/60 fps |
Bandwidth | 25 MHz to 600 MHz |
Maximum Data Rate | 18 Gb/s |
Power Connector | 1 x Barrel (5 VDC at 1 A) Input |
Power Consumption | Power Supply: 5 VDC at 1 A |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 90% |
Certifications | CE, FCC, RoHS, as per Manufacturer |
Maximum Multiple Display Configuration | 3840 x 2160 |
LED Indicators | Yes |
Material of Construction | Metal |
Dimensions | 6.1 x 2.7 x 0.9" / 155.0 x 68.0 x 24.0 mm |
Weight | 1.1 lb / 500 g |
Package Weight | 1.055 lb |
Box Dimensions (LxWxH) | 9.5 x 6.9 x 2.3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
Quantity | Price |
2 | ₹ 13558.3 |
3-5 | ₹ 13419.95 |
5-10 | ₹ 13143.25 |
10+ | ₹ 12866.55 |
Bulk discount will be automatically applied during checkout based on quantity.
