Description
MuxLab 500905 Overview

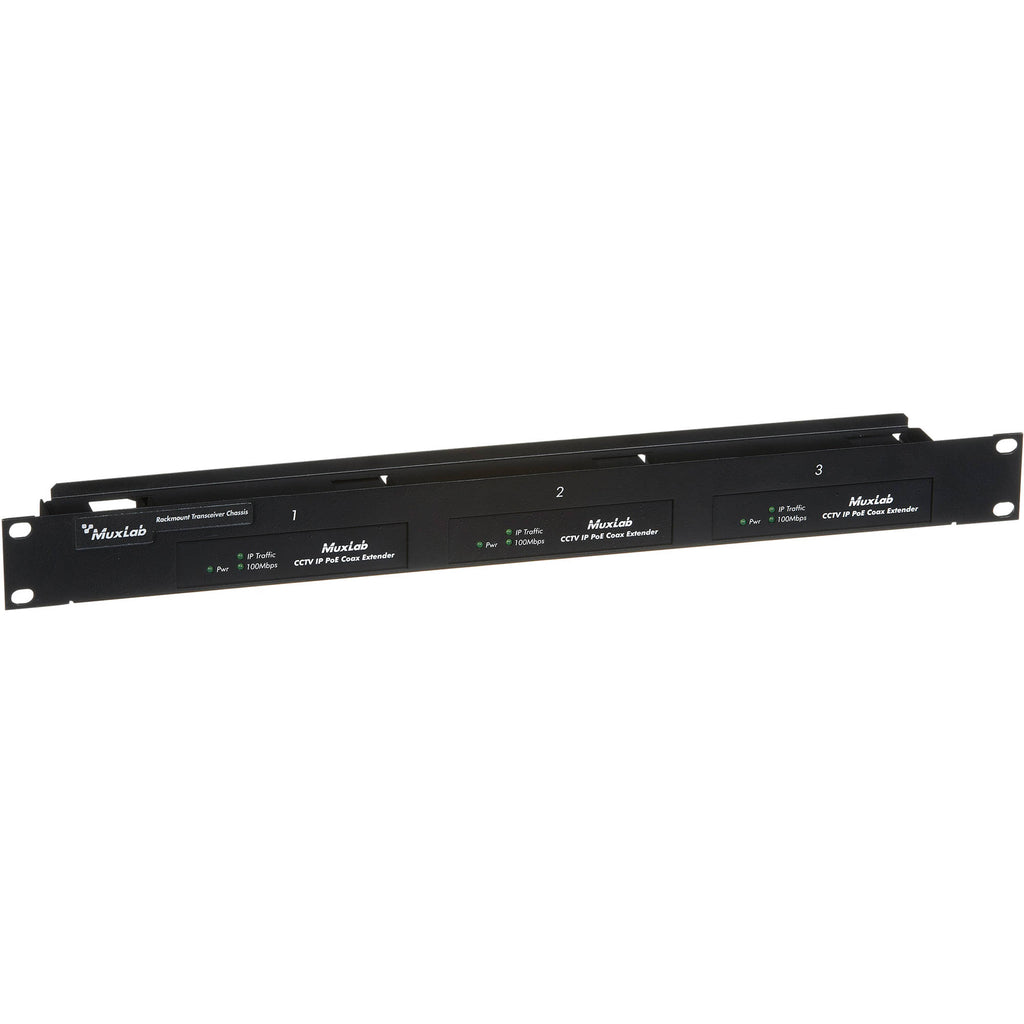

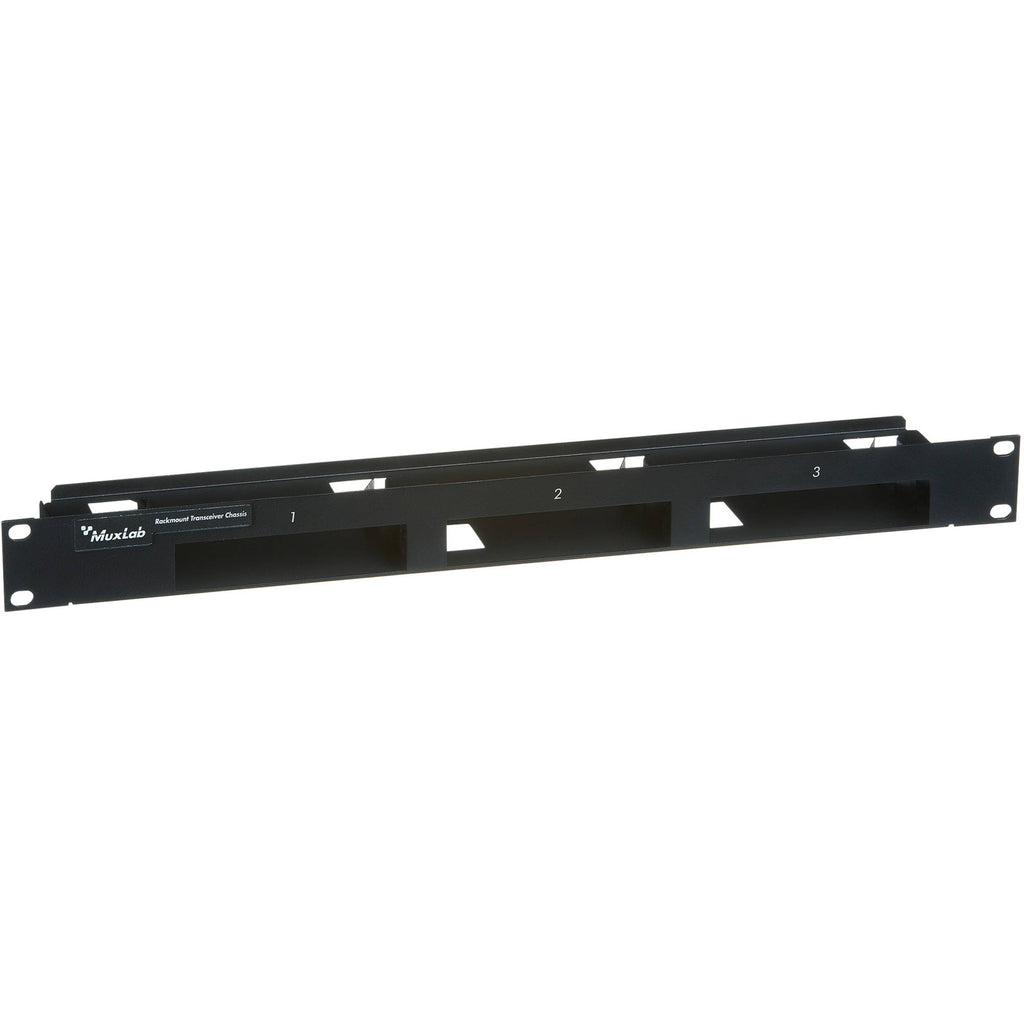

The black 1U Rack-Mountable Transceiver Chassis from Muxlab is designed for small commercial and residential applications. This transceiver chassis allows up to 3 MuxLab desktop transceivers to be mounted in a 1U 19� relay rack for custom audio-video applications where the source equipment is installed in a central wiring room.
General
Space-efficient 1U height structure
One-piece design
Latching mechanism for secure installation
Supports up to 3 transceivers
Snap-in design for ease of installation
Includes four 10-32 screws and washers for rack mounting
Slot number silkscreen on the front and rear
Applications
Custom AV installations
Head-end audio-video systems
Home and commercial AV systems
Boardroom systems
Surveillance systems
Digital signage systems
UPC: 627699009055
In the Box
- MuxLab 1U Rack-Mountable Transceiver Chassis (Black)
- 4 x 10-32 Screw & Washer for Rack Mounting
- Limited Lifetime Manufacturer Warranty
MuxLab 500905 Specs
| Environment |
Custom audio-video systems in a structured cabling environment
|
| Application |
Head-end installations, audio-video rooms, telecom rooms
|
| Capacity |
3 positions
|
| Compatible Products |
MuxLab transceivers measuring 4.3 x 2.9 x 1.0" (11.1 x 7.5 x 2.5 cm)
|
| Snap-in Mechanism |
Baluns lock into position via spring latch mechanism
|
| Rack Height |
1U: 1.75", 19" rack
|
| Enclosure |
Black painted aluminum
|
| Mounting Holes |
4 x Rack-mounting holes
|
| Mounting Hardware |
4 x rack-mounting 10-32 screws and washers (included)
|
| Slot Id |
Silkscreen on the front and rear. Slots numbered "1" to "3"
|
| Standard |
EIA/TIA
|
| Dimensions |
19 x 1.7 x 3.8" (48.3 x 4.5 x 7.2 cm)
|
| Weight |
1.9 lb (0.9 kg)
|
Packaging Info
| Package Weight |
1.25 lb
|
| Box Dimensions (LxWxH) |
20.9 x 5 x 4.4"
|
