MuxLab HDMI/IP PTZ Camera Overview
Webinar Recording | Interactive Look Into MuxLab's DigiSign Plus CMS Software.

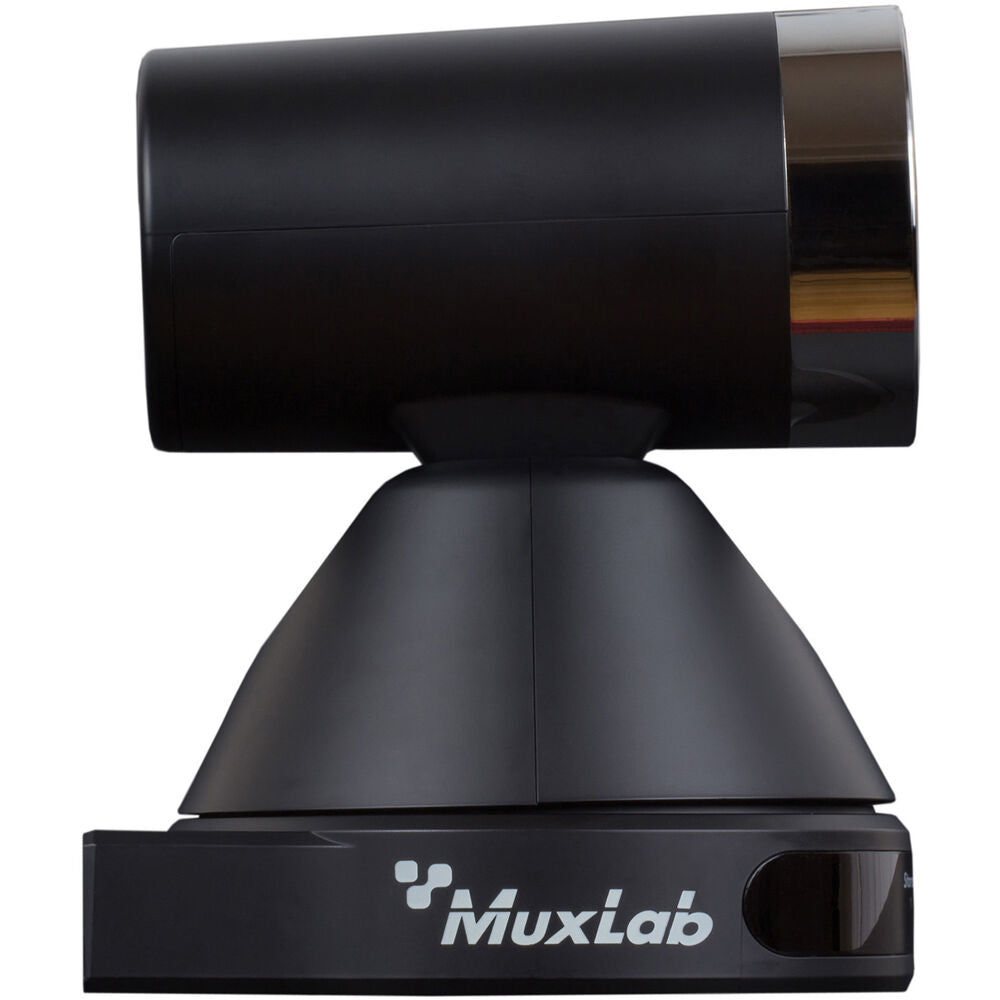

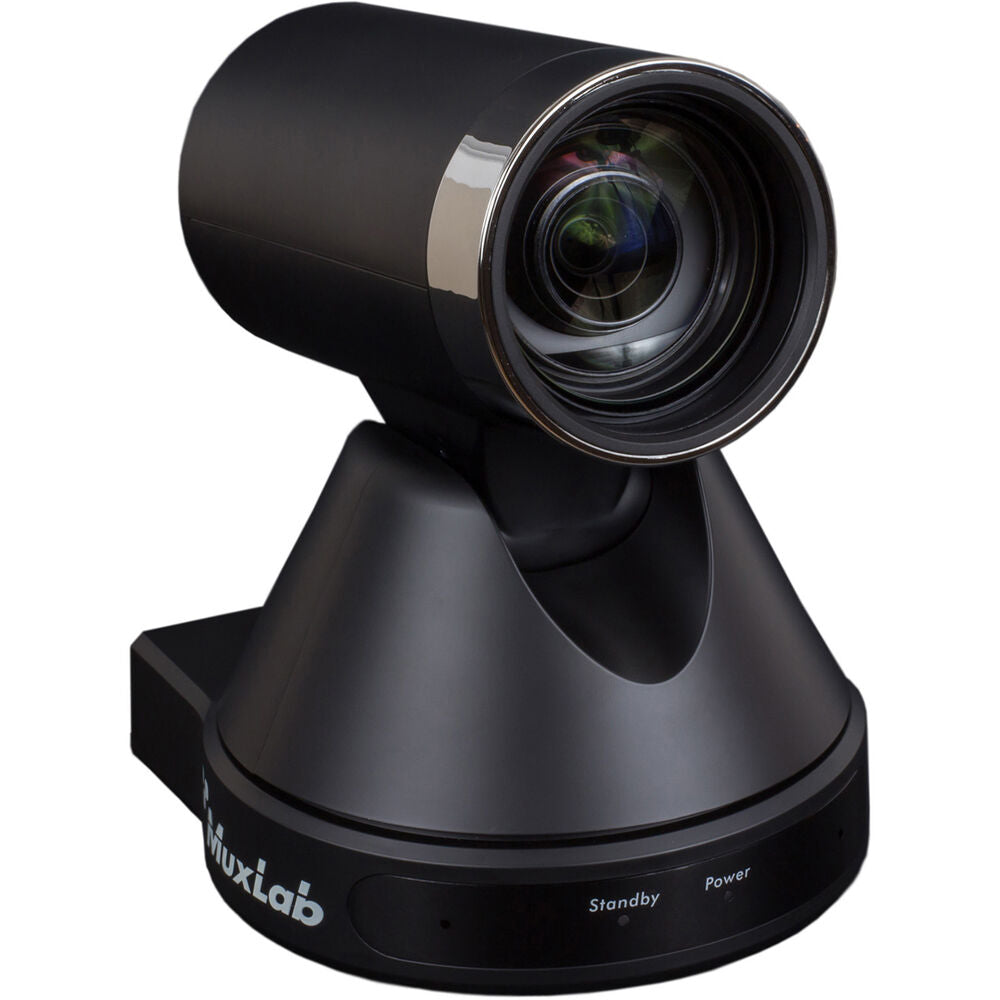

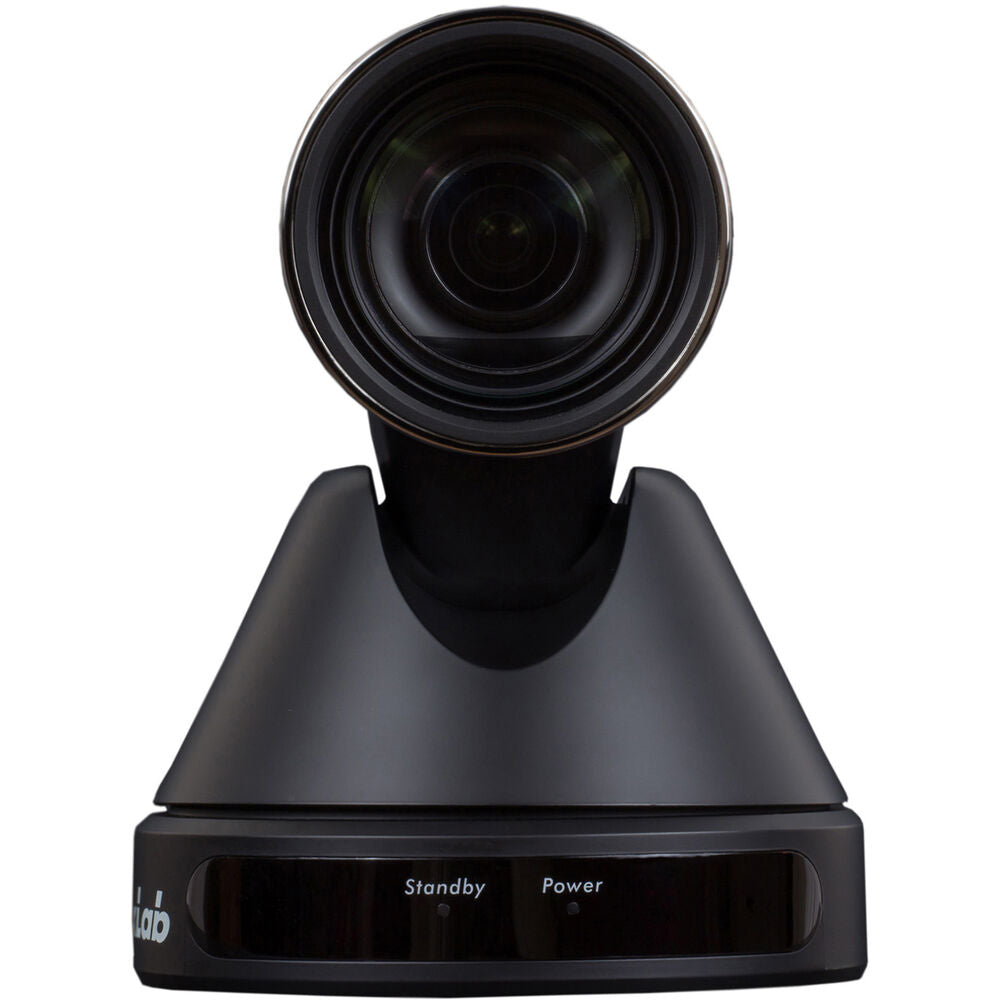

Add a standalone video conferencing device to your conference room, lecture hall, event space, or house of worship with this 1080p HDMI/IP PTZ Camera from MuxLab. The camera features a high-quality HD 1/2.7" 2.07MP CMOS sensor, 12x optical zoom, 16x digital zoom, 72.5° angle of view, noise reduction, analog audio input, and serial control capability.
The PTZ camera allows you to capture up to 1080p60 video that it can output via HDMI to a computer or video switcher for optional streaming to popular internet sites using low-latency H.265/H.264 video codecs. The free-to-download MuxStream control app installs onto your Android or iOS tablet or Windows system, allowing you to set up and control the PTZ camera.
The sensor features 2D/3D noise reduction that reduces image noise for a crisp, clean image in low-light. Its quiet motor allows you to pan and tilt smoothly using the included IR remote, via IP connectivity, or via an optional serial controller using RS-232 serial protocols such as VISCA, Pelco-P, and Pelco-D. A power adapter, power cord, and RS-232 cable are also included with the camera.
Maximum resolution of 1920 x 1080p60
Panasonic 1/2.7" 2.07MP high-quality HD CMOS sensor
72.5° wide-angle high-quality lens
HDMI and dual IP video streams using H.264/H.265 codec
3.5mm analog stereo audio input
12x optical zoom and up to 16x digital zoom
High SNR (signal-to-noise ratio) CMOS sensor combined with 2D & 3D noise reduction algorithm, effectively reducing noise even in low light
Supports AAC audio encoding for better sound quality at a lower bandwidth
Designed with worm gear drive for reliable and accurate movement
May be remotely controlled via RS-232 serial via VISCA and Pelco-P/D protocols or via IP
![]()
UPC: 627699007914
In the Box
- MuxLab 1080p HDMI/IP PTZ Camera
- Power Adapter
- Power Cord

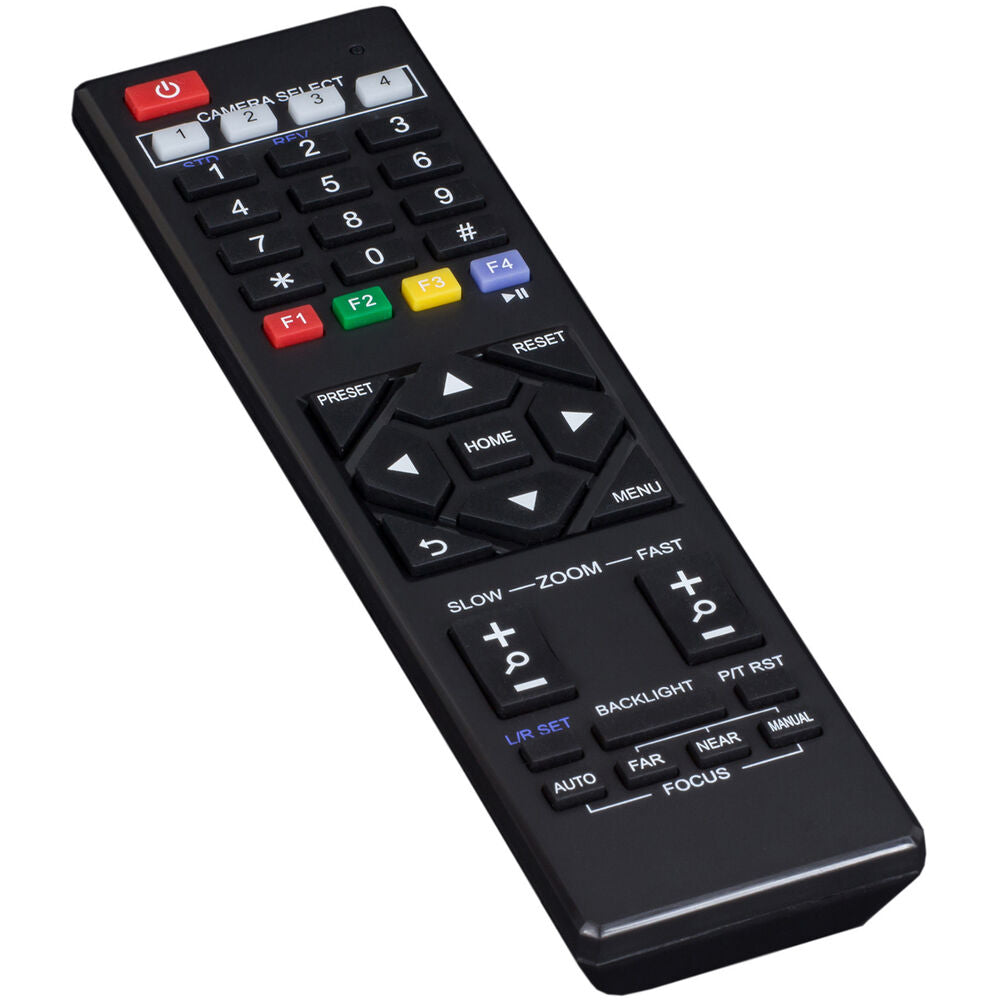

- IR Remote
- RS-232 Cable
- Limited 2-Year Warranty
MuxLab HDMI/IP PTZ Camera Specs
Image Sensor
| Image Sensor |
1-Chip 1/2.7" CMOS Sensor |
| Sensor Resolution |
Effective: 2.07 Megapixel (1920 x 1080) |
| Signal-to-Noise Ratio |
55 dB |
| Minimum Illumination |
0.5 Lux |
Camera
| Shutter Speed |
1/30 to 1/10,000 sec |
| Max Digital Zoom |
16x |
| Flip / Mirror Support |
Image Flip |
Lens
| Optical Zoom Ratio |
12x |
| Focal Length |
3.5 to 42.3mm |
| Field of View |
Horizontal: 6.9 to 72.5°
Vertical: 3.9 to 44.8° |
| Maximum Aperture |
f/1.8 to 2.8 |
| Focus Control |
Autofocus |
Video Output
| Output Formats |
HDMI: 1920 x 1080p at 60 fps |
| IP Streaming |
H.264, H.265, MJPEG: 1080p, 720p, 480p, 360p at 60p (128.00 to 8192.00 Kb/s) |
| IP Multi-Stream Support |
Yes |
Control
| Presets |
255 via IP, RS-232, VISCA |
| Move Speed |
Pan: 1.7 to 100°/sec
Tilt: 0.7 to 28°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IP
Pelco-D
Pelco-P
RS-232 |

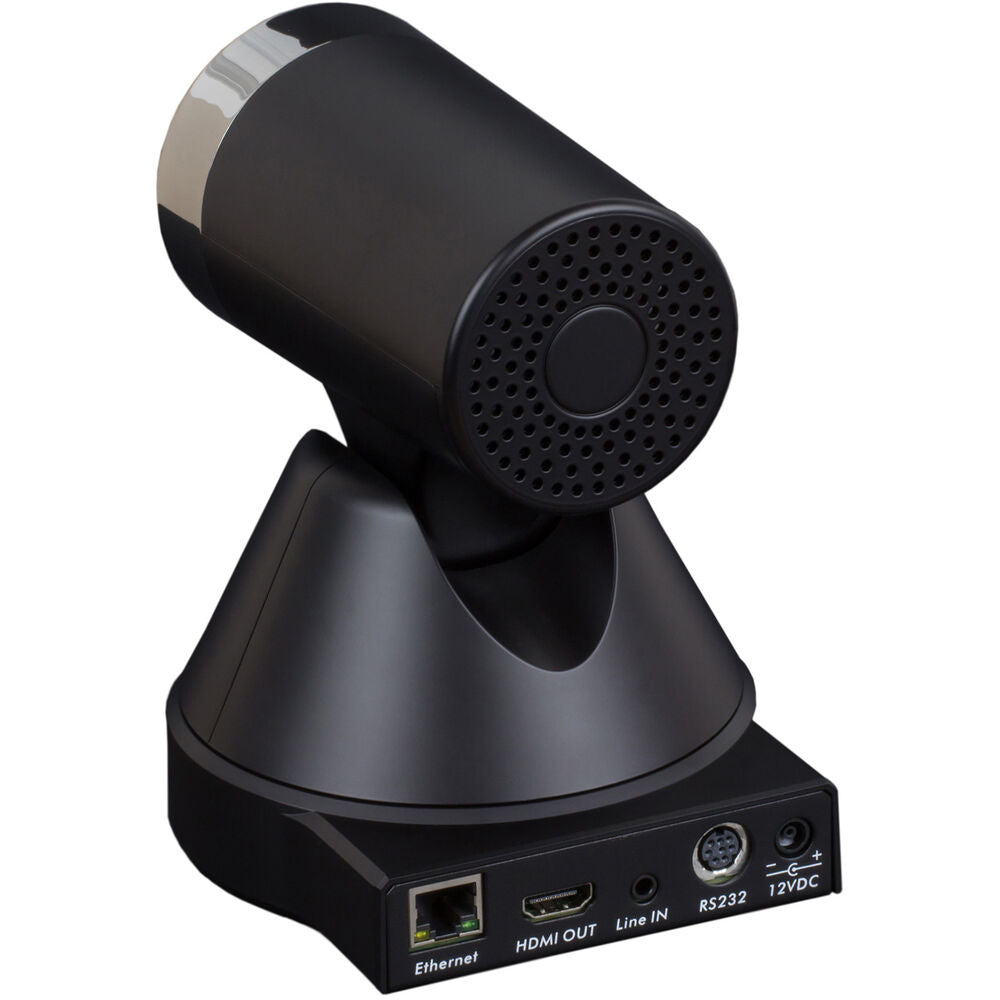

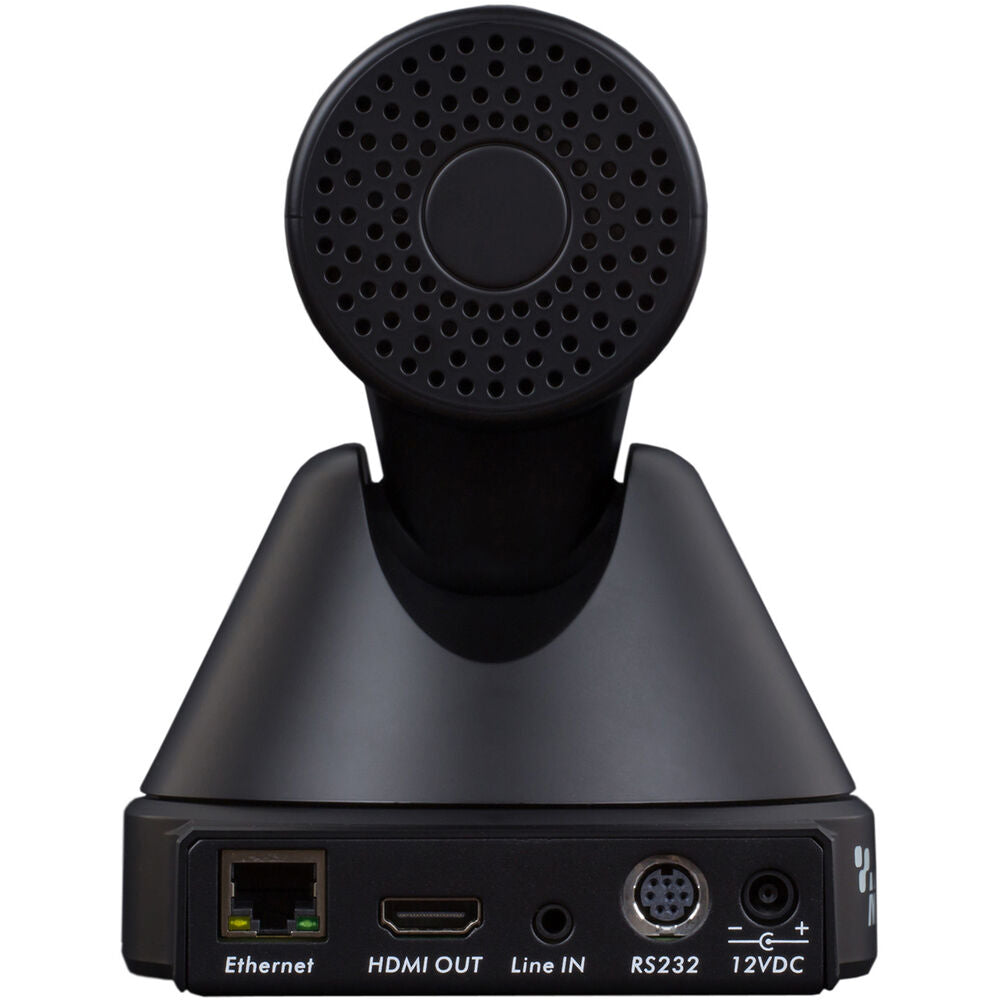

Interfaces
| Video Output Connectors |
1 x HDMI Type A (HDMI 1.3) Female
1 x RJ45 Female |
| Audio I/O |
1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface |
1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input |
Power
| PoE Support |
None |
| Power Connectors |
1 x JEITA (12 VDC up to 1 A) |
| Power Consumption |
Power Supply: 12 W |
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Storage Temperature |
-40 to 140°F / -40 to 60°C |
General
| Dimensions |
6.7 x 6.5 x 5.6" / 16.9 x 16.4 x 14.2 cm |
| Weight |
3 lb / 1.4 kg |
Packaging Info
| Package Weight |
5.355 lb |
| Box Dimensions (LxWxH) |
9.95 x 9.35 x 9.25" |
