Description
MuxLab 1x8 4K/60 HDMI Splitter Overview

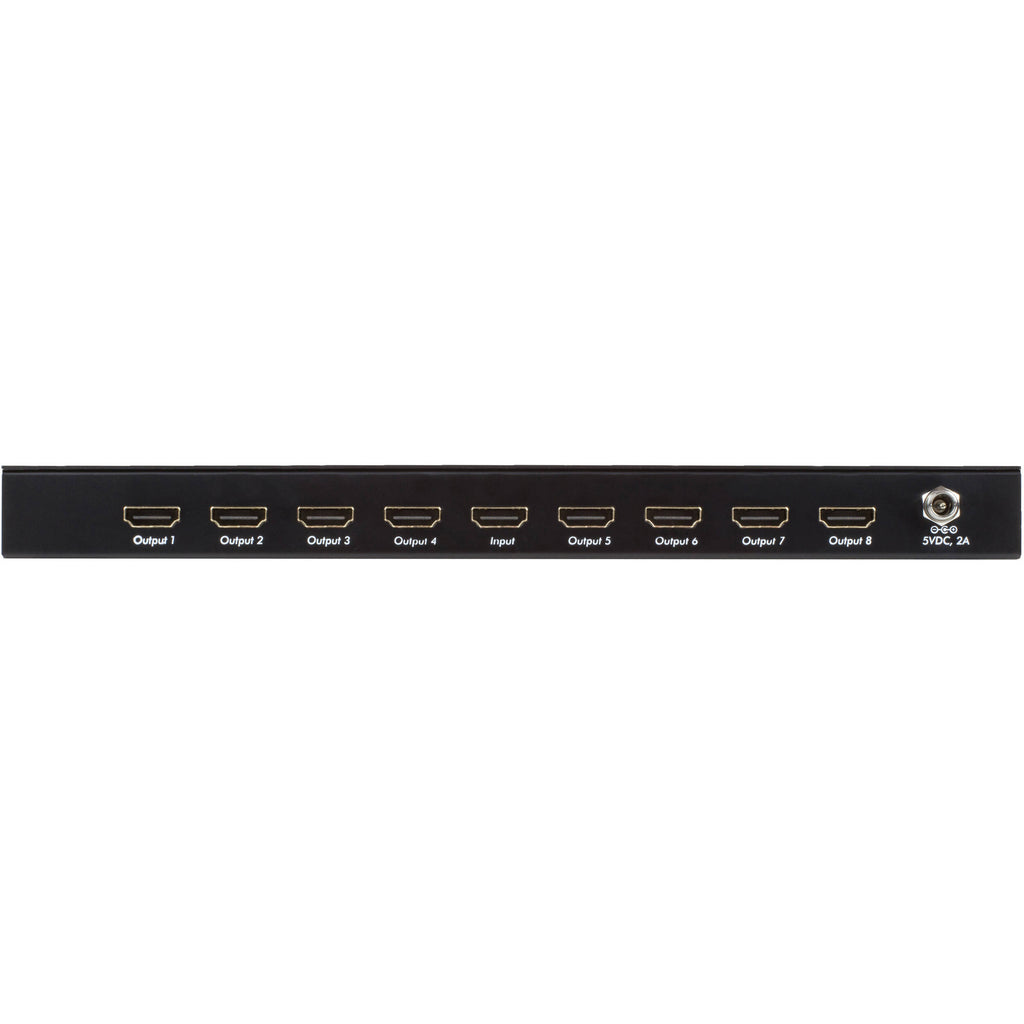

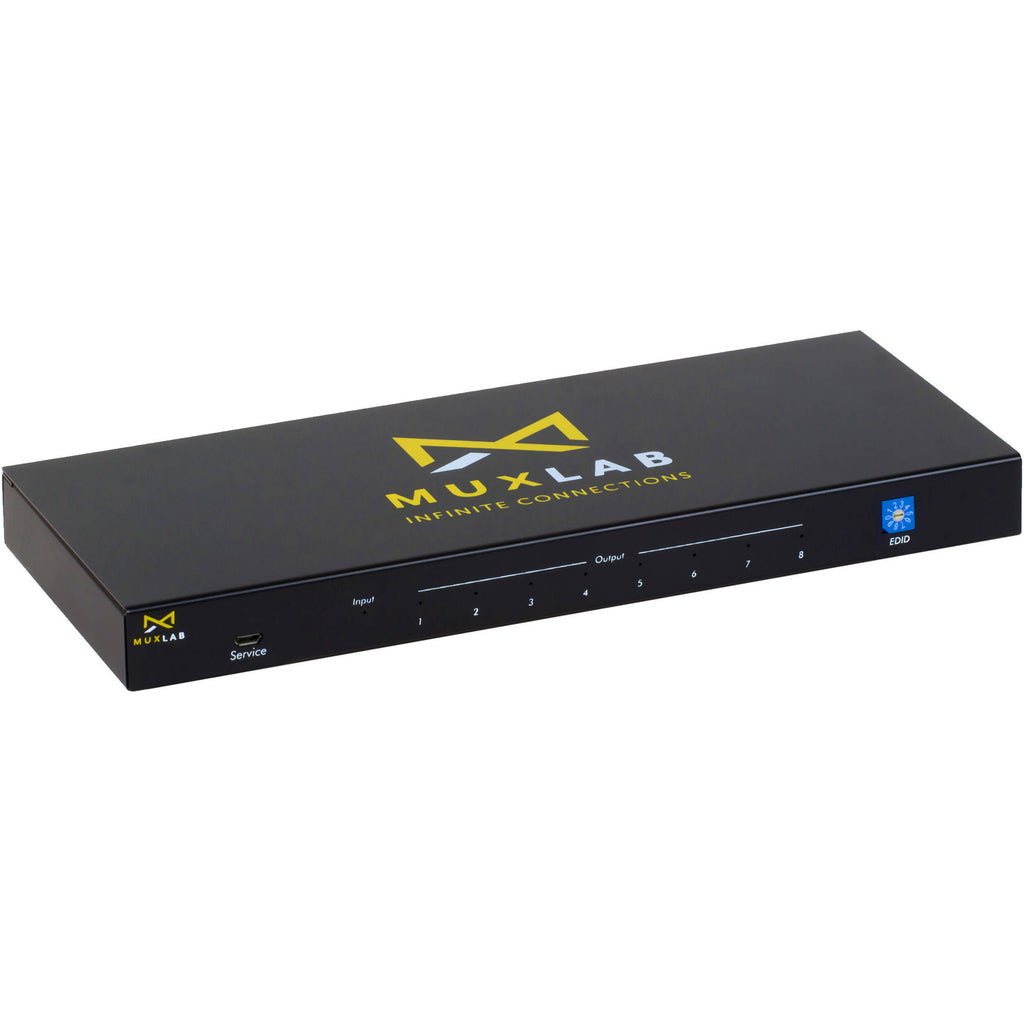

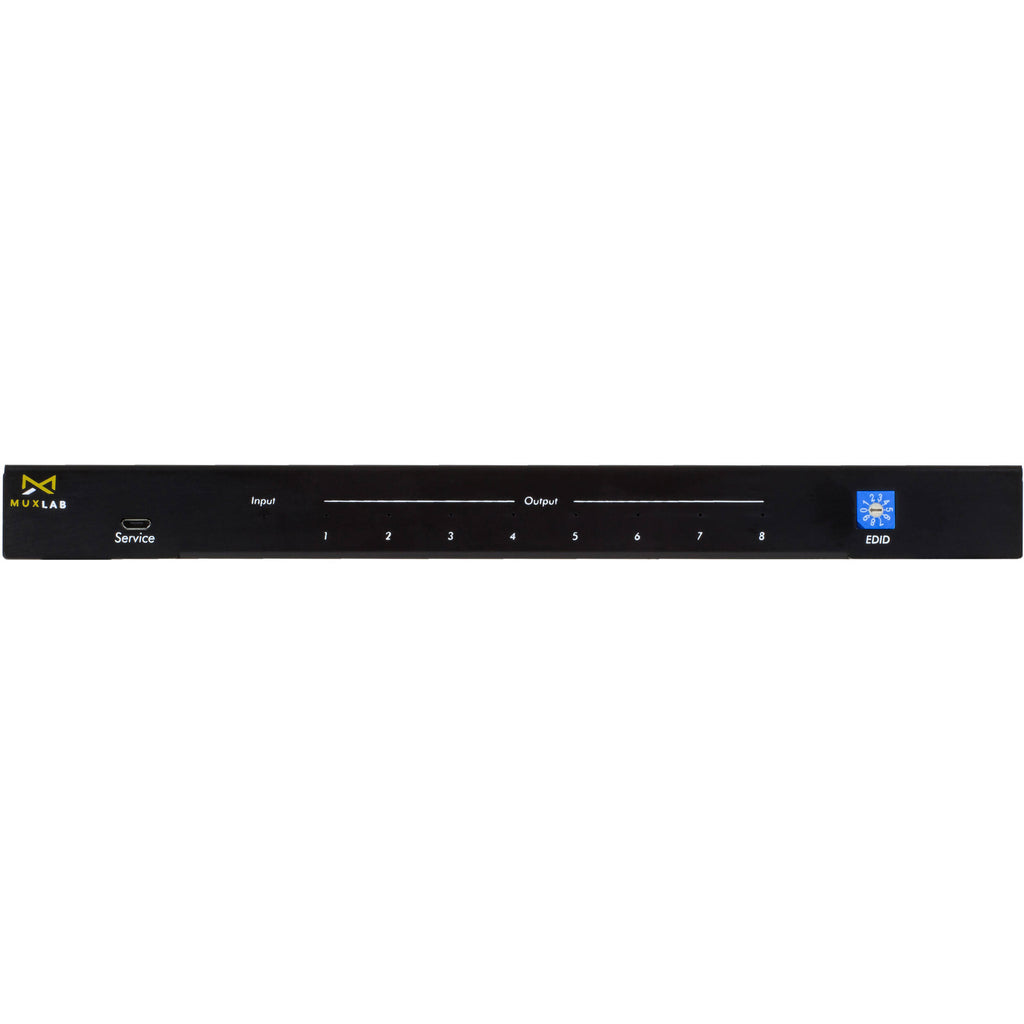

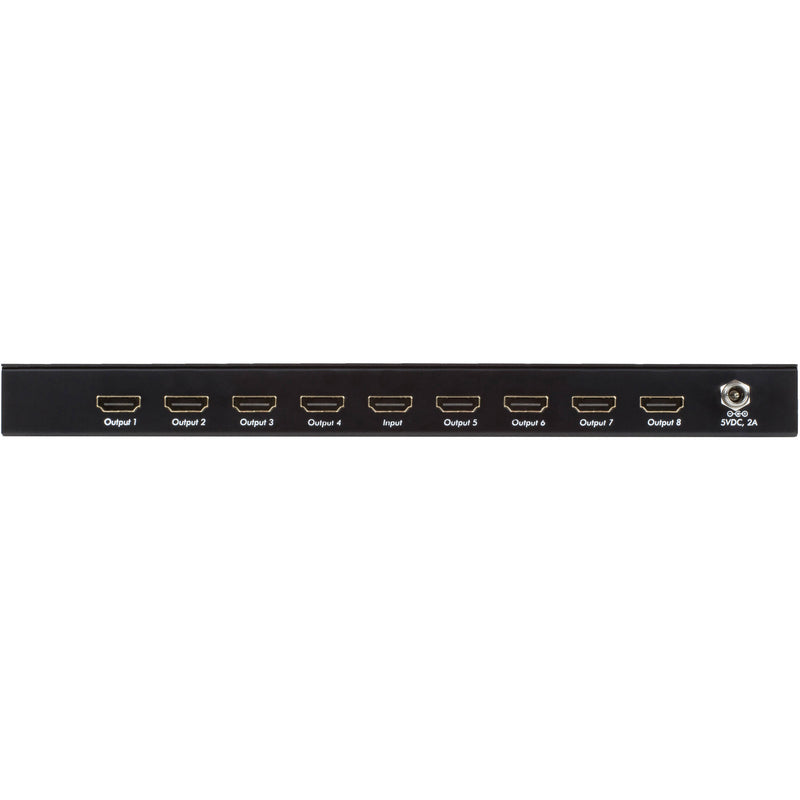

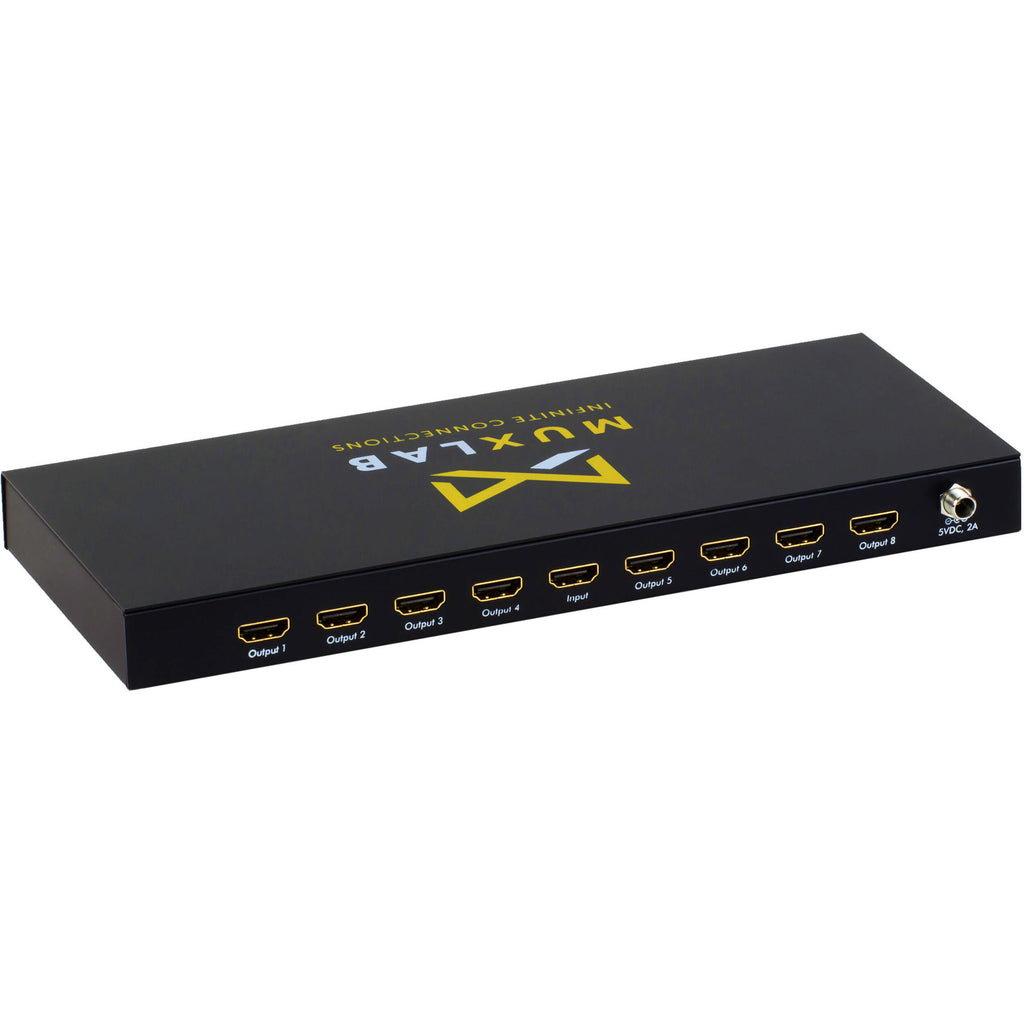

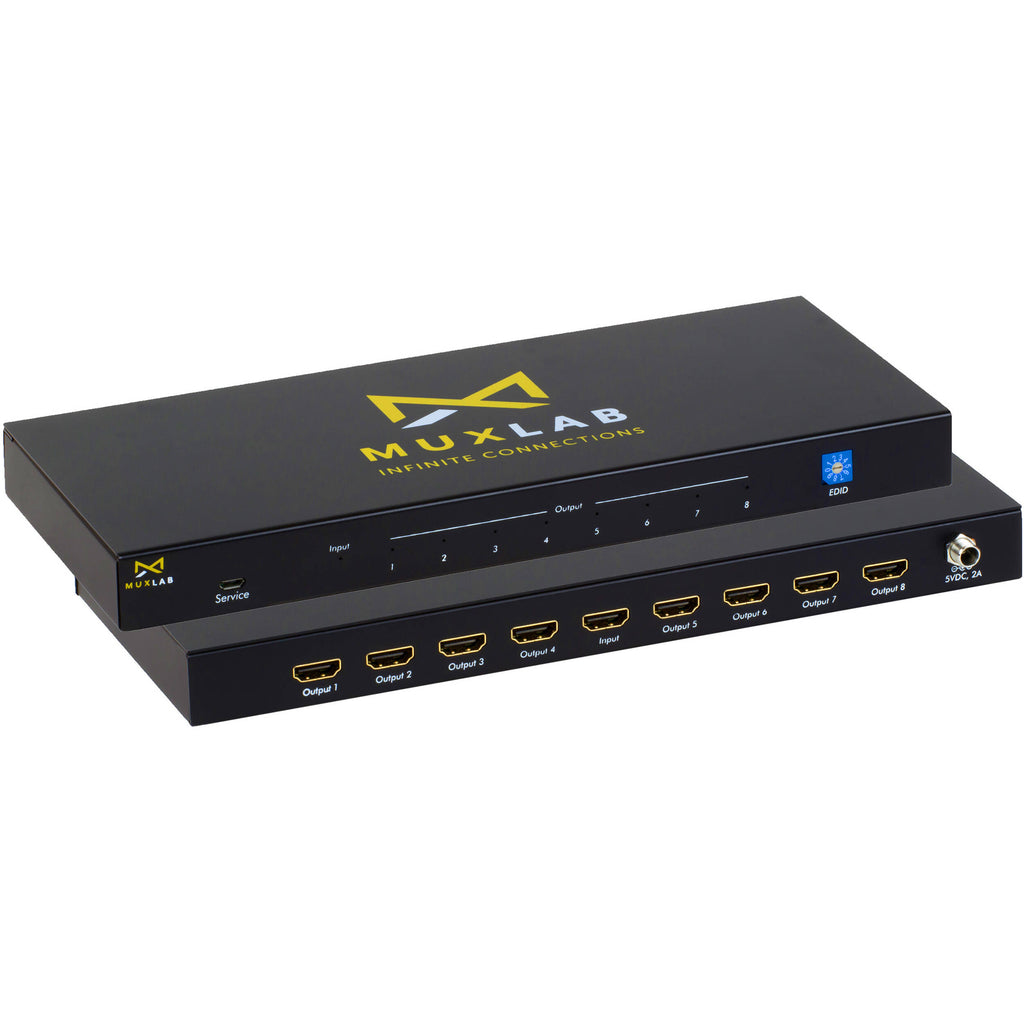

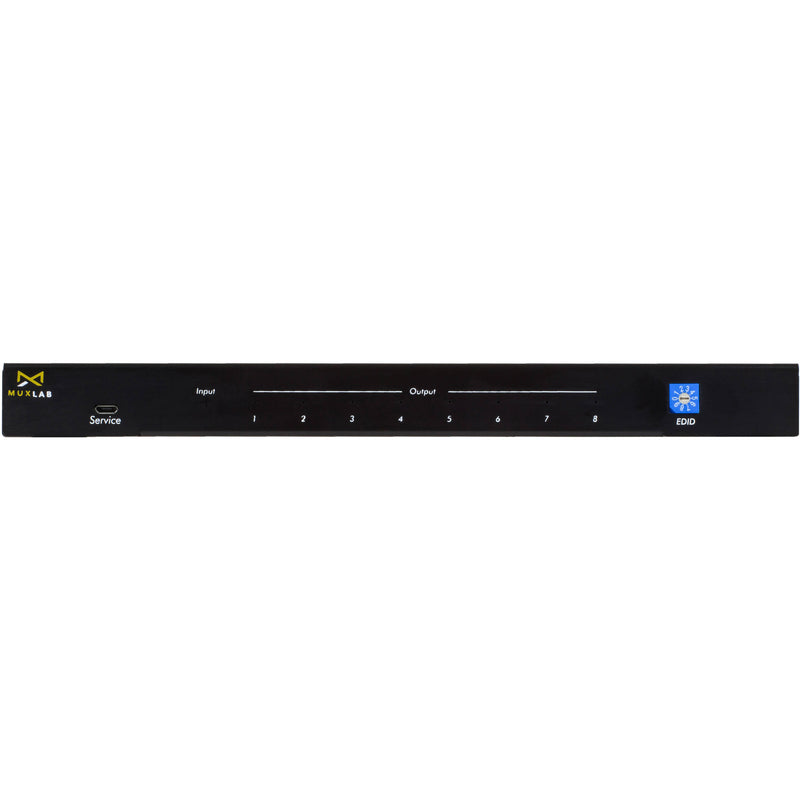

In a simple input/output design, the MuxLab 1 x 8 UHD 4K HDMI Splitter allows you to distribute one HDMI signal to eight HDMI displays. On both input and output, it supports resolutions up to UHD 4K60 4:4:4 along with high-quality embedded audio. All the connectors are on the rear, and corresponding LED indicators are provided on the front.
Key Features
1 x 8 HDMI 2.0a connectors
480i to UHD 4K60 (4:4:4) resolution support
HDCP 1.4 and 2.2 compliant
Dolby Vision, HDR, and Deep Color support
Supports LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X audio
EDID management (rotary switch for setting the EDID to be sent to the source)
18 Gb/s bandwidth
25 to 600 MHz frequency range
Metal enclosure
UPC: 627699505076
In the Box
- MuxLab 1 x 8 UHD 4K HDMI Splitter
- Power Supply
- Limited 1-Year Warranty
MuxLab 1x8 4K/60 HDMI Splitter Specs
Interfaces
| Input Connectors | 1 x HDMI |
| Embedded Audio Input | HDMI |
| Output Connectors | 8 x HDMI |
Standards
| HDR Compatibility | Yes |
| HDCP Support | Yes |
| EDID Support | Yes |
Transmission
| Video Format | HDMI Input (8/10/12-Bit) UHD 4K: 24/25/30/60 fps 1080p: 24/50/60 fps 720p: 50/60 fps HDMI Output (8/10/12-Bit) UHD 4K: 24/25/30/60 fps 1080p: 24/50/60 fps 720p: 50/60 fps |
| Maximum Data Rate | 18 Gb/s |
Power
| Power Connector | 1 x Barrel (5 VDC) Input |
| Power Consumption | 100 to 240 VAC |
| ESD Protection | None |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 90% |
General
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| Material of Construction | Metal |
| Dimensions | 3.9 x 10.6 x 0.9" / 100.0 x 270.0 x 24.0 mm |
| Weight | 2.4 lb / 1.1 kg |
Packaging Info
| Package Weight | 2.445 lb |
| Box Dimensions (LxWxH) | 14.1 x 9.5 x 2.3" |
