Murideo MU-FXHD-KIT-8K Overview

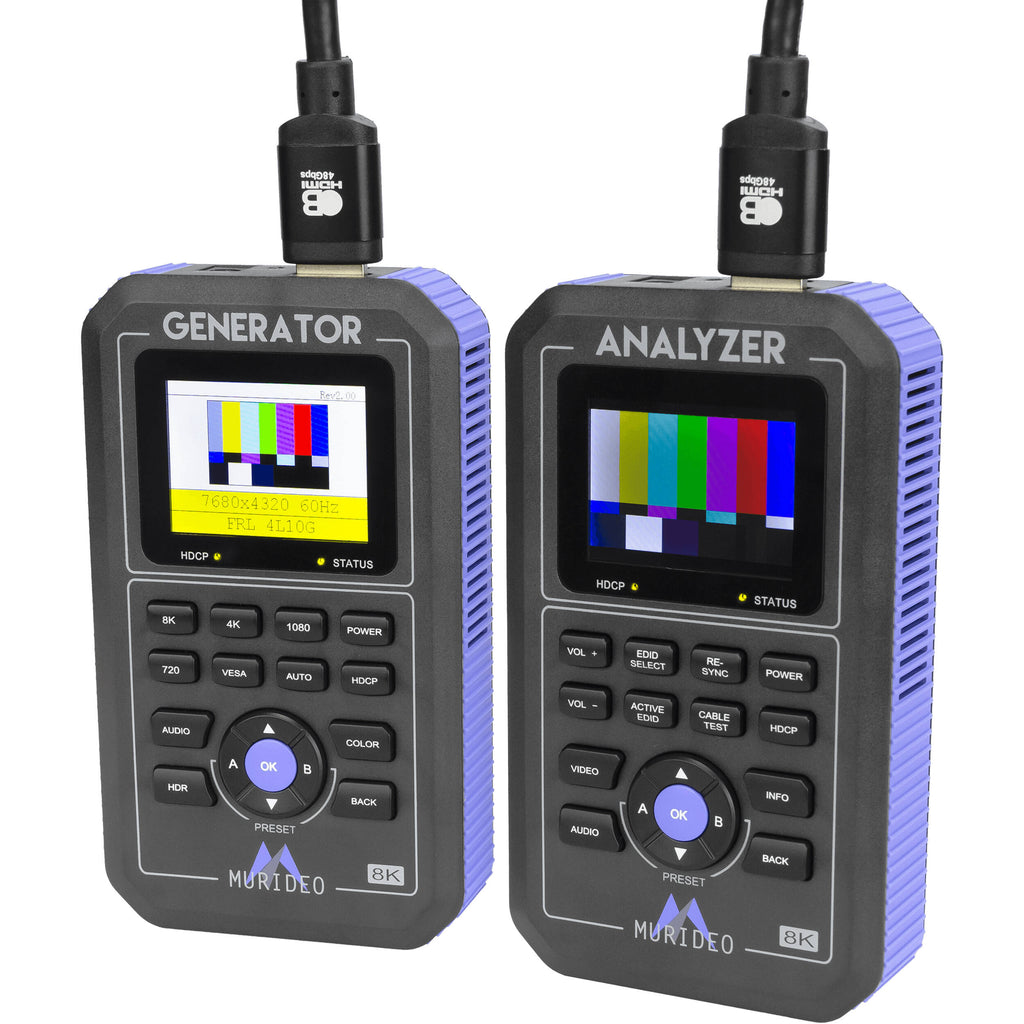

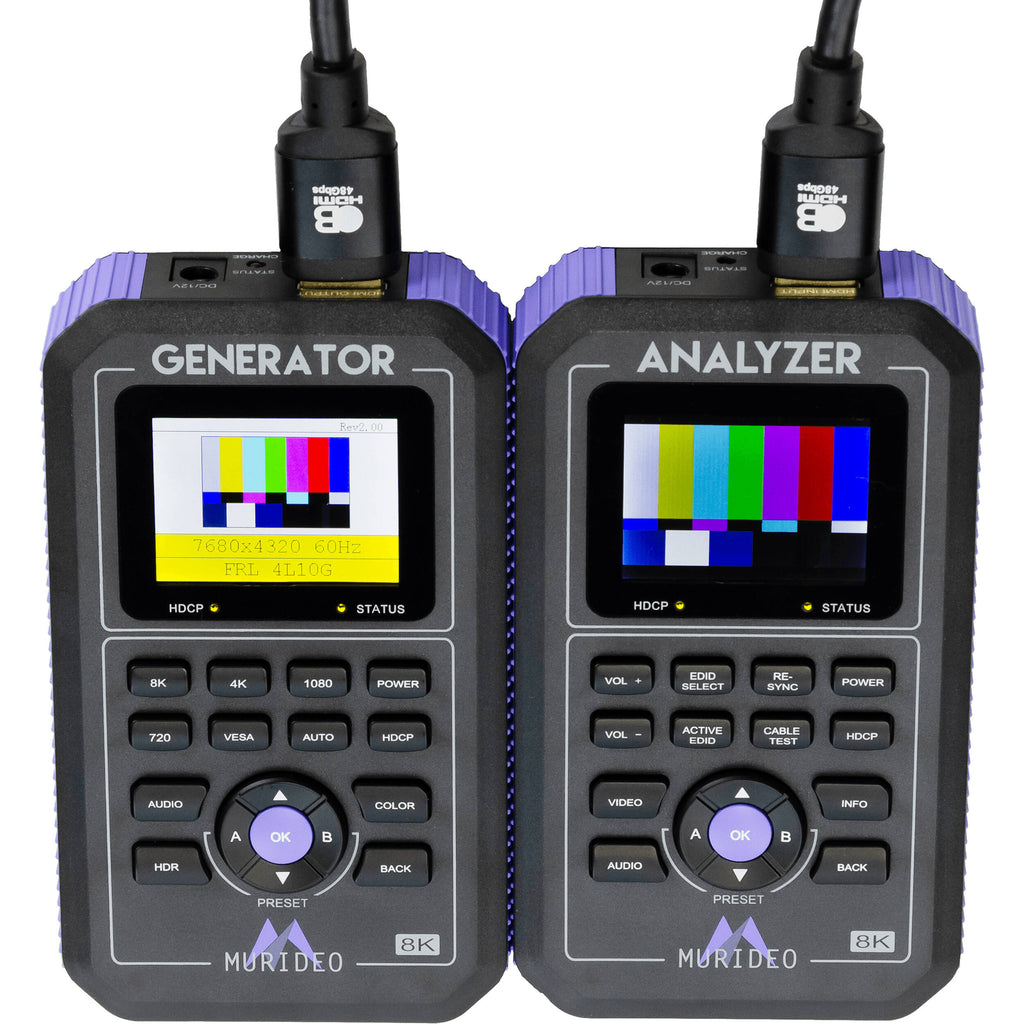

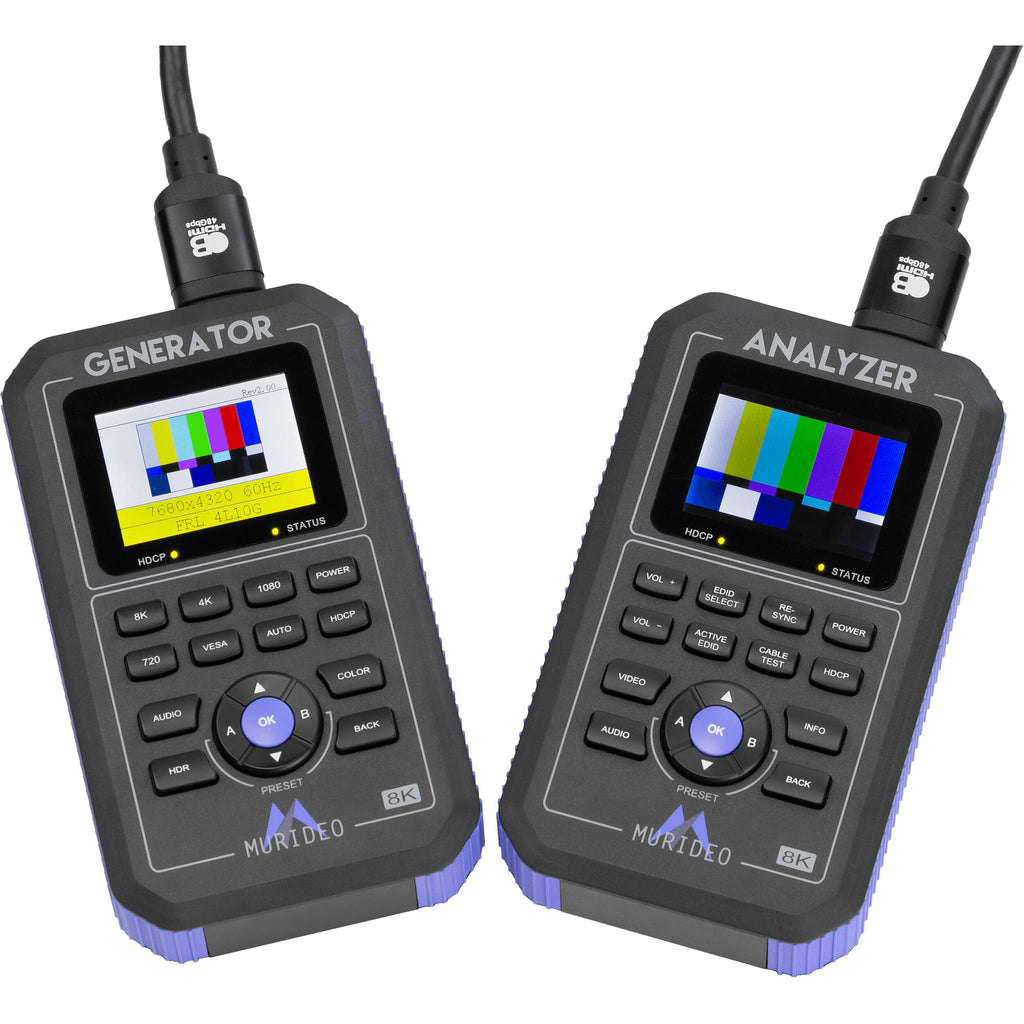

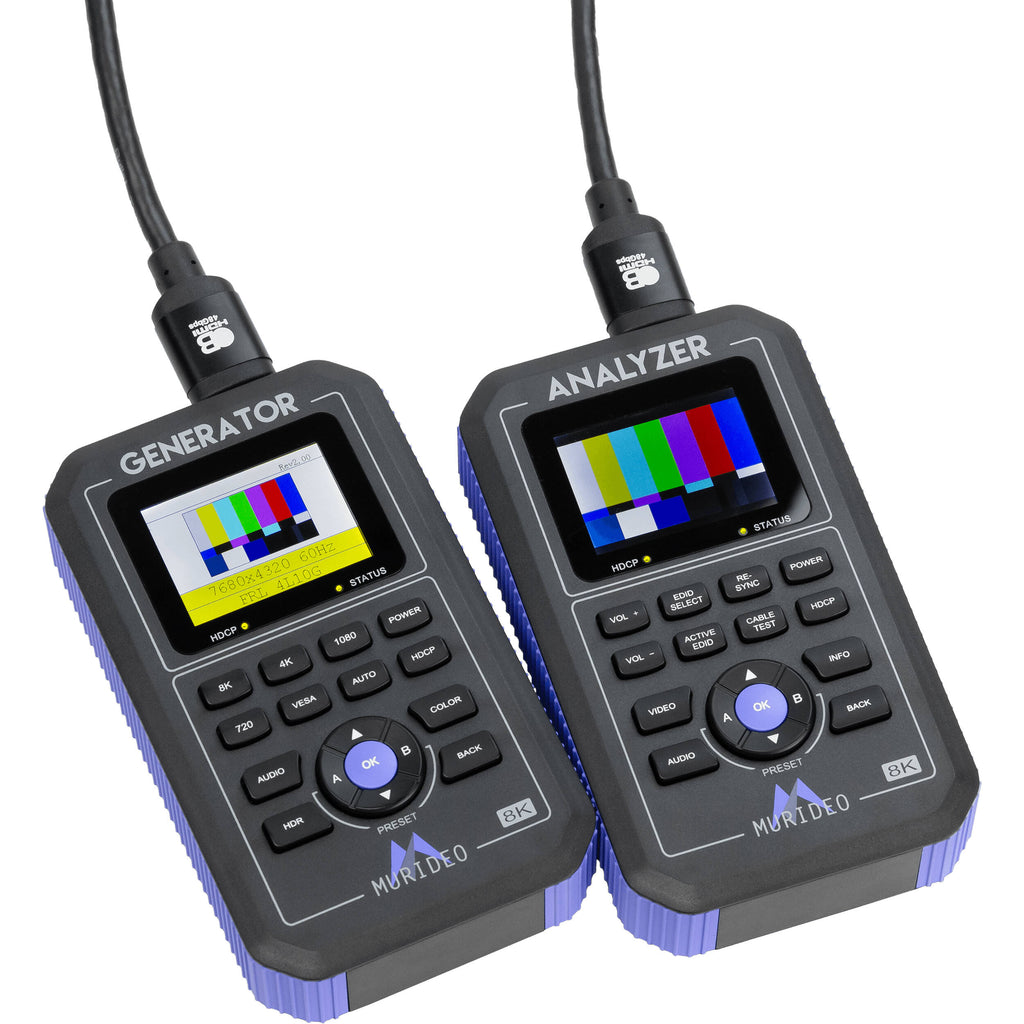

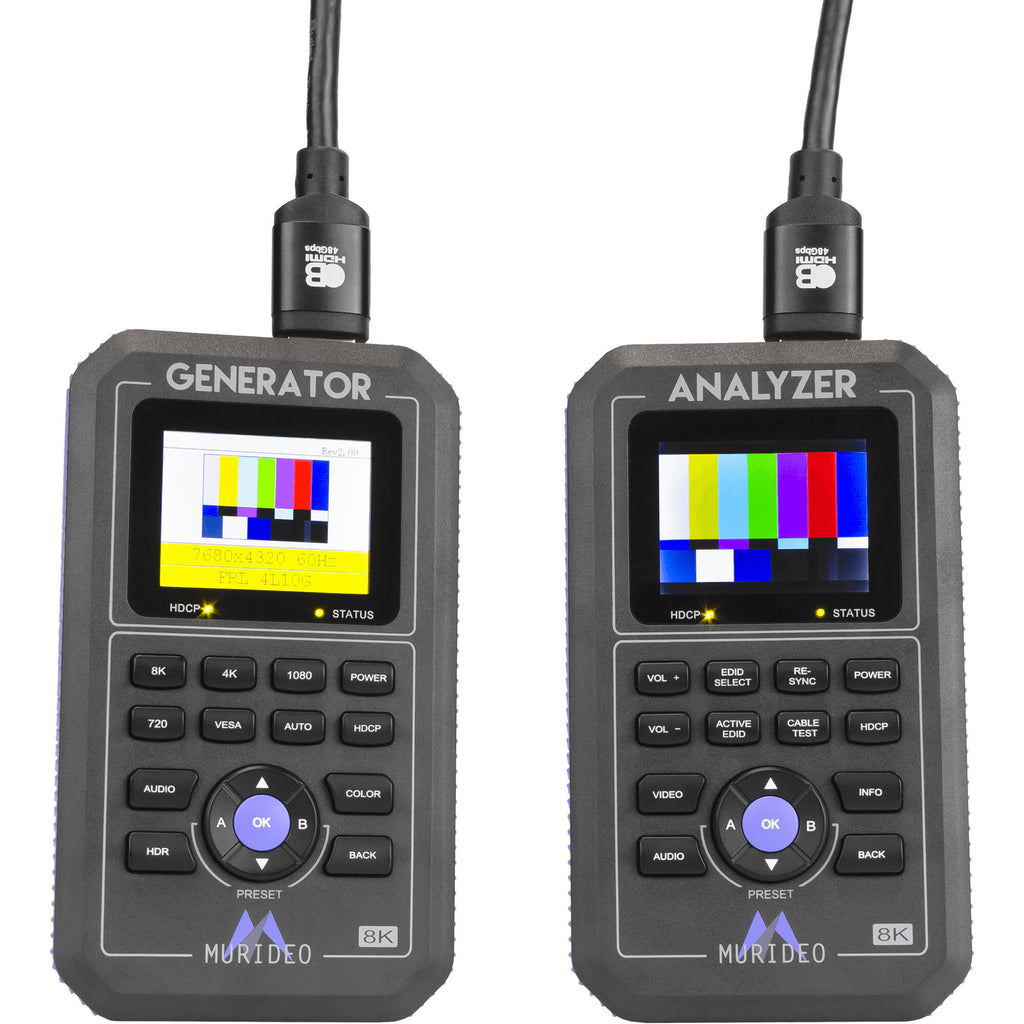

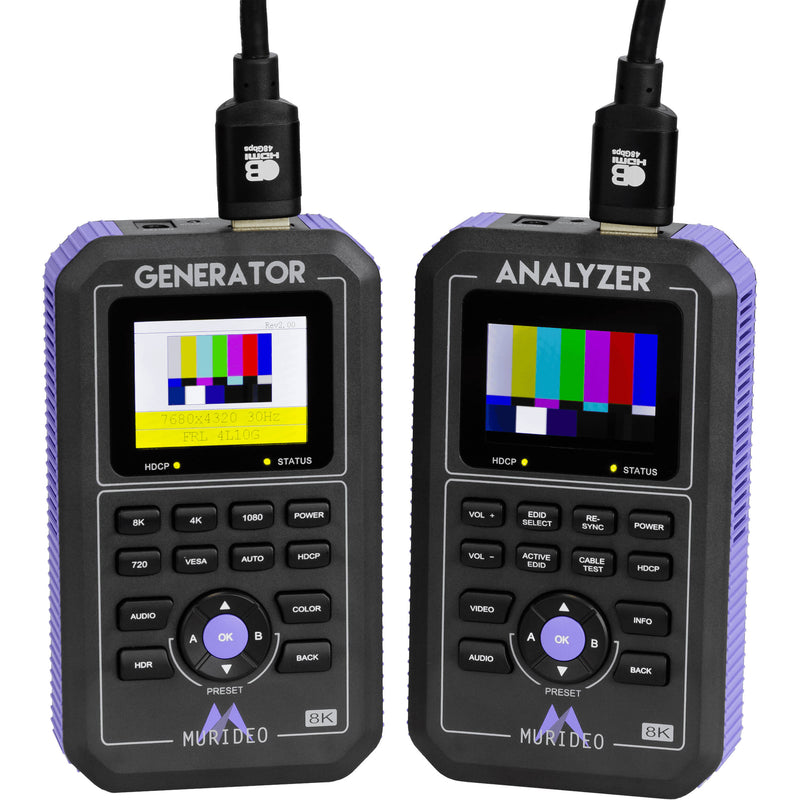

The Fox & Hound 8K HDR HDMI Generator and Analyzer Testing Kit from Murideo is a testing unit for all custom and commercial integrators. The Fox & Hound comes with a 40 Gb/s generator and 40 Gb/s analyzer. These tools allow you to confirm correct bandwidth, HDCP, resolution, timing, HDR metadata, and many more options that could cause system hiccups if not treated correctly.
With devices like 8K displays and sources becoming the norm for all video distribution systems, tons of new video formats are also coming. How are you going to test those new signals? The Fox & Hound: can produce and analyze the newest and highest resolutions, such as 8K with refresh rates up to 120 Hz at 40 Gb/s.
- HDCP selectable: 2.3, 2.2, 1.4, none (confirms if the system will work or not)
- Hot plug detect and HDCP lights
- Portable/battery operated
- EDID read functionality
- Audio confidence tests
- Optimized ergonomics; 2� color display
- RS-232 or USB controllable
- HDMI 2.1
- HDR (high dynamic range) injector and management
- Video bandwidth: 40 Gb/s
- 4K: 10/12/16-bit support
- HDCP 2.3 compatible
- 16-bit per pixel Deep Color depth available (48-bit)
- Battery: 7.4V Li-ion 2600mAh internal rechargeable battery
- DC 5V power
- Analyze any HDMI/DVI signal up to 40 Gb/s
- Test HDMI/DVI cables up to 40 Gb/s
- View up to 40 Gb/s video content and format info anywhere
- Audio confidence tests: 2-channel and multichannel
- Advanced EDID analysis and tools: Read, write, EDID
- Analyze HDR signals and metadata
- HDCP tester: 2.3, 2.2, 1.4, none
- Portable; battery operated
- HDMI 2.1
- HDR (high dynamic range) metadata info frame reading and management
- Video bandwidth: 40 Gb/s
- 10/12/16-bit support
- HDCP 2.3 compatible
- 16-bit per pixel Deep Color depth available (48-bit)
- Battery: 7.4V Li-ion 2600mAh internal rechargeable battery
- DC 5V power
In the Box
- Murideo Fox & Hound 8K HDR HDMI Generator and Analyzer Testing Kit
- Fox Generator
- Hound Analyzer
- 2 x 12 VDC, 2A Power Supply
- 2 x Micro-USB Type-B Cable
- 2 x HDMI Cable
- Hard Case
Murideo MU-FXHD-KIT-8K Specs
Display
| Panel Type |
LCD |
| Size |
3" |
| Touchscreen |
No |
Inputs / Outputs
| USB I/O |
2 x Micro-USB Female Input |
| Video I/O |
1 x HDMI Input
1 x HDMI Output |
Power
| Power Source |
AC Adapter with Power Brick (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| DC Input Power |
5 VDC |
| Power Consumption |
7.5 W (Maximum) |
Environmental
| Operating Temperature |
23 to 125°F / -5 to 51°C |
| Operating Humidity |
5 to 90% (Non-Condensing) |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
Physical
| Dimensions |
5.3 x 3.1 x 1.19" / 135 x 78.4 x 30.25 mm |
| Weight |
9.2 oz / 260 g |
Packaging Info
| Package Weight |
6.3 lb |
| Box Dimensions (LxWxH) |
12 x 11 x 5" |
