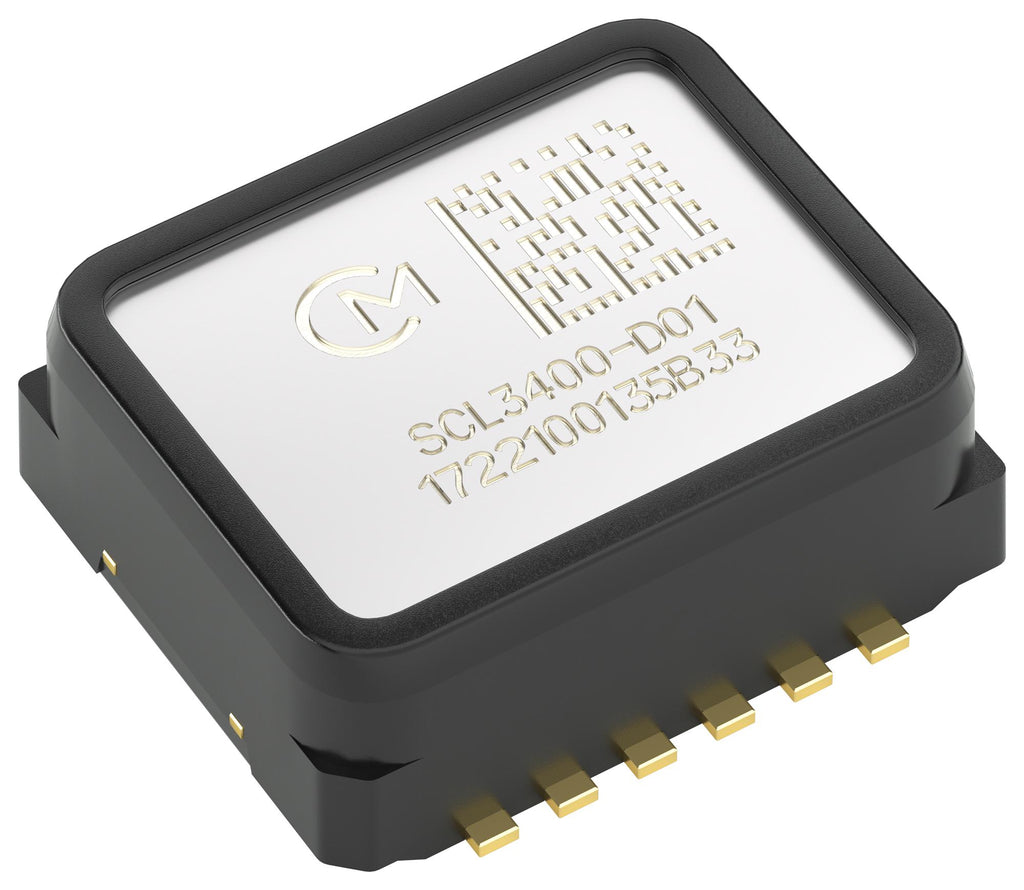

SCL3400-D01 t is a two-axis digital inclinometer sensor based on Murata's proven capacitive 3D-MEMS technology. Signal processing is done in a mixed signal ASIC with flexible SPI digital interface. Sensor element and ASIC are packaged into 12 pin pre-moulded plastic housing that guarantees reliable operation over product's lifetime. The SCL3400-D01 is designed, manufactured and tested for high stability, reliability and quality requirements. The component has extremely stable output over wide range of temperature and vibration. Typical applications include levelling, tilt sensing, structural health monitoring, inertial measurement units (IMUs) and positioning and guidance systems.
- User selectable measurement modes: ±30° with 10Hz LPF, ±90° with 40Hz LPF
- Resolution up to 32768 LSB/g
- Operating temperature range -40°C to +85°C
- Supply voltage range from 3V to 3.6V
- Ultra-low 0.0009°/�Hz noise density
- Offset drift over lifetime typical <= 0.05°
- Size 8.6 x 7.6 x 3.3mm (L x W x H)
Other details
| Brand |
MURATA |
| Part Number |
SCL3400-D01 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
