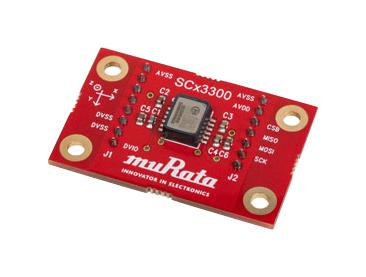

SCL3300-D01-PCB is a sensor board for SCL3300-D01 3-axis inclinometer with angle output and digital SPI interface. The SCL3300-D01 is a high performance inclinometer sensor component. It is a three-axis inclinometer sensor with angle output based on Murata's proven capacitive 3D-MEMS technology. Signal processing is done in a mixed signal ASIC with flexible SPI digital interface. Sensor element and ASIC are packaged into 12 pin pre-moulded plastic housing that guarantees reliable operation over product's lifetime.
- 3-axis (XYZ) inclinometer
- User selectable measurement modes: 3000LSB/g, 6000LSB/g, 12000LSB/g with 70Hz, 40Hz, 10Hz LPF
- Angle output resolution 0.0055°/LSB
- Operating temperature range from -40°C to +125°C
- Supply voltage range from 3.0V to 3.6V
- SPI digital interface
- Ultra-low 0.001°/â��Hz noise density
- Excellent offset stability
Product details
| Kit Application Type:
Sensor
|
| Silicon Manufacturer:
Murata
|
| Silicon Core Number:
SCL3300-D01
|
| Application Sub Type:
3-Axis MEMS Inclinometer
|
| Kit Contents:
Sensor Board SCL3300-D01
|
| Product Range:
-
|
Other details
| Brand |
MURATA |
| Part Number |
SCL3300-D01-PCB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
