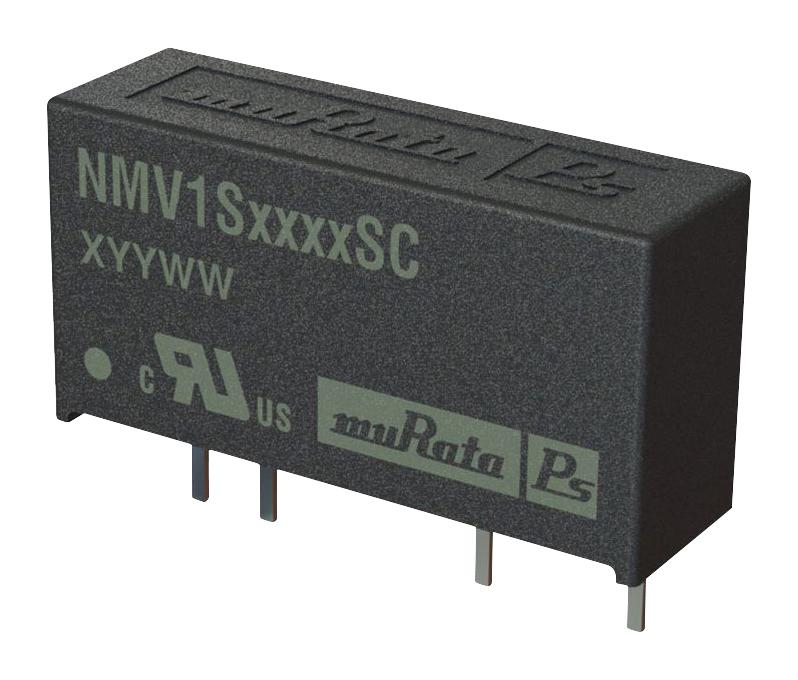

NMV1S0505SC is a NMV1 series 3kVDC isolated 1W single output DC-DC converter in SIP package. It is a standard building block for on-board distributed power systems. Ideally suited for providing supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise.
- Nominal voltage is 5VDC
- Output voltage is 5VDC, maximum output current is 200mA
- Efficiency (type) is 72%, switching frequency is 120KHz
- �UL62368-1 recognised
- MTTF up to 4.2 million hours
- Operation up to 115°C (with derating)
- Industry standard pinout
- Internal SMD construction
- No external components required, no electrolytic or tantalum capacitors
- Pin compatible with MEV1, MEV3, NMK & NMV series
Product details
| Power Supply Applications:
ITE
|
| Input Ratio:
-
|
| Output Power Max:
1W
|
| No. of Outputs:
1 Output
|
| Output Voltage - Output 1:
5VDC
|
| Output Current - Output 1:
200mA
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Regulation:
-
|
| Isolation Voltage:
3kV
|
| DC / DC Converter Type:
SIP
|
| Input Voltage DC Nom:
5V
|
| DC / DC Converter Output Type:
Fixed
|
| Width:
6mm
|
| Height:
10mm
|
| Depth:
19.5mm
|
| Input Voltage DC Min:
4.5VDC
|
| Input Voltage DC Max:
5.5VDC
|
| Product Range:
NMV1 Series
|
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
NMV1S0505SC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
