Description

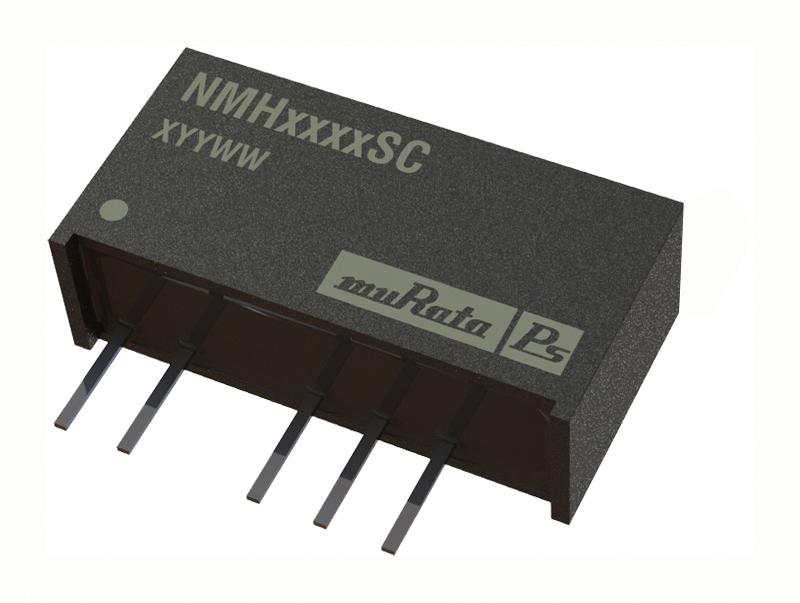

The NMH1212SC is a 2-output 2W board-mount isolated DC/DC Converter for on-board point-of-use power systems. It is ideally suited for providing dual rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. The rated power may be drawn from a single pin provided the total load does not exceed 2W. Pin compatibility with the NMA 1W series ensures minimal effort in upgrading distributed power systems.
- No heat sink required
- Industry standard pin-out
- Power sharing on output
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- No external components required
- No electrolytic or tantalum capacitors
- 1kVDC Isolation
- Power density op to 1.44W/cm³
- Footprint from 1.46cm²
- 84% Efficiency
- 63pF Isolation capacitance
Applications
Power Management, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| Input Ratio: 1:1 |
| Output Power Max: 2W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 83mA |
| Output Voltage - Output 2: -12V |
| Output Current - Output 2: 83mA |
| Output Regulation: Unregulated |
| Isolation Voltage: 1kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 12V |
| DC / DC Converter Output Type: Fixed |

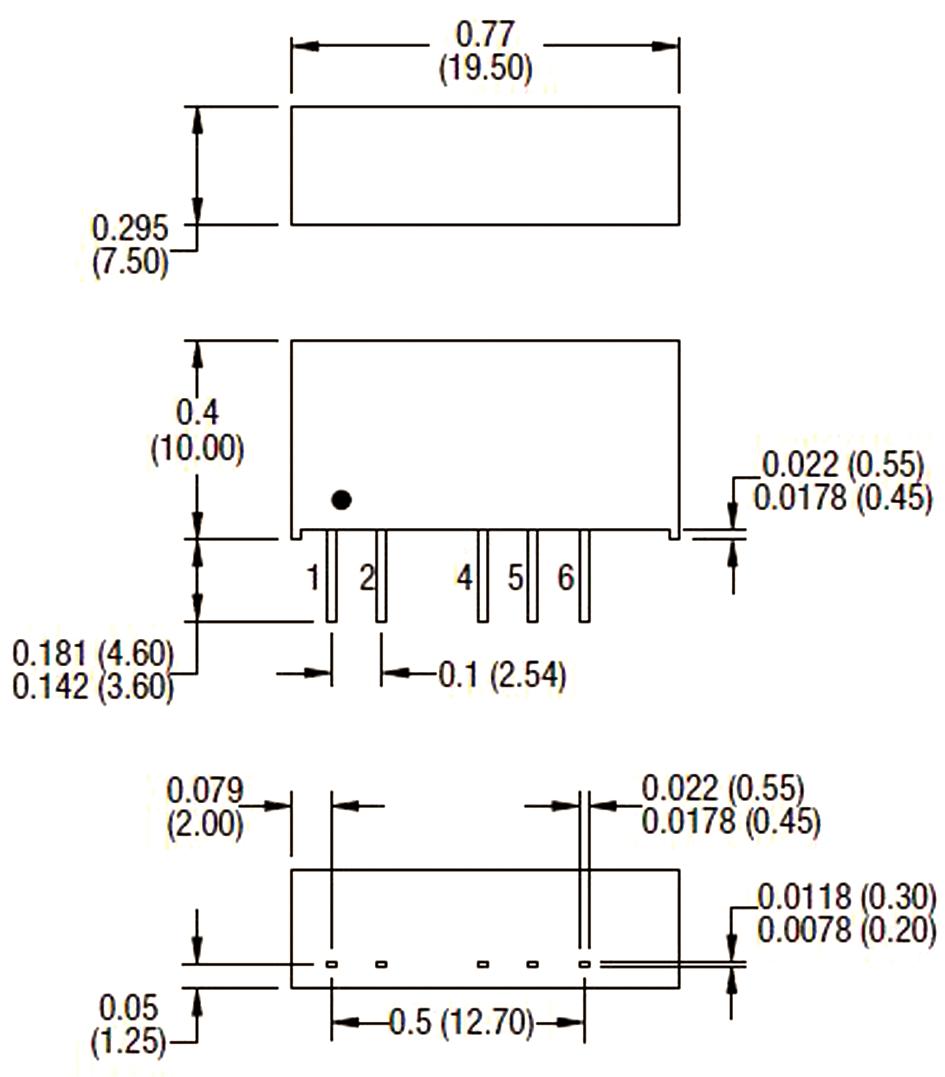

| Width: 7.5mm |
| Height: 10mm |
| Depth: 19.5mm |
| Input Voltage DC Min: 10.8V |
| Input Voltage DC Max: 13.2V |
| Product Range: NMH Series |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NMH1212SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
