Description

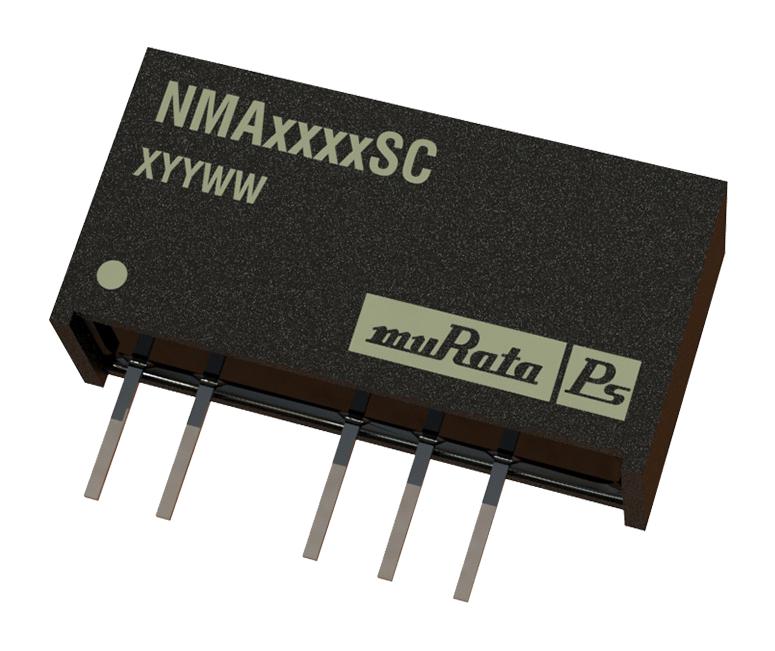

The NMA1215SC is a 2-output 1W board-mount isolated DC/DC Converter with the standard building blocks for on-board distributed power systems. It is ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of the rated power may be drawn from a single pin provided the total load does not exceed 1W.
- Dual output from a single input rail
- No heat sink required
- Industry standard pin-out
- Power sharing on output
- Fully encapsulated with toroidal magnetics
- No external components required
- No electrolytic or tantalum capacitors
- 76% Efficiency
- 54pF Isolation capacitance
Applications
Power Management, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| Input Ratio: 1:1 |
| Output Power Max: 1W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 33mA |
| Output Voltage - Output 2: -15V |
| Output Current - Output 2: 33mA |
| Output Regulation: Unregulated |
| Isolation Voltage: 1kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 12V |
| DC / DC Converter Output Type: Fixed |
| Width: 6mm |
| Height: 10mm |
| Depth: 19.5mm |
| Input Voltage DC Min: 10.8V |
| Input Voltage DC Max: 13.2V |
| Product Range: NMA Series |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NMA1215SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
