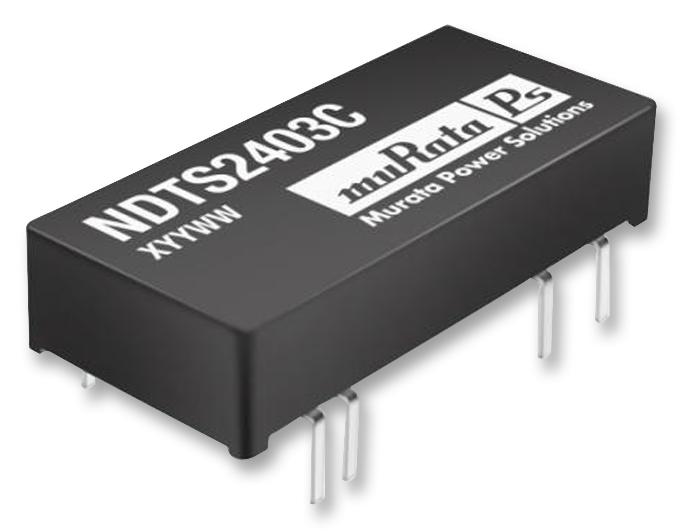

The NDTD2412C is a 2-output 3W board-mount isolated DC/DC Converter offering 2:1 input voltage range. The device delivers 3W output power up to 85?C without heat-sinking. A fly-back oscillator design with isolated feed-back is used to give regulation over the full operating range of 25 to 100% of full load. It is strongly recommended that external capacitors be used on input and output to guarantee performance over full load and input voltage range.
- Industry standard foot-print
- Dual isolated output
- Short-circuit protection
- No heat-sink required
- Internal SMD construction
- Fully encapsulated
- Power density 0.9W/cm?
- 82% Minimum efficiency
- 35pF Isolation capacitance
Applications
Power Management, Industrial
Product details
| Power Supply Approvals |
ITE |
| No. of Outputs |
2 Output |
| Output Power Max |
3W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
125mA |
| Output Voltage - Output 2 |
-12V |
| Output Current - Output 2 |
125mA |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Product Range |
NDTD Series |
| Input Voltage DC Min |
18V |
| Input Voltage DC Max |
36V |
| DC / DC Converter Output Type |
Fixed |
| DC / DC Converter Type |
DIP |
| DC / DC Converter Mounting |
Through Hole |

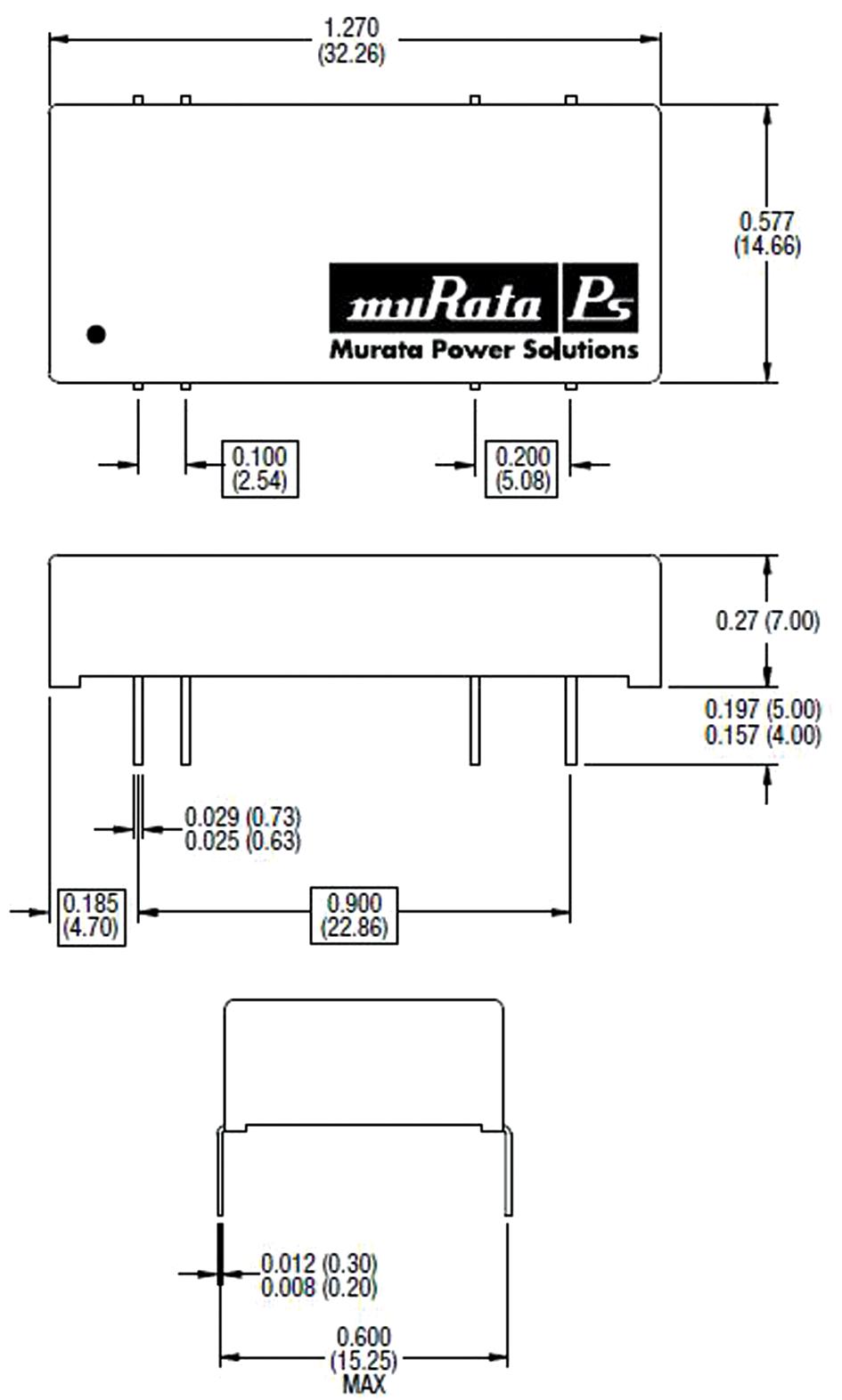

| Width |
14.66mm |
| Height |
7mm |
| Depth |
32.26mm |
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
NDTD2412C |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| 3D Product Image EN |
|
