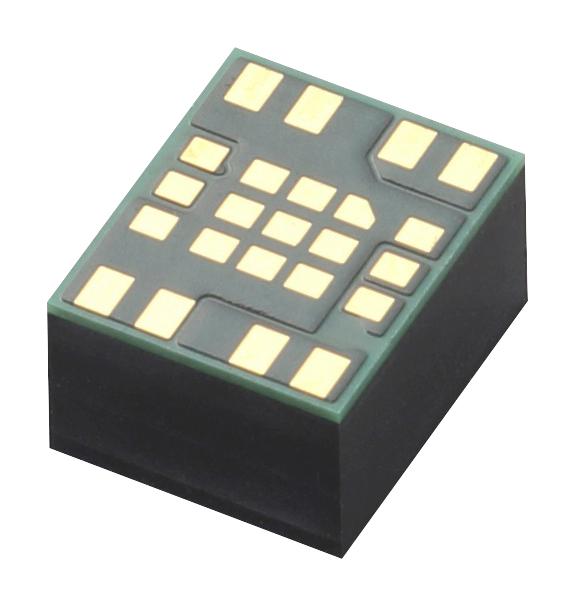

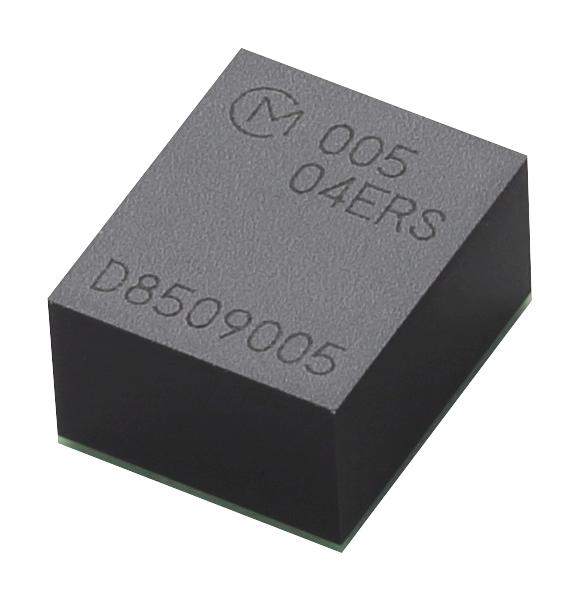

Miniature Mono Block type non-isolated Point-of-Load (PoL) DC-DC power converters for embedded applications.
- Up to 4A of output current and 6A peak output current
- Quick response to load change
- Ultra small surface mount package
- High efficiency of 96%
- Outstanding thermal derating performance
- Under voltage lock out (UVLO), output short circuit and over-current protection
- On/off control (positive logic)
- Power good signal
- High reliability /heat shock testing 700cycle (-40 to +125°C)
- Meets CISPR 22 class B conducted emission
Footnotes Compatible Enpirion P/N: EN2340QI, EN2342QI. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
MYMGK00504ERSR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
