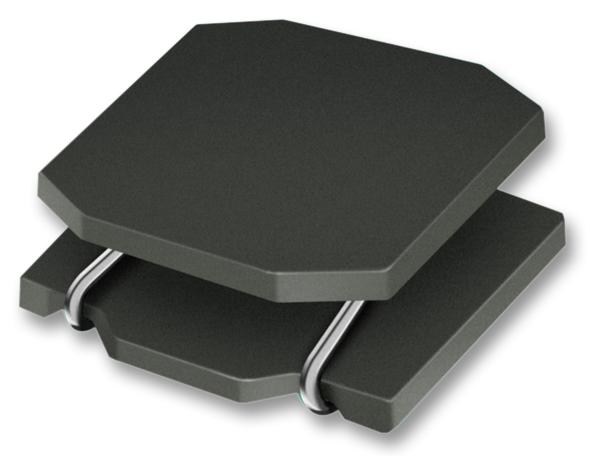

This is a LQH5BPH2R7NT0L High Frequency Inductor , 2.7 µH, LQH5BPH_T0 Series, 2.5 A, 2020 [5050 Metric], Wirewound, 0.042 ohm New product from MURATA with the model number LQH5BPH2R7NT0L
Product details
| Inductance |
2.7µH |
| Product Range |
LQH5BPH_T0 Series |
| DC Current Rating |
2.5A |
| High Frequency Inductor Case |
2020 [5050 Metric] |
| Inductor Construction |
Wirewound |
| DC Resistance Max |
0.042ohm |
| Inductance Tolerance |
± 30% |
| Self Resonant Frequency Min |
50MHz |
Other details
| Brand |
MURATA |
| Part Number |
LQH5BPH2R7NT0L |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
